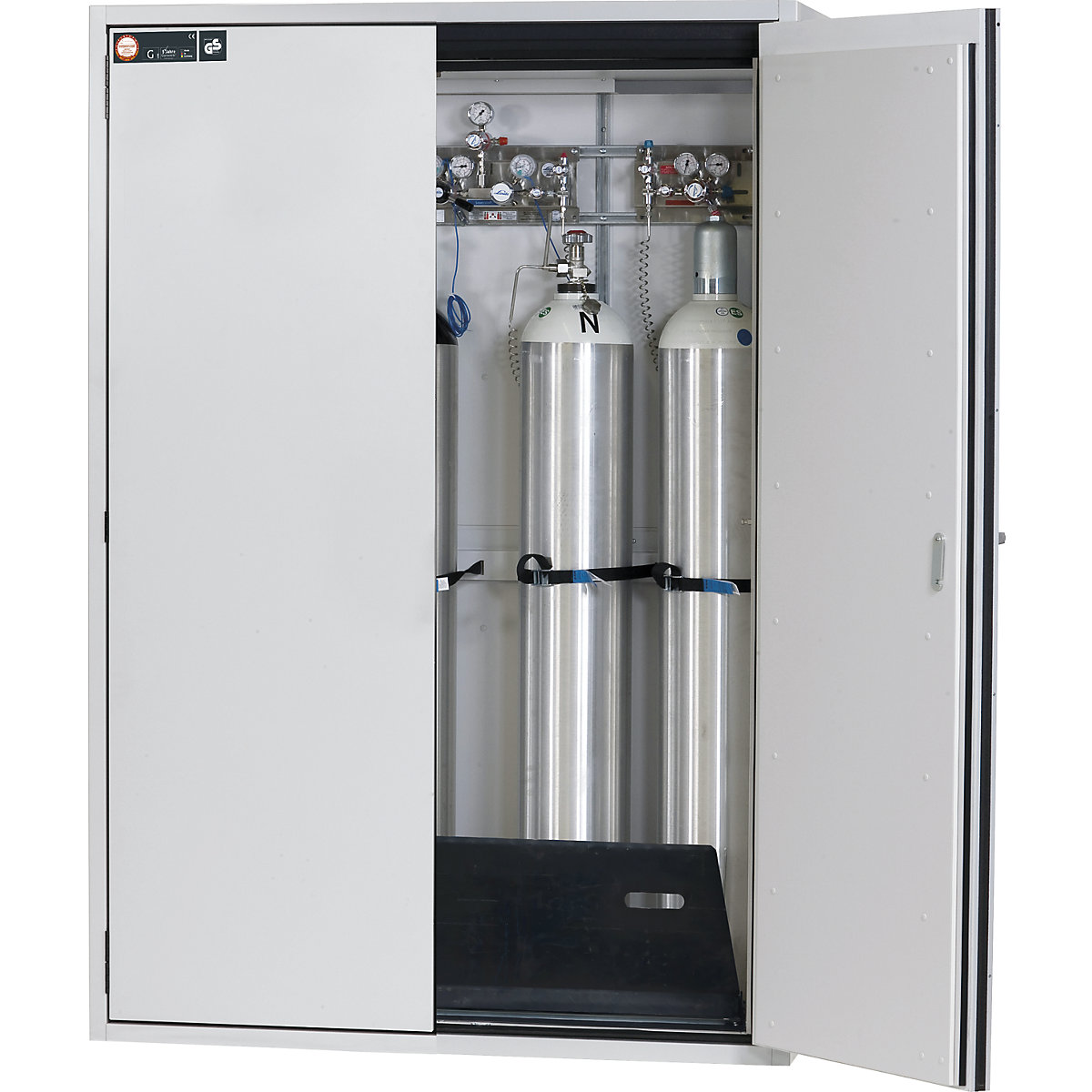

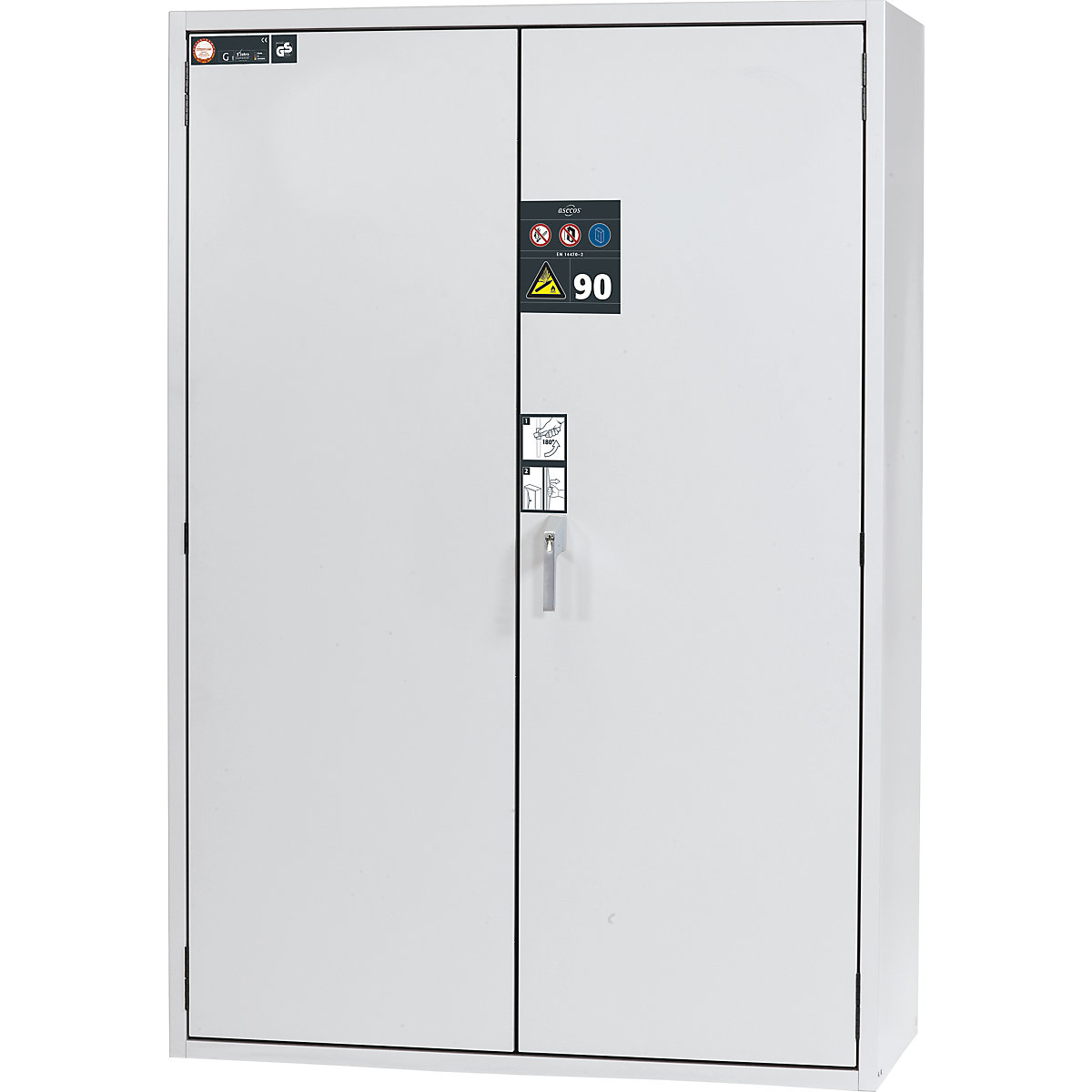

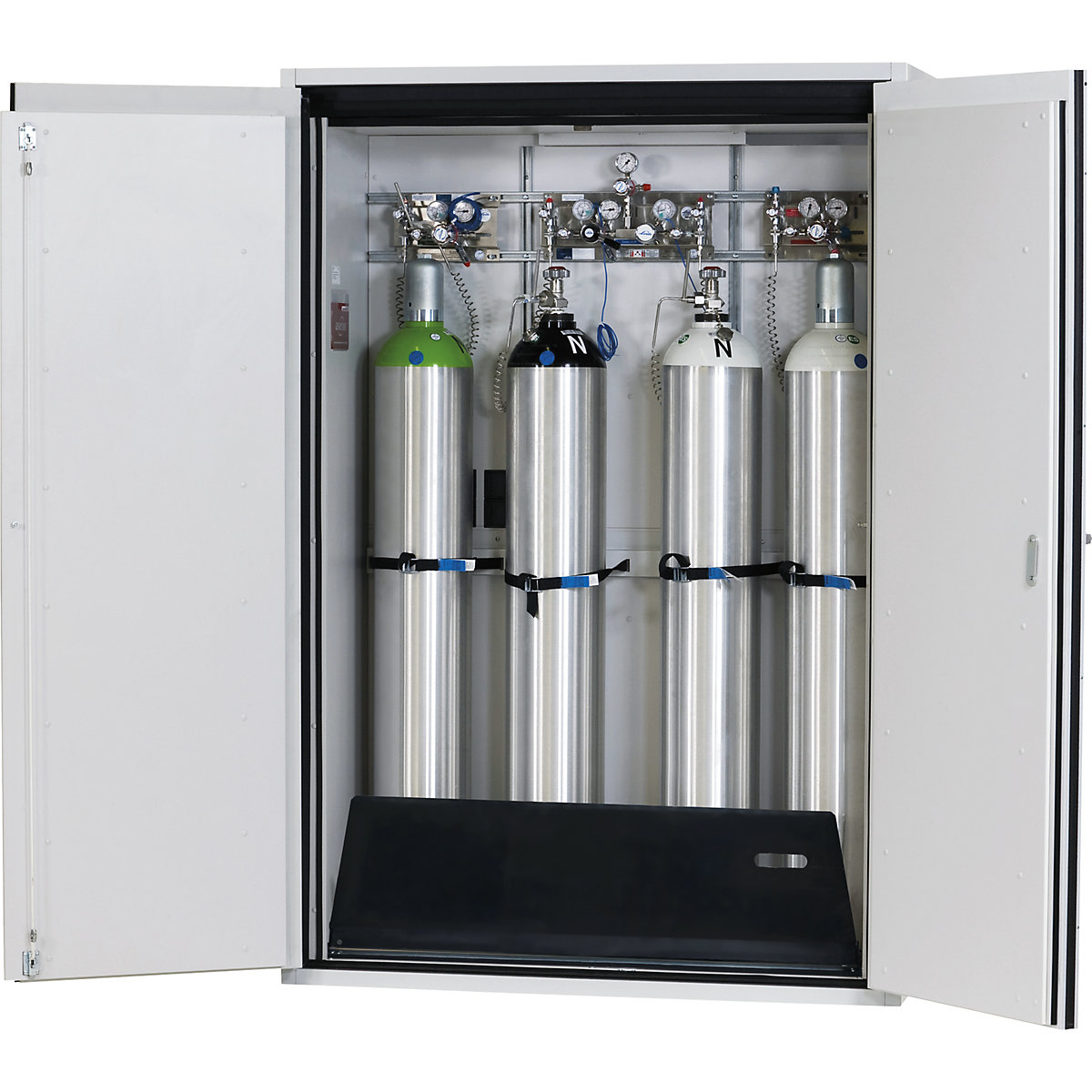

G90 fire-resistant pressurised gas cylinder cupboard – asecos for storage in workrooms

The fire resistant G90 pressurised gas cylinder cupboard made by asecos allows flammable and toxic pressurised gas cylinders to be stored in workrooms in accordance with EN 14470-2 and TRGS 510 (Annex 3). With a fire resistance of 90 minutes, type tested, GS tested and CE compliant, this cupboard fulfils the highest safety standards. It is perfect for storing 50 l pressurised gas cylinders.

The outer body is made of robust, powder coated sheet steel and provides long term protection and stability. The lockable door with a profile cylinder ensures additional security and is compatible with locking systems. The cupboard is particularly easy to set up using the integrated levelling feet, which can compensate for uneven flooring. In addition, the large internal height and the extensive access openings in the top of the cupboard make it easy to install fittings and pipework. The integrated ventilation system, which can be connected to a forced ventilation system (NW 75), ensures that the interior is uniformly ventilated from floor to ceiling. As an option, the cupboard can be fitted with a high quality F90 glass section which makes it easy to check the fill level and pressure of the gas cylinders.

Tested and certified, the asecos G90 pressurised gas cylinder cupboard provides a high level of safety and functionality for daily use in working environments where flammable or toxic pressurised gases are used in workrooms.

Standard interior pressurised gas cylinder fittings for installation on the side wall, consisting of:
– Mounting rails
– Cylinder holder
– Strap retractor

Certificates:
– Fireproof for 90 minutes
– Tested model in accordance with EN 14470-2
– Compliant with EN 16121/16122
– GS certified
– Compliant with CE
