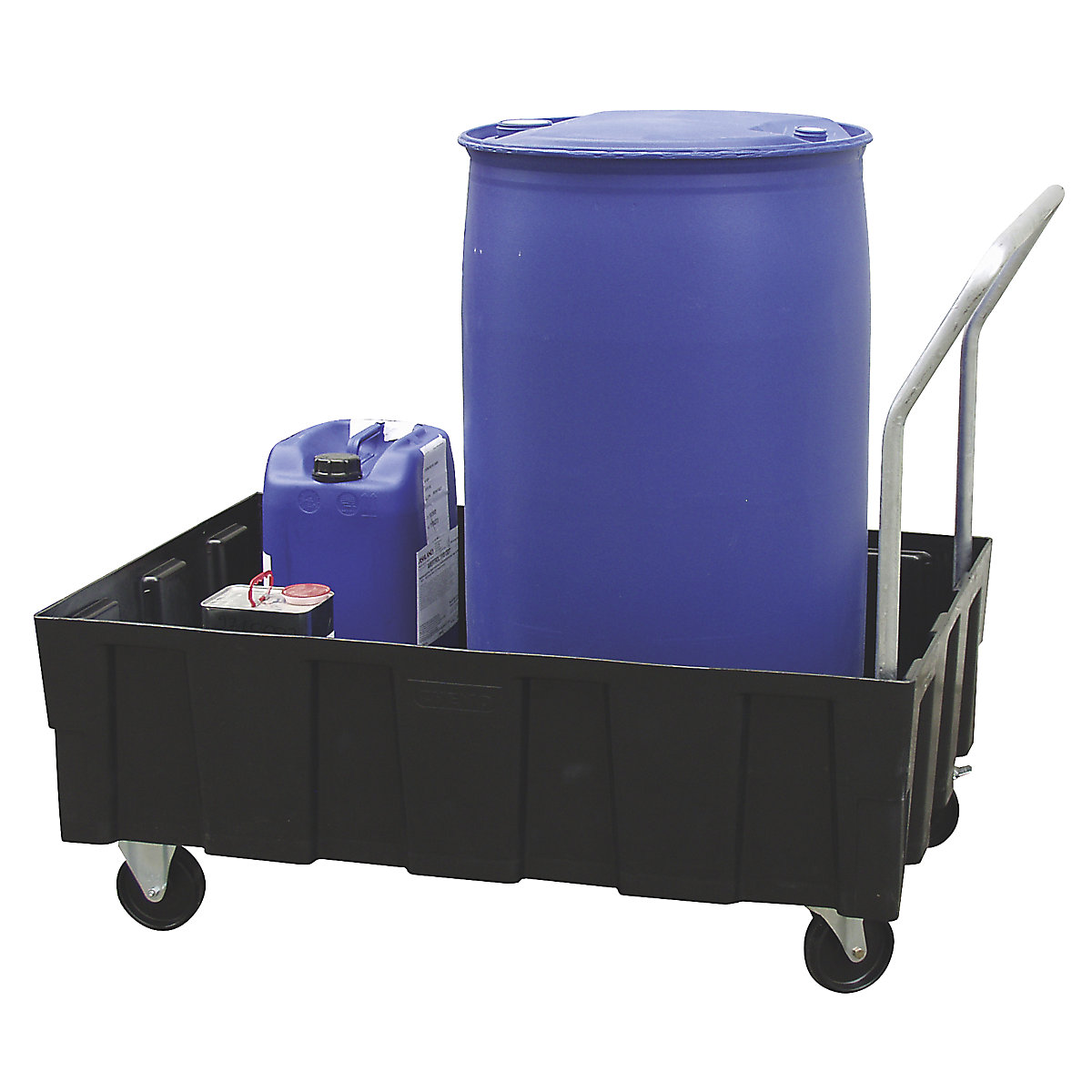

PE sump tray for 200 l drums – CEMO mobile using push handle

The PE sump tray for 200 l drums combines robust HDPE quality with mobile flexibility. In Euro pallet dimensions, it is suitable for safe drum storage and can be moved easily around the premises thanks to its push handle and castors.

The sump tray consists of particularly resilient, highly resistant and durable polyethylene. With a distributed load, it carries up to 600 kg. Without a grid, the tray offers space for one 200-litre drum or several smaller containers. With a grid, two 200-litre drums, six 60-litre drums or small containers can be stored. This means the tray can be used as a classic drum tray or as a small container sump tray.

The mobile model features two swivel castors and two fixed castors with a diameter of 125 mm. The push handle enables controlled movement even when the tray is loaded. The platform height of 490 mm makes it easier to load and remove the containers. At the same time, the design remains easy to handle for internal transport routes.

The Euro pallet dimensions support integration into existing storage and logistics processes. Standard pallet collars can be fitted. This allows the storage area to be adapted to different containers and workflows. The general technical approval provides additional safety for commercial use.

The PE sump tray helps to reliably collect escaping liquids. This protects floors, traffic areas and adjacent working areas from contamination. This product is ideal for mobile drum storage and for the safe storage of aggressive media such as acids, alkalis and oils.

Max. load max. 600 kg (distributed load).
Without grid for 1 x 200-litre drum or small containers.
With grid for 2 x 200-litre drums, 6 x 60-litre drums or small containers.

With push handle. Platform height 490 mm. 2 swivel and 2 fixed castors, wheel Ø 125 mm.
