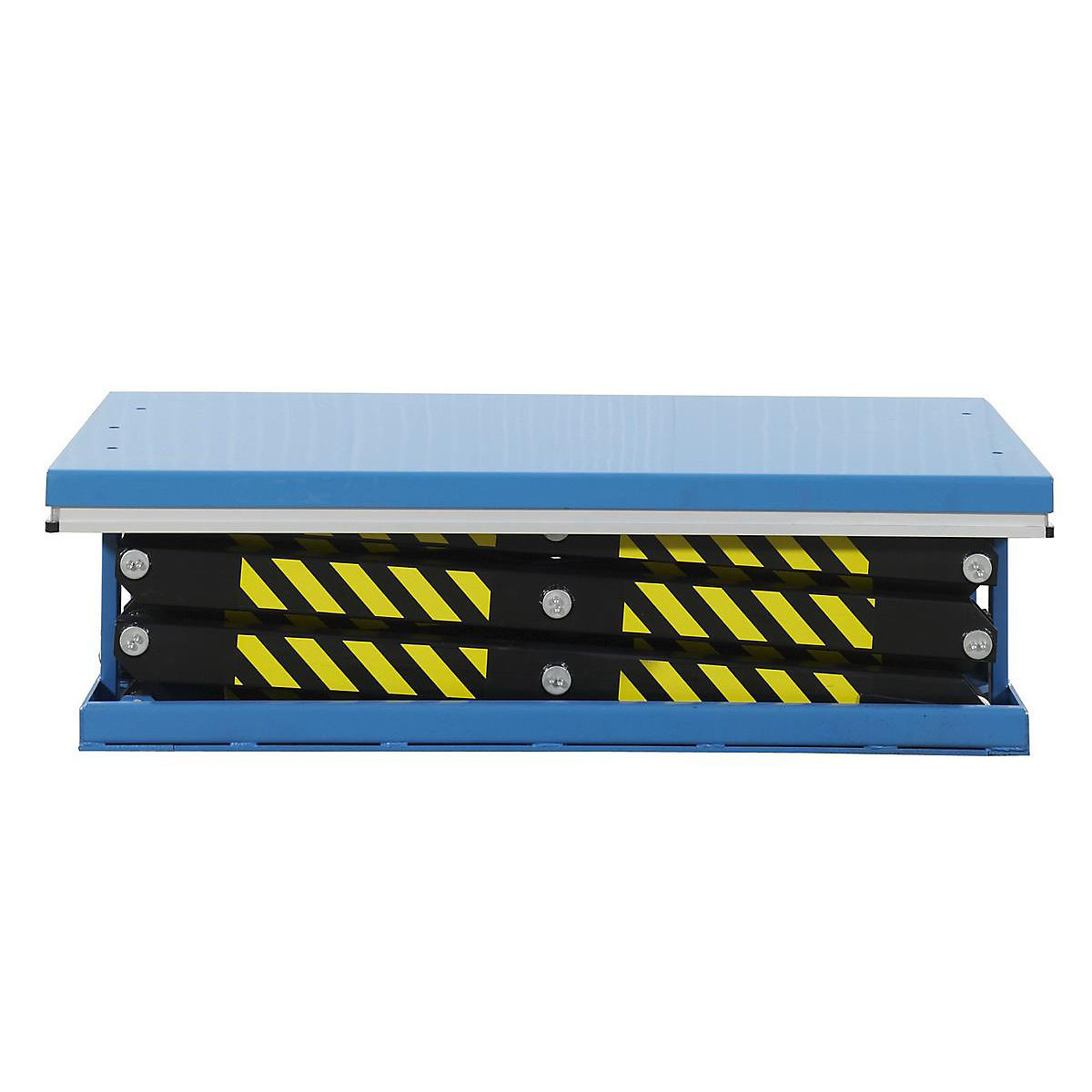

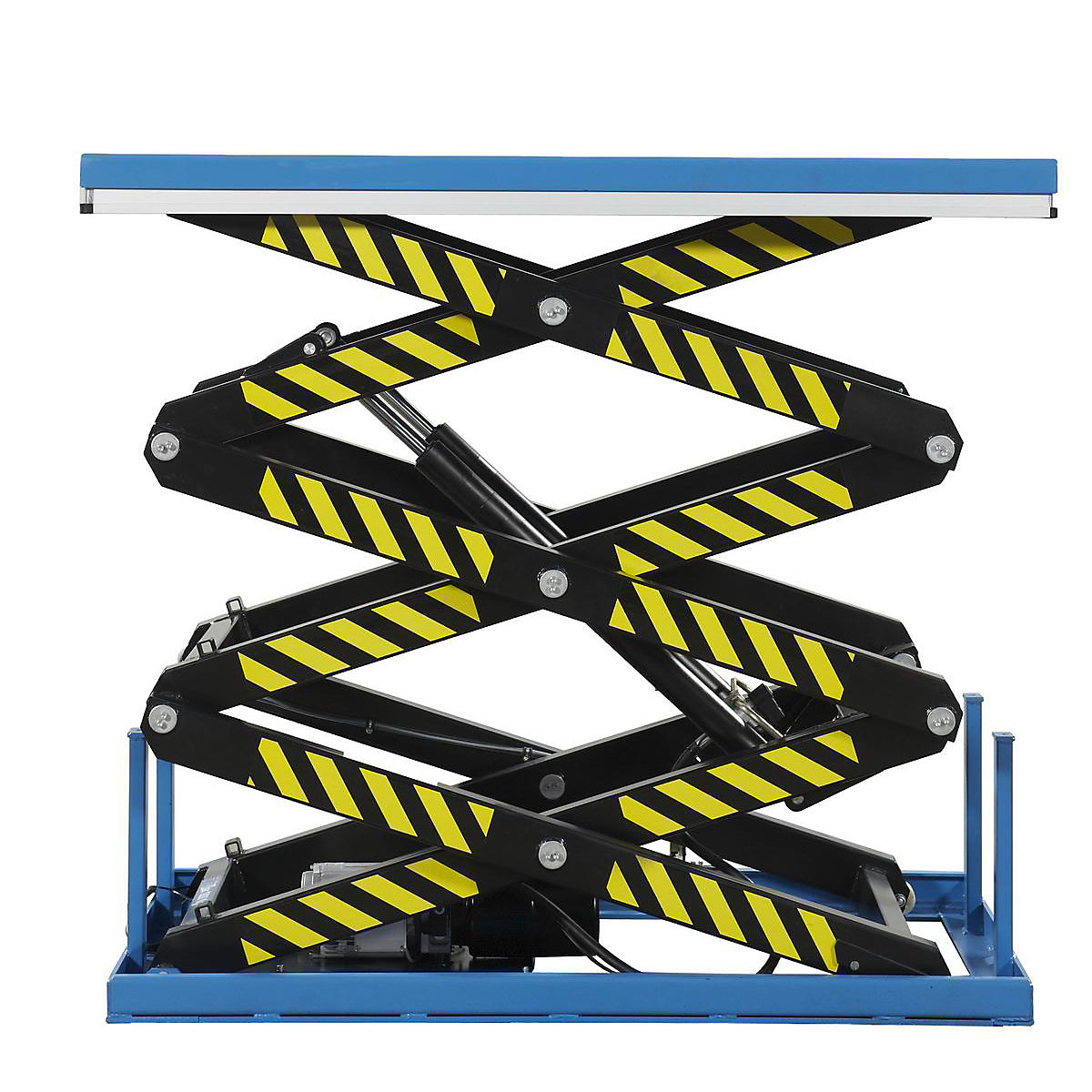

Triple scissor lift table platform LxW 1700 x 1000 mm

  • Ergonomics in the workplace
Triple scissor lift table, platform LxW 1700 x 1000 mm, max. load 1000 kg, operating voltage 230 V
Price / items (Ex. VAT)
from
4.650,00 €

Product description
Stationary lift tables are mainly used for production lines and loading areas. The lift table is a fixed part of production, enabling easier fitting of components. However, height differences can also be compensated with the triple scissor lift table. The special lifting height of 3000 mm makes the lift table ideal for spanning even larger height differences. That’s why this design is also often used in multi-storey warehouses or production lines with multiple levels.

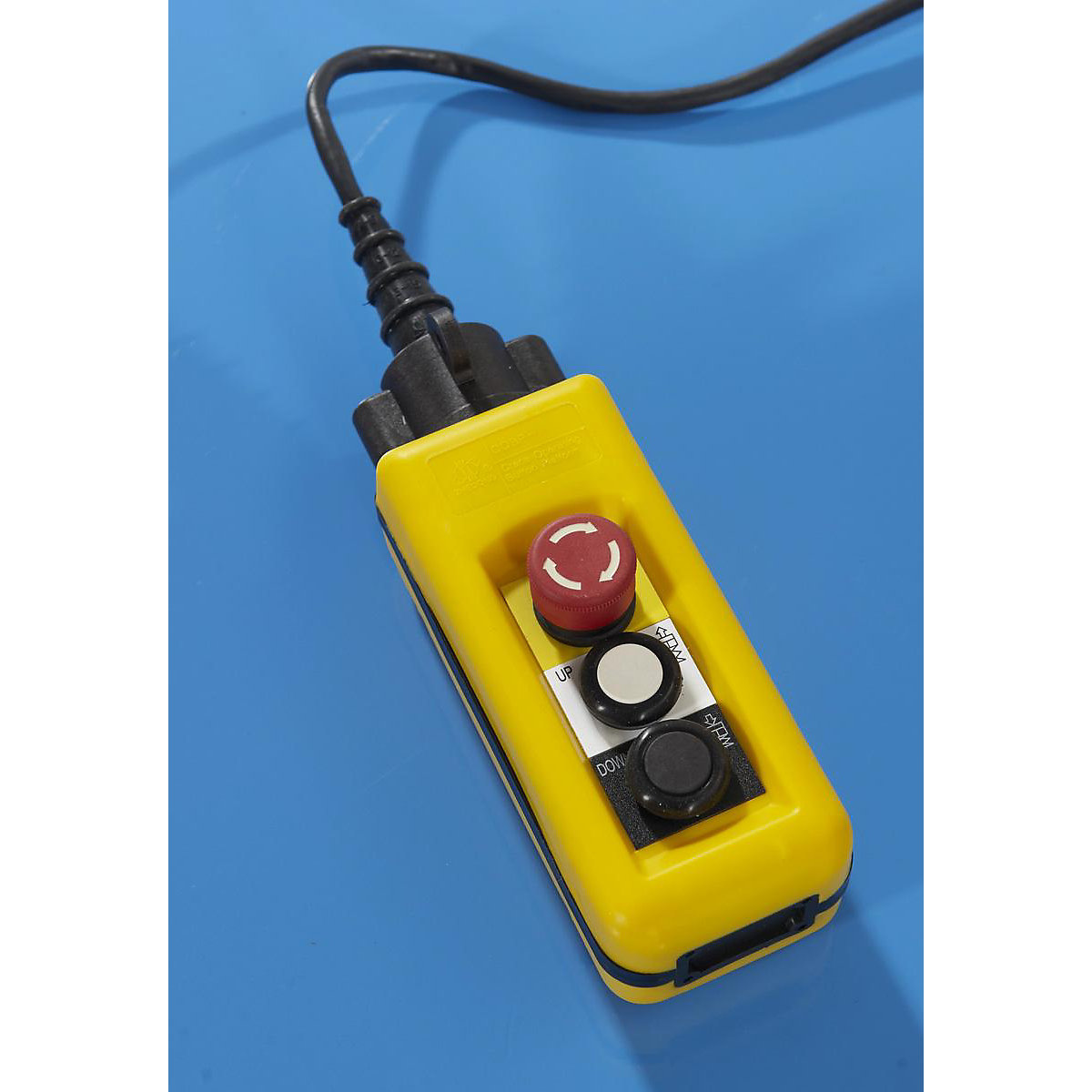

The lift table can be anchored firmly to the floor. A terminal with a 3 m long lead allows the device to be operated outside the danger area. High quality powder coating prevents the lift table from being scratched. Robust scissor support struts and high quality hydraulic pumps with pressure relief valve are included with the stationary lift table as standard features.
  • Ergonomics in the workplace
Technical data
Platform designclosed
Power2.2 kW
Control voltage24 V
Lift driveelectro-hydraulic
Platform colourlight blue RAL 5012
Platform materialsteel
Platform finishpowder coated
Scissor mechanism colourblack/yellow
Scissor materialsteel
Finishpowder coated
Frame colourblack
yellow
Fittingswith hand operated control unit
Product typetriple scissor lifting platform
Platform width1000 mm
Platform length1700 mm
Featurestationary
electro-hydraulic
Suppliedassembled
