EUROKRAFTpro – Material lifter with platform

  • Exchangeable load support
  • Optionally available with fixed castors or 4-way chassis
  • Swivel castors with wheel stops
EUROKRAFTpro
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.

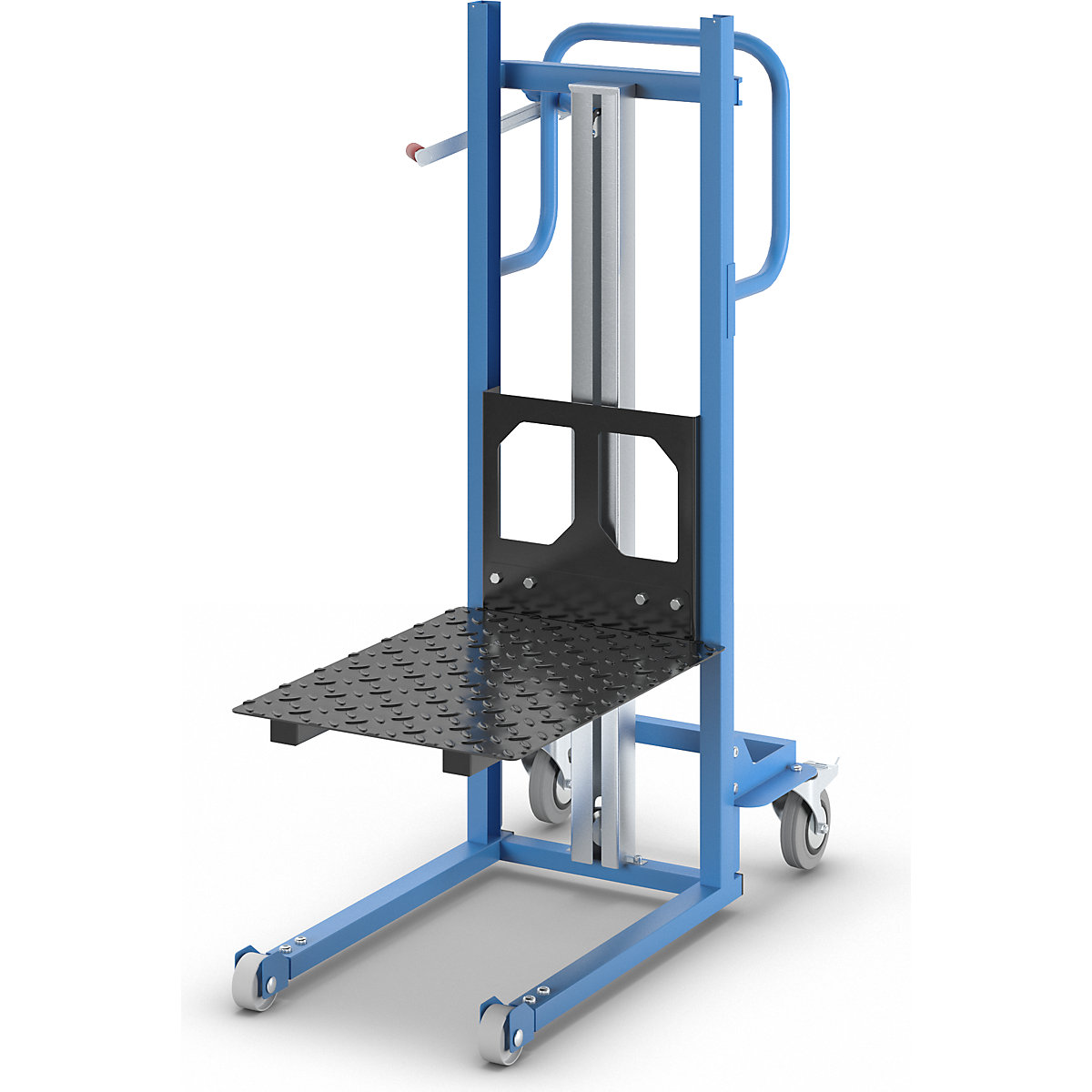

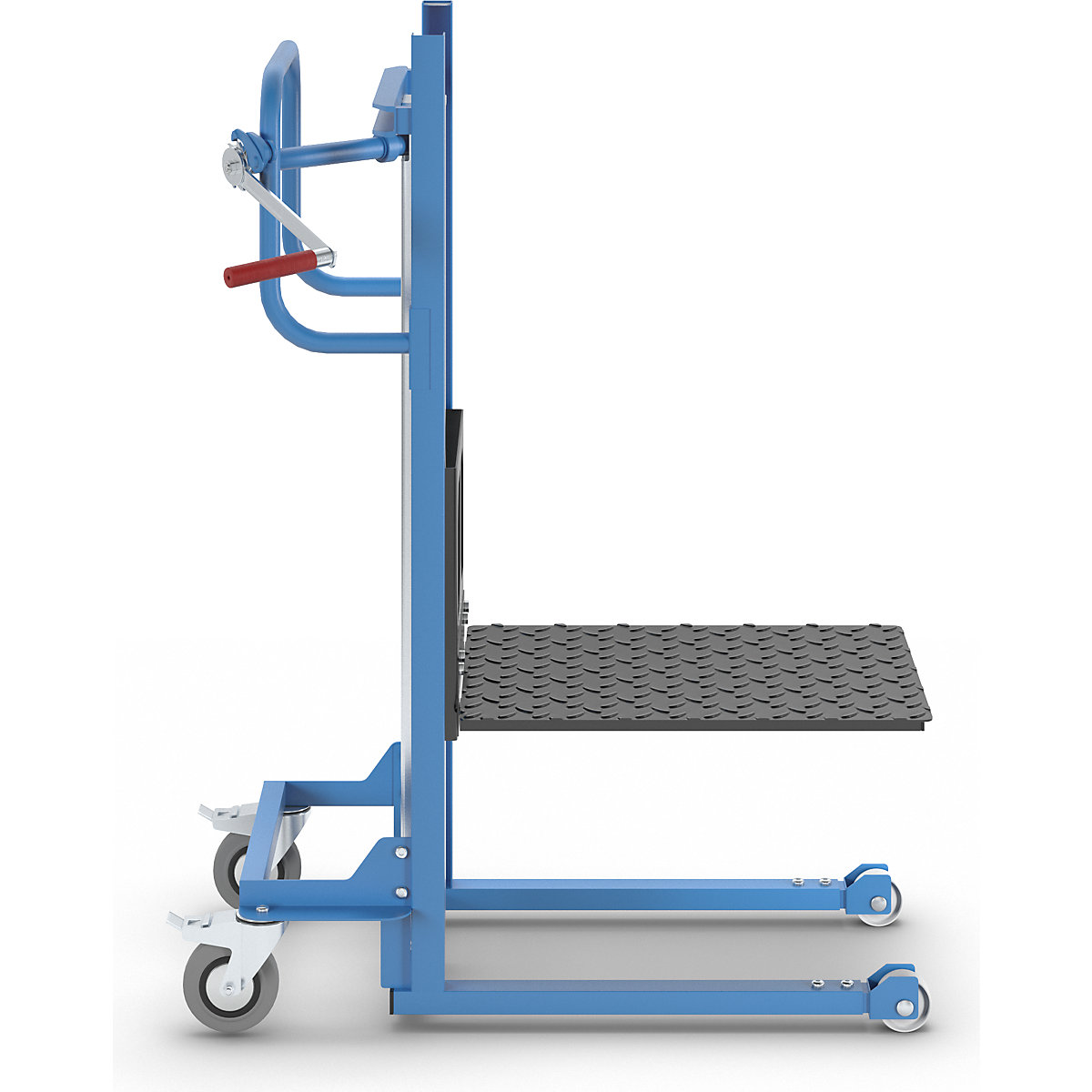

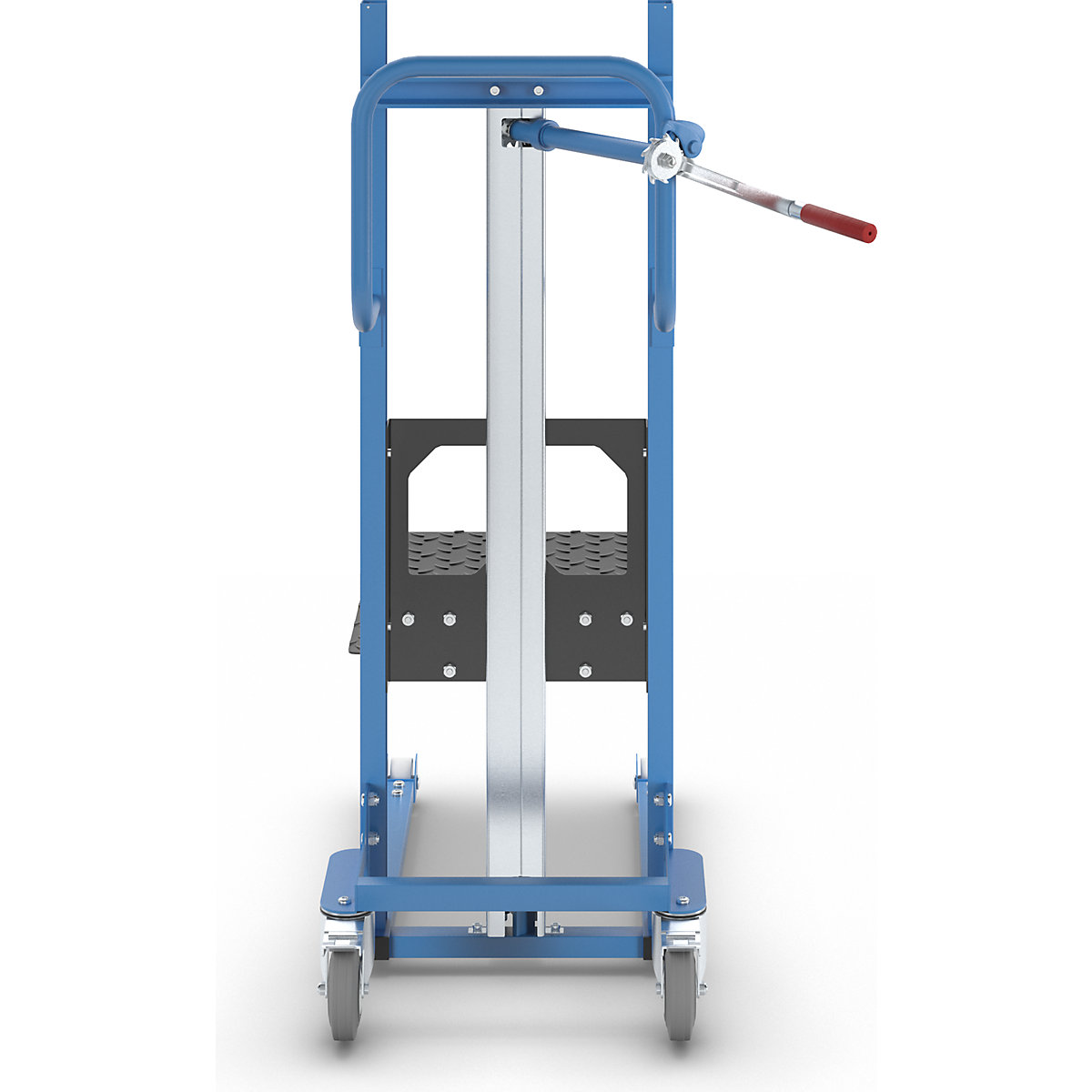

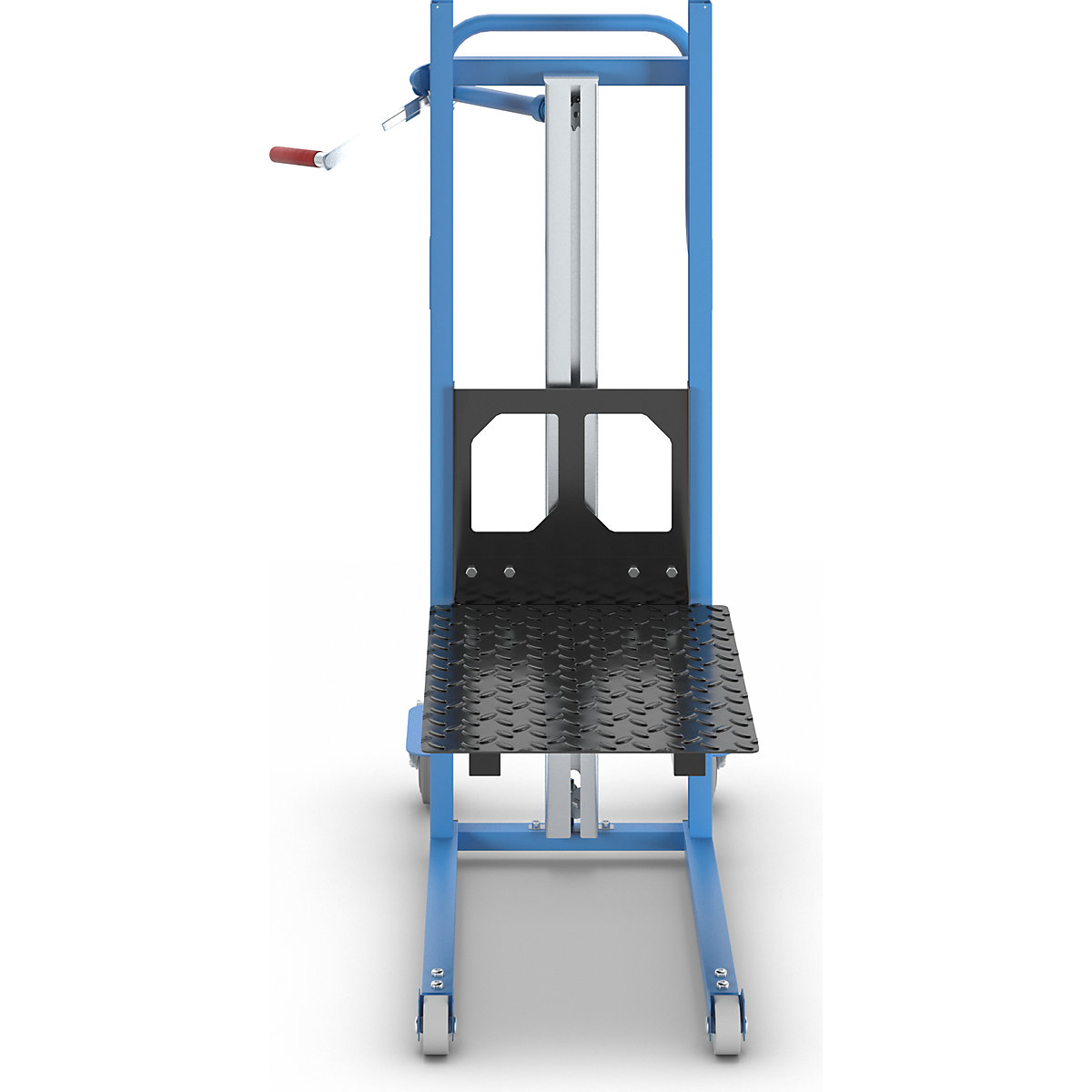

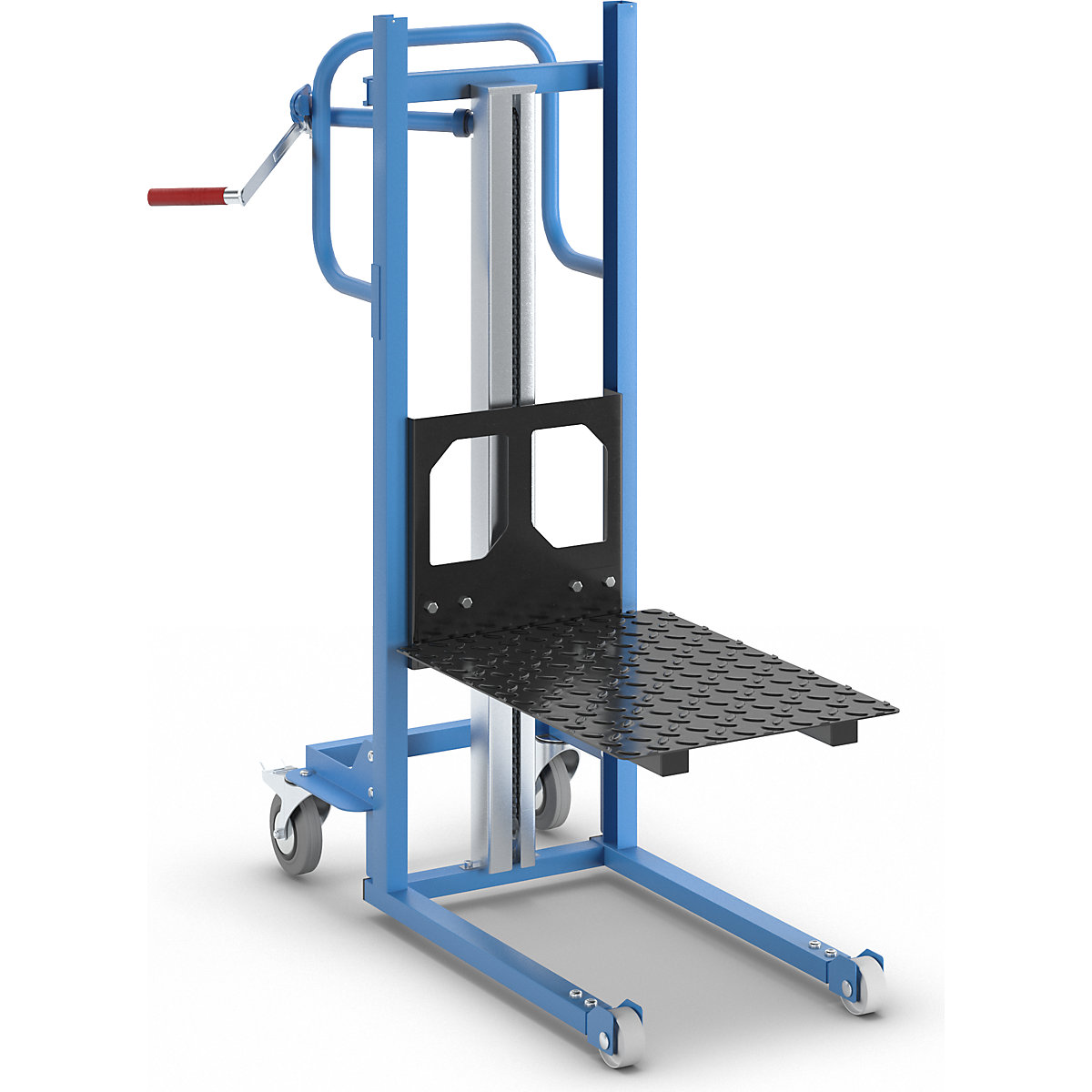

EUROKRAFTpro – Material lifter, with platform, with fork rollers
Price / items (Ex. VAT)
from
719,00 €

Product description
Material lifters with different load support equipment for many applications. Load centre 300 mm. Brings materials or tools to the ideal working height. Can be transported using 2 swivel castors with wheel stops and 2 fork rollers or with a 4-way chassis. Lifting motion produced by self locking safety winch and precision roller chain.

Particularly large platform for more applications.
  • Exchangeable load support
  • Optionally available with fixed castors or 4-way chassis
  • Swivel castors with wheel stops
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
Technical data
Load suspension device LxW/Ø600 x 430 mm
Max. load120 kg
Load centre300 mm
Lifting range80 – 945 mm
Distance across forks430 mm
Overall length970 mm
Overall width506 mm
Overall height1265 mm
Clearance height75 mm
Materialsteel
Featuremanual
Finishpowder coated
Coloursignal blue RAL 5005
Weight44 kg
Support leg length610 mm
Lift per crank rotation130 mm
Platform colourjet black RAL 9005
Platform width430 mm
Platform length600 mm
Suppliedpartially assembled
EUROKRAFTpro
