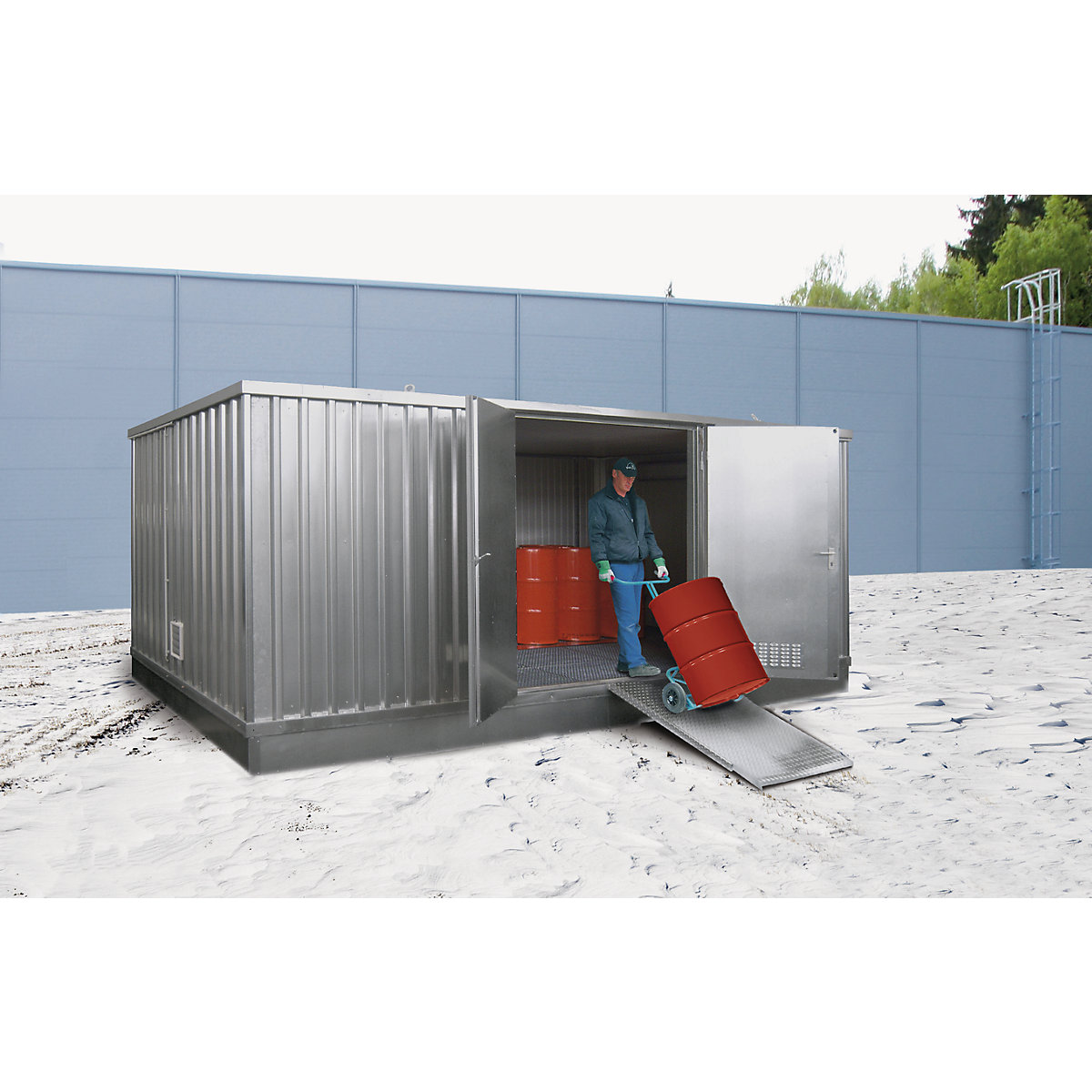

Hazardous goods storage container for flammable media, cold-insulated external HxWxD 2585 x 5075 x 4200 mm

  • For frost-free, regulation compliant, versatile and mobile outdoor storage of temperature sensitive hazardous goods
  • Thermally insulated containers protect valuable media against the effects of frost and low temperatures
  • Approved for flammable liquids in GHS categories 1 – 3
  • The inside of all walls, doors and the roof are insulated with 60 mm thick, non-flammable insulation material

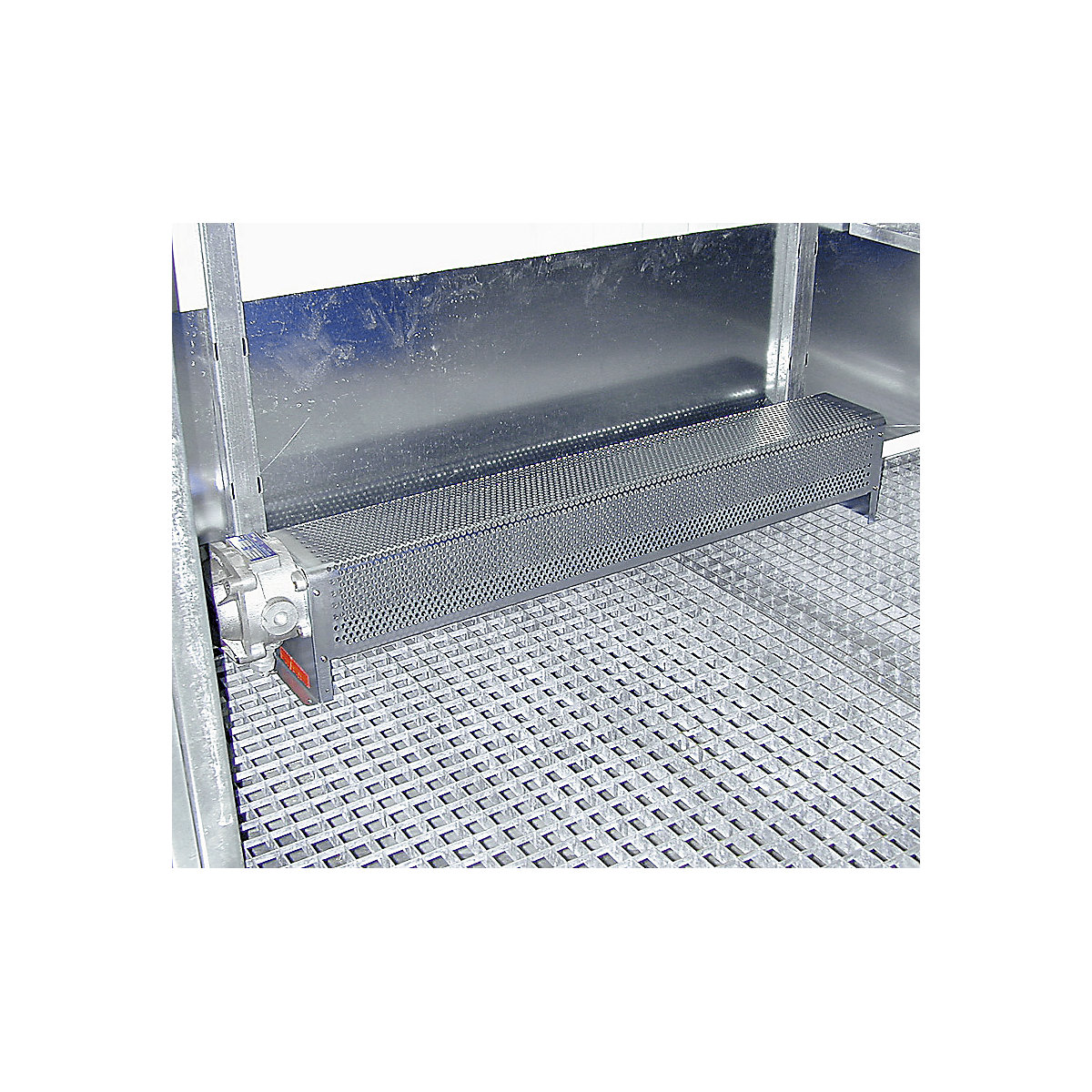

  • Heated with explosion protected electric heater
  • Robust, zinc plated steel construction
  • Can be moved at any time when empty – crane eyelets, forklift access
  • With double doors as standard
  • Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
  • Can be used as small container storage in conjunction with shelving (accessory)
Non-icing and condensation free
Non-icing and condensation free
For flammable liquids
For flammable liquids
Ref.: 523505 49
Hazardous goods storage container for flammable media, cold-insulated, external HxWxD 2585 x 5075 x 4200 mm, zinc plated
Price / items (Ex. VAT)
25.900,00 €

Product description
For frost-free, active or passive storage of flammable media in GHS categories 1 – 3
For storing opened containers.
Approved for opening, filling and emptying of containers in storage.
With electric heater (T3 explosion protection), factory fitted and explosion protected forced ventilation to comply with regulatory 5-fold air exchange requirement.
Wired to exterior mounted switch box, 230 V.

Zinc plated, particularly stable, profiled wall and roof panels made of sheet steel.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.

Double doors
With security lock.

Options available at extra cost
Insulated sump tray.
Exterior paintwork in sky blue RAL 5015.

Fume monitoring device
– Monitors effectiveness of ventilation in accordance with TRGS 510
– Proscribed with at least twofold air exchange
– Including flow sensor with evaluation unit, equipotential bonding bar, alarm horn
Please order together with container, no retrofitting possible.

Snow load: 150 kg/m²
EN 1055 compliant.
Pre-assembled, final assembly by customer.
Please enquire about additional models such as containers with air conditioning and fire protection containers.
  • For frost-free, regulation compliant, versatile and mobile outdoor storage of temperature sensitive hazardous goods
  • Thermally insulated containers protect valuable media against the effects of frost and low temperatures
  • Approved for flammable liquids in GHS categories 1 – 3
  • The inside of all walls, doors and the roof are insulated with 60 mm thick, non-flammable insulation material
  • Heated with explosion protected electric heater
  • Robust, zinc plated steel construction
  • Can be moved at any time when empty – crane eyelets, forklift access
  • With double doors as standard
  • Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
  • Can be used as small container storage in conjunction with shelving (accessory)
Non-icing and condensation free
Non-icing and condensation free
For flammable liquids
For flammable liquids
Technical data
External width5075 mm
External depth4200 mm
External height2585 mm
Place of useoutdoor use
Sump capacity2400 l
Position of double doorslong side
Heater typeelectric heater (T3 explosion protection)
Internal height1910 mm
Internal width4840 mm
Internal depth3940 mm
Materialsheet steel
Finishzinc plated
Door clearance width1950 mm
Door clearance height1900 mm
Max. snow load150 kg/m²
Door typedouble hinged doors
Lock typesecurity lock
Type of floorhot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
Storagefrost-free, active or passive
Heat output2 x 2 kW
Colourzinc plated
Hazard classfor flammable liquids in GHS categories 1 – 3
Test symbolwith general certification from the DIBt (German Institute for Construction Technology) Berlin
Suppliedpre-assembled, final assembly by customer
Weight2800 kg
Items subject to surcharges & services available
Explosion-protected fume monitoring device

for containers

2.190,00 €
Excl. VAT
Extra cost for exterior paintwork

for external WxD 5075 x 4200 mm

1.075,00 €
Excl. VAT
Crane / forklift unloading

for hazardous goods storage container

145,00 €
Excl. VAT
