Insulated hazardous goods storage container external HxWxD 2385 x 3075 x 2075 mm

  • Thermally insulated containers protect valuable media against the effects of frost and low temperatures
  • The inside of all walls, doors and roof is insulated with 60 mm thick, non-flammable insulation material
  • Heating (accessory) not explosion protected or explosion protected convection/electric heaters according to model
  • Optionally with insulated sump tray to reduce heater power and heating costs
  • For frost-free, regulation compliant, versatile and mobile outdoor storage of temperature sensitive hazardous goods
  • Approved for water hazardous liquids in GHS categories 1 – 4 as well as flammable liquids in GHS categories 1 – 3
  • Robust, zinc plated steel construction, integrated sump tray with grate
  • Can be moved at any time when empty – crane eyelets, forklift access
  • With double doors as standard
  • Can be used as small container storage in conjunction with shelving (accessory)
  • Hot dip galvanised sump trays with grate, max. load 1000 kg/m² with evenly distributed load
Non-icing and condensation free
Non-icing and condensation free
For water hazardous liquids
For water hazardous liquids

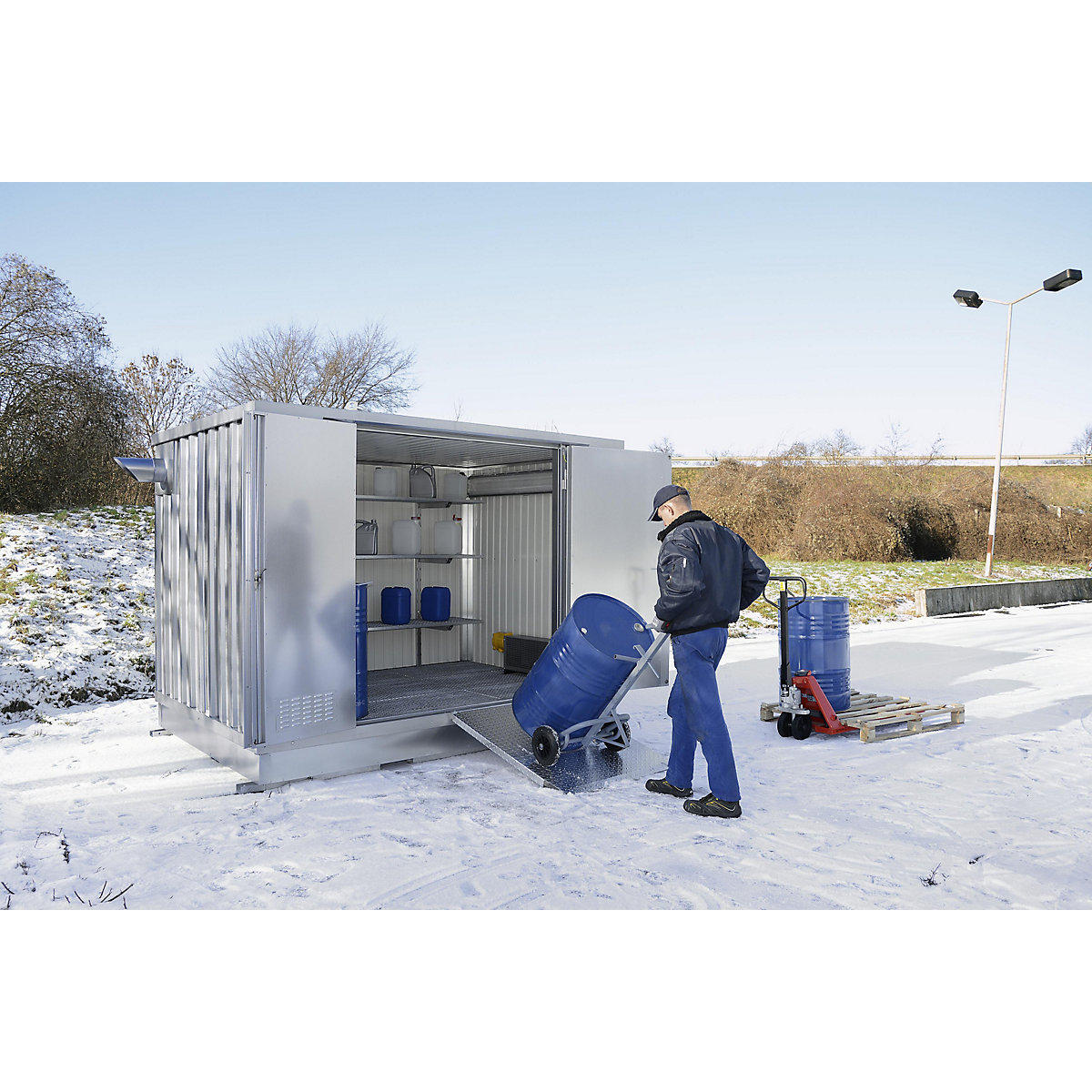

Model with electric heater, sump tray insulation, inside light, shelf set and loading ramp (accessories)
Model with electric heater, sump tray insulation, inside light, shelf set and loading ramp (accessories)
Ref.: 453880 49
Insulated hazardous goods storage container, external HxWxD 2385 x 3075 x 2075 mm, collection capacity 1000 l
Price / items (Ex. VAT)
7.000,00 €

Product description
For frost-free, regulation compliant, versatile and mobile outdoor storage of temperature sensitive hazardous goods.

Zinc plated, particularly stable, profiled wall and roof panels made of sheet steel.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.

Snow load in accordance with DIN EN 1055.

Double doors with security lock.

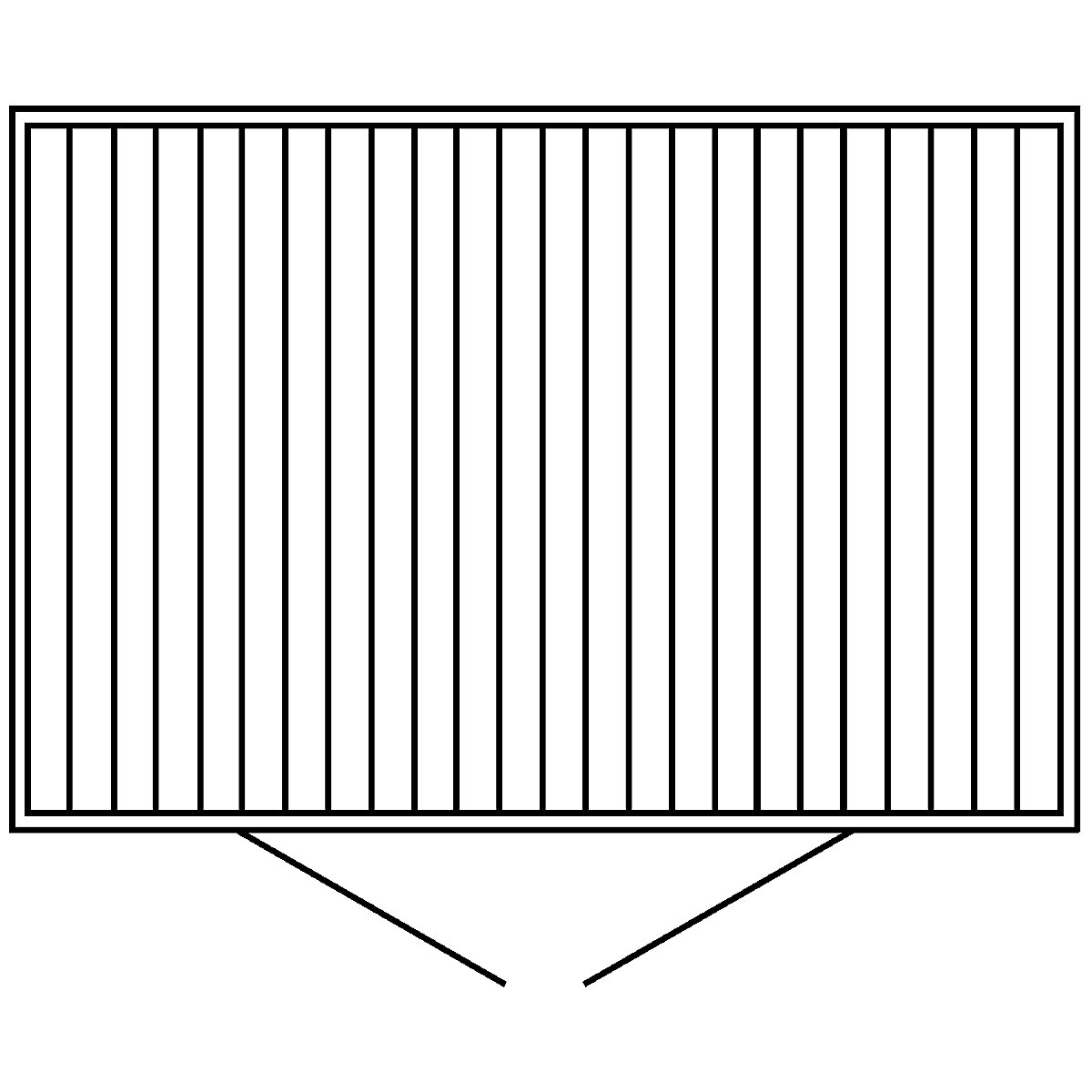

Size and position of the door, see outline. Different placement possible upon request.

Please note:
The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessories) when ordering.
Supplied fully assembled.
Please enquire about additional models such as containers with air conditioning and fire protection containers.
  • Thermally insulated containers protect valuable media against the effects of frost and low temperatures
  • The inside of all walls, doors and roof is insulated with 60 mm thick, non-flammable insulation material
  • Heating (accessory) not explosion protected or explosion protected convection/electric heaters according to model
  • Optionally with insulated sump tray to reduce heater power and heating costs
  • For frost-free, regulation compliant, versatile and mobile outdoor storage of temperature sensitive hazardous goods
  • Approved for water hazardous liquids in GHS categories 1 – 4 as well as flammable liquids in GHS categories 1 – 3
  • Robust, zinc plated steel construction, integrated sump tray with grate
  • Can be moved at any time when empty – crane eyelets, forklift access
  • With double doors as standard
  • Can be used as small container storage in conjunction with shelving (accessory)
  • Hot dip galvanised sump trays with grate, max. load 1000 kg/m² with evenly distributed load
Non-icing and condensation free
Non-icing and condensation free
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Technical data
External width3075 mm
External depth2075 mm
External height2385 mm
Place of useoutdoor use
Sump capacity1000 l
Position of double doorslong side
Internal height1900 mm
Internal width2840 mm
Internal depth1840 mm
Materialsheet steel
Finishzinc plated
Door clearance width1750 mm
Door clearance height1900 mm
Max. snow load200 kg/m²
Door typedouble hinged doors
Storagefrost-free
Colourzinc plated
Hazard classfor flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4
Test symbolwith general certification from the DIBt (German Institute for Construction Technology) Berlin
Suppliedassembled
Weight1150 kg
Items subject to surcharges & services available
Electric heater

for exterior width 2075, 3075 mm

4.290,00 €
Excl. VAT
Convection heater

for external height 2385 mm

1.075,00 €
Excl. VAT
Extra cost for exterior paintwork

for external WxD 3075 x 2075 mm

399,00 €
Excl. VAT
Crane / forklift unloading

for hazardous goods storage container

145,00 €
Excl. VAT
