Ref.: 829350 10

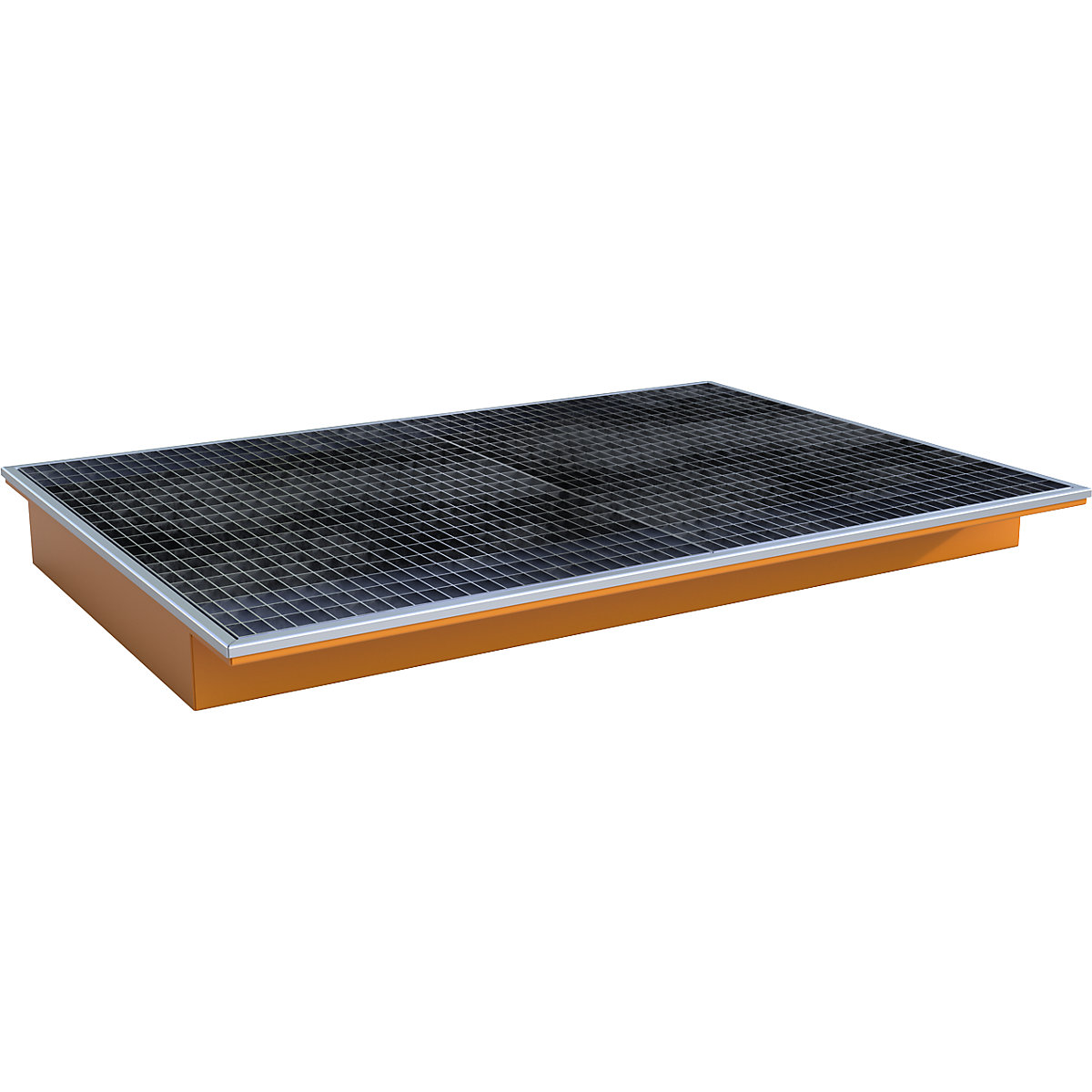

Hook-in sump tray – eurokraft pro with PE insert and grate
LxWxH 1765 x 1265 x 165 mm, painted orange
Sump capacity [l]
Length [mm]
Height [mm]
Finish
Colour
Ref.: 829350 10
Hook-in sump tray – eurokraft pro with PE insert and grate
LxWxH 1765 x 1265 x 165 mm, painted orange
LxWxH 1765 x 1265 x 165 mm, painted orange
Sump capacity [l]
Length [mm]
Height [mm]
Finish
Colour
1.400,00 €
Price / item (Ex. VAT)
Availability: 7–9 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?1.400,00 €
Price / item (Ex. VAT)
Product description
- Convert existing shelving systems into regulation compliant hazardous goods storage shelving
- For the storage of aggressive media
- Easy to place on the support profiles of shelving systems
- Max. load 1000 kg/m² (with evenly distributed load)
You can quickly and economically convert existing shelving systems into regulation compliant hazardous goods storage with these shelf sump trays.

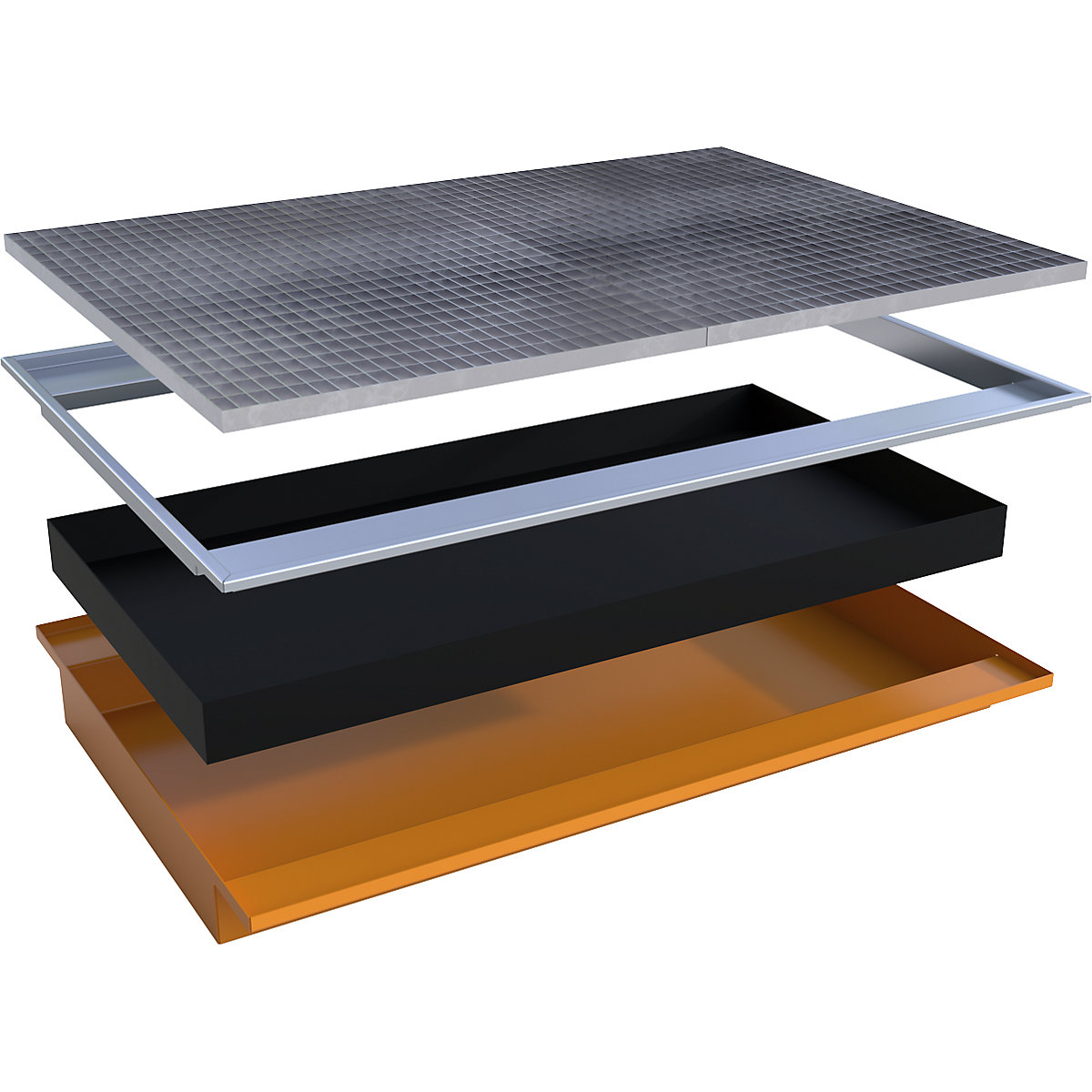

Construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene sheet material.
With zinc plated steel clamp frame for fixing the plastic insert in place.
This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.
Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.

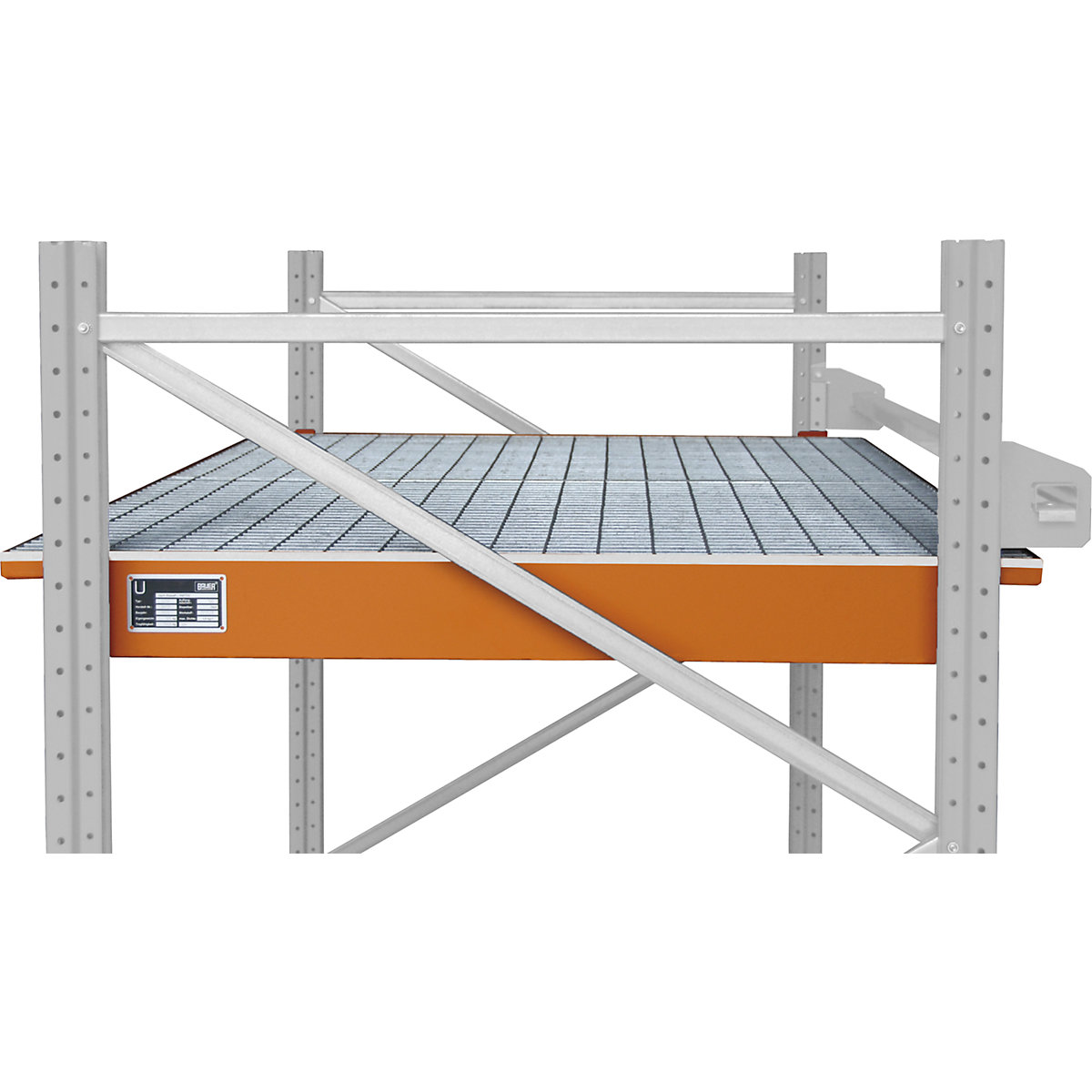

For placement on the cross beams or suspension in the shelf unit. Distance between cross beams 915 mm.
Construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene sheet material.
With zinc plated steel clamp frame for fixing the plastic insert in place.
This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.
Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.
For placement on the cross beams or suspension in the shelf unit. Distance between cross beams 915 mm.
For water hazardous liquids
Resistant to aggressive, corrosive chemicals
For flammable liquids
Technical data
| Type of grate | with zinc plated grate |
|---|---|
| Width | 1265 mm |
| Material | sheet steel polyethylene |
| Max. load | 1000 kg/m2 kg |
| Test symbol | manufacturer's declaration of conformity in accordance with German construction regulation list A, part 1, DIBt, Berlin |
| Material thickness | 3 mm |
| For media | flammable liquids flammable and water hazardous liquids acids, alkalis, corrosive media |
| Hazard class | for flammable liquids in GHS categories 1 – 3, for water hazardous liquids in GHS categories 1 – 4 and for corrosive liquids in GHS category 1 |
| Certification | with |
| Product type | shelf sump trays shelving unit hook-in sump trays |
| Supplied | assembled |
| Sump capacity | 173 l |
| Length | 1765 mm |
| Height | 165 mm |
| Finish | painted |
| Colour | yellow orange RAL 2000 |
| For width | 1800 mm |
| Weight | 139 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Recyclable
Recyclable products are products that can be recycled at the end of their service life, providing they are separated into all their individual components in designated recycling facilities. This means that the individual components are made of materials that can be exploited using the recycling process and be reprocessed into new products. Recyclable products help reduce the environmental impact of waste and to conserve resources.
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 657.595
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.5 | |
| 30% | 3.7 | |
| 25% | 2.0 | |
| 10% | 0.0 | |
| 5% | 3.9 | |
| Overall score | 3.0 | |
