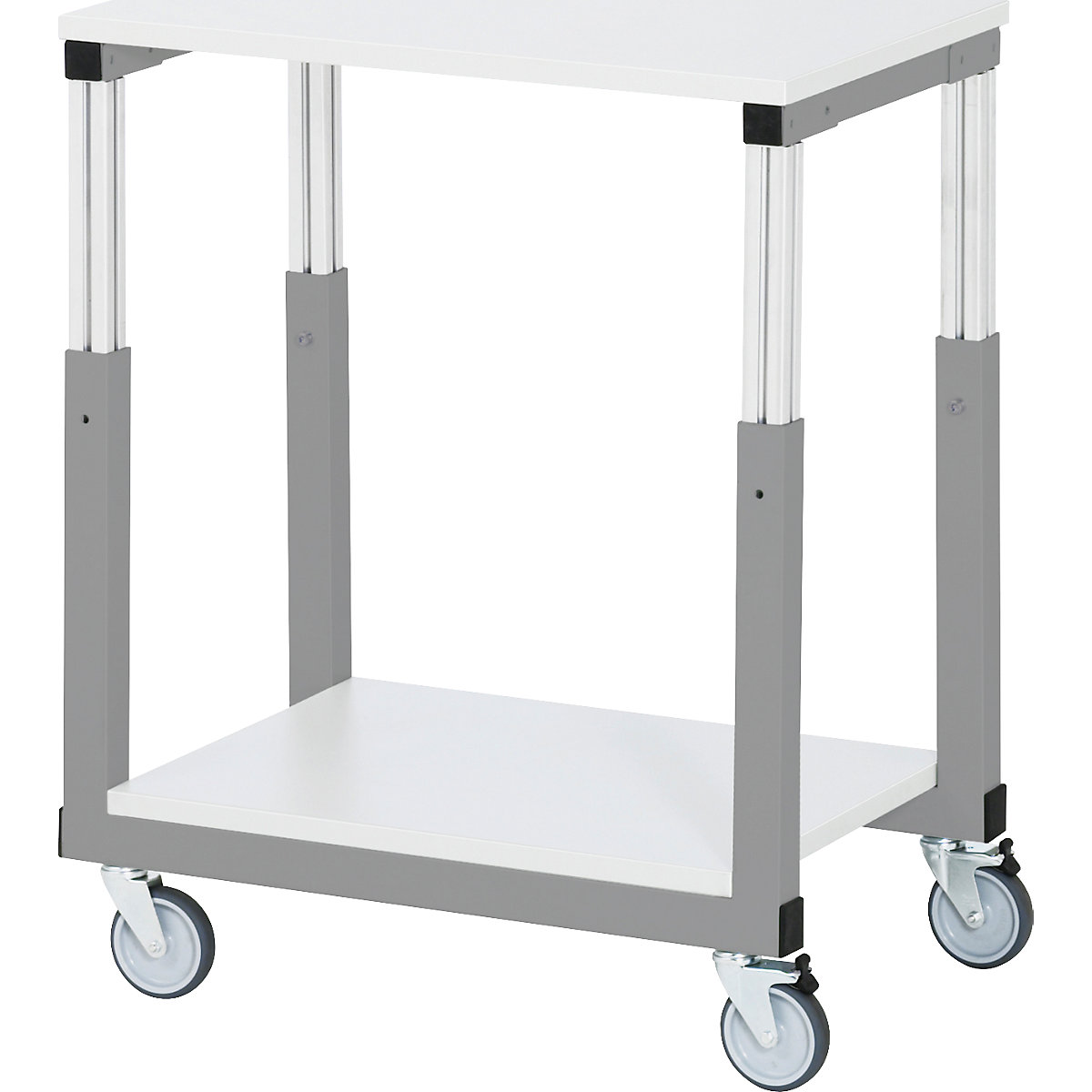

RAU – ESD table trolley melamine panel
LxW 700 x 500 mm
- Ergonomic use due to infinitely variable height adjustment
- ESD model with electrically conductive castors prevents damage to sensitive equipment
- Parking brakes keep the trolley securely in place – ideal as a mobile workstation
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Ref.: 493125 10
Properties
Platform length [mm]: 700, Platform width [mm]: 500, Length [mm]: 700, Width [mm]: 500, Weight [kg]: 28.54
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Monday to Friday from 8.00 am to 4.00 pm CET
Product description
Height adjustment allows the working height to be adjusted from 650 – 1000 mm using the aluminium profile. Max. distributed load 450 kg. Feet made of tubular steel profile (45 x 45 x 2 mm) incl. depth struts (centre) and integrated aluminium profile (40 x 40 mm) for height adjustment. Upper frame made of angled iron (35 x 35 x 2 mm) for supporting the tabletop. Cross struts made of profiled steel. Worktop frame with 2 pairs of feet 45 x 45 mm and frame for tabletop. Frame feet with 4 swivel castors, 2 with wheel stops; running surface made of thermoplastic rubber (electrically conductive, grey, non marking, 85 shore). EGB melamine tabletop 28 mm. Top and bottom side with a conductive, light grey melamine resin direct coating in accordance with DIN 68765. Volume conductive middle layer. Normal durability, limited scratch resistance and impact resistance. Stainproof for substances in groups 1 and 2 in accordance with DIN 53799 (e.g. acetone, alcohol, cleaning solvent, nail polish remover, organic solvents). Shelf and worktop identical in description.
Supplied flat pack – easy self-assembly.
- Ergonomic use due to infinitely variable height adjustment
- ESD model with electrically conductive castors prevents damage to sensitive equipment
- Parking brakes keep the trolley securely in place – ideal as a mobile workstation
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Technical data
| Max. load | 450 kg |
|---|---|
| Height | 1000 mm |
| Working height | 650 – 1000 mm |
| Frame material | tubular steel profile |
| Worktop material | melamine coated panel |
| Product type | ESD assembly trolleys |
| Wheel fittings | 4 swivel castors 2 with wheel stops |
| Wheel diameter | 100 mm |
| Height adjustment range | 650 – 1000 mm |
| Panel thickness | 28 mm |
| Colour | telegrey RAL 7045 |
| Supplied | flat pack |
