Ref.: 583123 10

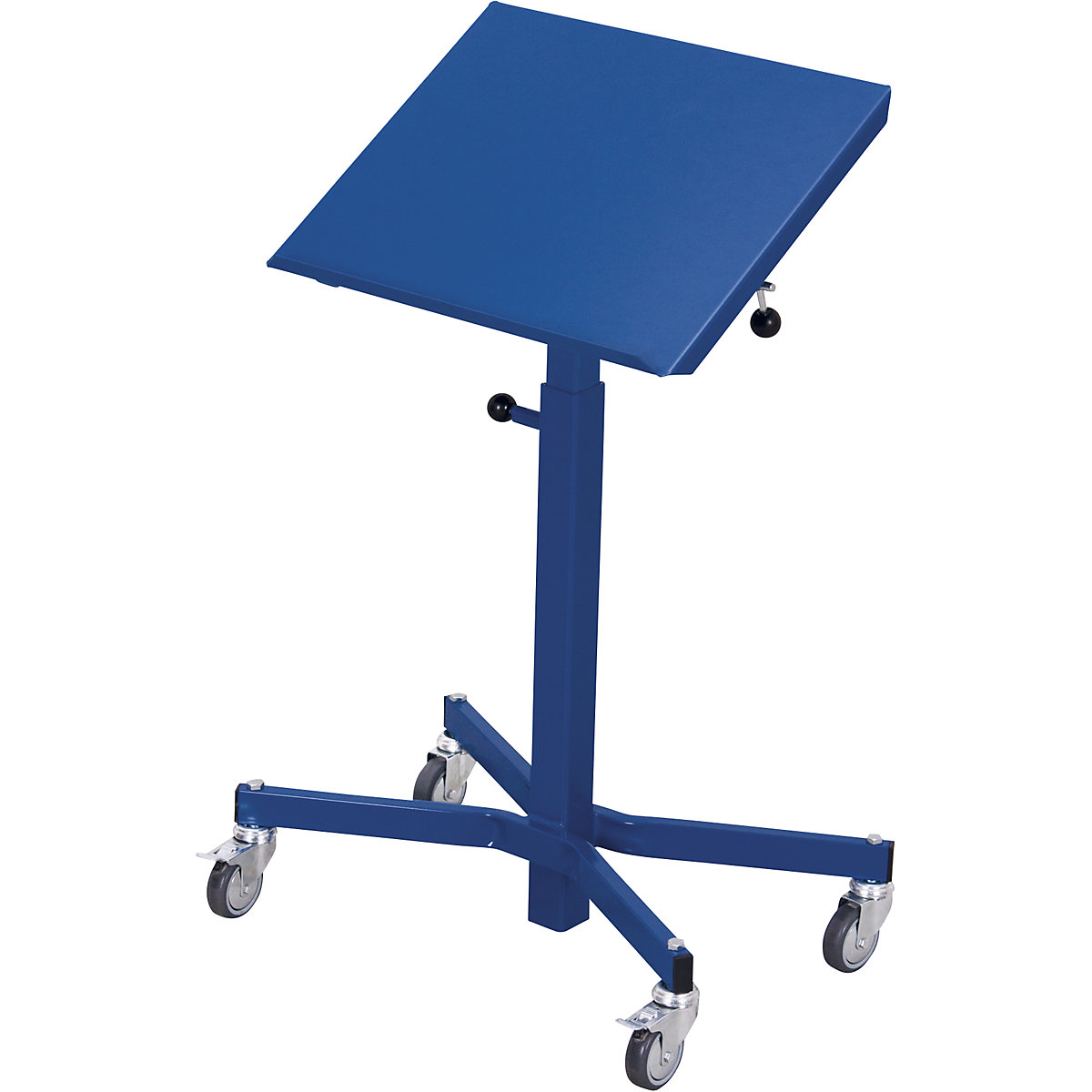

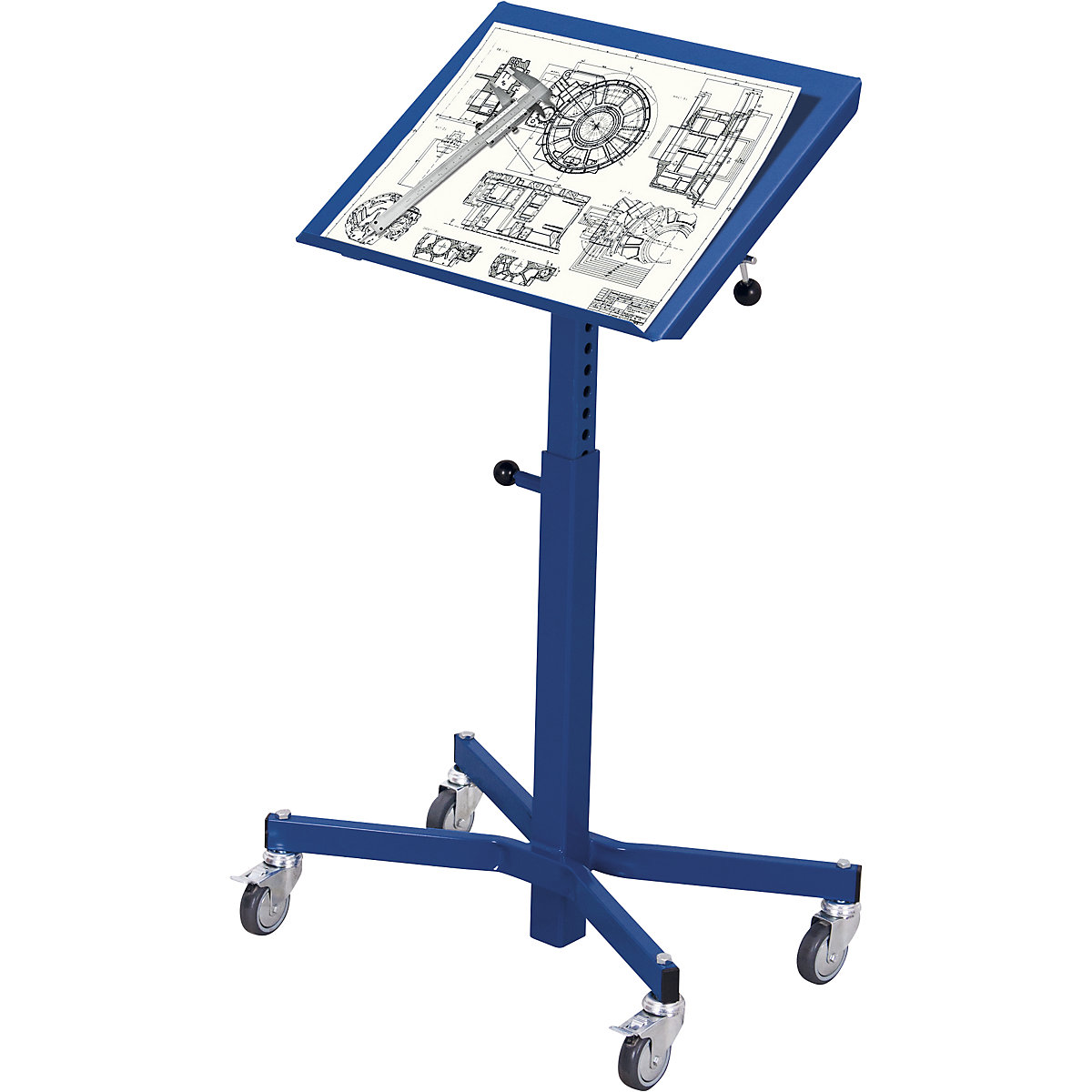

Material stand, tilting height adjustment range 695 – 1065 mm
max. load 150 kg
Ref.: 583123 10
Material stand, tilting height adjustment range 695 – 1065 mm
max. load 150 kg
max. load 150 kg
Ref.: 583123 10
Product not available
Currently not availableProduct description
- Easy height adjustment

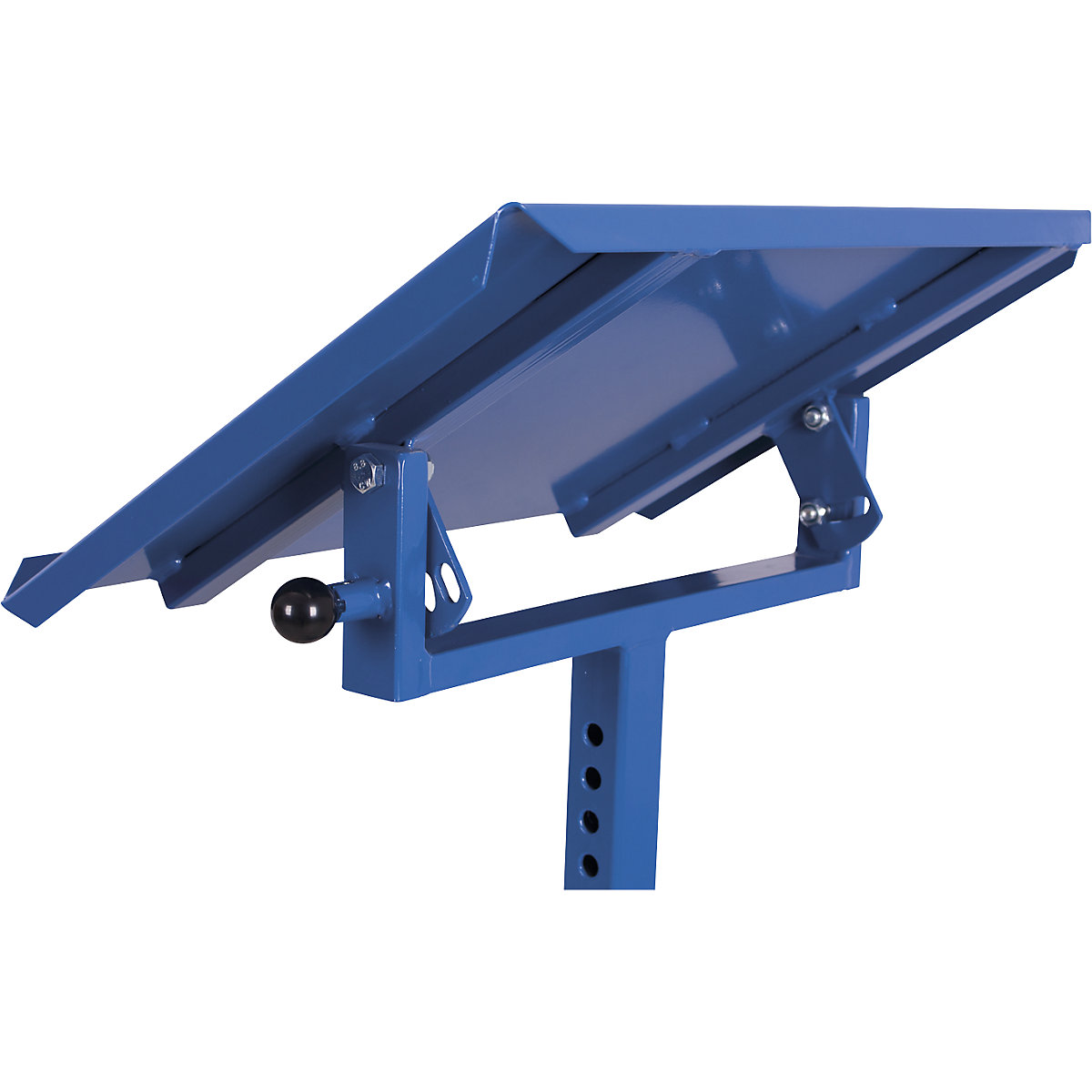

- Practical adjustment of angle

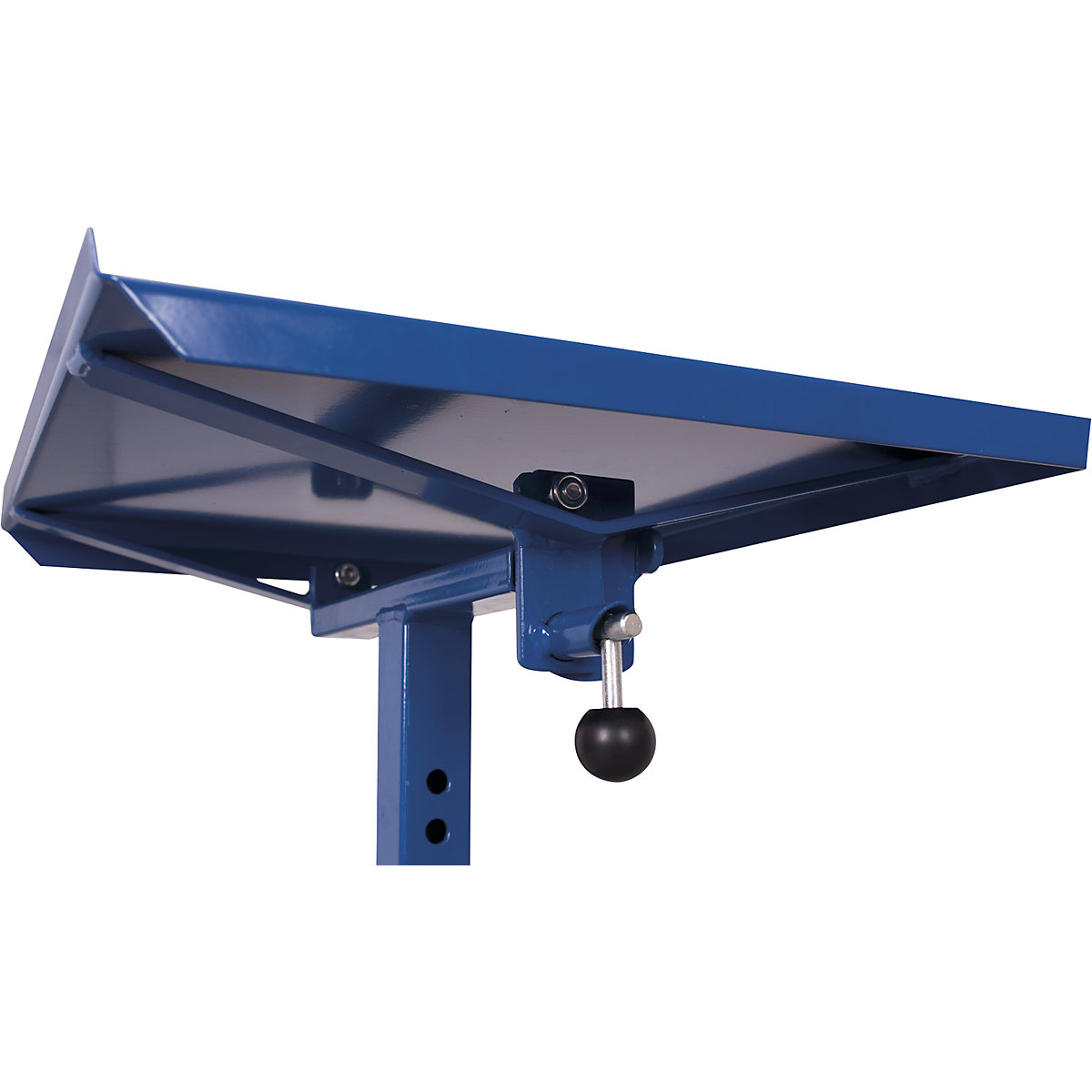

- Secure spring-loaded catch
Profiled tubular steel construction. Can be tilted by 15° and 30°. Sheet steel platform with raised edge on one side (22 mm high).
Suitable for plastic crates and wire baskets. Platform height adjustable from 695 – 1065 mm in increments of 25 mm.
External dimensions WxDxH 600 x 410 x 715 – 1085 mm. Platform WxD 510 x 410 mm.
Powder coated in gentian blue RAL 5010.
Tyres made of thermoplastic rubber on plastic rims with high-precision deep groove ball bearings, grey, non-marking, Ø 75 mm, 2 braked castors and 2 swivel castors.
Max. load 150 kg.
Suitable for plastic crates and wire baskets. Platform height adjustable from 695 – 1065 mm in increments of 25 mm.
External dimensions WxDxH 600 x 410 x 715 – 1085 mm. Platform WxD 510 x 410 mm.
Powder coated in gentian blue RAL 5010.
Tyres made of thermoplastic rubber on plastic rims with high-precision deep groove ball bearings, grey, non-marking, Ø 75 mm, 2 braked castors and 2 swivel castors.
Max. load 150 kg.
Technical data
| Max. load | 150 kg |
|---|---|
| Platform length | 510 mm |
| Platform width | 410 mm |
| Height adjustment range | 695 – 1065 mm |
| Slope | by 15° and 30° on one side |
| Type of height adjustment | with spring-loaded stop bolt in 25 mm increments |
| Frame material | steel |
| Frame colour | gentian blue RAL 5010 |
| Wheel fittings | 4 swivel castors 2 with wheel stops |
| Wheel type | thermoplastic rubber |
| Wheel diameter | 75 mm |
| Product type | material stands |
| Supplied | assembled |
| Weight | 15 kg |
