Ref.: 652393 10

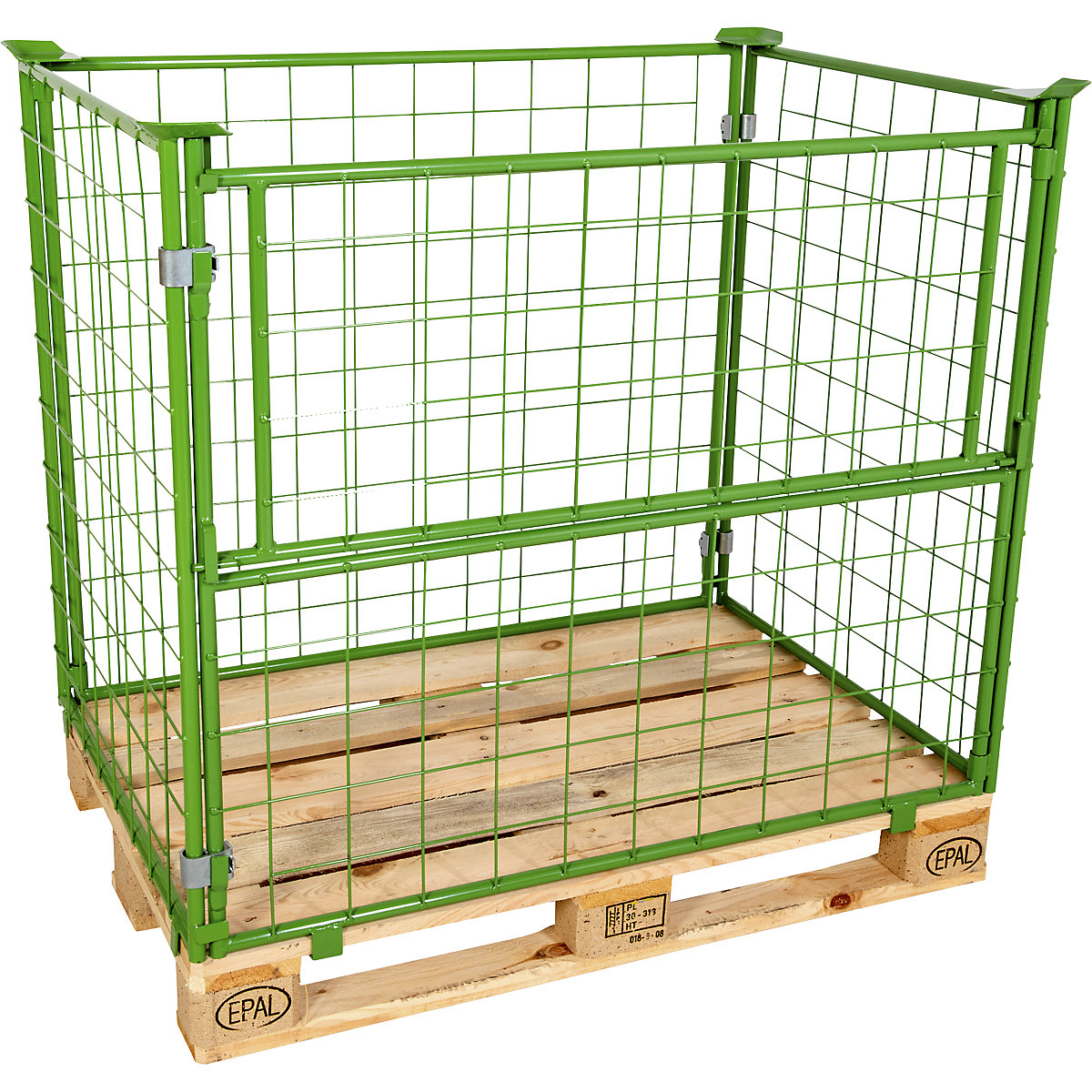

Mesh stacking frame for EUR pallet – ratioform economy with flap, mesh size 100 x 100 mm
height 800 mm, green
height 800 mm, green
Ref.: 652393 10
Mesh stacking frame for EUR pallet – ratioform economy with flap, mesh size 100 x 100 mm
height 800 mm, green
175,00 €
Price / item (Ex. VAT)
Availability: 9–12 Working Days
175,00 €
Price / item (Ex. VAT)
Availability: 9–12 Working Days
Ref. | Height [mm] | Effective height [mm] | Finish | Colour | Mesh size [mm] | Weight [kg] | Price / item (Ex. VAT) | Quantity | Total (Ex. VAT) | |
|---|---|---|---|---|---|---|---|---|---|---|
652405 10 | 800 | 800 | blue zinc plated | zinc plated blue passivated | 100 x 100 | 23 | 193,00 € | 193,00 € | ||
652393 10 | 800 | 800 | powder coated | may green | 100 x 100 | 23 | 175,00 € | 175,00 € | ||
652401 10 | 800 | 800 | powder coated | may green | 50 x 50 | 28.8 | 189,00 € | 189,00 € | ||
652395 10 | 1,000 | 1,000 | powder coated | may green | 100 x 100 | 25 | 197,00 € | 197,00 € | ||
652407 10 | 1,000 | 1,000 | blue zinc plated | zinc plated blue passivated | 100 x 100 | 25 | 211,00 € | 211,00 € | ||
652403 10 | 1,000 | 1,000 | powder coated | may green | 50 x 50 | 33 | 225,00 € | 225,00 € | ||
652397 10 | 1,200 | 1,200 | powder coated | may green | 100 x 100 | 27 | 229,00 € | 229,00 € | ||
652409 10 | 1,200 | 1,200 | blue zinc plated | zinc plated blue passivated | 100 x 100 | 27 | 259,00 € | 259,00 € | ||
652399 10 | 1,600 | 1,600 | powder coated | may green | 100 x 100 | 39 | 277,00 € | 277,00 € |
652405 10
652405 10
193,00 €

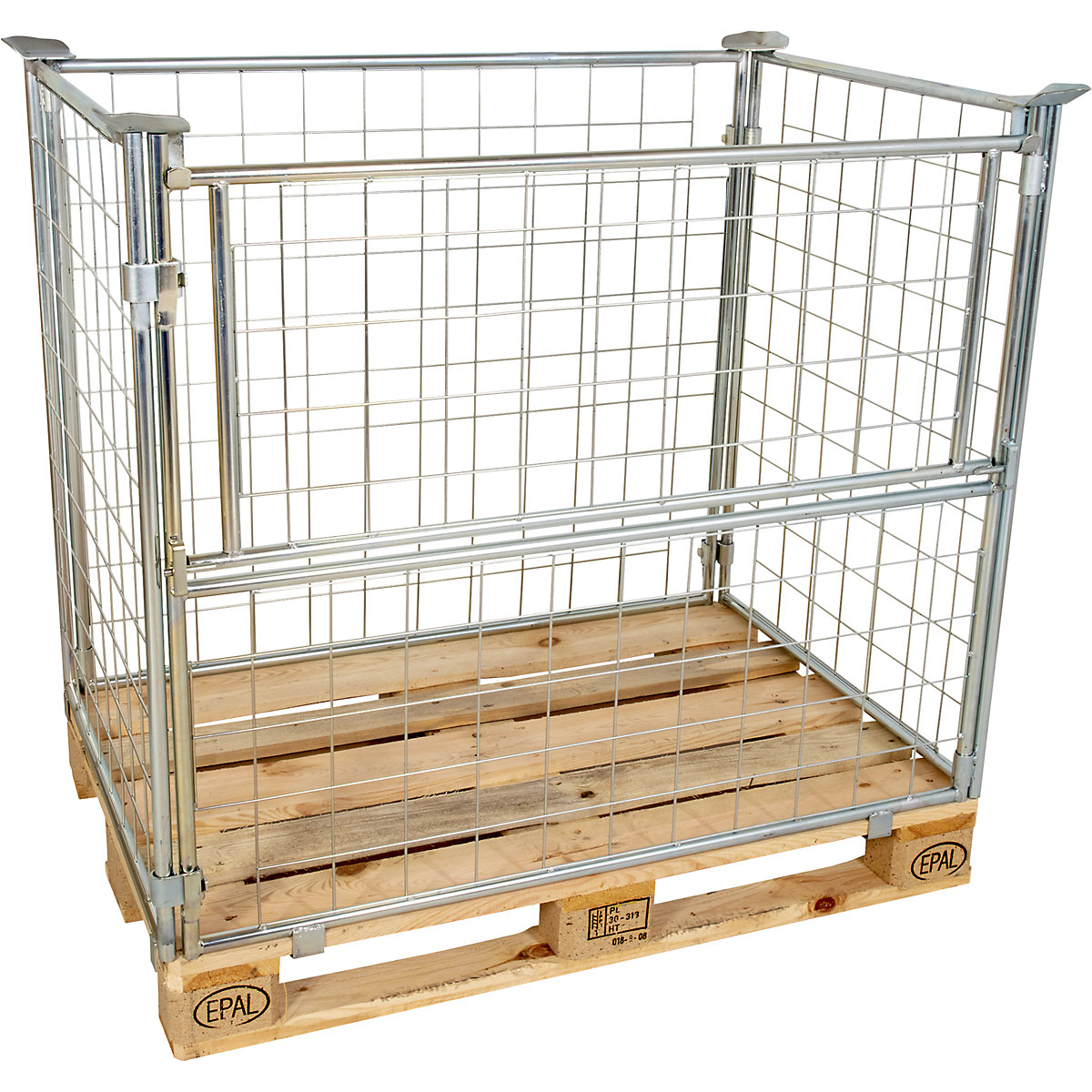

height 800 mm, zinc plated
652393 10
652393 10
175,00 €
height 800 mm, green
652401 10
652401 10
189,00 €
height 800 mm, green
652395 10
652395 10
197,00 €
height 1000 mm, green
652407 10
652407 10
211,00 €

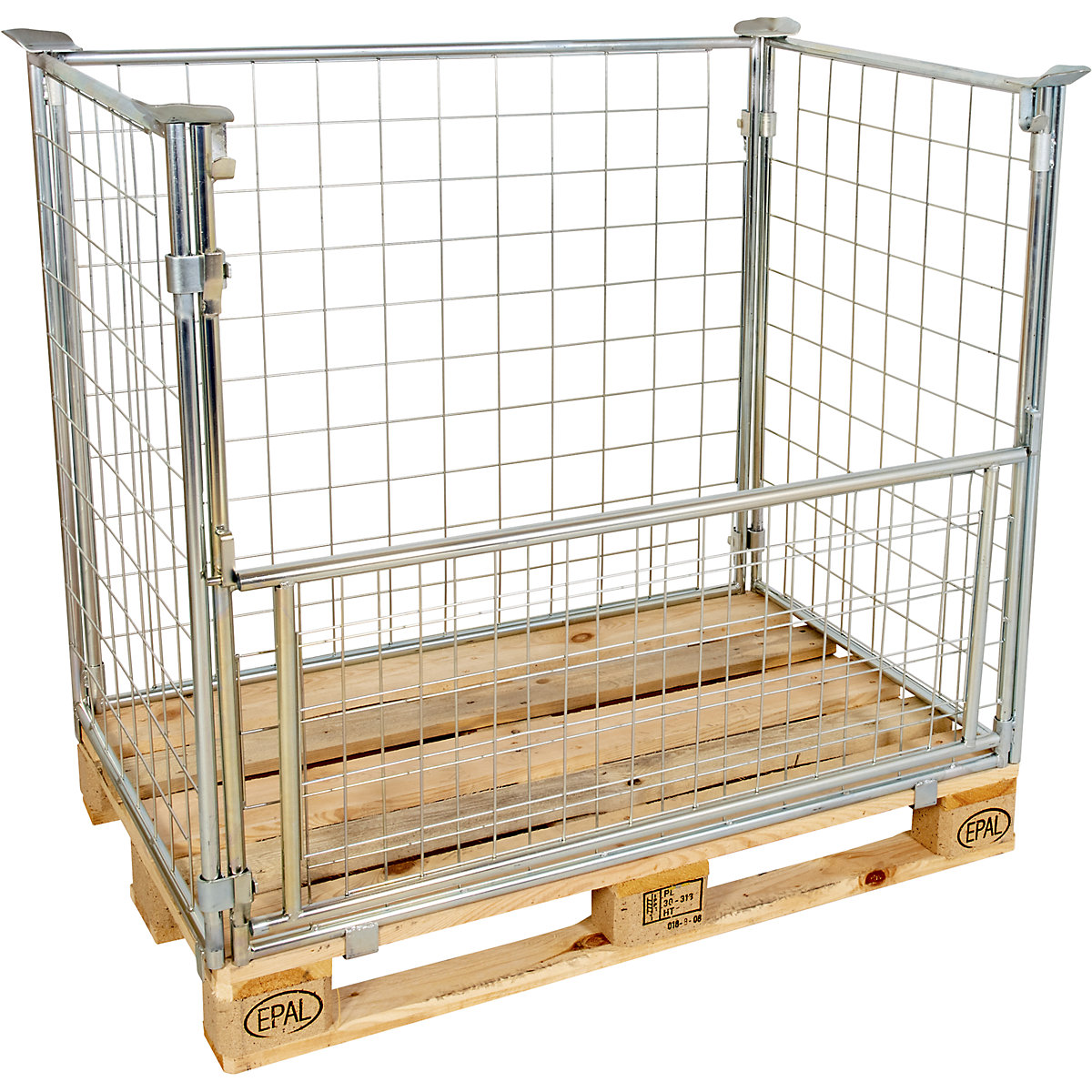

height 1000 mm, zinc plated
652403 10
652403 10
225,00 €
height 1000 mm, green
652397 10
652397 10
229,00 €
height 1200 mm, green
652409 10
652409 10
259,00 €

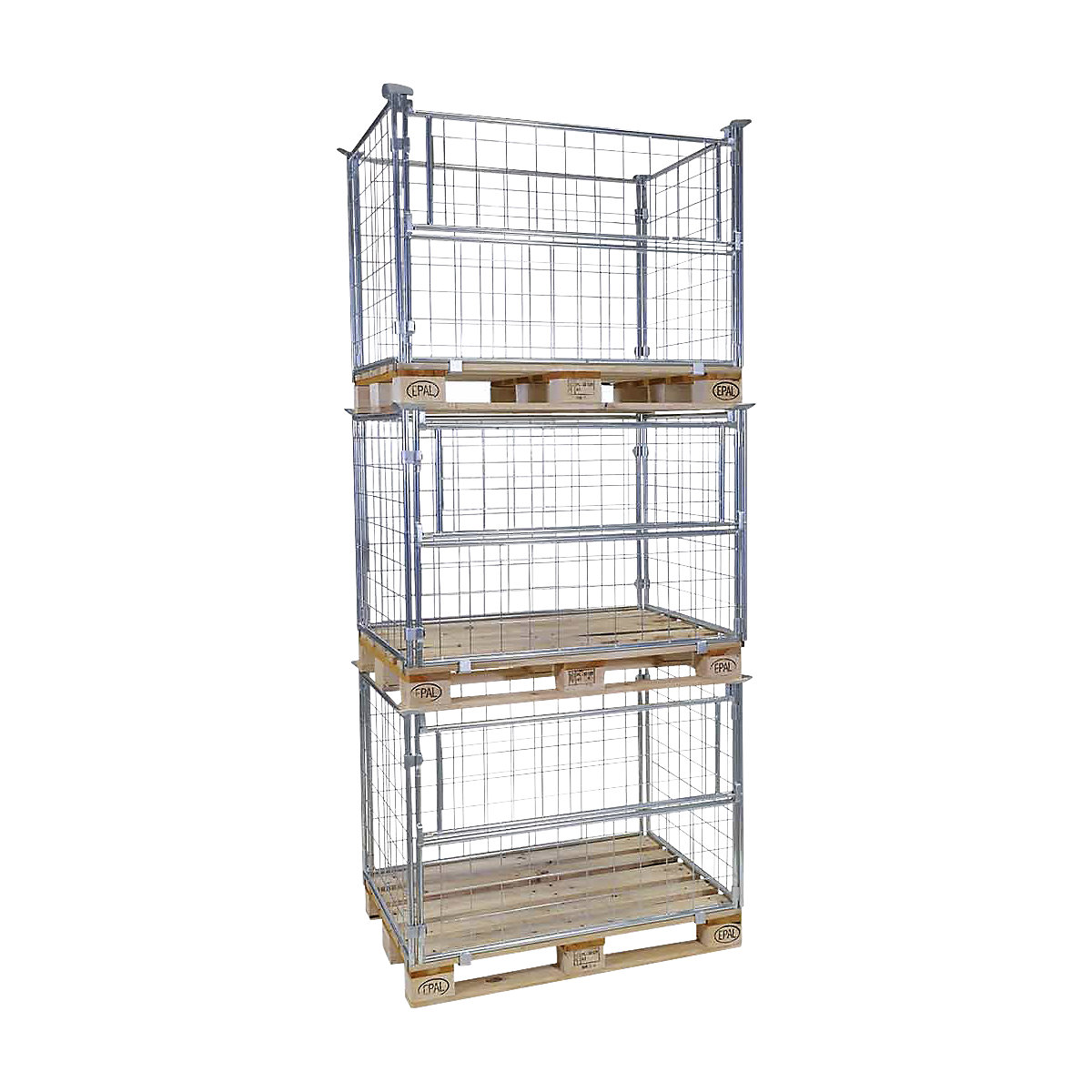

height 1200 mm, zinc plated
652399 10
652399 10
277,00 €

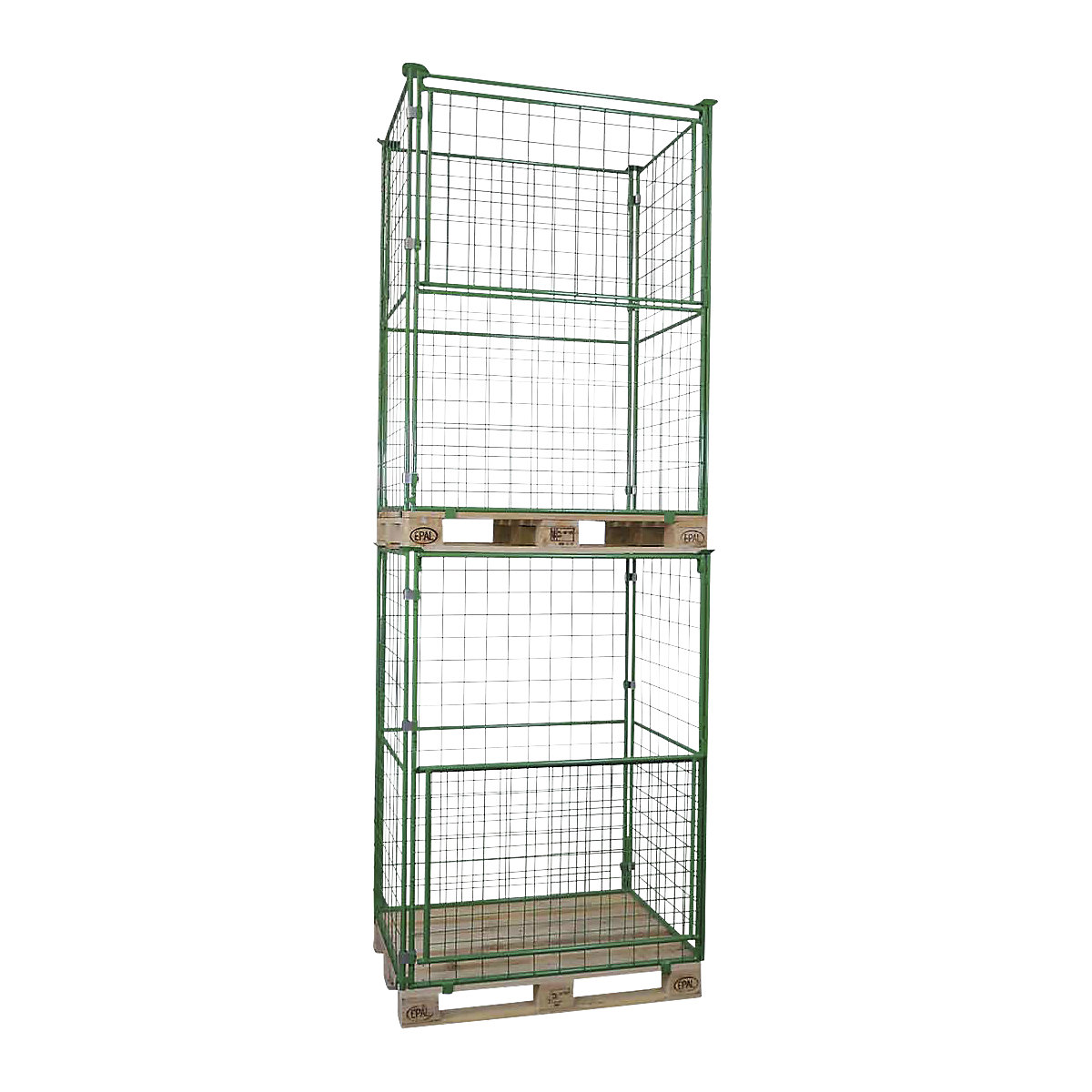

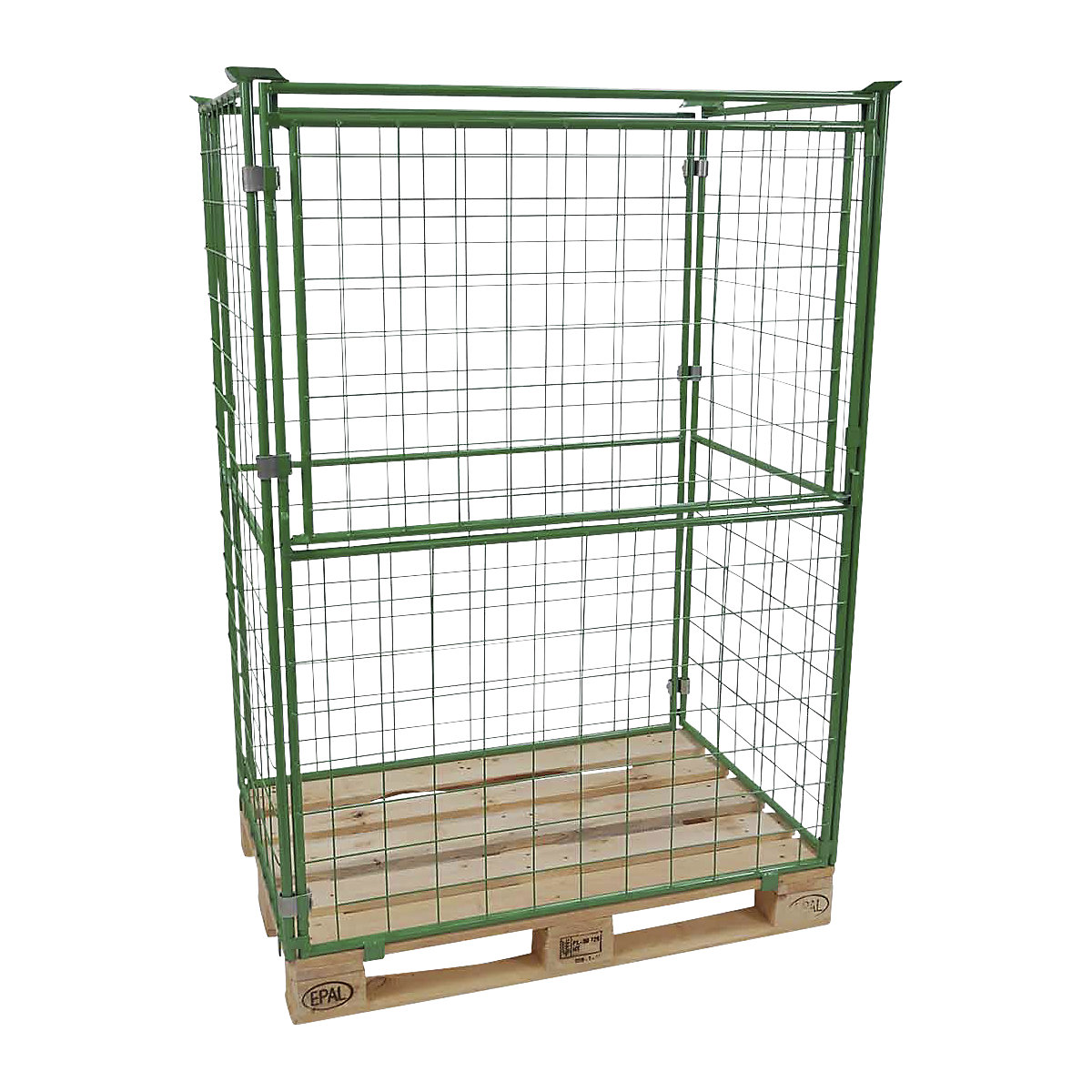

height 1600 mm, green
Product description
- Quick and easy assembly, space saving storage when empty
- High stability with low inherent weight
- Stackable
Technical data
| For pallet size | 1200 x 800 mm |
|---|---|
| Model | 1 long side with half drop gate |
| Max. load | 800 kg |
| Stacking load | 1600 kg |
| Type of mounting | for fitting and hooking in place |
| Material | steel |
| Length | 1200 mm |
| Width | 800 mm |
| Strut wire thickness | 3.8 mm |
| Mesh wire thickness | 3.8 mm |
| Product type | pallet frames |
| Supplied | assembled |
| Height | 800 mm |
| Effective height | 800 mm |
| Finish | powder coated |
| Colour | may green |
| Mesh size | 100 x 100 mm |
| Weight | 23 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 120.652
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.2 | |
| 30% | 3.2 | |
| 25% | 2.0 | |
| 10% | 3.0 | |
| 5% | 3.9 | |
| Overall score | 3.0 | |
