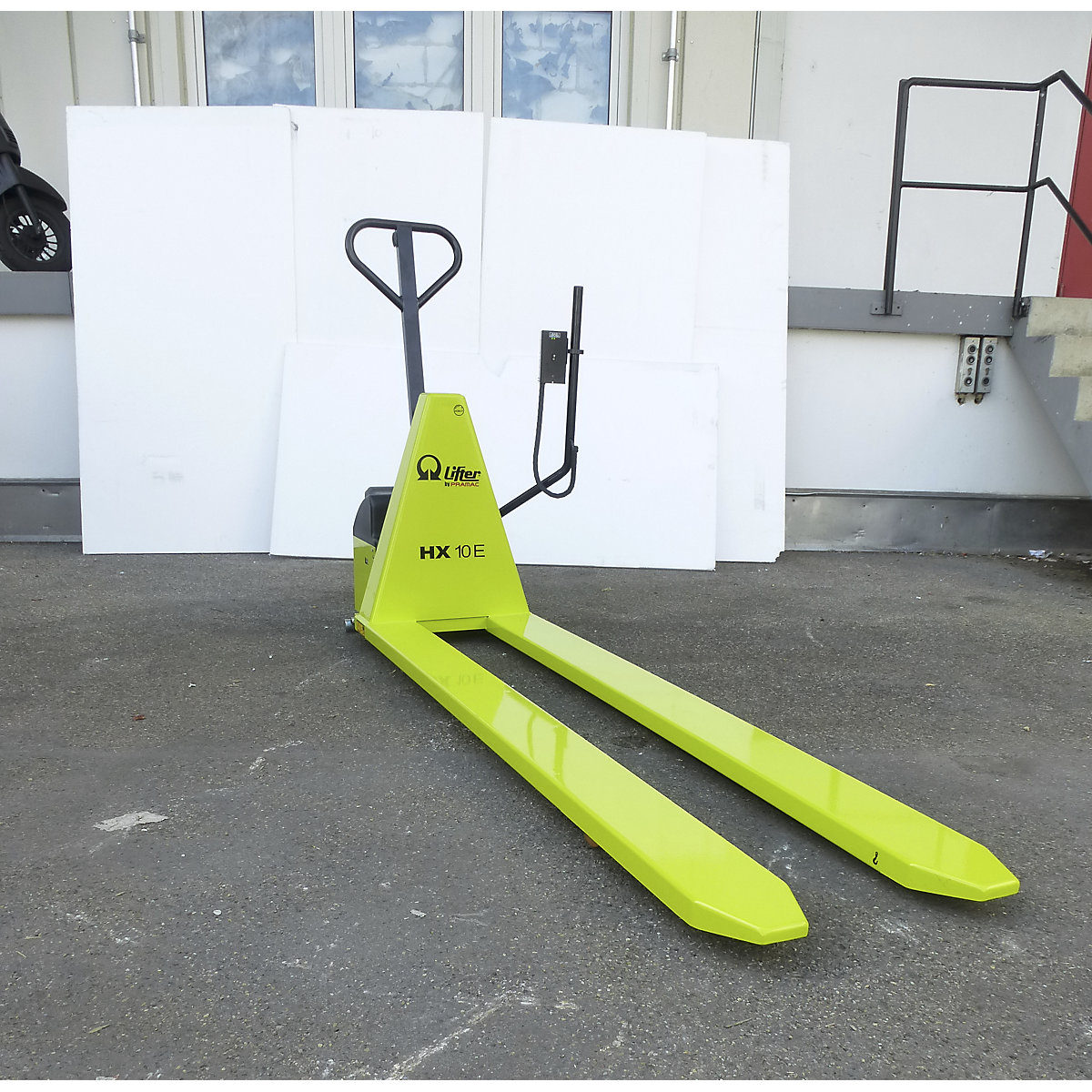

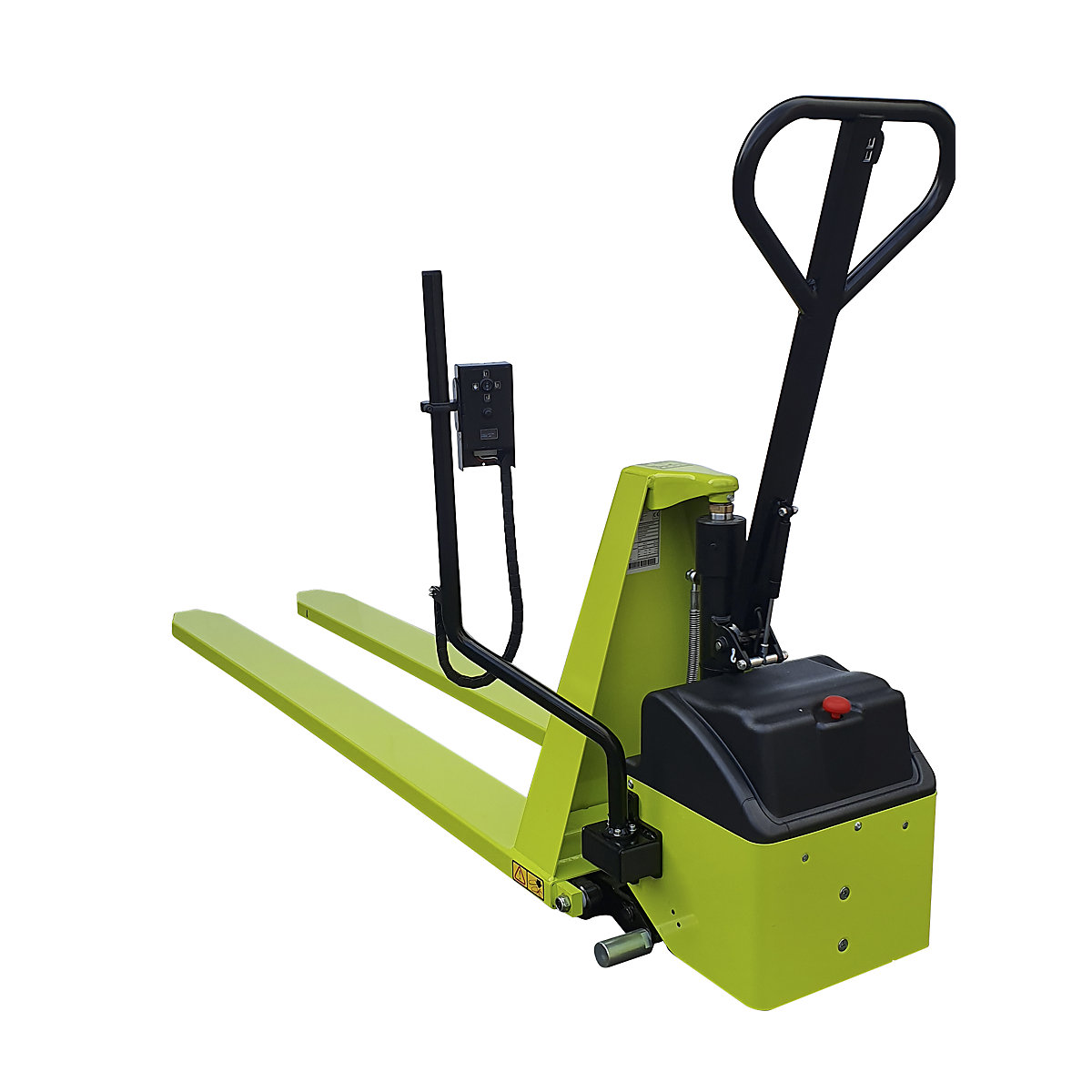

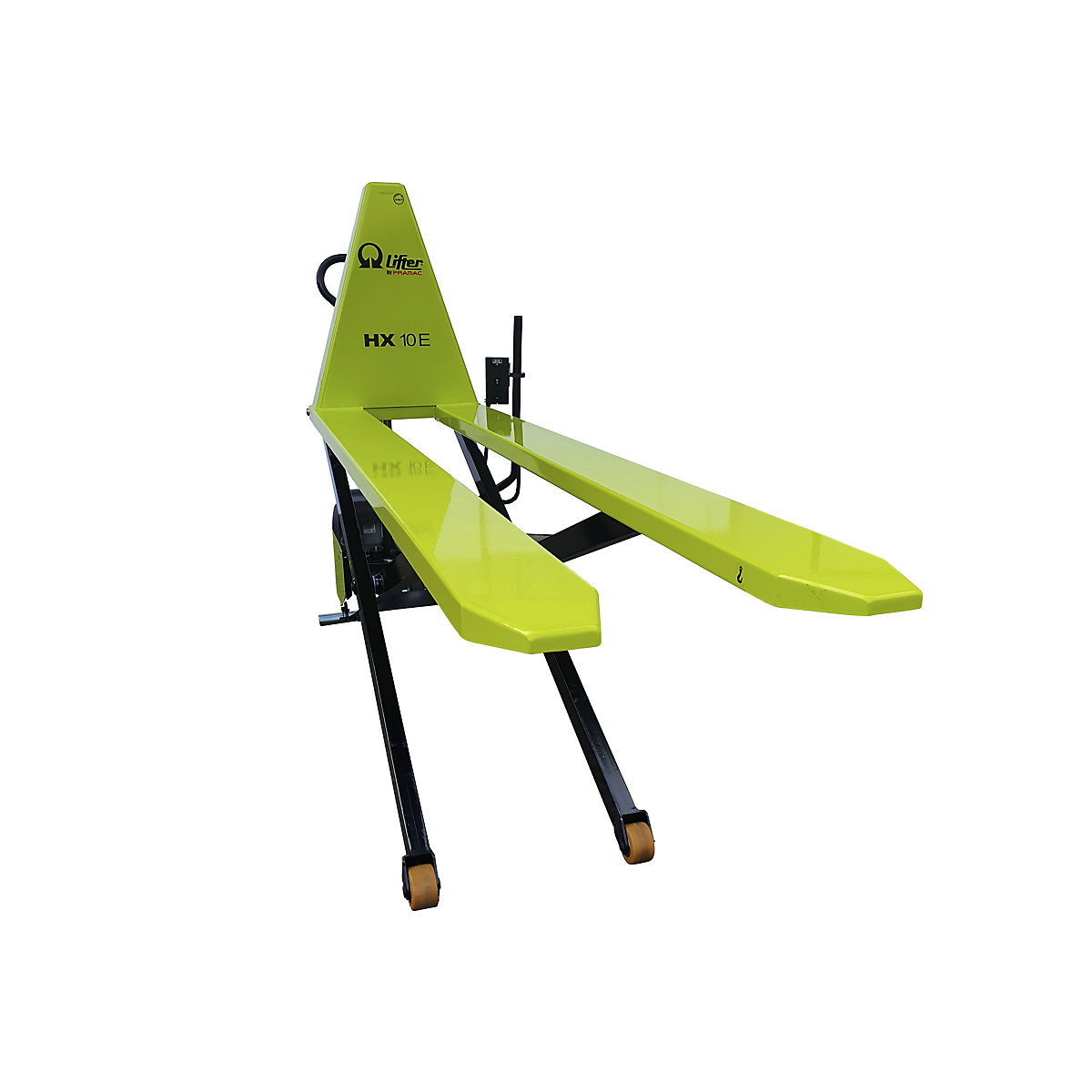

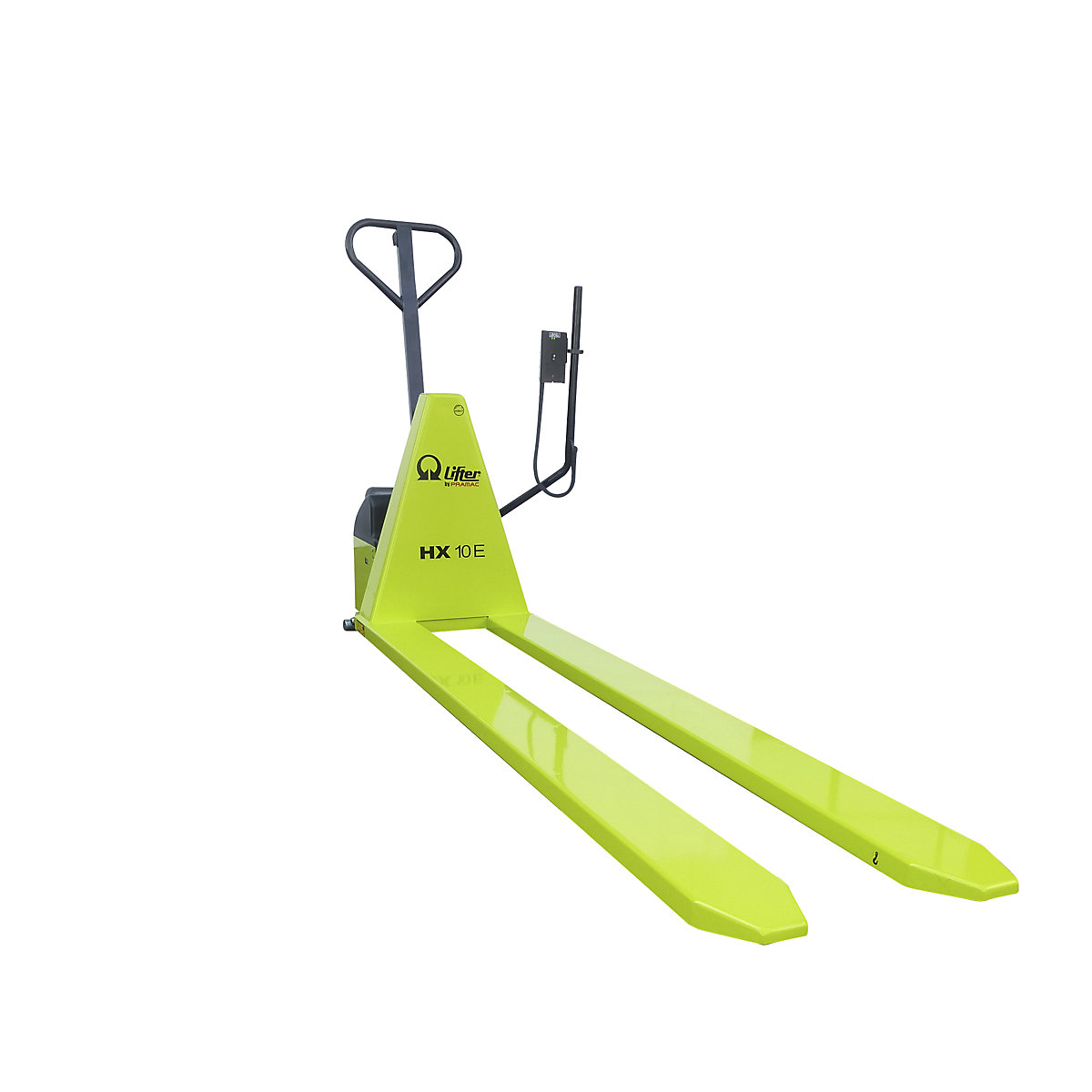

High-lift pallet truck, electro-hydraulic with level adjustment – Pramac max. load 1000 kg
fork length 1500 mm
Fork length [mm]
Ref.: 853911 10
High-lift pallet truck, electro-hydraulic with level adjustment – Pramac max. load 1000 kg
fork length 1500 mm
fork length 1500 mm
Fork length [mm]
Ref.: 853911 10
Product not available
Currently not availableProduct description
- Lift, move and deliver loads up to 1000 kg
- Work at an ideal height
Due to the reduced weight and excellent manoeuvrability, this universal truck can be used for transport tasks, putting parts into and out of storage, supplying assembly lines and much more.
Up to a height of 400 mm, the devices can be easily moved with load. Furthermore, the stabilisers that come as standard ensure a stable footing. Compact design due to telescopic cylinder. Self-lubricating scissor bearing.
Precise automatic and adjustable height correction for loading and unloading. Keeps goods at constant working height set by the user.
For working comfortably, relieves strain on the back and prevents absence.
High quality powder coating in attractive, custom green colour.
Up to a height of 400 mm, the devices can be easily moved with load. Furthermore, the stabilisers that come as standard ensure a stable footing. Compact design due to telescopic cylinder. Self-lubricating scissor bearing.
Precise automatic and adjustable height correction for loading and unloading. Keeps goods at constant working height set by the user.
For working comfortably, relieves strain on the back and prevents absence.
High quality powder coating in attractive, custom green colour.
Height adjustable feet
Controlled using sensors, the height is automatically adjusted to the working height set by the user. Audible signal for all fork movements.
Controlled using sensors, the height is automatically adjusted to the working height set by the user. Audible signal for all fork movements.
Technical data
| Max. load | 1000 kg |
|---|---|
| Lifting range | 85 – 800 mm |
| Lift drive | electro-hydraulic, 12 V |
| Fork width | 160 mm |
| Distance across forks | 540 mm |
| Height | 1300 mm |
| Steering radius | 180 ° |
| Steering wheel diameter | 200 mm |
| Steering wheel width | 50 mm |
| Roller material | polyurethane |
| Fork roller version | single |
| Fork roller diameter | 80 mm |
| Fork roller width | 50 mm |
| Colour | green |
| Finish | powder coated |
| Battery | 12 V / 60 Ah |
| Battery charger | external HF charger 6 A |
| Lifting time without load | 5.5 sec |
| Lifting time with full load | 8.94 sec |
| Feature | electro-hydraulic level adjusting mobile up to 400 mm lifting height |
| Material | steel |
| Product type | high-lift pallet trucks |
| Supplied | assembled |
| Fork length | 1500 mm |
| Length | 2065 mm |
| Width | 560 mm |
| Steering wheel material | solid rubber |
| Load centre | 750 mm |
| Turning radius | 1916 mm |
| Weight | 253 kg |
