Hazardous goods container for the passive storage of flammable media external HxWxD 2570 x 6075 x 2875 mm

  • Regulation compliant, versatile and mobile passive outdoor storage of hazardous flammable media (no opening/refilling/filling the containers) – approved for flammable substances in GHS categories 1 – 3
  • Permanent natural ventilation through all round ventilation openings
  • Robust, zinc plated steel construction, integrated sump tray with grate
  • Can be used as small container storage in conjunction with shelving (accessory)
  • With double doors as standard
  • Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
  • Can be moved at any time when empty – crane eyelets, forklift access
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Ref.: 605299 49
Hazardous goods container for the passive storage of flammable media, external HxWxD 2570 x 6075 x 2875 mm, zinc plated
Price / items (Ex. VAT)
10.900,00 €

Product description
Zinc plated, particularly stable, profiled wall and roof panels made of sheet steel.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.

Snow load in accordance with DIN EN 1055.

Double doors

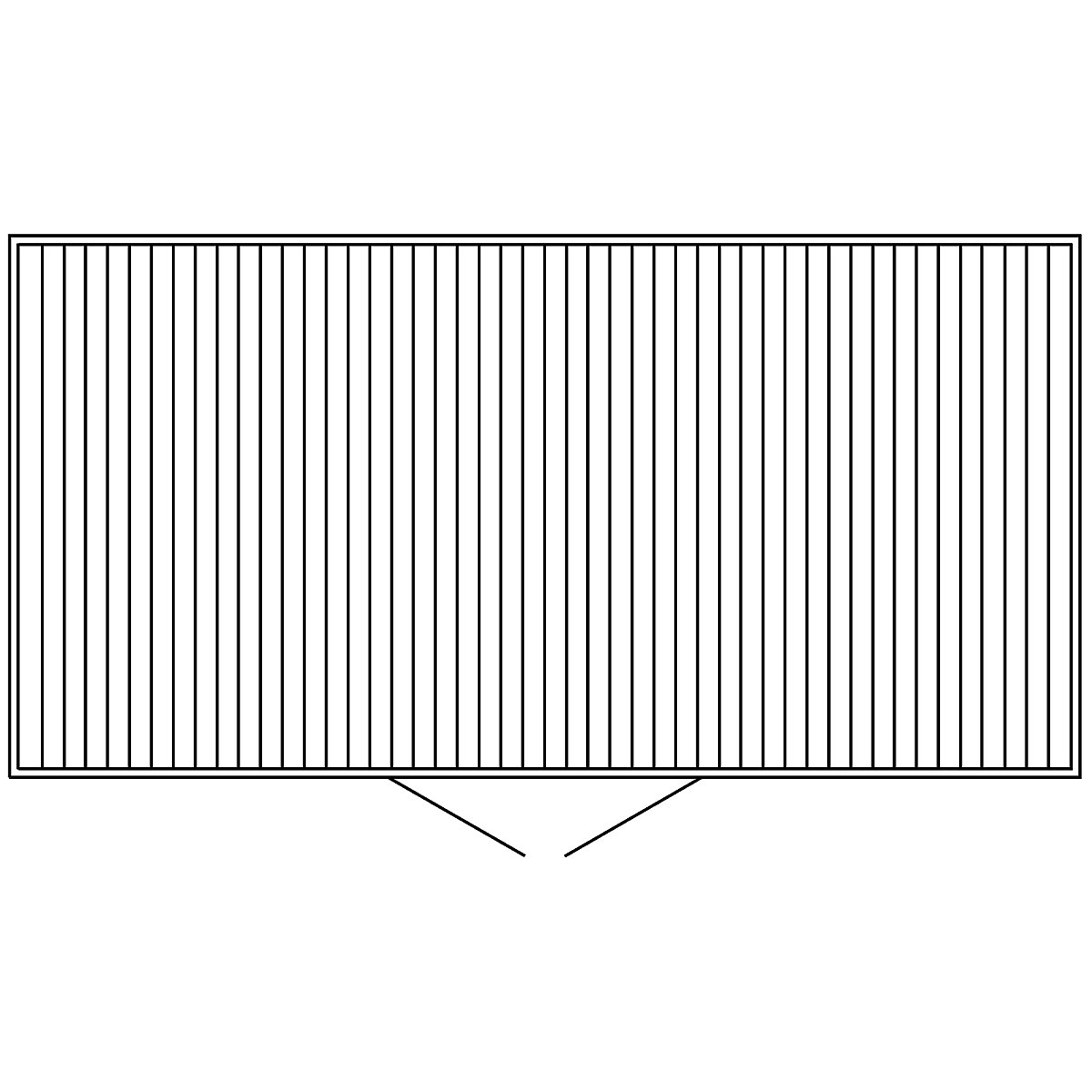

See line drawing for size and position. Alternative door positions on request. With security lock.

The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessories) when ordering.

For storing tightly sealed containers.
Not approved for opening, filling or emptying containers in storage.
Permanent natural ventilation through all round ventilation openings.
Please ask for details of fire protection containers.
  • Regulation compliant, versatile and mobile passive outdoor storage of hazardous flammable media (no opening/refilling/filling the containers) – approved for flammable substances in GHS categories 1 – 3
  • Permanent natural ventilation through all round ventilation openings
  • Robust, zinc plated steel construction, integrated sump tray with grate
  • Can be used as small container storage in conjunction with shelving (accessory)
  • With double doors as standard
  • Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
  • Can be moved at any time when empty – crane eyelets, forklift access
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Technical data
Place of useoutdoor use
External height2570 mm
External width6075 mm
External depth2875 mm
Materialsteel profile
Sump capacity2800 l
Position of double doorslong side
Internal height2150 mm
Internal width5980 mm
Internal depth2780 mm
Type of floorhot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
Lock typesecurity lock
Max. snow load150 kg/m²
Finishzinc plated
Door typedouble hinged doors
Door width1950 mm
Door height1900 mm
Test symbolwith general certification from the DIBt (German Institute for Construction Technology) Berlin
Hazard classfor the passive storage of flammable substances in GHS categories 1 – 3
Suppliedflat pack
Weight1850 kg
Items subject to surcharges & services available
Extra cost for exterior paintwork

for external WxD 6075 x 2875 mm

749,00 €
Excl. VAT
Crane / forklift unloading

for hazardous goods storage container

145,00 €
Excl. VAT
