Ref.: 762659 10

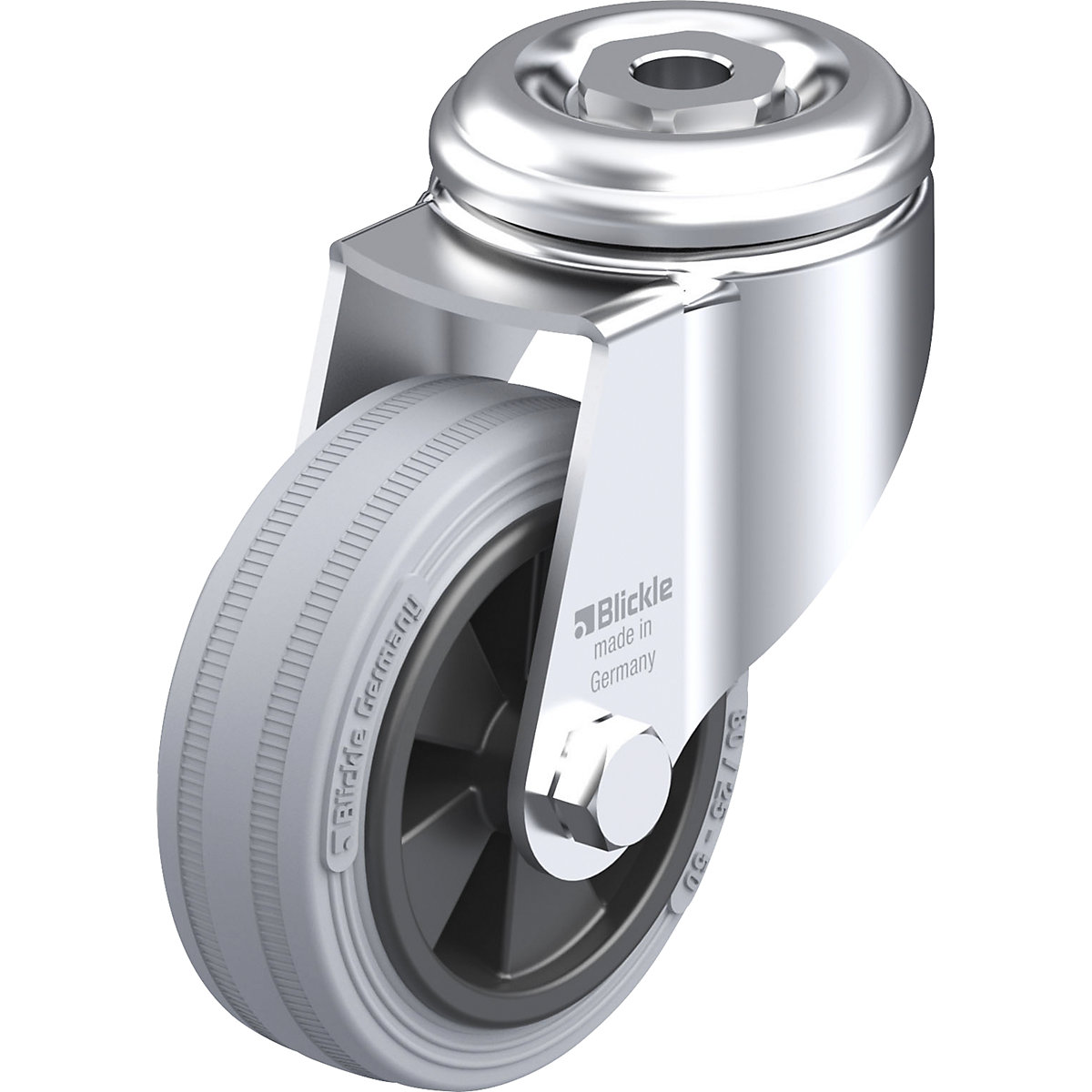

LKRA-VPA 80G-11 light duty swivel castor – Blickle plate dimensions 57 mm
wheel Ø 80 mm, max. load 80 kg
Ref.: 762659 10
LKRA-VPA 80G-11 light duty swivel castor – Blickle plate dimensions 57 mm
wheel Ø 80 mm, max. load 80 kg
wheel Ø 80 mm, max. load 80 kg
32,50 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?32,50 €
Price / item (Ex. VAT)
Product description
- Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Double ball bearing in the ring bearing
- Stable centre bolt
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Steel locking lever
- Tyres: high quality solid rubber, hardness 80 Shore A, grey, non-marking, non-staining
- Rim: high quality nylon 6 or polypropylene for the related electrically conductive product
- High chemical resistance to many aggressive media, but not to oils
- Temperature resistance: –20 °C to +60 °C, reduced max. load above +30 °C
Light duty swivel castor with bolt hole.
Technical data
| Wheel diameter | 80 mm |
|---|---|
| Structure | swivel castor |
| Wheel material | rubber |
| Material of rim | nylon |
| Type of mounting | with bolt hole |
| Max. load at 4 km/h | 80 kg |
| Wheel width | 25 mm |
| Overall height | 108 mm |
| Wheel bearing | plain bearing |
| Model | light duty castors |
| Swivel castor plate dimensions | 57 mm |
| Shore hardness | 80 Shore A |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 0.46 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 5.9 | |
| 30% | 2.0 | |
| 25% | 2.0 | |
| 10% | 0.0 | |
| 5% | 3.9 | |
| Overall score | 3.6 | |
