Ref.: 572593 10

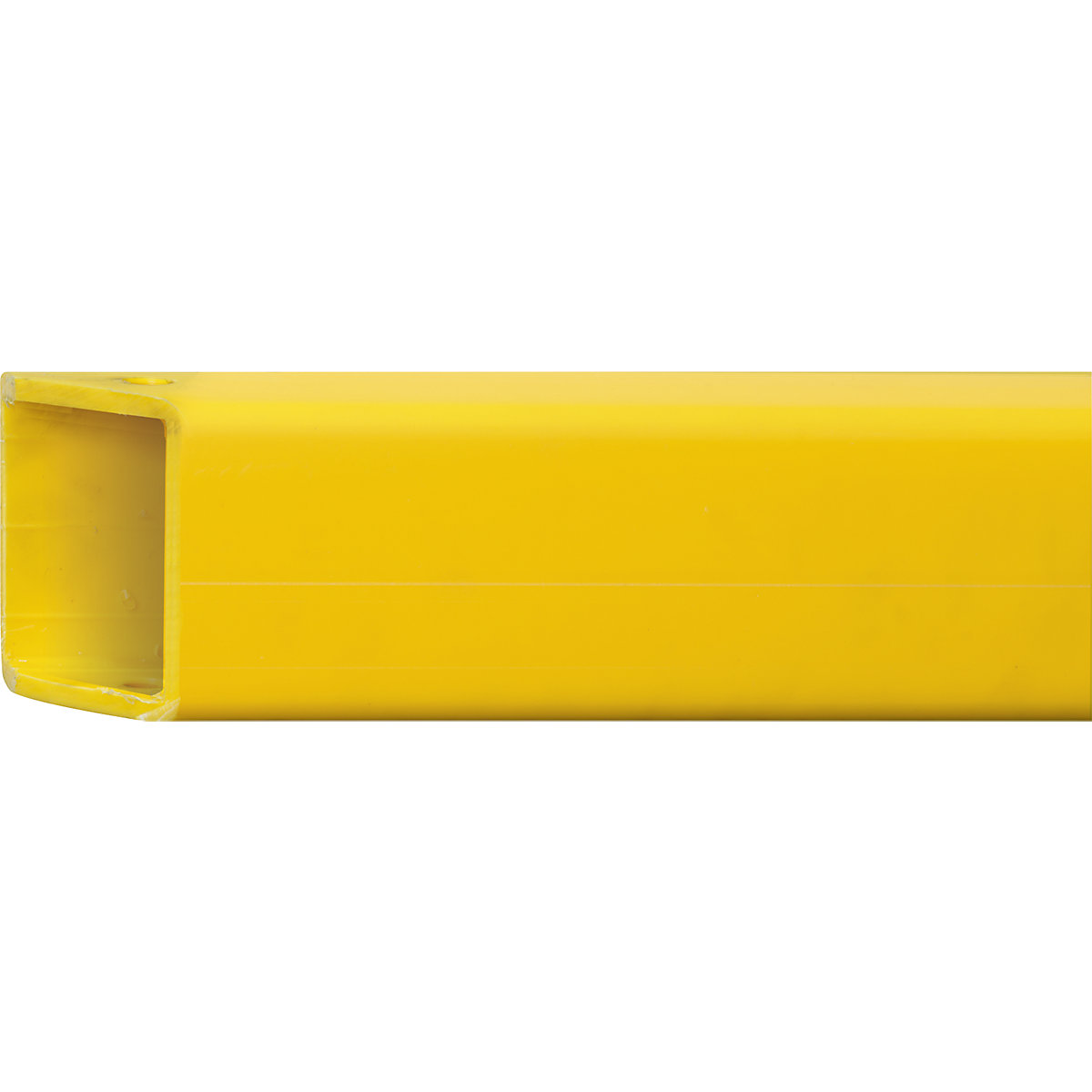

Cross beam for corner posts (45° bevel, one-sided) – Black Bull WxH 52 x 74 mm

Cross beam for corner posts (45° bevel, one-sided) – Black Bull

length 1500 mm, yellow, 74 x 52 x 5 mm

Length [mm]
181,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Product description
  • Designed for the highest loads
  • Separates traffic routes clearly and effectively
  • TÜV tested in accordance with DGUV 108-007
  • High resistance to material fatigue
  • Can be adapted to suit the object
The cross beam for corner posts is a component of the hybrid impact protection railing, which combines the advantages of steel and plastic. Spring-loaded steel posts and flexible plastic cross beams form a robust, effective impact protection. This system is designed for the highest loads – stable and yet flexible (see combinations).

The railing system can be easily adapted to local conditions due to its modular design and can be extended at any time if required.

The cross beams with a one-sided 45° bevel are intended for mounting on corner posts.
The matching posts, cross bars and doors can be found under Combinations.
Technical data
Type of mountingfor screw connection
Width52 mm
Height74 mm
Colouryellow
Materialsteel plastic
Panel thickness5 mm
Place of useindoor and outdoor use
Product typesafety railings
Length1500 mm
Suppliedpre-assembled, final assembly by customer
Weight2.25 kg
