Ref.: 572573 10
Gate for S-Line safety railing LxWxH 905 x 30 x 475 mm
for S-Line, yellow with gas pressure spring
Ref.: 572573 10
Gate for S-Line safety railing LxWxH 905 x 30 x 475 mm
for S-Line, yellow with gas pressure spring
for S-Line, yellow with gas pressure spring
609,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?609,00 €
Price / item (Ex. VAT)
Product description
- 90° opening inwards or outwards
- Hinged to post on left or right
- Can be retrofitted
- With protective screen
- Tested in accordance with EN 1461, EN 1090-2 + ISO/TR 15608

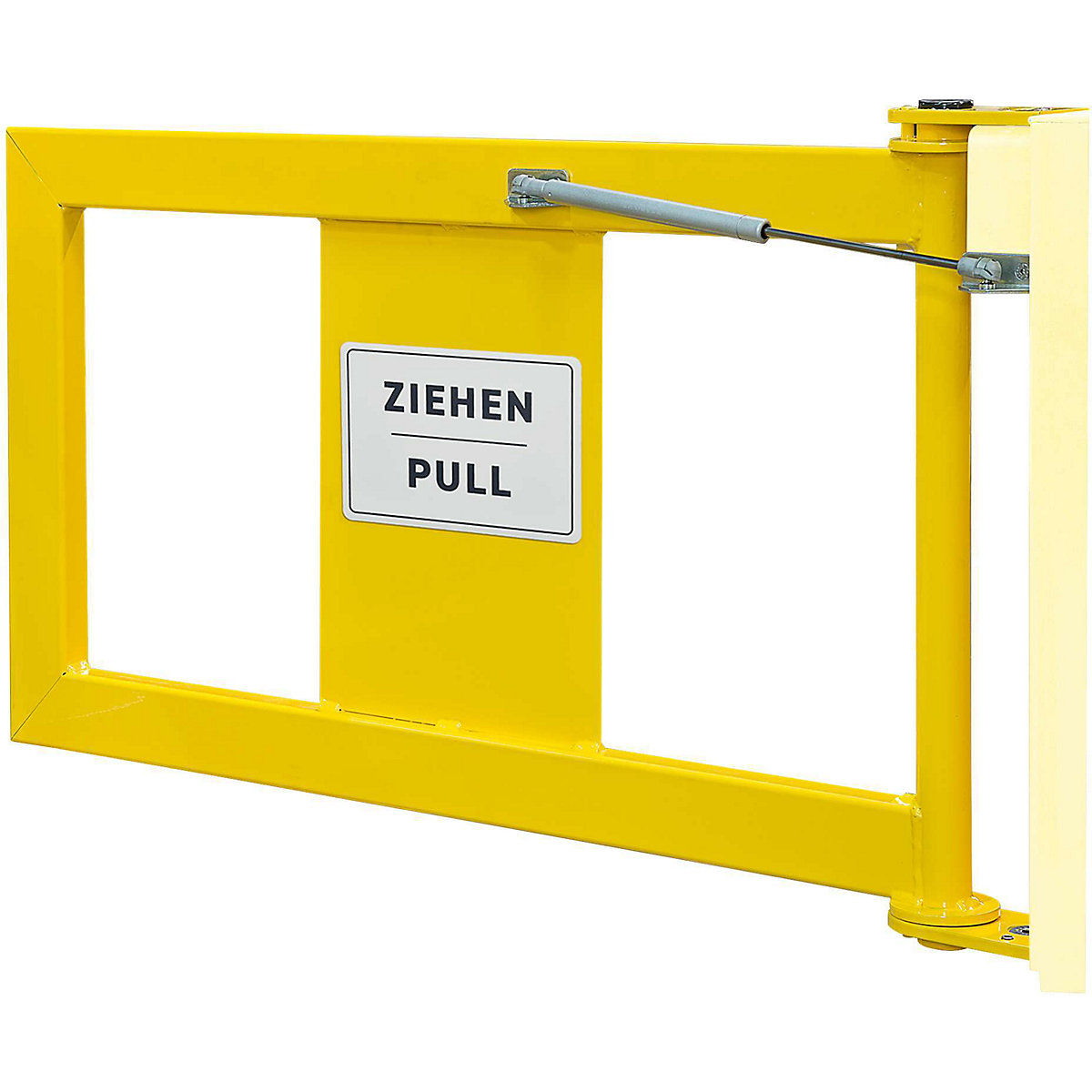

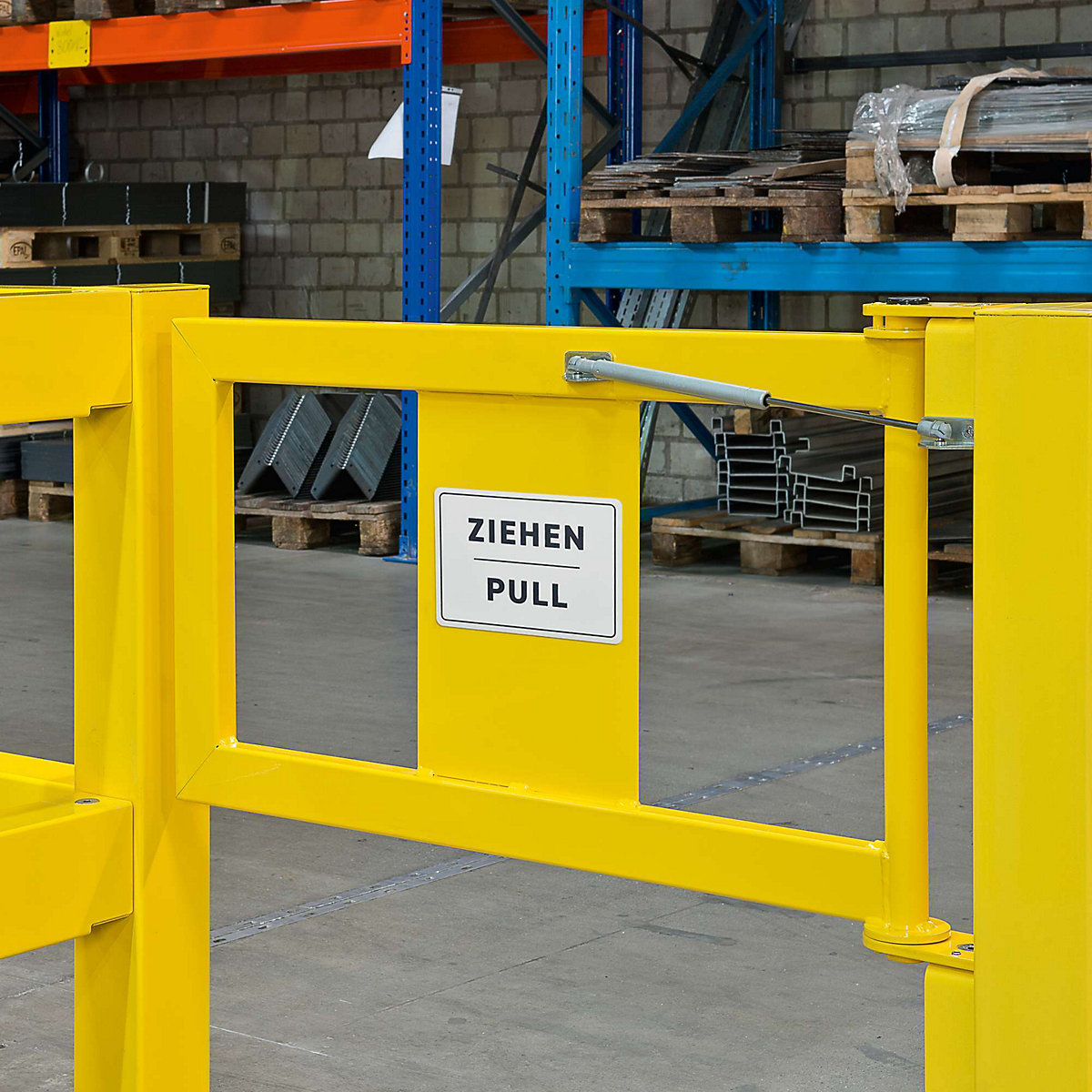

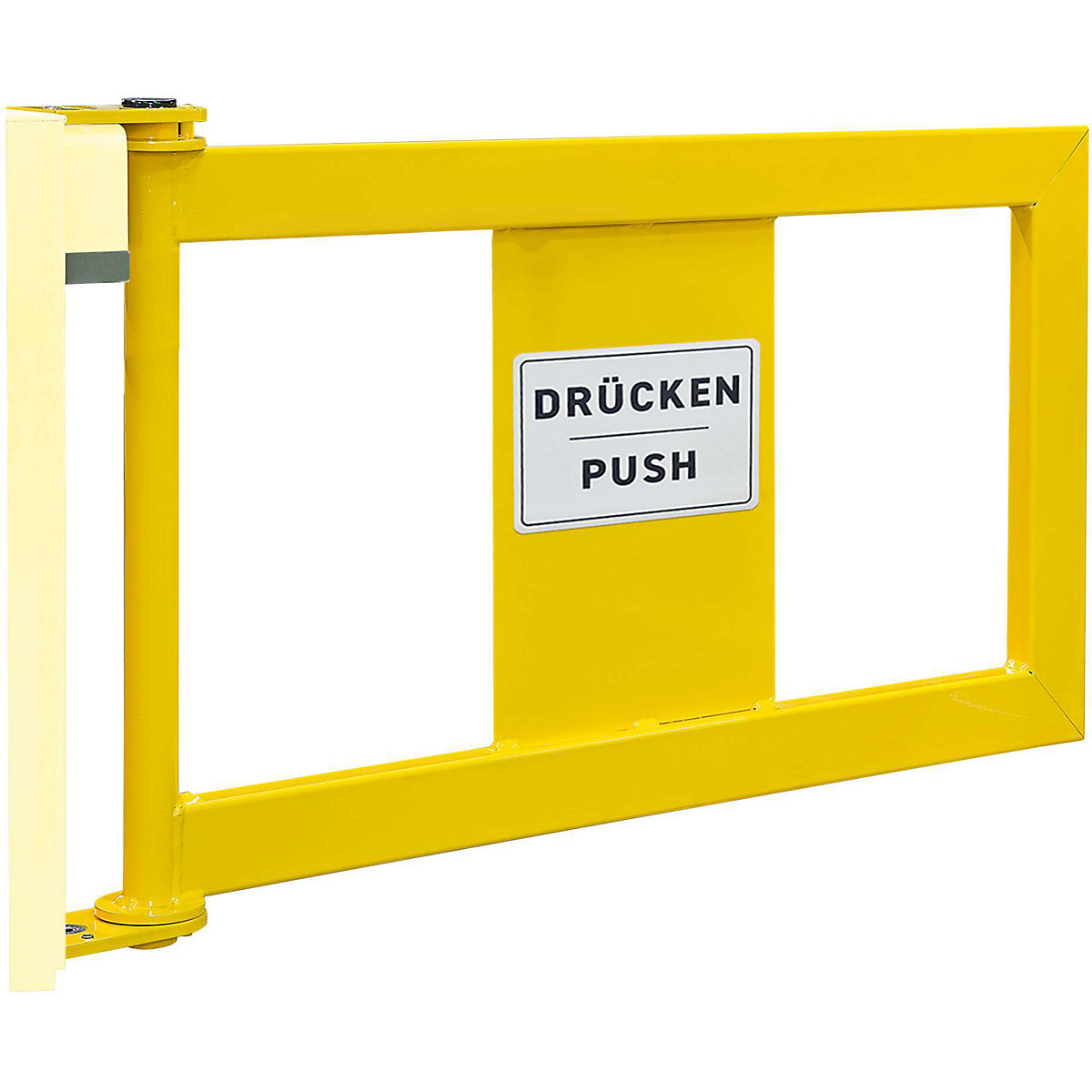

The sectional steel railing gate is designed for the S-Line crash protection railing with centre posts. It features a welded-in protective panel for increased stability, better visibility and for applying warning notices. Thanks to being equipped with a gas pressure spring, the gate closes automatically and thereby reduces the risk of collisions and impact damage.
The surface is plastic-coated in traffic yellow RAL 1023.
The unique, newly developed fitting technology makes the railing gate highly versatile in its application. The gate can be hinged on either the right or the left, with a 90° opening inwards or outwards.
Selectable on-site:
Right or left-hand hinging
90° opening inwards or outwards
Dimensions:
Gate: 835 x 475 mm
Gate with fittings: 905 x 520 mm
Frame profile: 60 x 30 mm
Wall thickness: 2 mm
Protective panel: 250 x 355 mm
The surface is plastic-coated in traffic yellow RAL 1023.
The unique, newly developed fitting technology makes the railing gate highly versatile in its application. The gate can be hinged on either the right or the left, with a 90° opening inwards or outwards.
Selectable on-site:
Right or left-hand hinging
90° opening inwards or outwards
Dimensions:
Gate: 835 x 475 mm
Gate with fittings: 905 x 520 mm
Frame profile: 60 x 30 mm
Wall thickness: 2 mm
Protective panel: 250 x 355 mm
Technical data
| Type of mounting | for screw connection |
|---|---|
| Model | S-Line |
| Length | 905 mm |
| Width | 30 mm |
| Height | 475 mm |
| Colour | traffic yellow RAL 1023 |
| Material | steel |
| Finish | plastic coated |
| Panel thickness | 2 mm |
| Place of use | indoor use |
| Product type | safety doors |
| Supplied | flat pack |
| Weight | 18.2 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.0 | |
| 30% | 4.6 | |
| 25% | 1.0 | |
| 10% | 1.0 | |
| 5% | 3.9 | |
| Overall score | 3.0 | |
