Ref.: 864219 10

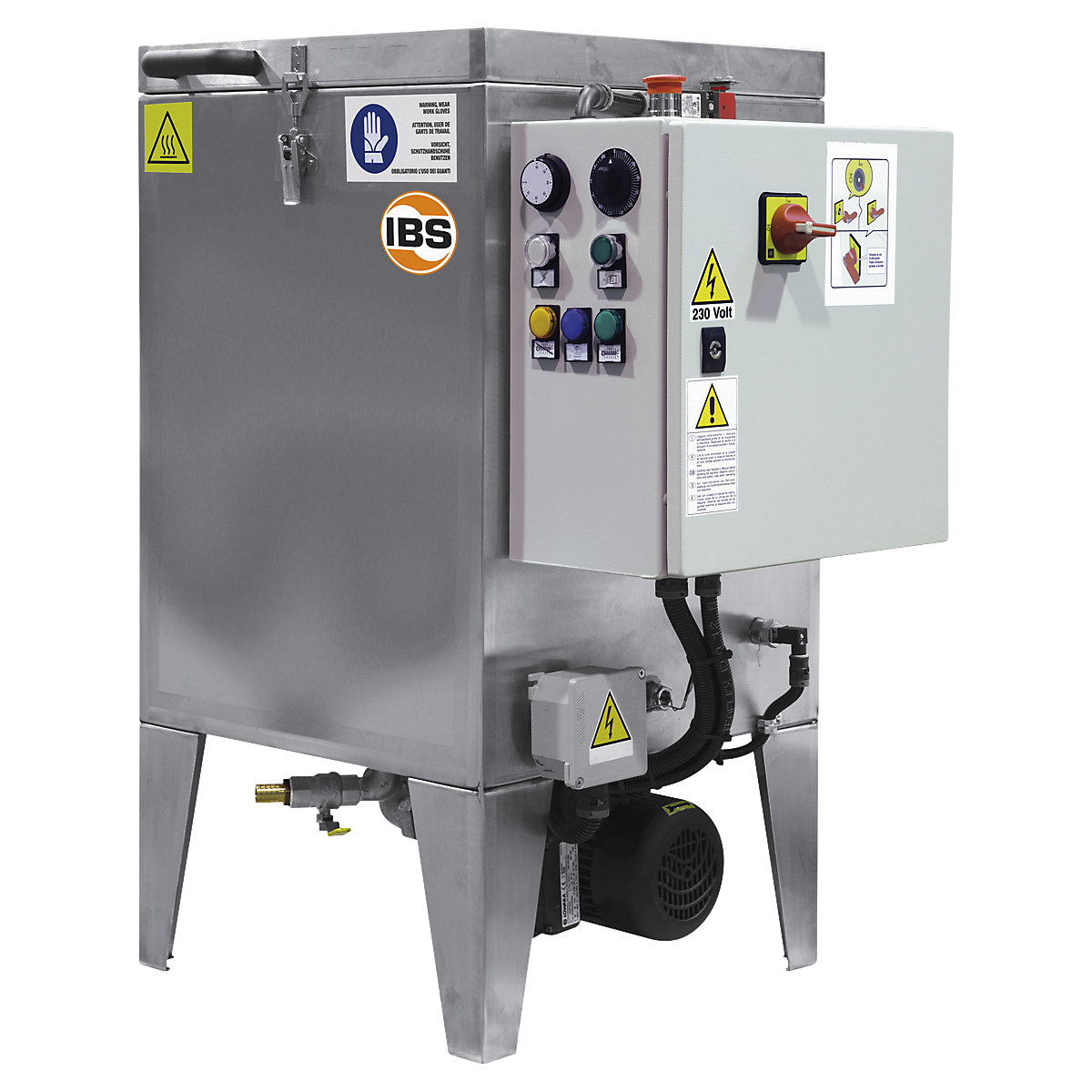

Automatic parts cleaner MINI 36 – IBS Scherer load capacity 70 kg
work surface WxD 380 x 380 mm
Ref.: 864219 10
Automatic parts cleaner MINI 36 – IBS Scherer load capacity 70 kg
work surface WxD 380 x 380 mm
work surface WxD 380 x 380 mm
New
on request
Price / item (Ex. VAT)
Availability: 5-6 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Fully automatic cleaning for fast, efficient parts cleaning
- Rotating wash basket for uniform all-round cleaning of all components
- Precise flat spray nozzles for intensive processing from all sides
- High operational safety thanks to filter inlets, vapour exhaust and low-water cut-off
- Small parts basket included for flexible cleaning of small components
The MINI 36 parts washer offers a compact and powerful solution for automatic parts cleaning in production, manufacturing and maintenance. The robust stainless steel construction and the fully automated cleaning process ensure that oil and grease contamination on components such as bolts, sleeves or ball bearings is reliably removed in a short time, while employees gain valuable time for other tasks.
After filling the tank with water and the appropriate water-soluble IBS special cleaning agent, the items to be cleaned are placed in the rotating wash basket and the machine is started using the selected temperature and time settings. The wash liquor is heated and the basket, driven by the water jet, rotates continuously inside the closed housing. The horizontally arranged pump unit pumps the wash liquor via three stainless steel nozzle pipes with precisely overlapping flat-jet nozzles, which intensively wash the items to be cleaned from all sides. After the wash programme is complete, the MINI 36 switches off automatically.
For reliable operation, the machine is equipped with a stainless steel sieve plate with filter inlets, an integrated vapour exhaust, as well as a low-water protection feature. An additional stainless steel small parts basket (Ø 170 mm) extends the range of applications for smaller components.
After filling the tank with water and the appropriate water-soluble IBS special cleaning agent, the items to be cleaned are placed in the rotating wash basket and the machine is started using the selected temperature and time settings. The wash liquor is heated and the basket, driven by the water jet, rotates continuously inside the closed housing. The horizontally arranged pump unit pumps the wash liquor via three stainless steel nozzle pipes with precisely overlapping flat-jet nozzles, which intensively wash the items to be cleaned from all sides. After the wash programme is complete, the MINI 36 switches off automatically.
For reliable operation, the machine is equipped with a stainless steel sieve plate with filter inlets, an integrated vapour exhaust, as well as a low-water protection feature. An additional stainless steel small parts basket (Ø 170 mm) extends the range of applications for smaller components.
Technical data
| Working height | 0.34 m |
|---|---|
| Worktop width | 380 mm |
| Worktop depth | 380 mm |
| Max. load | 70 kg |
| Scope of delivery | device only |
| Material | stainless steel |
| Design of pump | stainless steel hand pump |
| Product type | parts washers |
| Supplied | assembled |
| Weight | 50 kg |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
Recyclable
Recyclable products are products that can be recycled at the end of their service life, providing they are separated into all their individual components in designated recycling facilities. This means that the individual components are made of materials that can be exploited using the recycling process and be reprocessed into new products. Recyclable products help reduce the environmental impact of waste and to conserve resources.
