Ref.: 864224 10
Parts cleaner type Jumbo 115-2 – IBS Scherer load capacity 350 kg
HxWxD 1495 x 1570 x 1510 mm
Ref.: 864224 10
Parts cleaner type Jumbo 115-2 – IBS Scherer load capacity 350 kg
HxWxD 1495 x 1570 x 1510 mm
HxWxD 1495 x 1570 x 1510 mm
New
on request
Price / item (Ex. VAT)
Availability: 5-6 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Heated stainless steel version for fully automatic parts cleaning using the spray process
- 2 horizontally arranged pumps, 6 nozzle pipes for three-dimensional cleaning
- Rotating washing basket and small parts cleaning basket
- Removes oil and grease soiling in no time at all
- Toothed belt drive, geared motor controlled by inverter

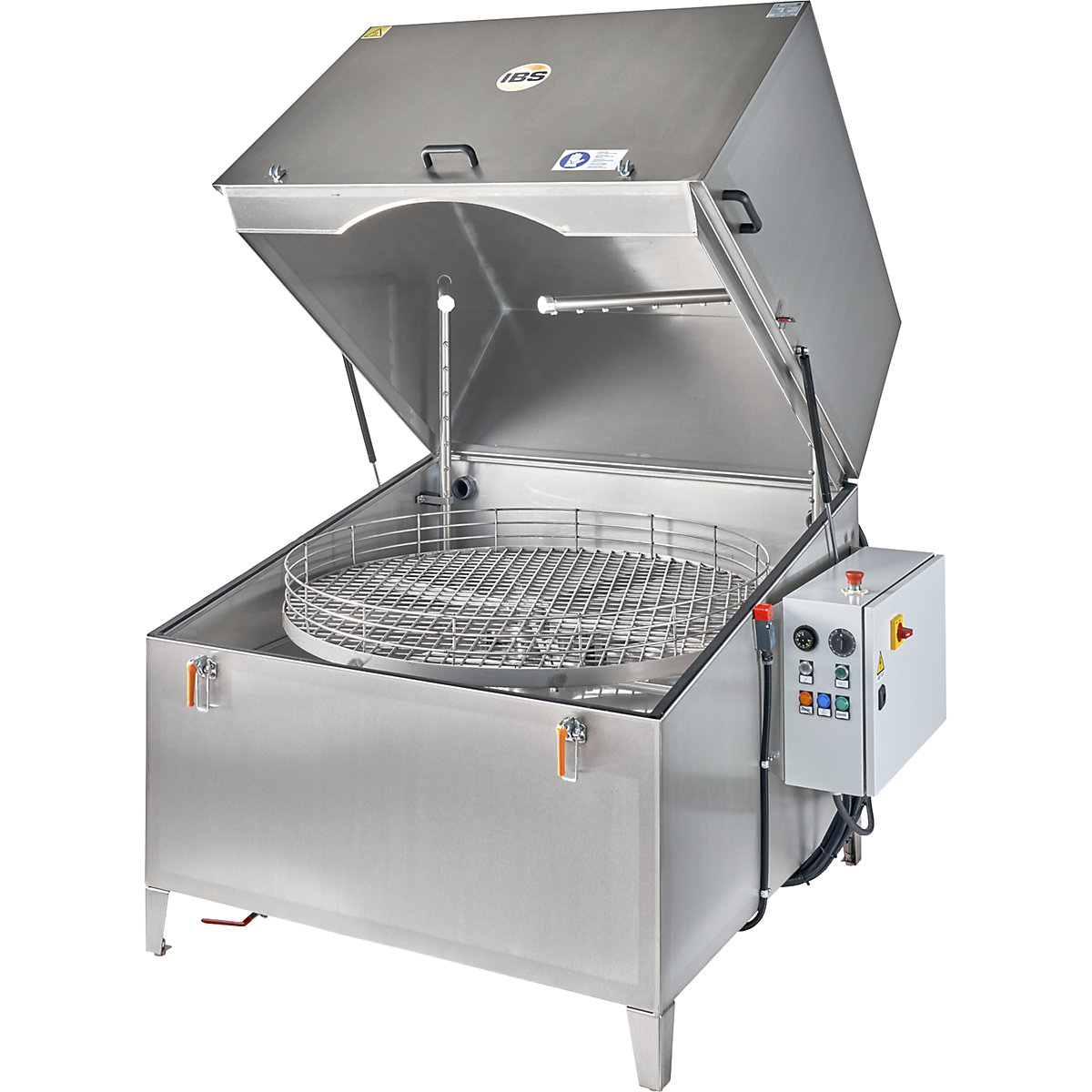

The Jumbo 115-2 automatic washing machine, made from robust stainless steel, is used for parts cleaning in production, manufacturing and maintenance. Oil and grease contamination, e.g. on bolts, sleeves, and ball bearings, are removed in a very short time. During installation, uneven flooring can be compensated for by the individually height-adjustable feet.
The contaminated items to be cleaned are placed in the rotating washing basket and the lid is closed. After setting the desired washing temperature and time, the machine is switched on and the cleaning solution in the tank is heated.

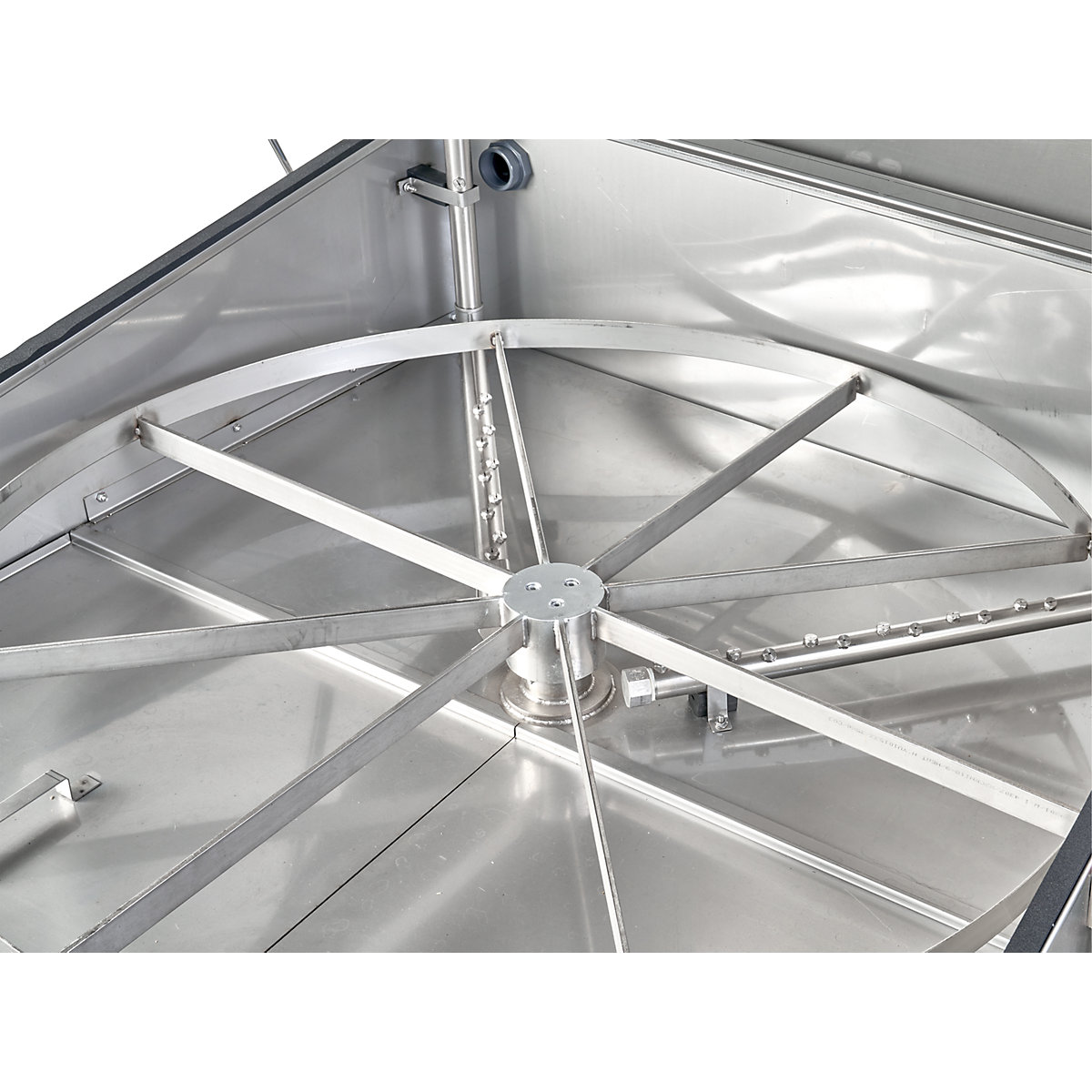

The motor-driven basket rotates inside the closed machine at a constant speed around its own axis. The power of the geared motor is controlled via an inverter control system, and it is driven by a toothed belt.

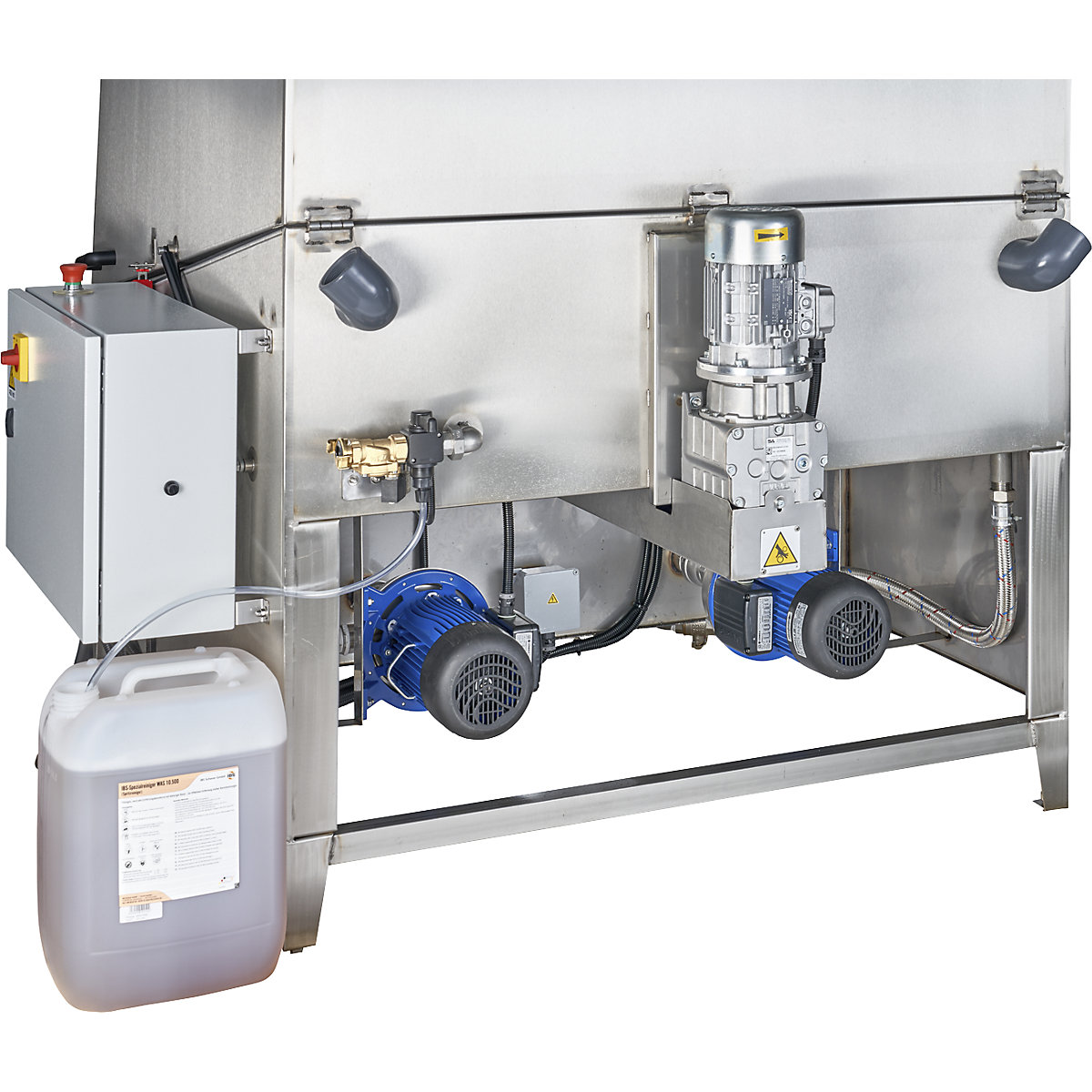

Two horizontally arranged pump units draw the washing solution from the washing tank and convey it through six stainless steel nozzle pipes with overlapping flat jet nozzles onto the items to be cleaned, which are sprayed intensively from all sides with the hot solution. After the cleaning process is complete, the machine switches off automatically.
The machine features a stainless steel sieve plate with a filter basket above the washing tank, as well as a vapour extraction system, and is protected against water shortage. An additional small parts cleaning basket made of stainless steel (Ø 170 mm) extends the range of applications.
The contaminated items to be cleaned are placed in the rotating washing basket and the lid is closed. After setting the desired washing temperature and time, the machine is switched on and the cleaning solution in the tank is heated.
The motor-driven basket rotates inside the closed machine at a constant speed around its own axis. The power of the geared motor is controlled via an inverter control system, and it is driven by a toothed belt.
Two horizontally arranged pump units draw the washing solution from the washing tank and convey it through six stainless steel nozzle pipes with overlapping flat jet nozzles onto the items to be cleaned, which are sprayed intensively from all sides with the hot solution. After the cleaning process is complete, the machine switches off automatically.
The machine features a stainless steel sieve plate with a filter basket above the washing tank, as well as a vapour extraction system, and is protected against water shortage. An additional small parts cleaning basket made of stainless steel (Ø 170 mm) extends the range of applications.
Technical data
| Working height | 0.7 m |
|---|---|
| Worktop width | 1150 mm |
| Worktop depth | 1150 mm |
| Max. load | 350 kg |
| Scope of delivery | with mesh shelves |
| Material | stainless steel |
| Design of pump | stainless steel hand pump |
| Product type | parts washers |
| Supplied | assembled |
| Weight | 250 kg |
