Ref.: 864220 10
Parts cleaner type Mini 60 – IBS Scherer load capacity 100 kg
work surface WxD 600 x 600 mm
Ref.: 864220 10
Parts cleaner type Mini 60 – IBS Scherer load capacity 100 kg
work surface WxD 600 x 600 mm
work surface WxD 600 x 600 mm
New
on request
Price / item (Ex. VAT)
Availability: 5-6 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Heated, fully automatic parts cleaning using the spray process
- For the removal of oil and grease soiling
- With a horizontally arranged pump and three-dimensional nozzle pipes made of stainless steel

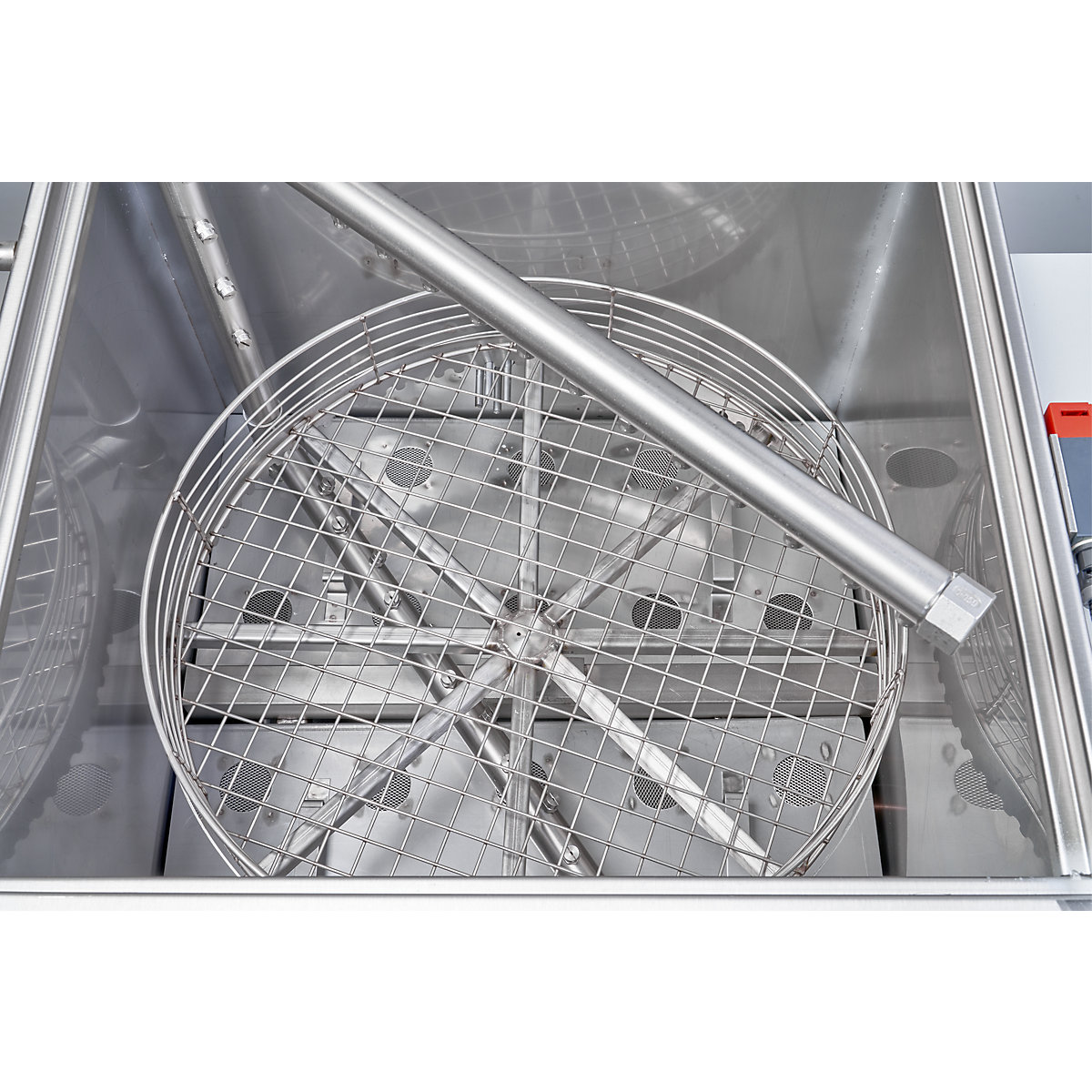

- Rotating washing basket and small parts cleaning basket made of stainless steel
- Stainless steel

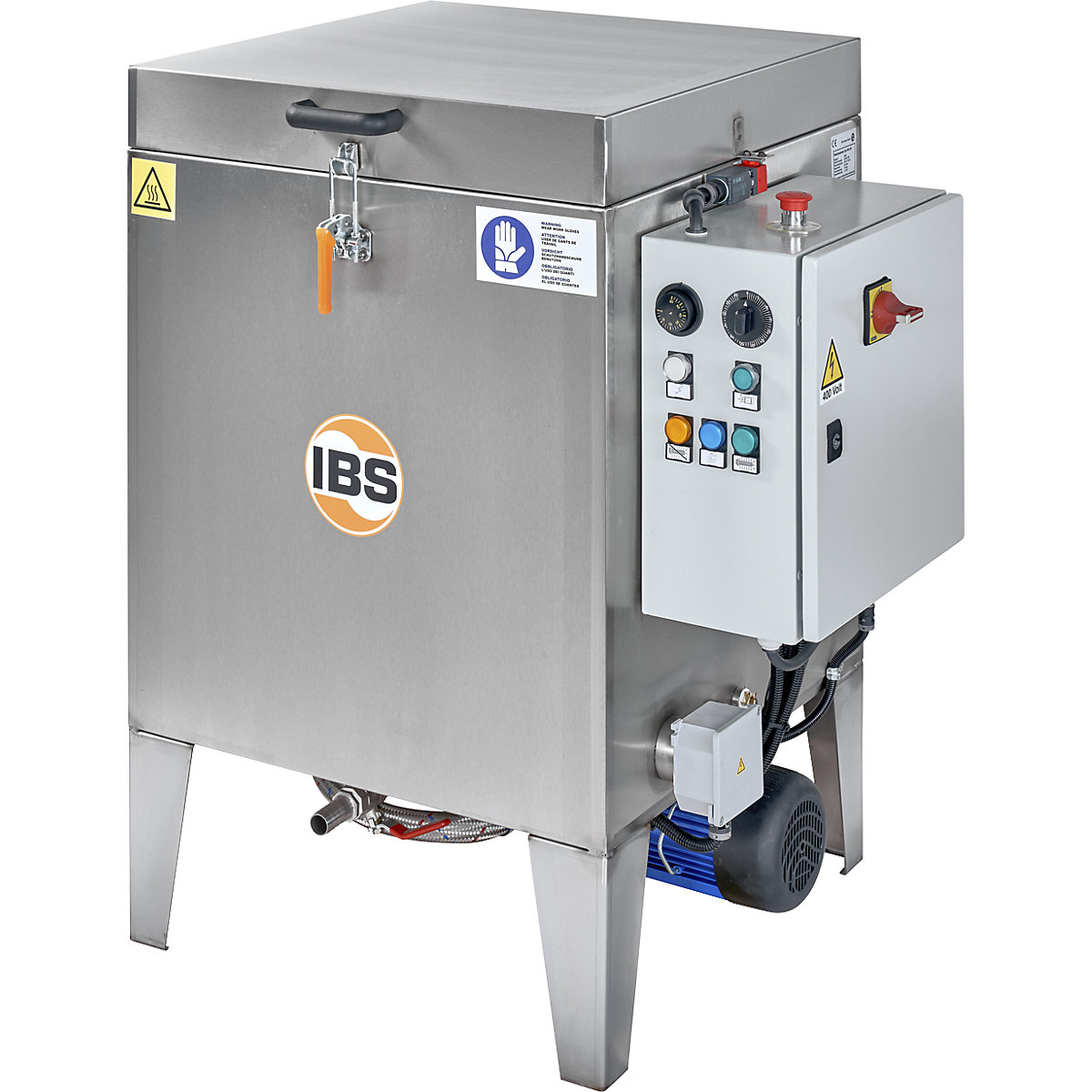

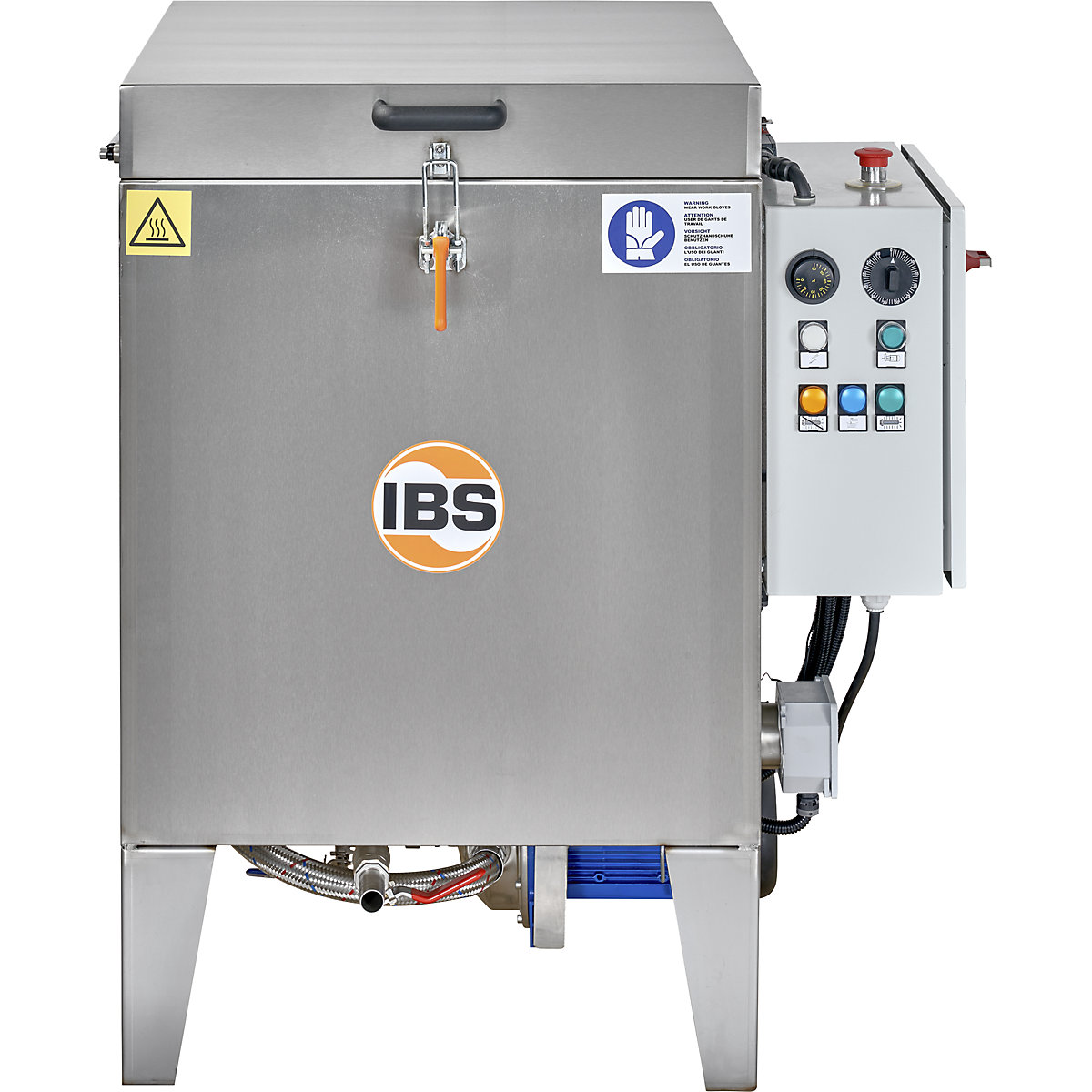

The Jumbo Mini 60 parts washer, made of robust stainless steel, is used for cleaning parts in production, manufacturing and maintenance. Oil and grease contamination, e.g. on bolts, sleeves, and ball bearings, are removed in a very short time.
The dirty items are placed in the rotating wash basket and the lid is closed. After setting the desired washing temperature and time, the machine is switched on and the cleaning solution in the tank is heated.
The basket, driven by the water jet, rotates on its own axis at a constant speed inside the closed machine. The horizontally arranged pump unit draws the washing solution from the washing tank and delivers it at a rate of 70 l/min through three stainless steel nozzle pipes with overlapping flat jet nozzles onto the items to be cleaned, which are sprayed intensively from all sides with the hot solution. At the end of the cleaning process, the machine switches off automatically.
The machine features a stainless steel sieve plate with filter inlets above the washing tank, as well as a vapour exhaust, and is protected against low water levels. An additional small parts cleaning basket made of stainless steel (Ø 170 mm) extends the range of applications.
The dirty items are placed in the rotating wash basket and the lid is closed. After setting the desired washing temperature and time, the machine is switched on and the cleaning solution in the tank is heated.
The basket, driven by the water jet, rotates on its own axis at a constant speed inside the closed machine. The horizontally arranged pump unit draws the washing solution from the washing tank and delivers it at a rate of 70 l/min through three stainless steel nozzle pipes with overlapping flat jet nozzles onto the items to be cleaned, which are sprayed intensively from all sides with the hot solution. At the end of the cleaning process, the machine switches off automatically.
The machine features a stainless steel sieve plate with filter inlets above the washing tank, as well as a vapour exhaust, and is protected against low water levels. An additional small parts cleaning basket made of stainless steel (Ø 170 mm) extends the range of applications.
Technical data
| Working height | 0.38 m |
|---|---|
| Worktop width | 600 mm |
| Worktop depth | 600 mm |
| Max. load | 100 kg |
| Scope of delivery | device only |
| Material | stainless steel |
| Design of pump | stainless steel hand pump |
| Product type | parts washers |
| Supplied | assembled |
| Weight | 60 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Recyclable
Recyclable products are products that can be recycled at the end of their service life, providing they are separated into all their individual components in designated recycling facilities. This means that the individual components are made of materials that can be exploited using the recycling process and be reprocessed into new products. Recyclable products help reduce the environmental impact of waste and to conserve resources.
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 1.7 | |
| 30% | 4.4 | |
| 25% | 3.0 | |
| 10% | 0.0 | |
| 5% | 5.9 | |
| Overall score | 3.0 | |
