Ref.: 858660 10

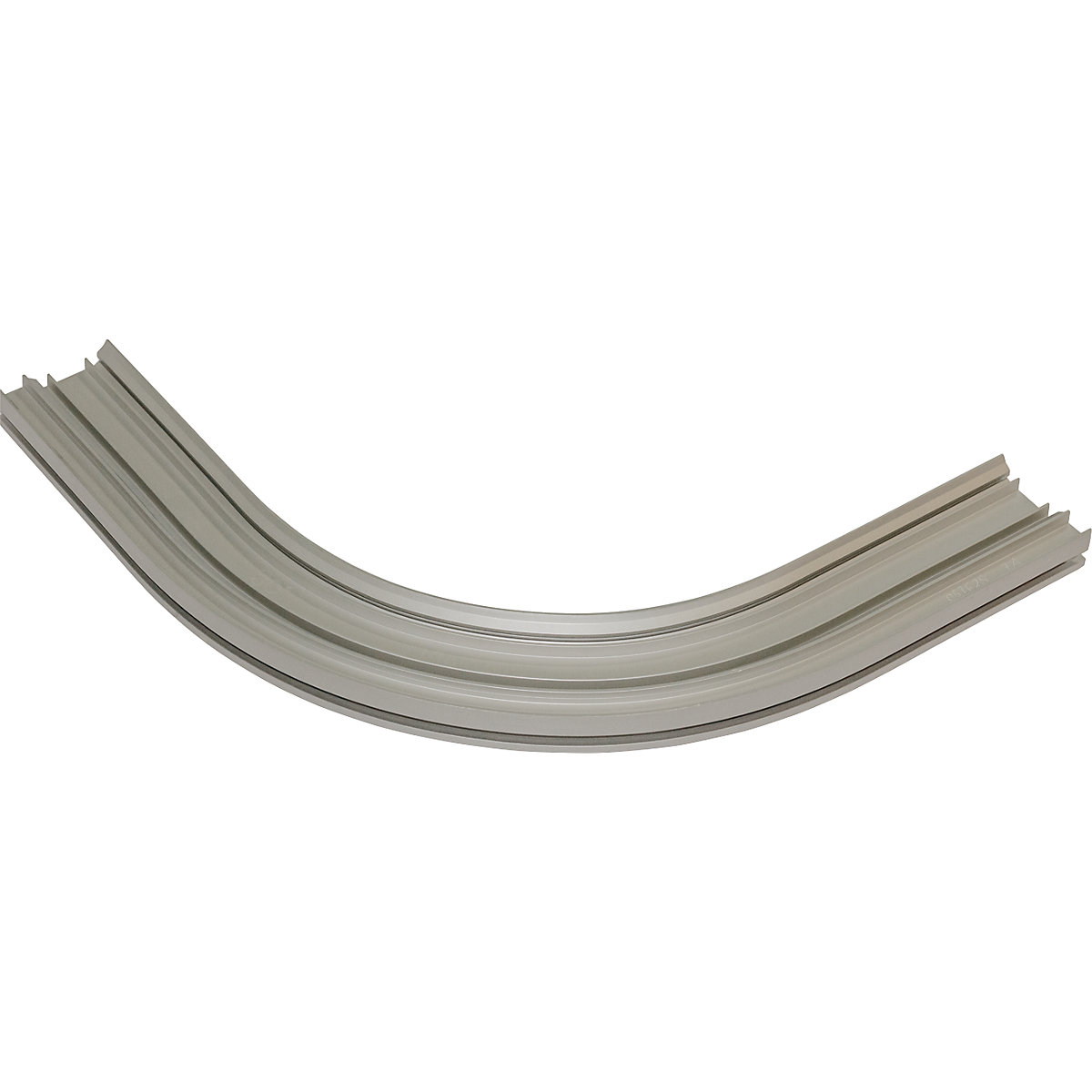

Curved overhead conveyor segment – QuickMOVE vertical profile opening on the outside

Curved overhead conveyor segment – QuickMOVE

inner curve radius 400 mm, 45°

Model
Radius of curve [mm]
New
on request
Price / item (Ex. VAT)
Availability: > 3 months
Product description
  • Freely definable 3D track design with modular construction
  • Transport of goods across different levels
  • Easy to install, extend and convert
  • Effortlessly overcomes large distances and height differences
  • Integration in the tightest areas and around obstacles
The modular overhead conveyor Quickmove enables the decoupled transport of goods across different levels and offers a nearly freely definable route design in 3D space. This creates a powerful material flow that can be individually adapted to spatial structures and operational processes. This model is an overhead conveyor curve segment. Complementary straight segments are available to implement individual route layouts.

The conveyor system impresses with a modular design that can be quickly adapted to new structures. Routes can run horizontally, vertically, diagonally or curved and represent almost any spatial requirement. Thanks to the possibility of combination with existing conveyor technology, the system grows with increasing demands. Several trains move independently of each other, creating an efficient, low-noise material flow. In addition, the overhead conveyor allows the installation of switches to integrate branch lines and flexible storage locations. Loading and unloading stations as well as the route length are almost unlimited, meaning even complex layouts remain realisable. At the same time, paths remain clear, as the conveyor technology bypasses obstacles.

The curved element has a 200 mm run-out on each side, which consists of two pre-assembled half-shells. The construction enables a secure and stable connection within the route. For assembly, straight profiles with a maximum free span of 3.5 m are used. Beyond this length, a support or additional bracing is required. The profiles are made of aluminium T6060 and are securely connected to each other via butt and longitudinal connector sets.

The conveyor system with 3D routing is suitable for companies with limited space, changing production processes or high demands for reliable transport on different levels. The overhead conveyor Quickmove resolves bottlenecks, shortens routes and increases efficiency in areas where traditional floor transport reaches its limits.
Technical data
Track width125 mm
Overall height96 mm
Width125 mm
Materialaluminium
Max. load20 kg
Frame coloursilver
Product typeconveyor systems
Suppliedpre-assembled, final assembly by customer
Model45°
Radius of curve400 mm
Weight4.6 kg
