Ref.: 711007 10

Fire resistant industrial hazardous goods cupboard, type 90 – asecos HxWxD 1955 x 600 x 615 mm

Fire resistant industrial hazardous goods cupboard, type 90 – asecos

1 door, light grey

Door colour
3.400,00 €
Price / item (Ex. VAT)
Availability: > 3 months
Product description
  • For regulation compliant storage of flammable media in laboratories in accordance with EN 14470-1 and TRGS 510 (appendix 3)
  • Proven protection against fire for 90 minutes GS tested – self-closing in the event of fire
  • Robust, torsion resistant construction – hinged door can be locked in any position, adjustable door dampening mechanism
  • Permanently integrated, forklift accessible plinth – for easy transport of the cupboard
  • Tamper-proof lock with lock status indicator, can be integrated with lock system
  • Robust textured powder coating
The fire resistant industrial hazardous goods storage cupboard type 90 asecos is suitable for the unrestricted and regulation compliant storage of flammable media in workrooms in accordance with EN 14470-1 and TRGS 510 (Annex 3). With a fire resistance rating of 90 minutes, this cupboard provides the maximum level of safety and is both type tested for fire resistance and certified in accordance with fire protection and GS standards.

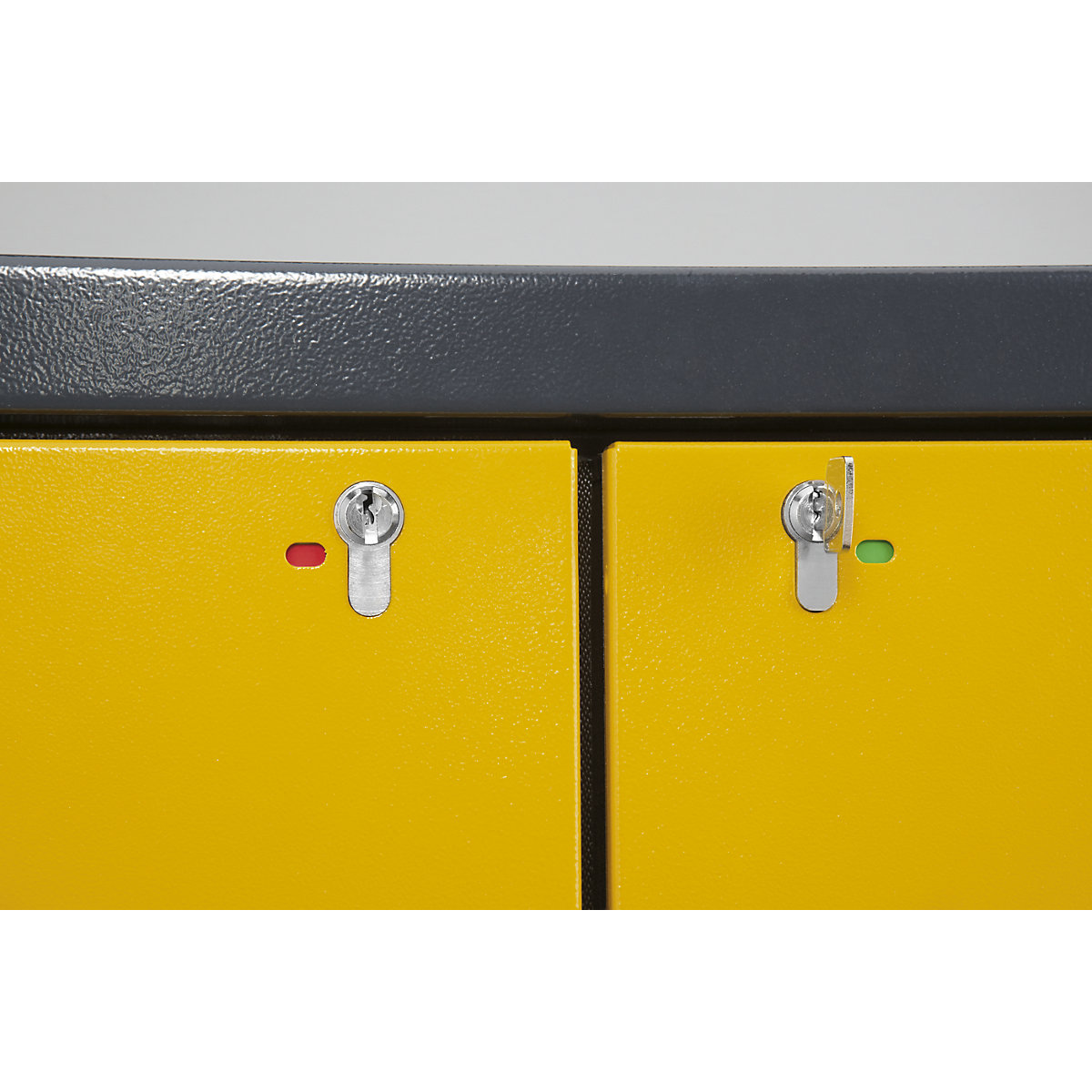

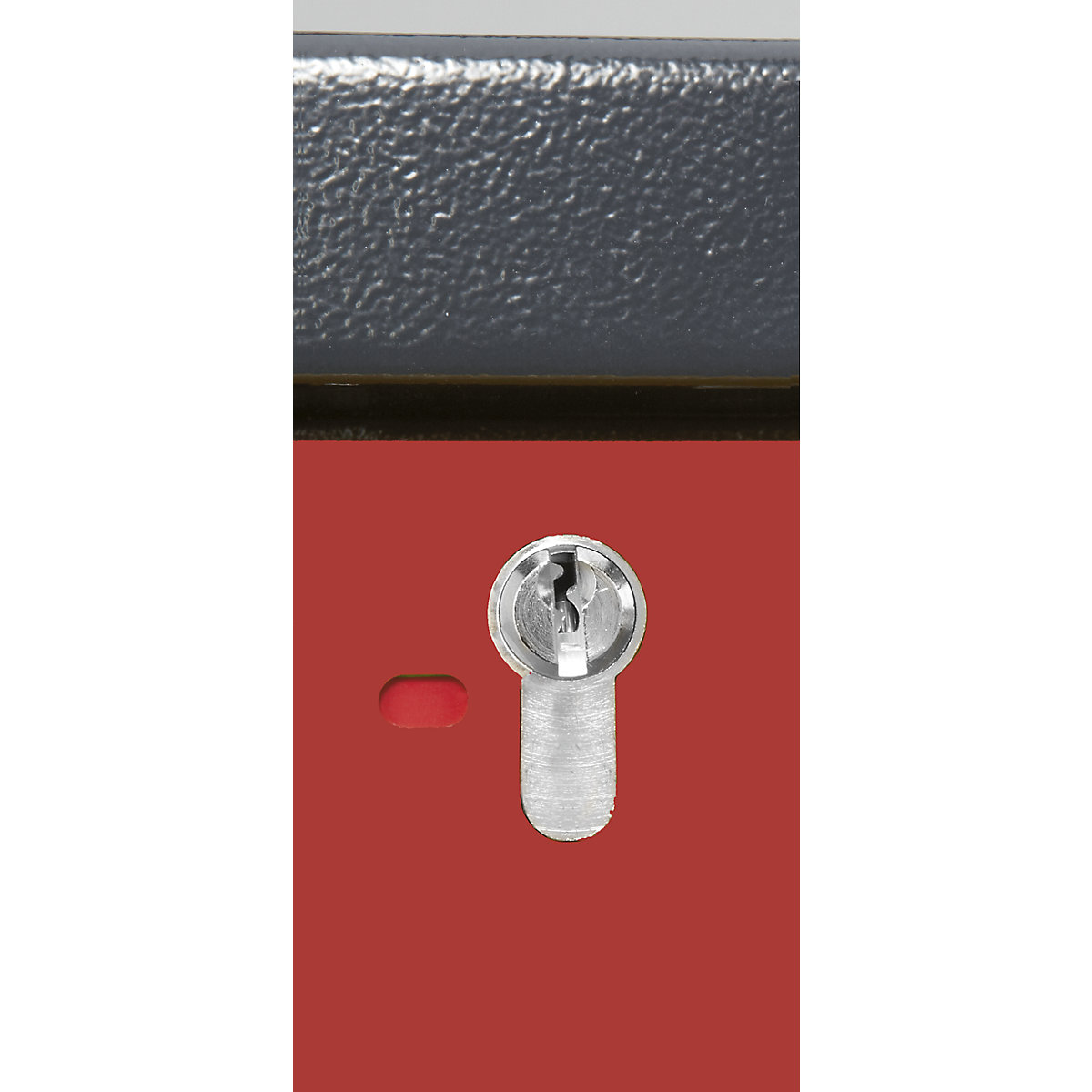

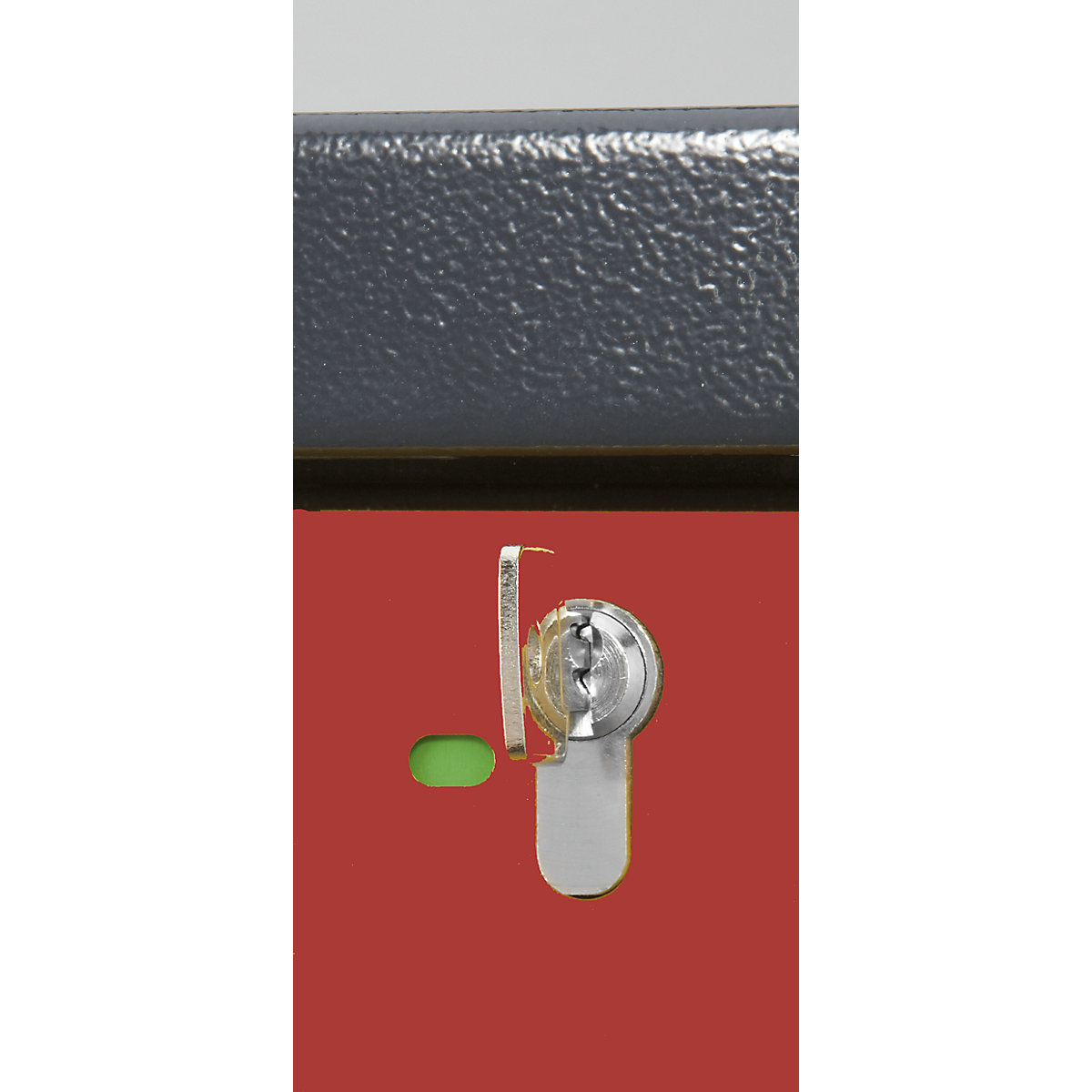

The door can be locked in any required position and closes automatically in the event of a fire. The closing status indicator in red and green makes it quick and easy to check the status of the door. The adjustable door damping and the 3 point door hinges ensure reliable use. The lockable door is fitted with a profile cylinder lock and can be integrated into locking systems. Fire protection insulation and high quality door seals provide additional protection. The sheet steel housing with a high resistance textured powder coating ensures an extremely robust, torsion resistant and durable construction.
Interior fittings

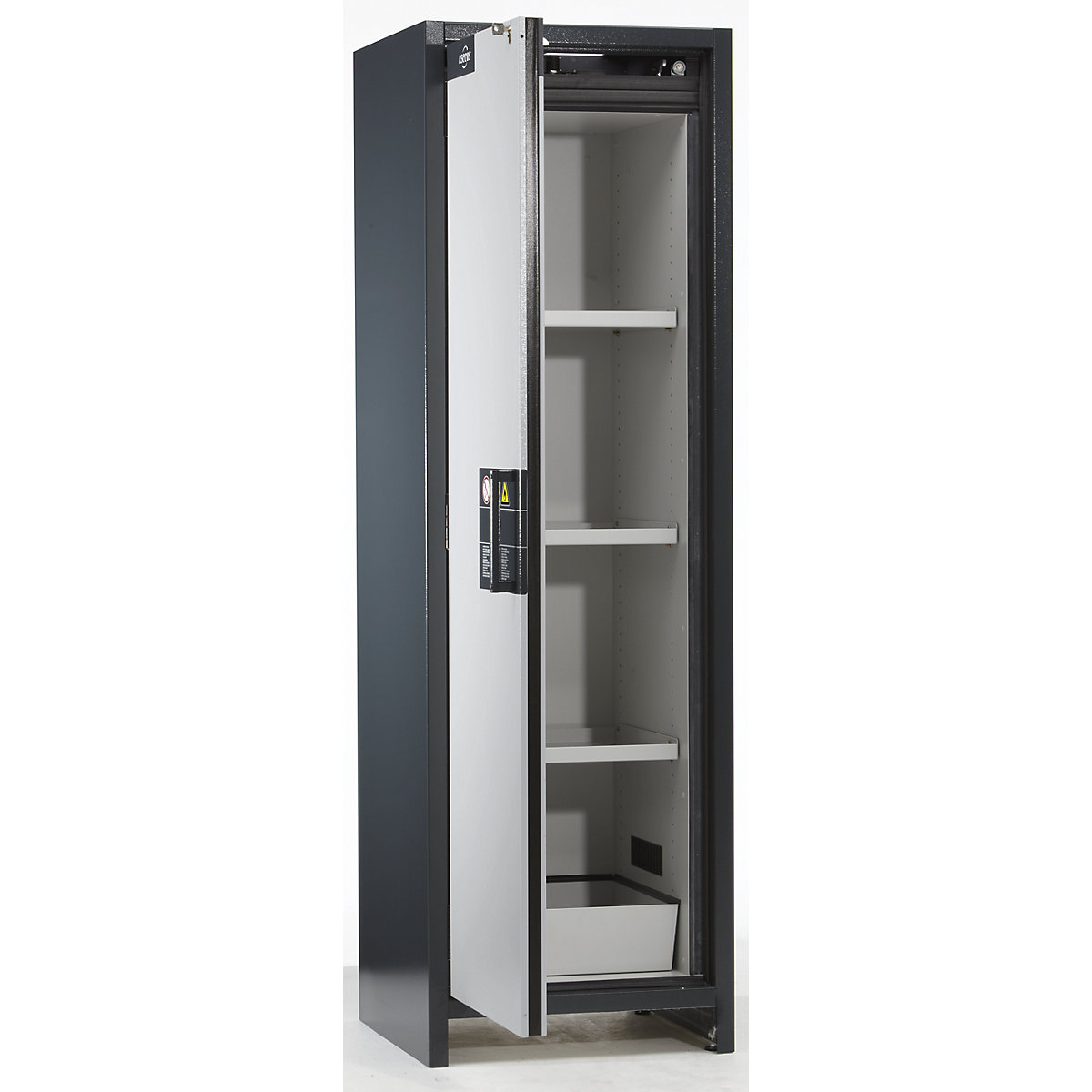

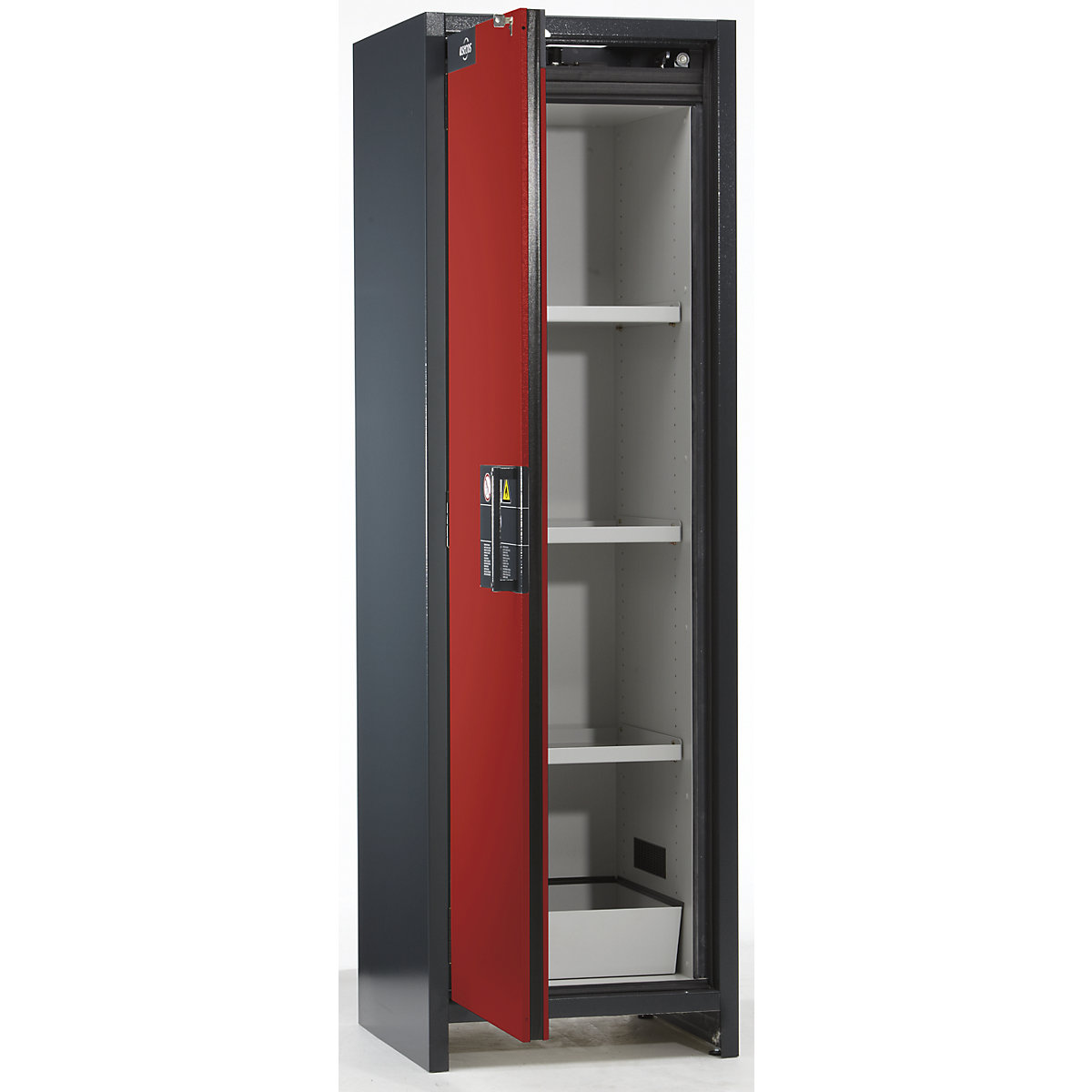

– 3 shelves, max. load 75 kg (for evenly distributed loads), height adjustable in 32 mm increments, with pull-out stops and anti-tipping device
– 1 base sump, tested in accordance with StawaR / ÜHP, powder coated sheet steel

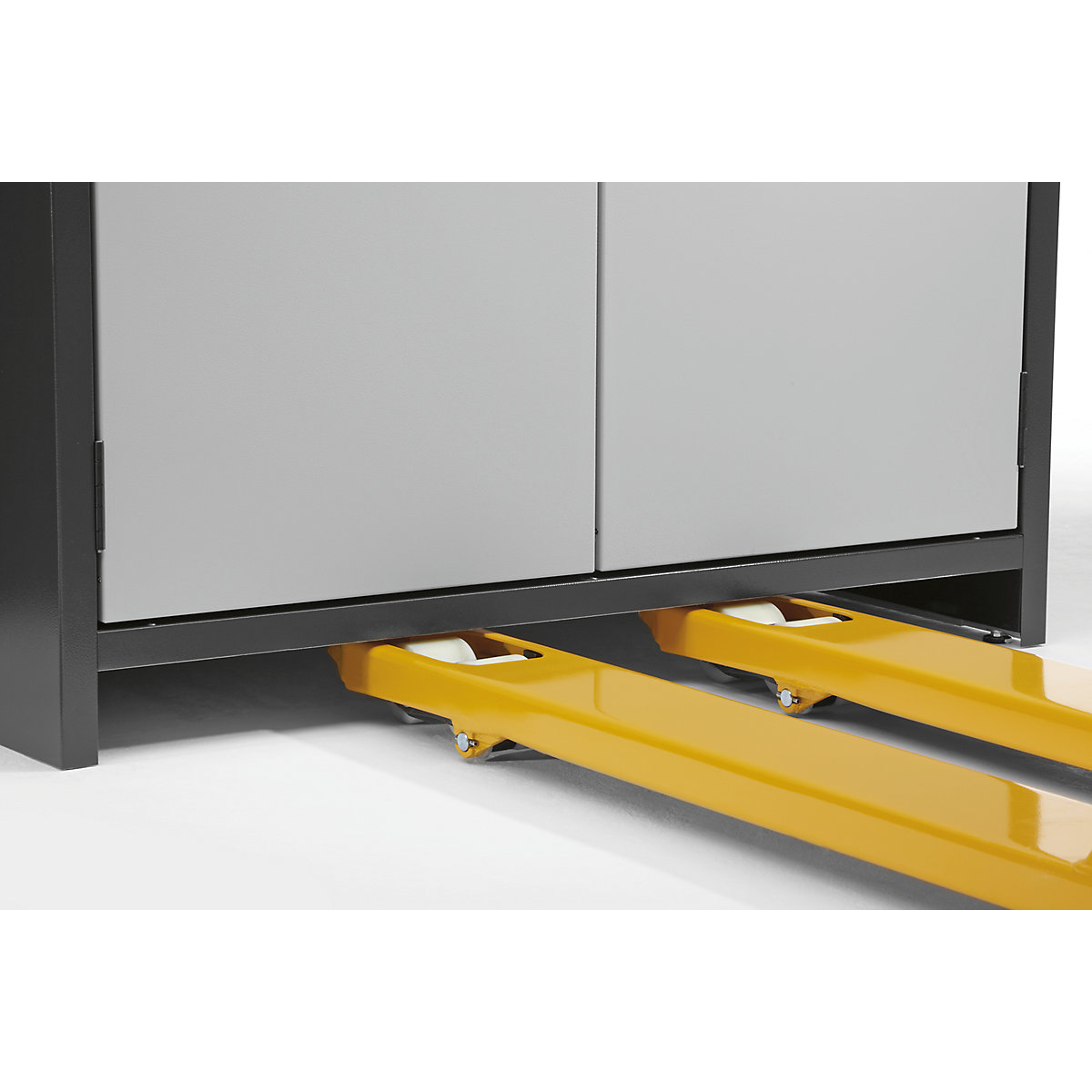

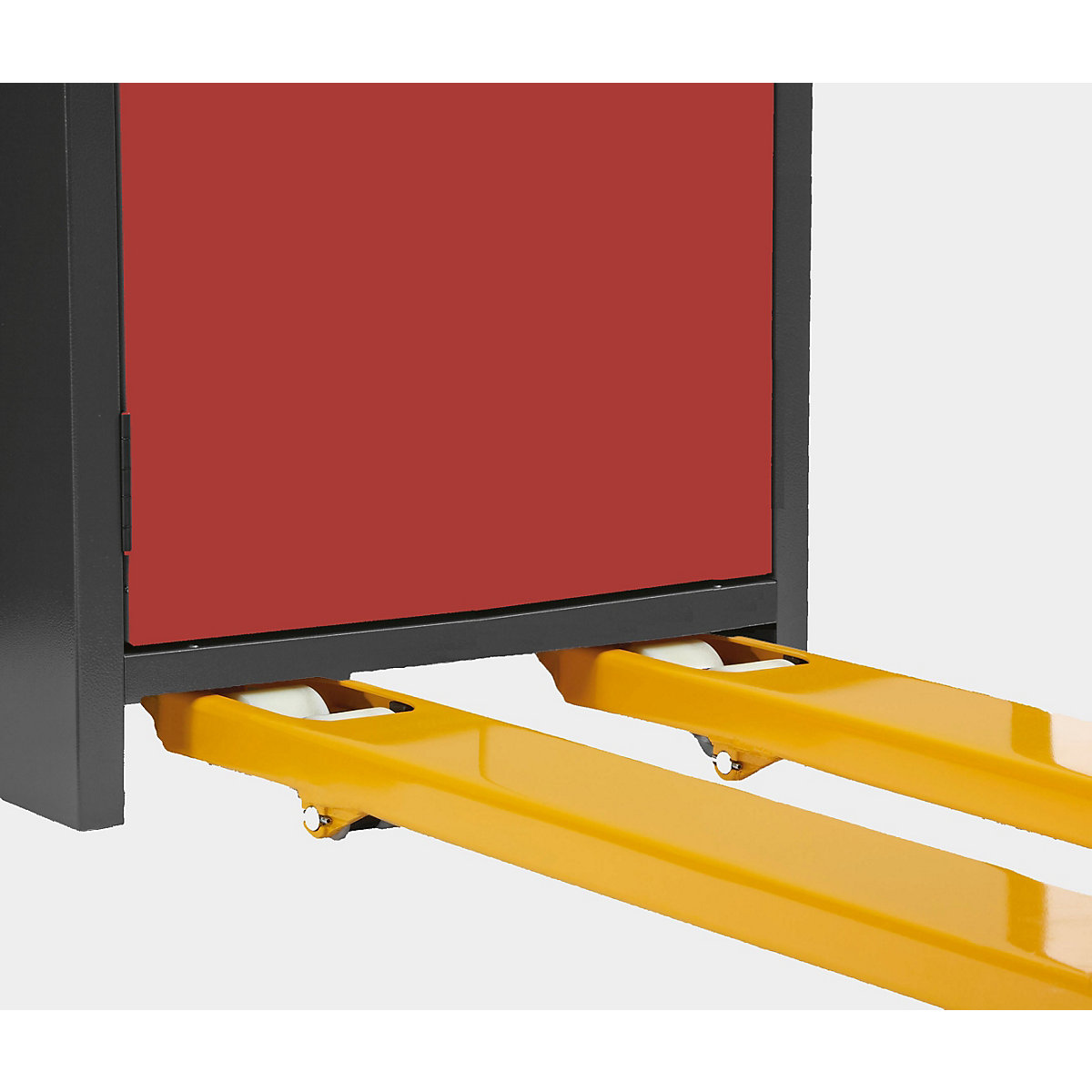

There is an exhaust air connection (DN 75) on the top of the hazardous goods storage cupboard, which is provided for attaching a technical ventilation system – it is labelled in accordance with EN 14470-1. The cupboard can be accessed from below using a pallet truck, for example, to make it easy to transport and change its position. The cupboard is equipped with levelling devices to compensate for uneven flooring. The fire resistant industrial hazardous goods storage cupboard type 90 asecos makes an impression with its robust design and certified safety standards.
Delivered to the point of use (at extra cost) – please call for details.
Type 90 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 90 minutes, fire chamber tested and certified. Complies with EN 144701-1.
Type 90 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 90 minutes, fire chamber tested and certified. Complies with EN 144701-1.
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
For toxic liquids
For toxic liquids
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
Technical data
Fire resistance90 minutes
Materialspecial fire resistant boards sheet steel, powder coated
Height1955 mm
Width600 mm
Depth615 mm
Internal height1645 mm
Internal width450 mm
Internal depth522 mm
Hazard classfor flammable media in work rooms in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3)
Ventilationventilation connection (NW 75)
Body colourcharcoal RAL 7016
Door typehinged door
Door version1 door
Lock typelock with lock status indicator
Number of doors1 pcs.
Number of shelves3 pcs.
Shelf materialsheet steel, powder coated
Max. shelf load75 kg
Shelf height adjustment increments32 mm
Number of sump trays1 pcs.
Base sump tray capacity22 l
Product typehazardous goods storage cupboards, fire resistant
Suppliedassembled
Weight288 kg
Door colourlight grey RAL 7035
