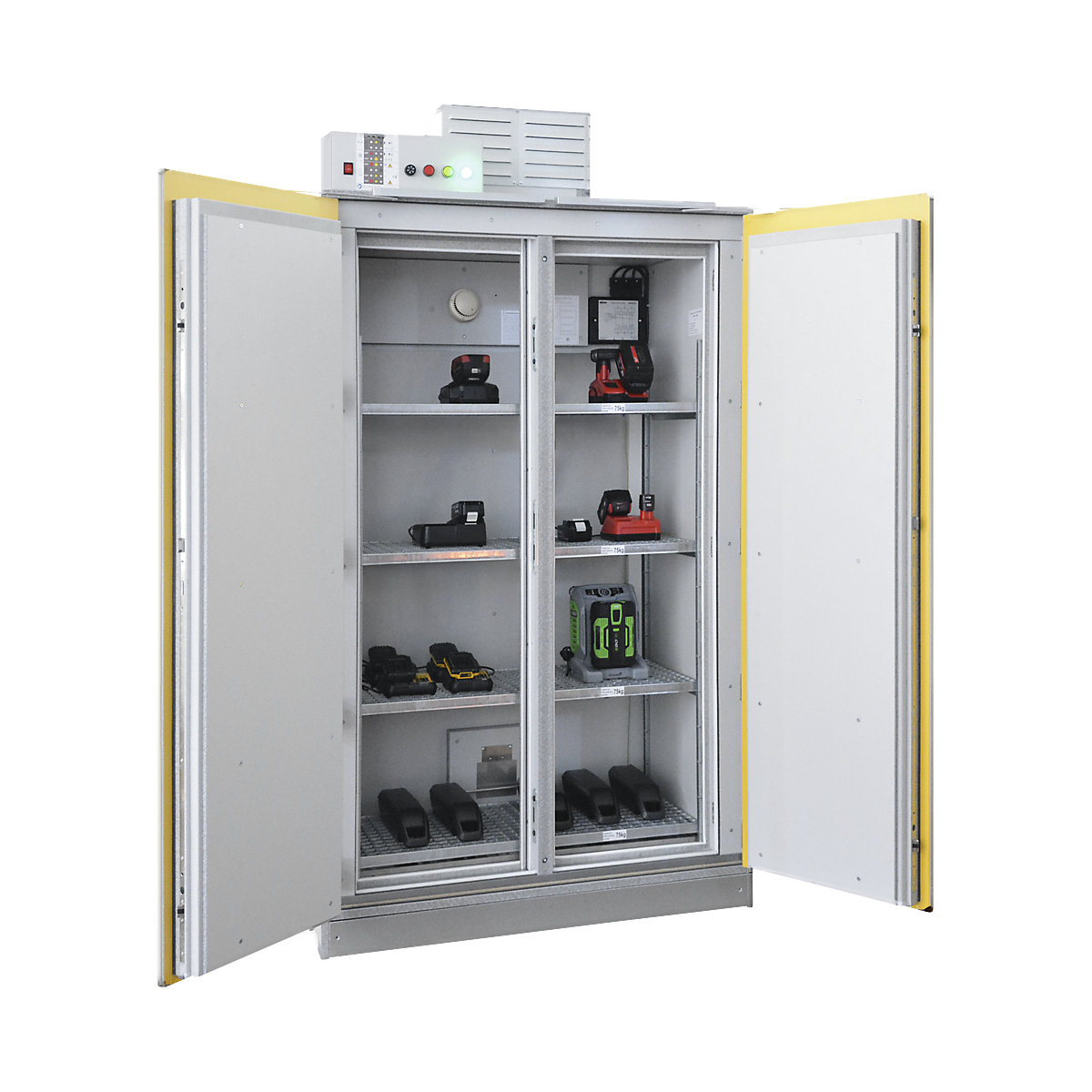

Battery safety storage cabinet SiS Li-Ion 90 Safe Pro – LaCont without fire suppression system
HxW 2250 x 1212 mm
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 839538 10
Battery safety storage cabinet SiS Li-Ion 90 Safe Pro – LaCont without fire suppression system
HxW 2250 x 1212 mm
HxW 2250 x 1212 mm
New
11.500,00 €
Price / item (Ex. VAT)
Availability: 9–12 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?11.500,00 €
Price / item (Ex. VAT)
Product description
- Safe storage of several Lithium-ion batteries in the cabinet
- Fire resistance for 90 minutes from inside and outside (EI 90) – GS mark from the MPA Dresden
- Maximum battery power per cabinet 12 kWh
- With control unit for optical and acoustic status reporting, fire detection, smoke detector
- Including technical ventilation, to prevent heat build-up in the cabinet
- Circumferential, automatically intumescing fire protection seals in case of fire
- Complete shutdown of the cabinet's power supply in case of emergency
- Recessed plinth, height 100 mm with removable plinth panel
- Tested smoke tightness
- Surge protection
The LaCont Battery Cabinet LI-ION SAFE PRO was specifically developed for the passive storage of lithium batteries, with GS certification according to test principle EK5 / AK4 22-01 and a real fire test of the cabinet equipped with lithium batteries carried out at MPA Dresden.
Due to the increased requirements of the GS test, the LI-ION SAFE PRO has a tested fire resistance of 90 minutes according to DIN EN14470-1/-2 from outside to inside and 90 minutes according to DIN EN 1363-1/-2 from inside to outside. The self-closing doors are additionally permanently function-tested according to DIN EN 16121 and DIN EN 16122.
By means of all-round, automatically foaming fire protection seals in case of fire and permanently self-closing doors, the LI-ION SAFE PRO not only protects against fires inside the cabinet, but also protects your stored goods from fires from outside. The danger to persons from the possible release of explosively burning or toxic gases and smoke is to be minimized. The aim here is to gain time for the evacuation of persons in the vicinity and the initiation of extinguishing measures by the fire brigade.
Further standard equipment includes an integrated ventilation system to prevent heat build-up in the cabinet, a 5-liter sump tray made of sheet steel and manufactured according to AwSV, 4 height-adjustable grate storage levels with a max. load of 75 kg each (with evenly distributed load), as well as a plinth with a cover that can be driven under for easy transport.
The control unit included in the scope of delivery with optical and acoustic status notification as well as fire detector, monitors the storage process of the Li-ion batteries. In case of fire detection inside the cabinet, the power supply and the integrated ventilation are completely shut down, whereby an optical and acoustic alarm is triggered. Via a potential-free contact, it is possible to forward signals to a control center.
Construction from non-combustible material including coating (body in aluminum color / doors RAL 1023 – traffic yellow), base sump made of zinc plated sheet steel according to AwSV, 5 liters sump capacity.
Automatically closing doors, permanently function-tested according to DIN EN 16121 and DIN EN 16122. Double doors with central stile, lockable via profile cylinder lock.
Cabinet height without control unit and fan: 1950 mm
Control unit of the SiS Li-Ion 90 Safe Pro:
– In case of smoke detection inside the cabinet, the power supply and the integrated ventilation are completely shut down
– In case of fire detection, an optical and acoustic alarm is triggered
– Optical status display informs about the current status of the cabinet (fire detection, ventilation unit, power strips)
– Includes potential-free contact for signal forwarding (e.g., to a control center)
– Optional GSM module for remote monitoring and alarming on request
– Rated voltage 230 V (400 V on request)
Due to the increased requirements of the GS test, the LI-ION SAFE PRO has a tested fire resistance of 90 minutes according to DIN EN14470-1/-2 from outside to inside and 90 minutes according to DIN EN 1363-1/-2 from inside to outside. The self-closing doors are additionally permanently function-tested according to DIN EN 16121 and DIN EN 16122.
By means of all-round, automatically foaming fire protection seals in case of fire and permanently self-closing doors, the LI-ION SAFE PRO not only protects against fires inside the cabinet, but also protects your stored goods from fires from outside. The danger to persons from the possible release of explosively burning or toxic gases and smoke is to be minimized. The aim here is to gain time for the evacuation of persons in the vicinity and the initiation of extinguishing measures by the fire brigade.
Further standard equipment includes an integrated ventilation system to prevent heat build-up in the cabinet, a 5-liter sump tray made of sheet steel and manufactured according to AwSV, 4 height-adjustable grate storage levels with a max. load of 75 kg each (with evenly distributed load), as well as a plinth with a cover that can be driven under for easy transport.
The control unit included in the scope of delivery with optical and acoustic status notification as well as fire detector, monitors the storage process of the Li-ion batteries. In case of fire detection inside the cabinet, the power supply and the integrated ventilation are completely shut down, whereby an optical and acoustic alarm is triggered. Via a potential-free contact, it is possible to forward signals to a control center.
Construction from non-combustible material including coating (body in aluminum color / doors RAL 1023 – traffic yellow), base sump made of zinc plated sheet steel according to AwSV, 5 liters sump capacity.
Automatically closing doors, permanently function-tested according to DIN EN 16121 and DIN EN 16122. Double doors with central stile, lockable via profile cylinder lock.
Cabinet height without control unit and fan: 1950 mm
Control unit of the SiS Li-Ion 90 Safe Pro:
– In case of smoke detection inside the cabinet, the power supply and the integrated ventilation are completely shut down
– In case of fire detection, an optical and acoustic alarm is triggered
– Optical status display informs about the current status of the cabinet (fire detection, ventilation unit, power strips)
– Includes potential-free contact for signal forwarding (e.g., to a control center)
– Optional GSM module for remote monitoring and alarming on request
– Rated voltage 230 V (400 V on request)
NOTE: The safety cabinets must be serviced once a year. LaCont recommends seeking contact with your property insurer, the fire department, or experts before commissioning a cabinet. A risk assessment as well as a holistic fire protection concept are absolutely necessary!
Tested safety
This is a test mark. GS stands for tested safety.
This is a test mark. GS stands for tested safety.
Technical data
| Height | 2250 mm |
|---|---|
| Width | 1212 mm |
| Depth | 664 mm |
| Internal height | 1687 mm |
| Internal width | 1004 mm |
| Internal depth | 453 mm |
| Fire resistance | 90 minutes |
| Mains voltage | 230 V |
| Internal fittings | without fire suppression system |
| Material | gypsum fibreboards sheet steel |
| Number of shelves | 4 pcs. |
| Body colour | brushed aluminium |
| Door colour | traffic yellow RAL 1023 |
| Lock type | profile cylinder lock |
| Door type | hinged door |
| For media | lithium-ion batteries/rechargeable batteries |
| Product type | battery storage safety cabinets |
| Supplied | pre-assembled, final assembly by customer |
| Weight | 706 kg |
| Instructions |
