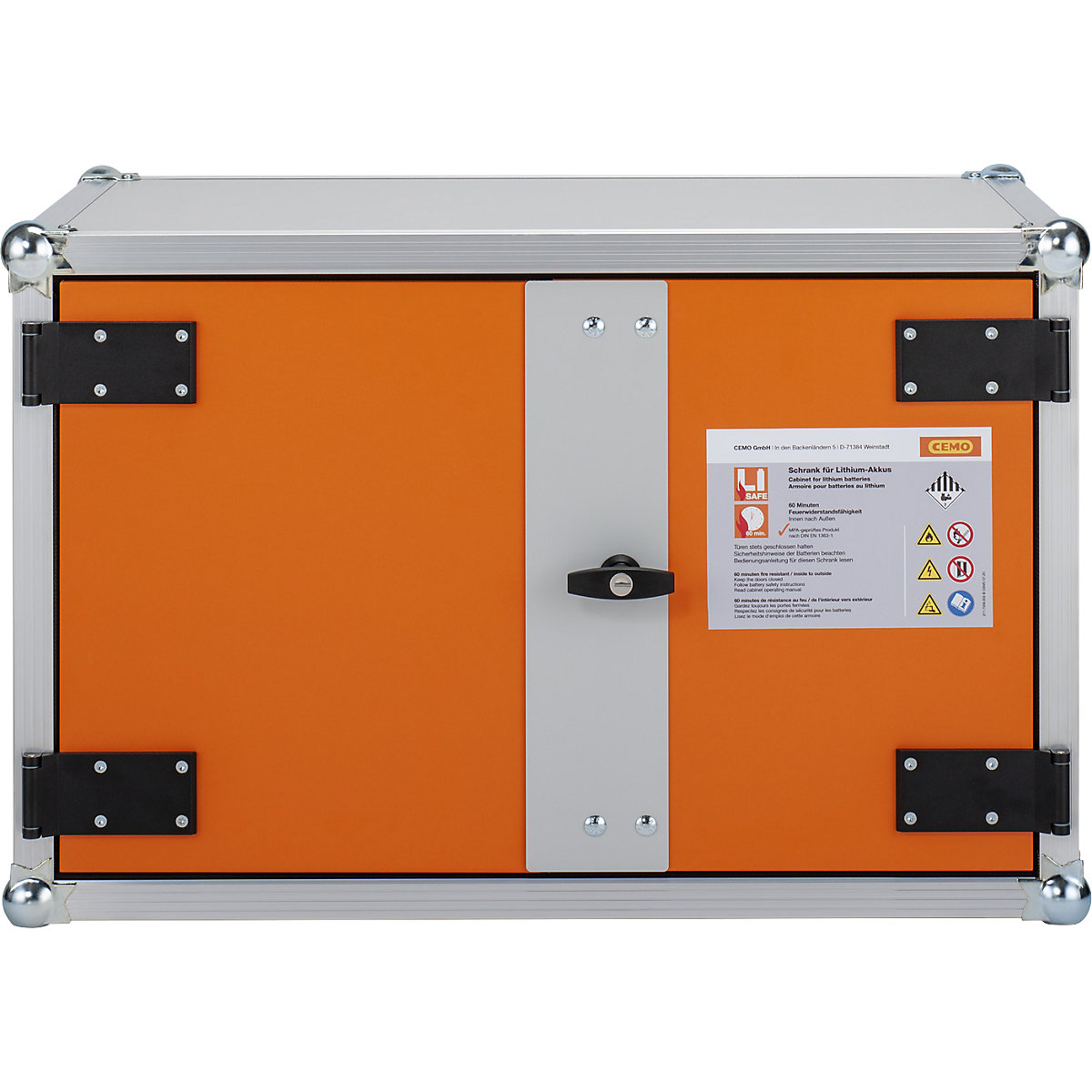

Safety battery charging cabinet for a fire alarm system – CEMO WxDxH 830 x 660 x 520 mm
230 V, orange/grey
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 788783 10
Safety battery charging cabinet for a fire alarm system – CEMO WxDxH 830 x 660 x 520 mm
230 V, orange/grey
230 V, orange/grey
New
on request
Price / item (Ex. VAT)
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Product description
The PREMIUM and PREMIUM PLUS models of the battery cabinets are designed to relay the alarm to a company's own fire alarm system or internal warning system by means of a zero potential contact. It is therefore not possible to permanently connect them to a fire alarm system with a direct connection to the fire brigade.
These special cabinet models are configured to allow specialists for fire alarm systems to install the fire alarm technology in the cabinets which is required on site or due to the manufacturer specific system compatibility in the company.
Due to regulations relating to occupational health and safety and insurance liability, the guidelines on dangerous goods storage must be observed when storing rechargeable batteries.
The storage and charging of lithium batteries must be kept strictly separate for safety reasons.
Even a small, localised fire can jump to lithium batteries – a small fire that is easy to extinguish then becomes a major challenge for the fire brigade and the company.
Safety storage cupboards for rechargeable batteries allow the consequences of fire to be kept to a minimum, and significantly improve safety in the company.
Advantages:
– Charging of several lithium batteries/rechargeable batteries in the cabinet
– Special fire protection seals prevent escape of flames
– Cold smokeproof locking system for the openings
– Ideal for isolating batteries from stock in storage when charging them
– Can also be used as a cupboard underneath the workbench
Model:
– Early alert in the event of damage
– All safety rules relevant for charging lithium batteries are complied with
– Construction with non-combustible, fire resistant components
– Spring loaded lockEX door lock for controlled pressure relief in the event of explosions
– Can be transported for positioning at the installation location
– Double, lockable doors with robust locking and suspension system
– Door painted in orange, similar to RAL 2004, body in grey, similar to RAL 7035
Safety for storage:
– TÜV NORD Group verification provided within the latest test programme with real battery fire tests and induced gas explosions
– MPA tested fire resistance for more than 60 minutes from the inside to the outside, based on EN 1363-1
Features:
– Two battery operated, acoustic smoke detectors
– Forced ventilation
– Zero current in the event of heat development or when activated by door contact switch
– Trailing socket with 4 sockets
– 2 cable outlets for self-assembly for flexible installation of your custom made fire alarm technology by specialists for fire alarm systems
These special cabinet models are configured to allow specialists for fire alarm systems to install the fire alarm technology in the cabinets which is required on site or due to the manufacturer specific system compatibility in the company.
Due to regulations relating to occupational health and safety and insurance liability, the guidelines on dangerous goods storage must be observed when storing rechargeable batteries.
The storage and charging of lithium batteries must be kept strictly separate for safety reasons.
Even a small, localised fire can jump to lithium batteries – a small fire that is easy to extinguish then becomes a major challenge for the fire brigade and the company.
Safety storage cupboards for rechargeable batteries allow the consequences of fire to be kept to a minimum, and significantly improve safety in the company.
Advantages:
– Charging of several lithium batteries/rechargeable batteries in the cabinet
– Special fire protection seals prevent escape of flames
– Cold smokeproof locking system for the openings
– Ideal for isolating batteries from stock in storage when charging them
– Can also be used as a cupboard underneath the workbench
Model:
– Early alert in the event of damage
– All safety rules relevant for charging lithium batteries are complied with
– Construction with non-combustible, fire resistant components
– Spring loaded lockEX door lock for controlled pressure relief in the event of explosions
– Can be transported for positioning at the installation location
– Double, lockable doors with robust locking and suspension system
– Door painted in orange, similar to RAL 2004, body in grey, similar to RAL 7035
Safety for storage:
– TÜV NORD Group verification provided within the latest test programme with real battery fire tests and induced gas explosions
– MPA tested fire resistance for more than 60 minutes from the inside to the outside, based on EN 1363-1
Features:
– Two battery operated, acoustic smoke detectors
– Forced ventilation
– Zero current in the event of heat development or when activated by door contact switch
– Trailing socket with 4 sockets
– 2 cable outlets for self-assembly for flexible installation of your custom made fire alarm technology by specialists for fire alarm systems
- Specifically for use with fire alarm systems
- Safe charging and storage of multiple lithium ion batteries in the cabinet
- MPA tested fire resistance for more than 60 minutes from the inside to the outside
- With smoke detector, fire protection seals, closure system to seal cold smoke in
- Spring loaded door lock for controlled pressure relief in the event of explosions
- Cable outlet for fire alarm technology
Technical data
| External height | 520 mm |
|---|---|
| External width | 830 mm |
| External depth | 660 mm |
| Internal height | 450 mm |
| Internal width | 730 mm |
| Internal depth | 530 mm |
| Fire resistance | 60 minutes |
| Mains voltage | 230 V |
| Power supply | 1 x 4 fold (230 V) |
| Internal fittings | smoke detector, fan, door contact switch, 4 socket trailing socket, zero current in the event of heat development, 2 x cable outlet for fire alarm technology |
| Fittings | without feet |
| Ventilation | ventilation opening with fan and ventilation holes |
| Material | special fire resistant boards |
| Body colour | light grey RAL 7035 |
| Door colour | pure orange RAL 2004 |
| Lock type | rotary bolt |
| Door type | hinged door |
| For media | lithium-ion batteries/rechargeable batteries |
| Product type | battery charging safety cabinets |
| Supplied | assembled |
| Weight | 85 kg |
| Instructions |
