Ref.: 847864 10
Manhole ring gripper gripping range 625 – 1500 mm
max. load 2500 kg, zinc plated
Ref.: 847864 10
Manhole ring gripper gripping range 625 – 1500 mm
max. load 2500 kg, zinc plated
max. load 2500 kg, zinc plated
New
on request
Price / item (Ex. VAT)
Availability: 3-4 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Transport of manhole rings, manhole cones, manhole bases and manhole covers
- Automatic release mechanism
- Horizontal transport by means of an adjustable support ring
- Individual positioning of the support ring for horizontal transport
- Torsion-resistant, sturdy and galvanised steel construction
- High max. load of 2500 kg

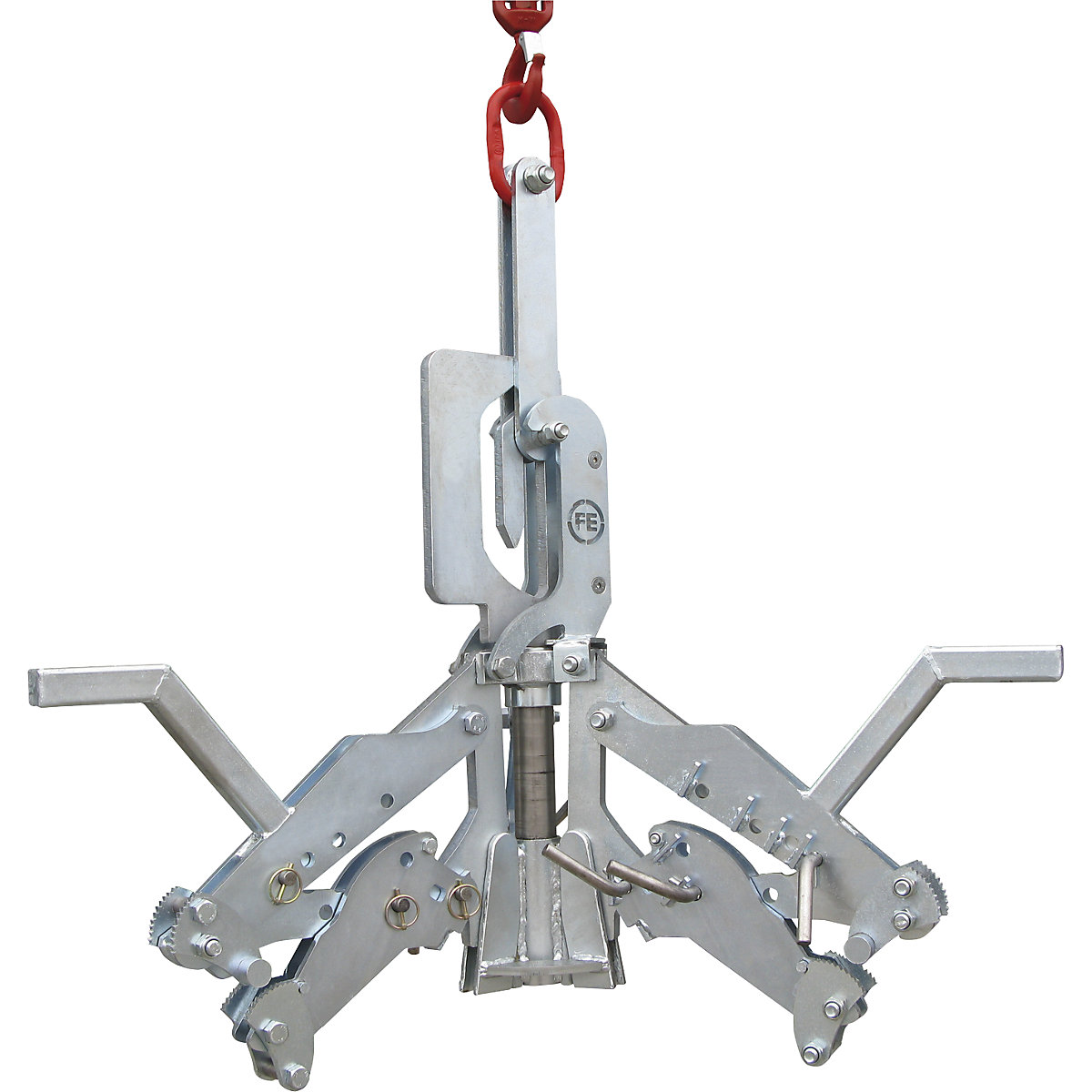

The manhole ring gripper from Eichinger impresses with a robust, galvanised steel construction and enables the safe handling of heavy shaft components with the highest precision.
The torsion-resistant and stable steel construction ensures stability in every application. Thanks to an automatic release mechanism, the need for additional auxiliary personnel during operation is eliminated, which makes its use efficient. The individually positionable carrying ring guarantees absolutely horizontal transport, especially for shaft cones. With a high max. load of 2500 kg and a gripping range of 625 to 1500 mm, the gripper offers flexibility for various requirements.
Ideal for construction companies and civil engineering projects where heavy manhole rings, cones, or covers need to be safely transported or moved. This simplifies transport processes and noticeably speeds up workflows. Built according to the occupational safety regulations of the Employers' Liability Insurance Association.
The torsion-resistant and stable steel construction ensures stability in every application. Thanks to an automatic release mechanism, the need for additional auxiliary personnel during operation is eliminated, which makes its use efficient. The individually positionable carrying ring guarantees absolutely horizontal transport, especially for shaft cones. With a high max. load of 2500 kg and a gripping range of 625 to 1500 mm, the gripper offers flexibility for various requirements.
Ideal for construction companies and civil engineering projects where heavy manhole rings, cones, or covers need to be safely transported or moved. This simplifies transport processes and noticeably speeds up workflows. Built according to the occupational safety regulations of the Employers' Liability Insurance Association.
Technical data
| Max. load | 2500 kg |
|---|---|
| Gripping range | 625 – 1500 mm |
| Weight | 80 kg |
| Material | steel |
| Colour | zinc plated |
| Product type | shaft ring clamps |
| Supplied | assembled |
| Instructions |
