Ref.: 540542 10 (14322)

Standard collapsible wooden box – ratioform with top

Standard collapsible wooden box – ratioform

external LxWxH 400 x 300 x 270 mm

44,90 €
Price / item (Ex. VAT)

Availability: 1-2 Working Days
Ref.
540542 14322
693981 14324
693984 14325
540554 14323
693987 14326
693966 12630
540556 12639
693978 13900
693969 12533
693972 12542
540558 13903
693975 12557
693990 18841
Length [mm]
Width [mm]
Height [mm]
Internal length [mm]
Internal width [mm]
Internal height [mm]
Suitable for
Max. load [kg]
Stacking load [kg]
Weight [kg]
Supplied
400
300
270
380
280
250
1/8 Euro pallet
20
80
3.19
flat pack
420
320
396
400
300
380
40
160
3.6
pre-assembled, final assembly by customer
520
420
316
500
400
300
200
600
4.8
pre-assembled, final assembly by customer
600
400
400
580
380
380
1/4 Euro pallet
200
600
5.83
flat pack
670
540
436
650
520
420
300
600
8.5
pre-assembled, final assembly by customer
800
600
416
780
580
400
1/2 Euro pallet
250
500
9.9
pre-assembled, final assembly by customer
800
600
600
780
580
580
1/2 Euro pallet
300
600
11.28
flat pack
1,200
800
386
1,180
780
370
1 Euro pallet
400
800
15.3
pre-assembled, final assembly by customer
1,200
800
516
1,180
780
500
1 Euro pallet
500
1,000
17.9
pre-assembled, final assembly by customer
1,200
800
631
1,180
780
615
1 Euro pallet
500
1,000
20
pre-assembled, final assembly by customer
1,200
800
770
1,180
780
750
1 Euro pallet
600
1,000
20.48
flat pack
1,200
800
1,016
1,180
780
1,000
1 Euro pallet
600
1,000
25.9
pre-assembled, final assembly by customer
1,200
1,000
996
1,180
980
980
1 industrial pallet
600
1,000
30.4
pre-assembled, final assembly by customer
Price / item (Ex. VAT)
Select
Product description
  • Assembled in max. 3 minutes – without nails, straps or brackets
  • 50% lighter in weight than solid wood – this saves transport costs
  • UN I, II, III approval for dangerous goods upon request

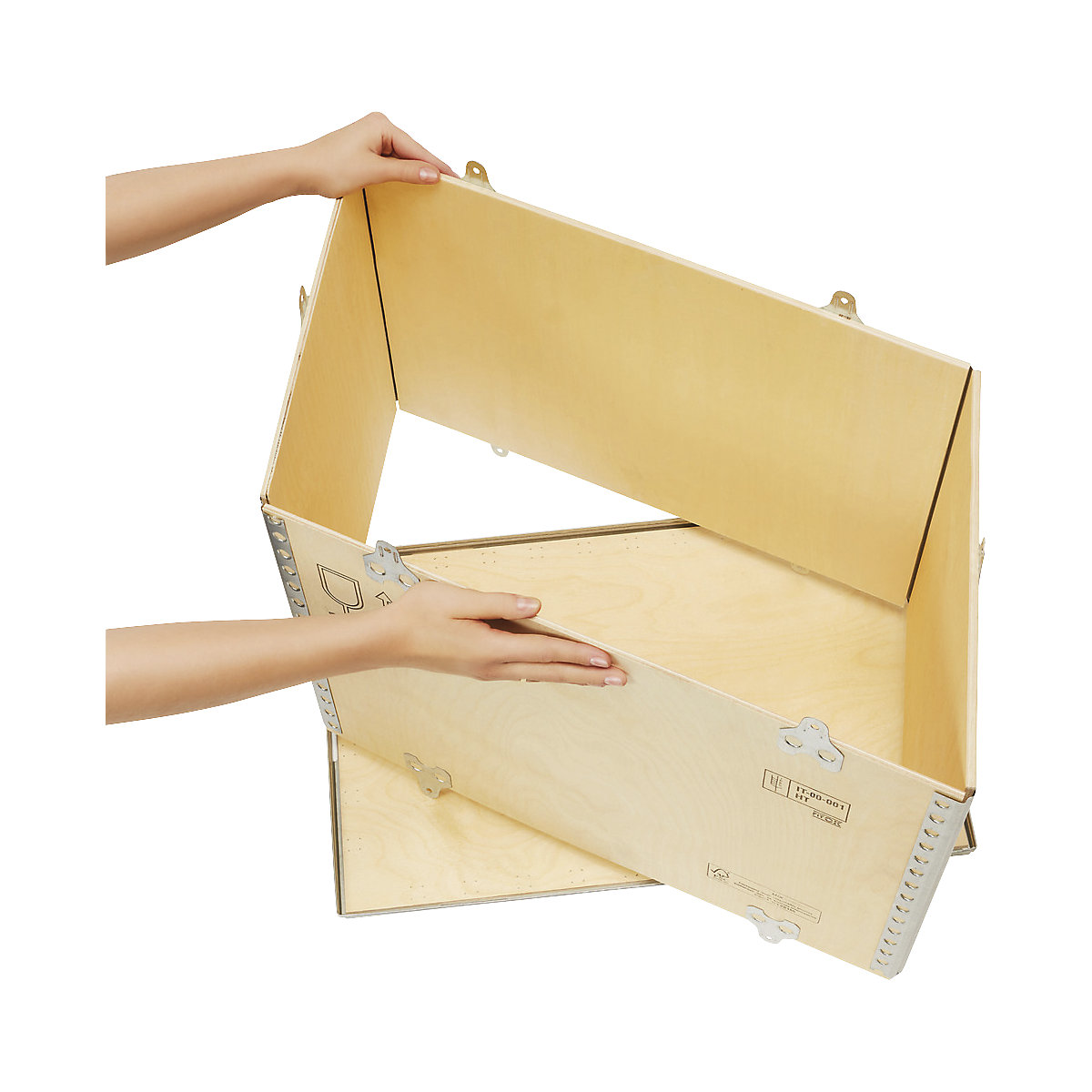

  • Box consisting of three parts: side panels, one lid each for the bottom and top

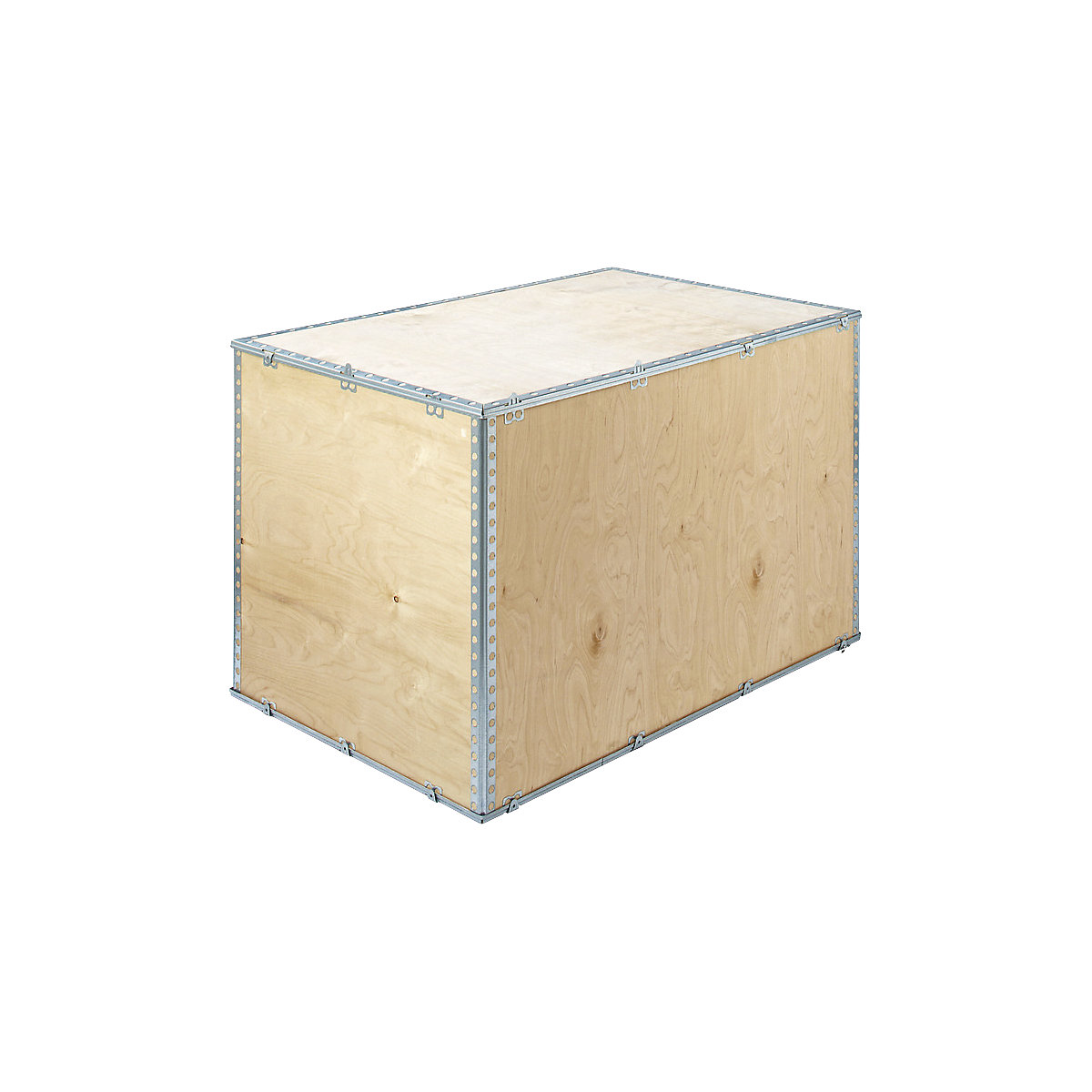

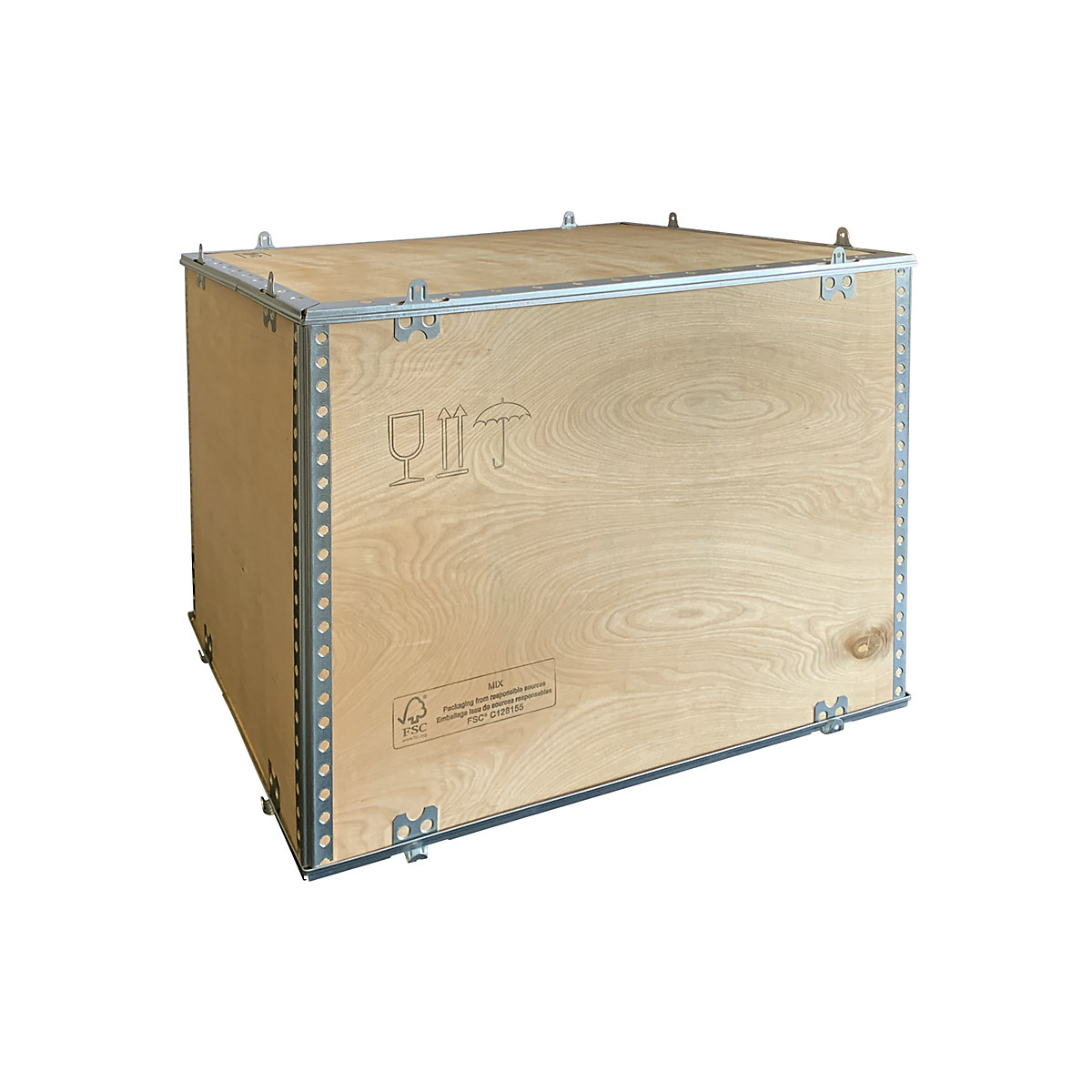

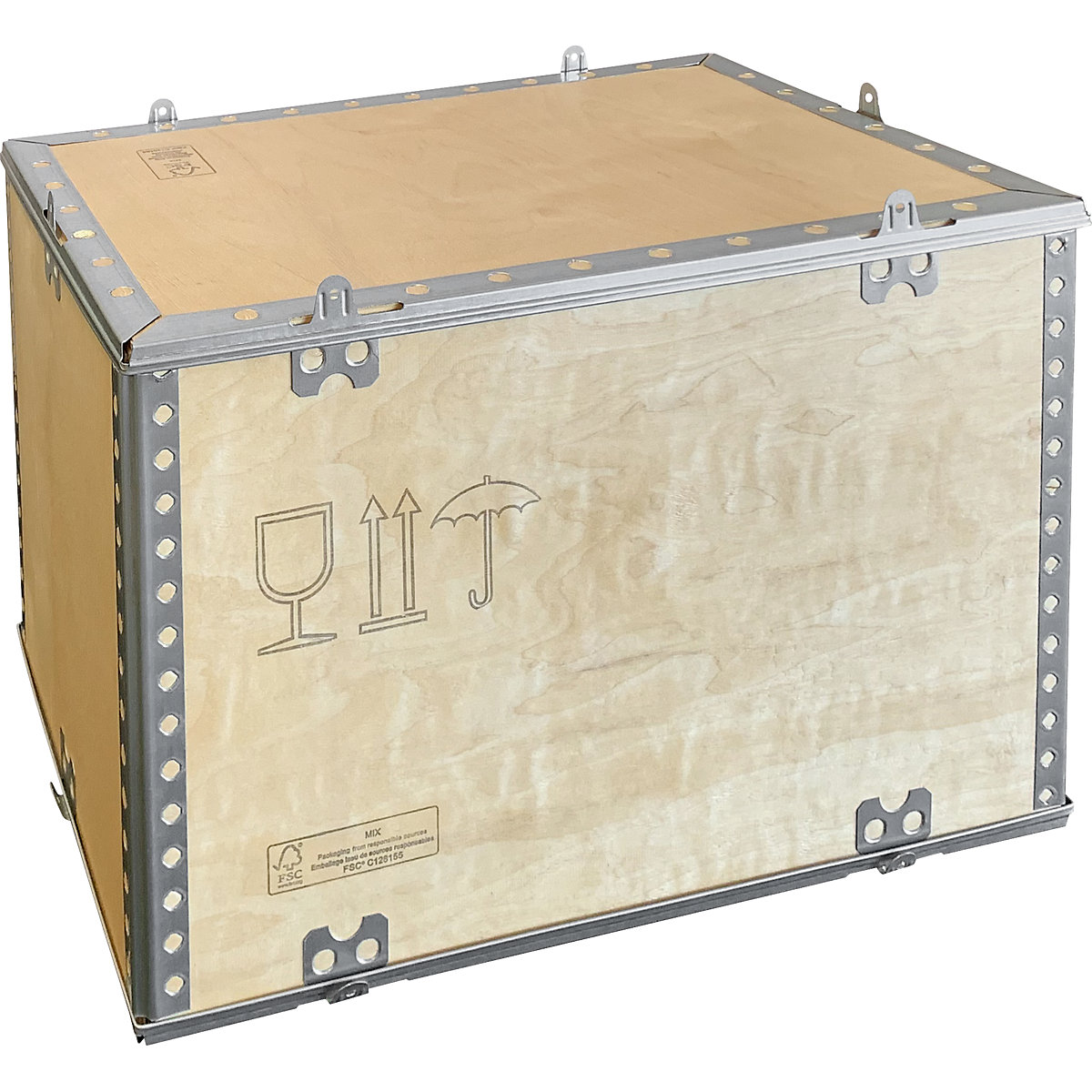

Extremely stable, collapsible, 3 piece plywood box. Secured at the edges with steel profiles and particularly easy to assemble. Complies with the IPPC standard (ISPM 15) and is suitable for export to the USA, Canada, Mexico, China, etc. Ideal as freight and export packaging for worldwide, problem-free shipping.
Technical data
Materialplywood
Material thickness6 mm

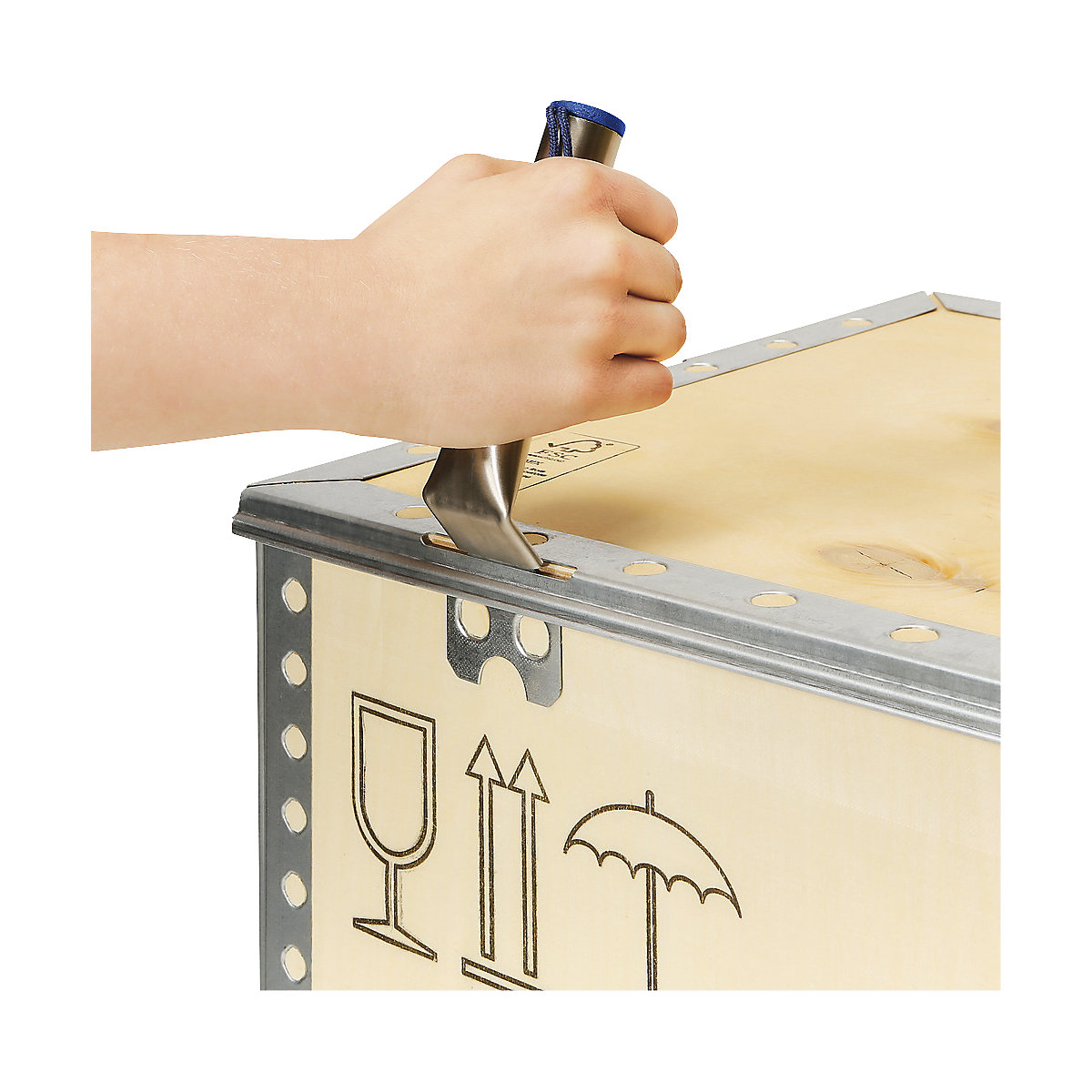

Lock typemetal buckles
Colourlight brown
Quantity on pallet50 pcs.
Product typewooden crates
Length400 mm
Width300 mm
Height270 mm
Internal length380 mm
Internal width280 mm
Internal height250 mm
Suitable for1/8 Euro pallet
Max. load20 kg
Stacking load80 kg
Weight3.19 kg
Suppliedflat pack
Sustainability
FSC® certification
FSC® – the symbol for responsible forestry management
FSC® is an independent certification awarded for responsible forest management and sustainable forestry practices. FSC certified products are produced by companies that are committed to ensuring the protection of forests and the environment, and to respecting the rights and needs of employees, communities and indigenous peoples.
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .
CriteriaWeightingScore
Icon Climate protectionClimate protection30%1.6
Icon Circulatory economyCirculatory economy30%2.8
Icon BiodiversityBiodiversity25%4.9
Icon Economic efficiencyEconomic efficiency10%4.1
Icon InnovationInnovation5%5.9
Overall score3.3
