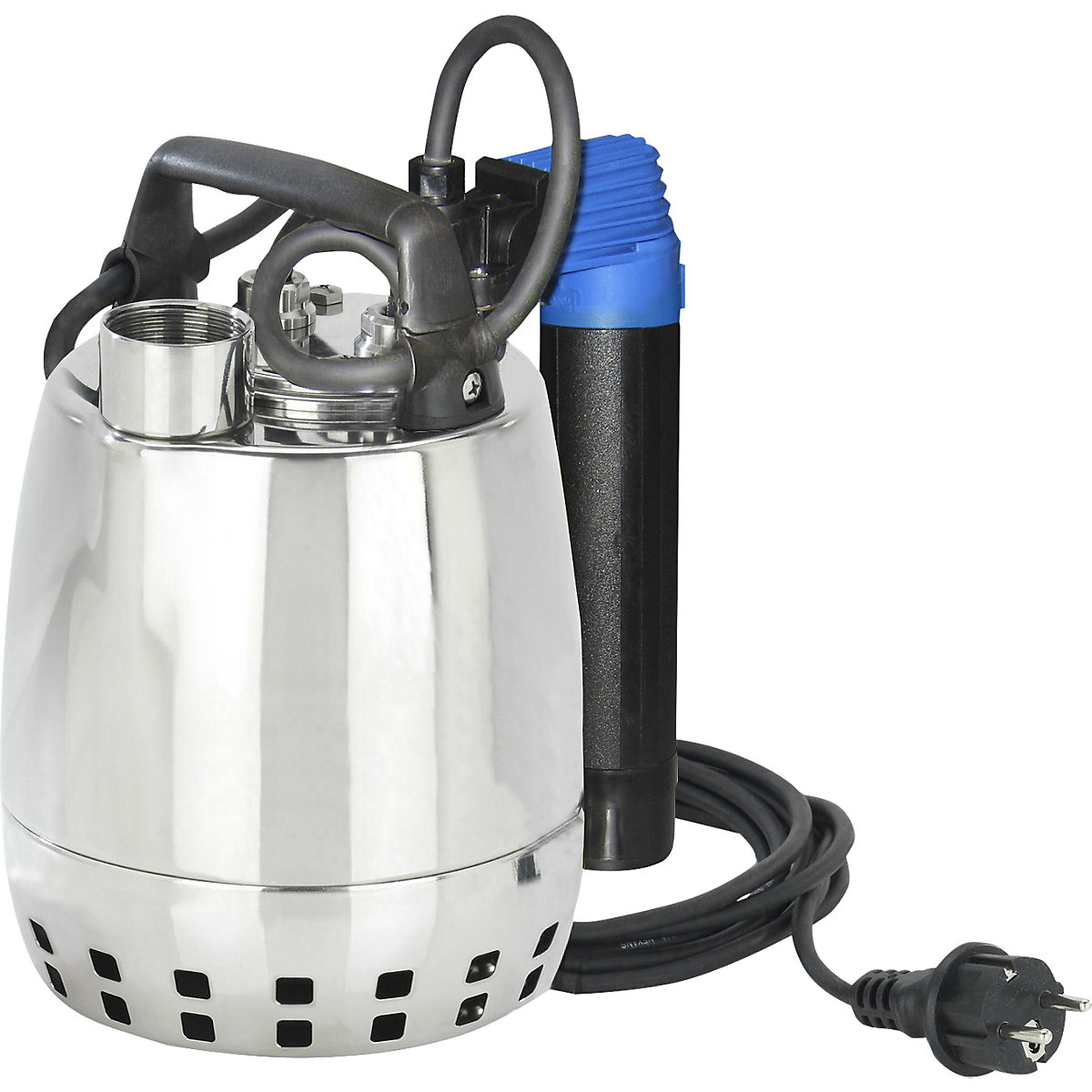

Submersible drainage pump GXRM 9 GF chrome nickel steel

Submersible drainage pump GXRM 9 GF

max. 9 m, 0.25 kW

New
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • For draining cellars or flooded rooms
  • For water extraction from ponds, streams or rainwater collection basins or irrigation
  • For pure water, even with solid components up to 10 mm grain size
  • With float switch and thermal switch, built-in capacitor
  • Motor cooling with flowing water between motor and pump jacket
  • With vertical magnetic switch for automatic operation
  • Immersion depth: max. 5 m
Fully submersible, single-stage motor pumps made of chrome-nickel steel, with a vertical discharge connection. Double shaft seal with an intermediate oil chamber. Minimal dimensions and high pumping capacity, for use in a wide variety of applications. Delivery head up to max. 9 m, flow rate up to 170 l/min.
Technical data
Power0.25 kW
Pump ratemax. 170 l/min
Pumping height9 m wc
Max. speed2900 rpm
Voltage230 V
Immersion depth5000 mm
Height265 mm
Width176 mm
Length220 mm
For liquidswater
Material of pumpstainless steel
Materialstainless steel
Cable length10000 mm
Protection typeIPX8
Coloursilver red
Product typeimmersion pumps
Suppliedassembled
Weight6 kg
