Ref.: 837787 10

Shelving unit with fire containment cover – VLITEX height 1000 mm, for storage of rechargeable batteries

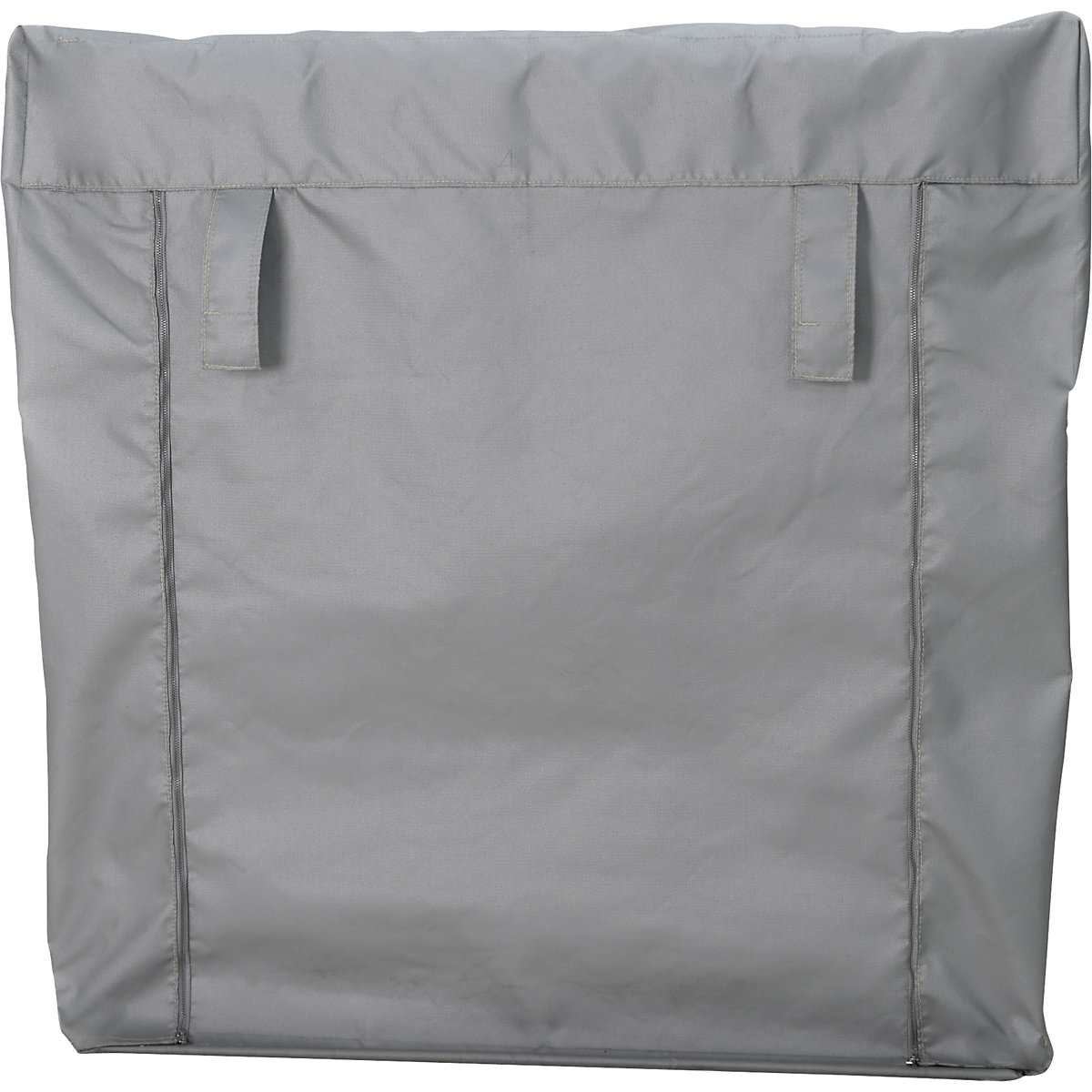

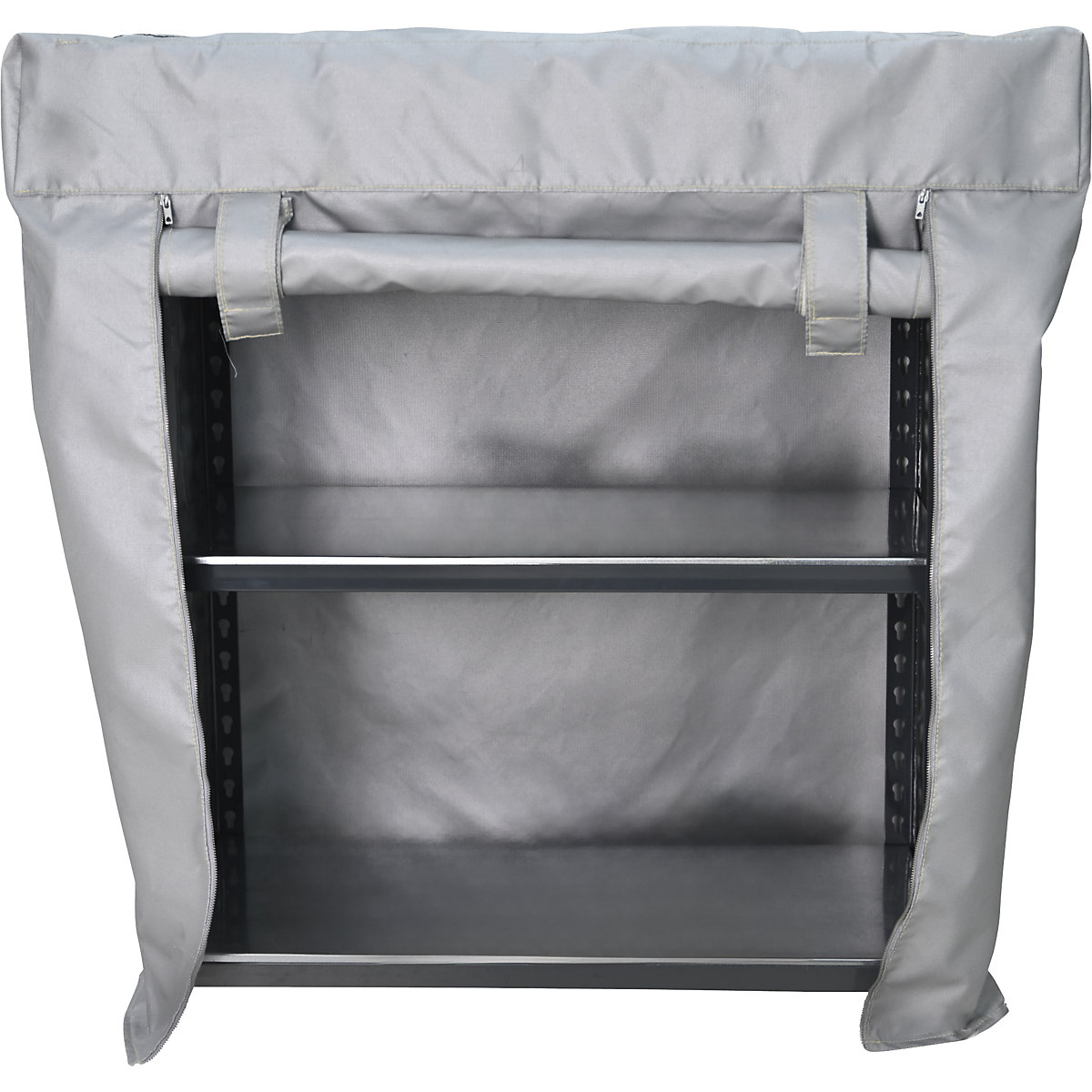

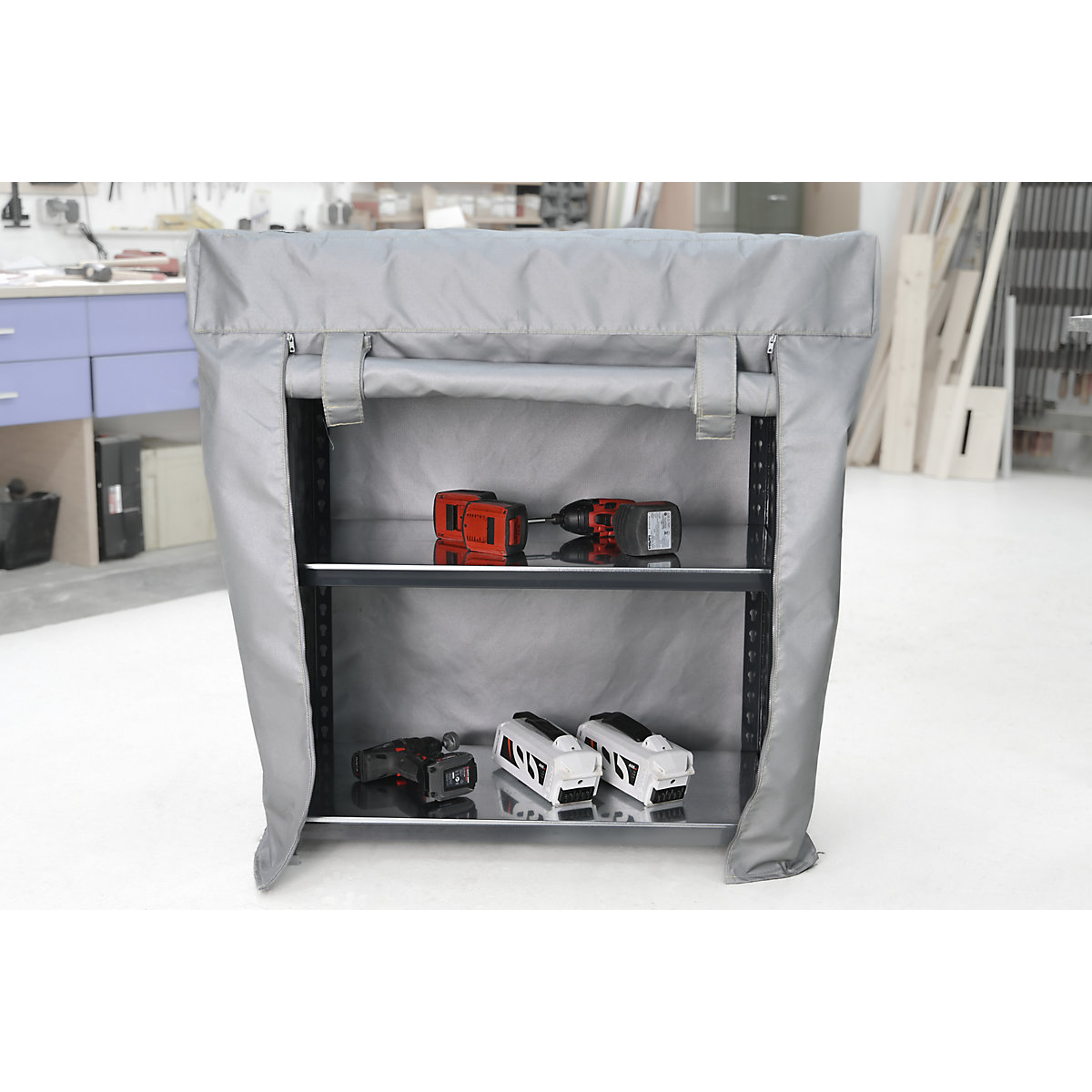

Shelving unit with fire containment cover – VLITEX

WxD 800 x 400 mm

New
939,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Product description
  • For the efficient containment of fires, including lithium ion battery fires
  • High explosion protection (burst resistance) due to special fabric and coating
  • Reduction of smoke development due to high stifling effect
  • Temperature resistant up to 1750 °C (1000 °C over extended periods)
  • Retains exploding parts due to the high burst resistance of the material
  • Reduces smoke development due to the high stifling effect of the material
  • Batteries can be charged by charging socket feedthrough
  • Prevents any potential electrical conductivity of the battery
  • The cover is cut resistant when placed up against sharp edges
  • For environmentally friendly and resource saving fire suppression
  • No maintenance required, material is weatherproof and does not corrode
VLITEX Akku-Safe shelves offer reliable protection in case of battery fires and are available in two sizes.

Specially developed for the safe storage of lithium-ion batteries, the shelving unit ensures that fires remain controlled without endangering surrounding areas. In the event of a fire, the fire-resistant material immediately reduces smoke and effectively protects against the spread of flames. The shelving unit also offers a significant reduction in the ambient temperature and is therefore the perfect solution for safe and rapid fire prevention in workshops, warehouses and industrial plants. The shelving system is easy to handle and the frame (boltless shelving unit), including the hood, can be assembled in just a few minutes. Its very low weight ensures the shelving system can be quickly repositioned. The material used for the fire containment hood consists of a high-performance fabric and meets the requirements of DIN SPEC 91489. It effectively prevents the spread of fires and reliably protects against the risks of a battery fire. Can be used multiple times, depending on the fire load and damage such as cuts or holes.

Cover material: Special fibreglass fabric with silicone coating, seams with fire-retardant sewing thread, acid and chemical resistant
Fastening strap: Special fibreglass fabric with double-sided silicone coating

Safety notice: This system has been successfully tested by Fraunhofer with 1 x 740 Wh Li-ion battery (+90% charged). Store batteries with a maximum total capacity of 740 Wh per shelf. However: The system is not a guaranteed protection against battery explosions. It is designed to provide temporary containment in order to reduce the immediate risk and allow time for emergency measures.

The German manufacturer VLITEX GmbH equips fire brigades and industry, among others, with safety products based on technical textiles. Tested according to the relevant standards:

– Short-term temperature resistance confirmed by Magna Steyr (1300 °C)
– Short-term temperature resistance confirmed by in-house test (1750 °C)
– Electrical resistance according to DIN 54345-1 confirmed by Hof University of Applied Sciences (< 1.0 x 106 Ω)
– Cut resistance according to ISO 13997:1999-08 confirmed by STFI (18.45 N)
– Fire behaviour according to DIN EN 13501 confirmed by MPA (A2)
Technical data
Shelf unit typestandard unit
Shelf unit height1000 mm
Width800 mm
Depth400 mm
Shelf width800 mm
Number of levels3 pcs.
Max. shelf load180 kg
Max. bay load540 kg
Materialsheet steel, galvanised
Coloursilver
Designplug-in system
Shelf unit designsingle sided
Number of shelves3 pcs.
Product typerechargeable battery shelf units
Suppliedpartially assembled
Weight13.5 kg
