Ref.: 969086 10

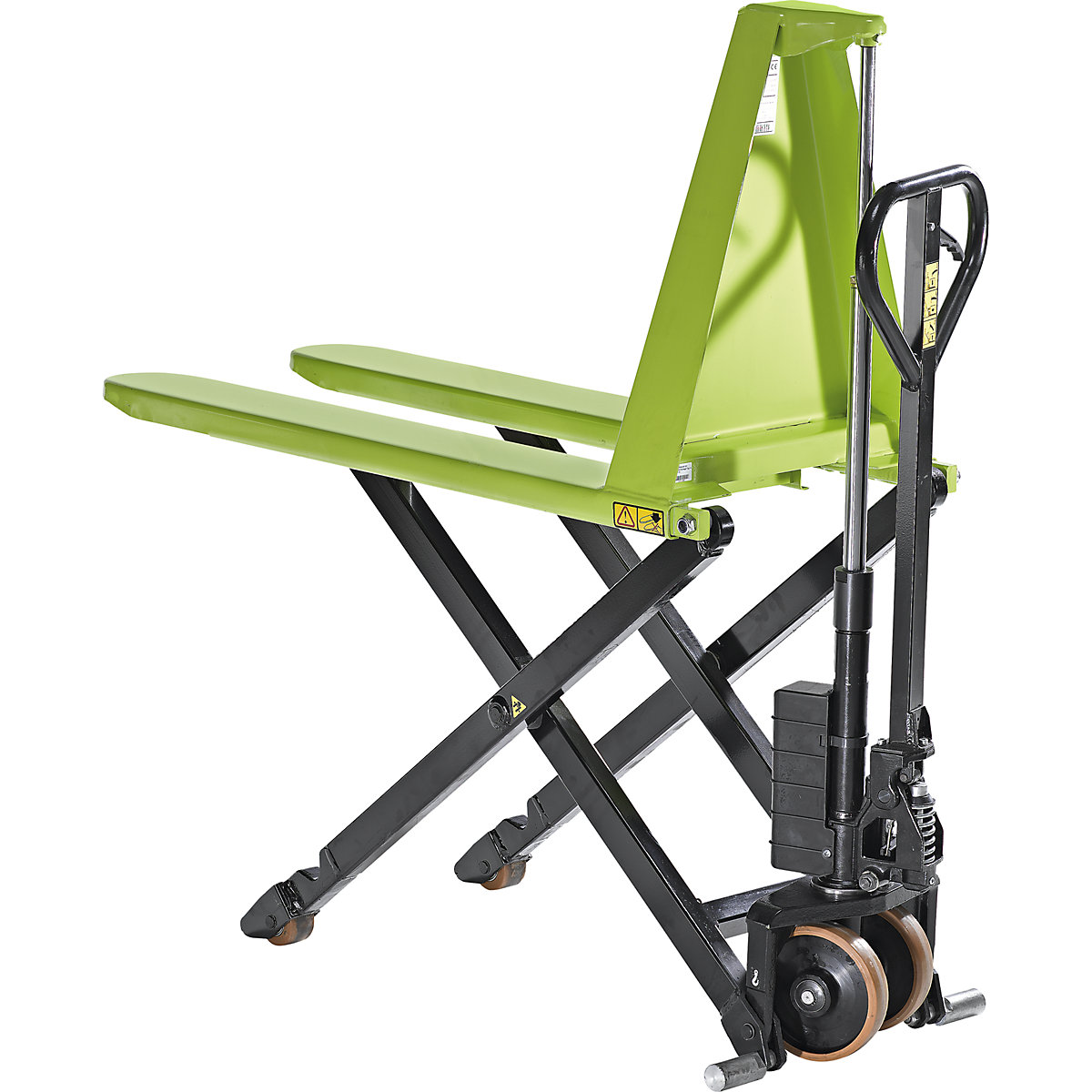

High-lift pallet truck, manual hydraulics – Pramac max. load 1000 kg
fork length 1150 mm
Fork length [mm]
Ref.: 969086 10
High-lift pallet truck, manual hydraulics – Pramac max. load 1000 kg
fork length 1150 mm
fork length 1150 mm
Fork length [mm]
1.640,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?1.640,00 €
Price / item (Ex. VAT)
Product description
- Lift, move and deliver loads up to 1000 kg
- Work at an ideal height
Thanks to the reduced weight and high manoeuvrability, this universal device can perform transport tasks, the storage and retrieval of parts, the supplying of assembly lines, and much more. Up to a height of 400 mm, the devices can be easily moved with a load. In addition, the standard stabilisers ensure a stable footing. Compact design due to telescopic cylinder. Self-lubricating scissor bearings. Protection of the device against overloading by an overload pressure valve. Precise control of the lowering speed. High-quality powder coated in an attractive special shade of green.
QUICKLIFT
Lifts faster – saves effort and time!
Lifts faster – saves effort and time!

Technical data
Max. load | 1000 kg |
---|---|
Lifting range | 85 – 800 mm |
Lift drive | manual hydraulics |
Fork width | 160 mm |
Distance across forks | 540 mm |
Width | 540 mm |
Height | 1250 mm |
Steering radius | 205 ° |
Lift per pump stroke | 14 mm |
Steering wheel material | polyurethane |
Steering wheel diameter | 200 mm |
Steering wheel width | 45 mm |
Roller material | polyurethane |
Fork roller version | single |
Fork roller diameter | 80 mm |
Fork roller width | 50 mm |
Colour | green |
Finish | powder coated |
Feature | manual mobile up to 400 mm lifting height |
Fittings | QuickLift |
Product type | high-lift pallet trucks |
Supplied | assembled |
Fork length | 1150 mm |
Length | 1526 mm |
Weight | 104 kg |
Instructions |
