Ref.: 674806 10

High lift stacker with waste compactor for 800 and 1100 l waste containers

High lift stacker with waste compactor

lifting range 90 – 1600 mm

2.450,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Waste compaction by up to 50%
  • Quick and easy assembly
  • Long service life due to safety overload pressure valve
  • Suitable for 1100 litre waste containers

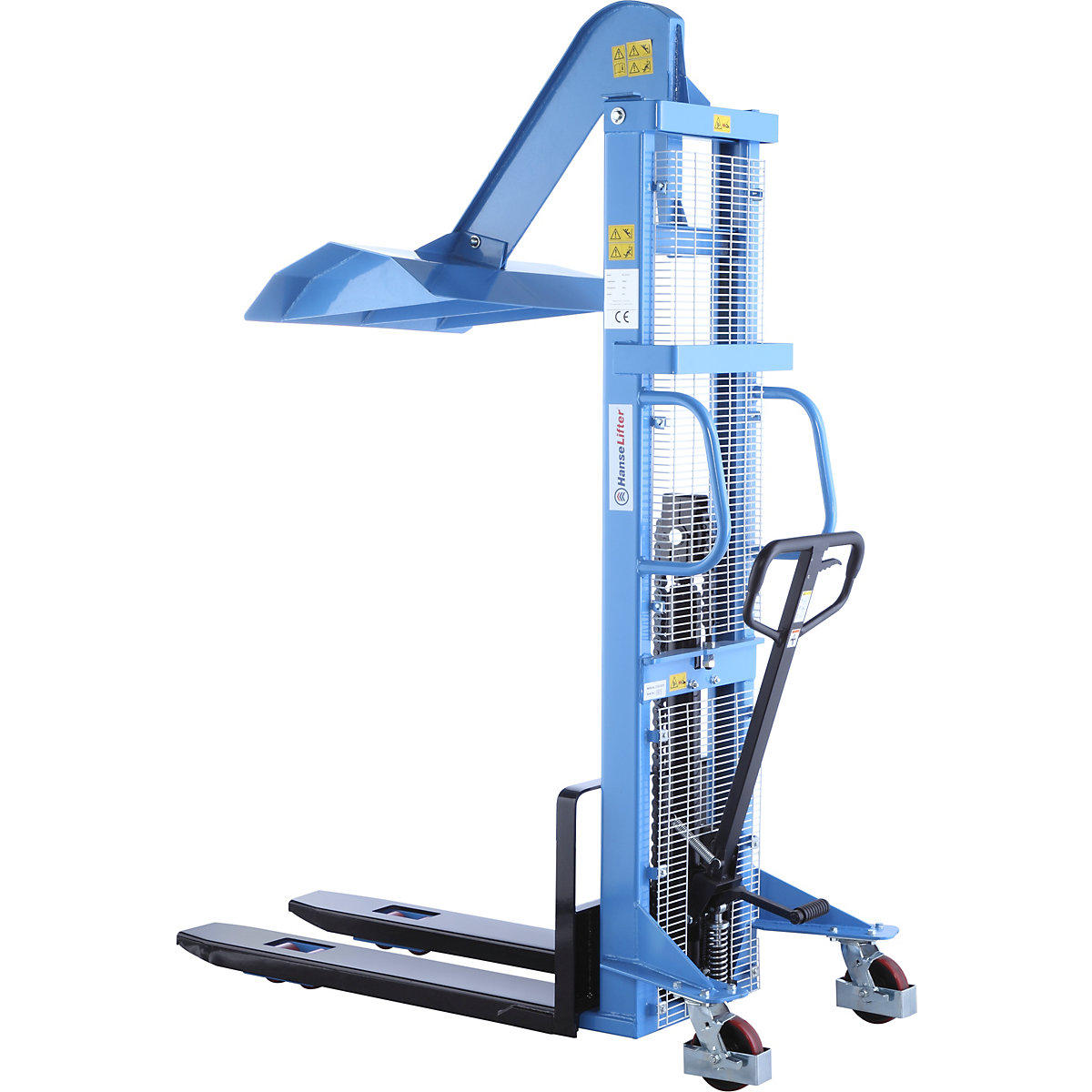

The waste compactor for standard waste containers with a capacity of 800 l and 1100 l, consisting of a high lift stacker and the LiftPress. The high lift stacker without a LiftPress attachment is ideal for stacking and retrieving pallets weighing up to 1.0 t. The LiftPress compactor attachment consists of 2 parts and is simple to fit onto the high lift stacker. The LiftPress waste compactor operates from below, i.e. the container is pushed against a press plunger from below. This allows waste of all kinds to be compacted without damaging the waste container and rollers, and guarantees bulk handling of the waste material. Robust construction with reinforced mast profile. Load chains and hydraulic cylinders secured with protective guards.
Excellent stability due to wheel stops on the steering wheels – even under full load.
Technical data
Max. load1000 kg
Load centre600 mm
Lifting range90 – 1600 mm
Fork length1150 mm
Distance across forks565 mm
Fork width170 mm
Length1705 mm
Width755 mm
Overall height2205 mm
Design of mastsingle mast
Lift per pump stroke20 mm
Lift drivemanual
Wheel fittings2 steering wheels
Castor diameter front / rear150 mm
Material of rimaluminium
Steering wheel materialpolyurethane
Steering wheel width40 mm
Fork roller versiontandem
Roller materialpolyurethane
Fork roller width60 mm
Finishpowder coated
Colourlight blue RAL 5012
Product typehigh lift stackers
Suppliedflat pack
Weight269 kg
