Ref.: 590995 10

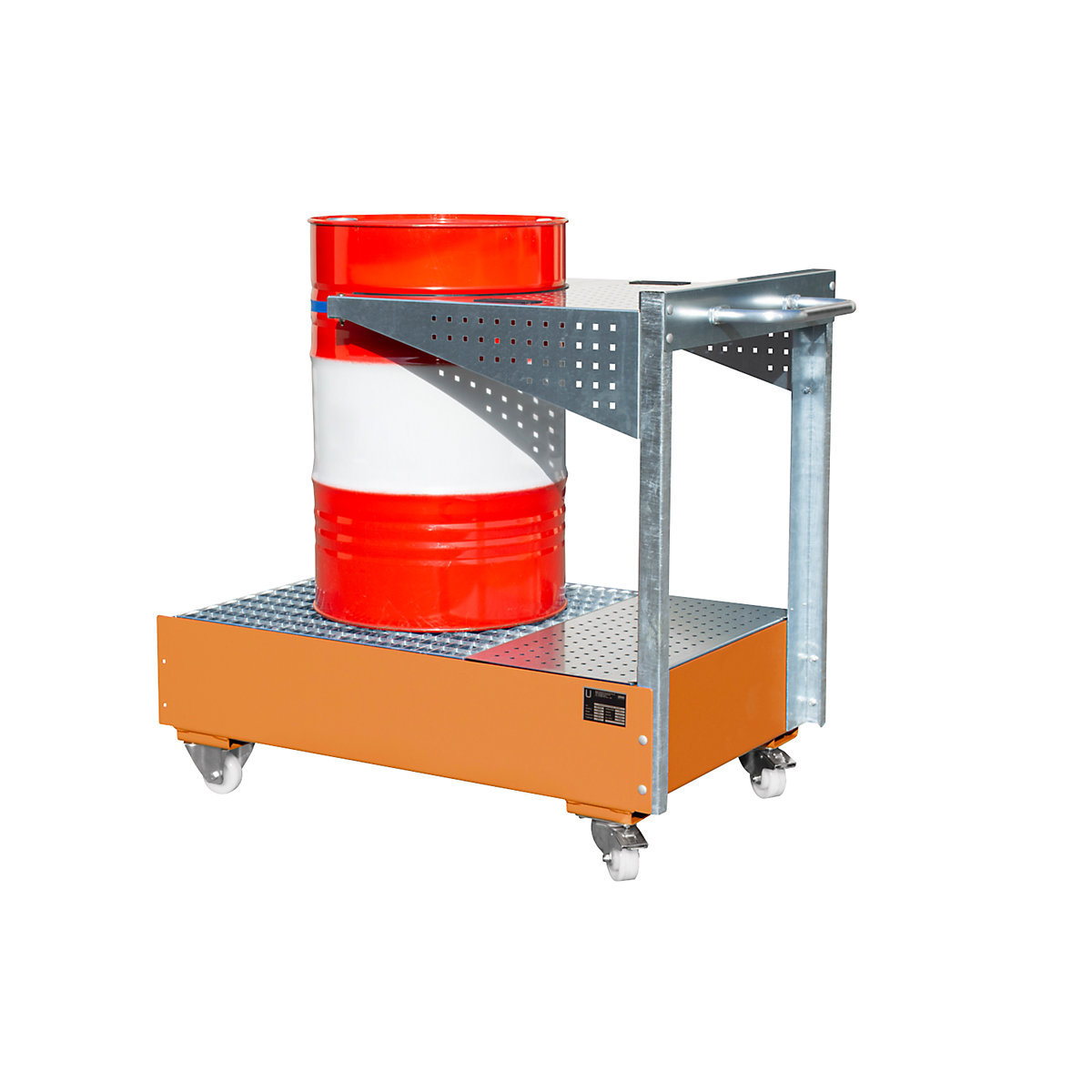

Mobile sump tray with perforated panel bracket for 1 x 200 l drum, LxWxH 1450 x 800 x 1195 mm

Mobile sump tray with perforated panel bracket
Mobile sump tray with perforated panel bracket, for 1 x 200 l drum, LxWxH 1450 x 800 x 1195 mm, painted yellow orange-0
Mobile sump tray with perforated panel bracket (Product illustration 2)-1

painted yellow orange

Finish
Colour
1.580,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Product description
  • Simple and safe filling at different points of consumption
  • With perforated panel bracket and mounting plate
  • Tray with manufacturer's declaration of conformity in accordance with StawaR
Mobile sump tray for safe and easy filling of oils, lubricants, flammable and water hazardous liquids etc. from 200 l drums at various consumption points.
For an upright 200 litre drum.

Sump tray made of 3 mm sheet steel, galvanised grate (max. load 1000 kg/m²).

Hot dip galvanised push handles.
Sturdy, galvanised perforated panel bracket with square holes (10 mm) in full length 38 mm grid for free positioning of tool holders.
Sturdy, galvanised mounting plate with square holes (10 mm) in a full length 38 mm grid on the sump tray.
Retaining strap for fixing the drums.

2 swivel and 2 fixed castors made of nylon Ø 100 mm, of which one swivel castor with wheel stop – overall height 125 mm.

Overall dimensions: LxWxH 1450 x 800 x 1195 mm.
Tray dimensions: LxWxH 1295 x 800 x 415 mm.

With certification manufacturers' declaration of conformity in accordance with StawaR – approved for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4.
For flammable liquids
For flammable liquids
For water hazardous liquids
For water hazardous liquids
Technical data
Type of gratewith zinc plated grate
Sump capacity215 l
Length1450 mm
Width800 mm
Height1195 mm
Drum capacity1 x 200 l
Materialsheet steel
Max. load1000 kg/m²
Test symbolmanufacturers declaration of conformity in accordance with StawaR
Material thickness3 mm
For mediaflammable and water hazardous liquids
Hazard classfor flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4
Featuremobile
Distributed load1000 kg/m²
Wheel typenylon
Max. wheel load350 kg
Wheel fittings2 swivel and fixed castors, 1 swivel castor with wheel stop
Wheel diameter100 mm
Drum storageupright
Modelwith push handle
Certificationwith
Push handle height1100 mm
Product type200 l sump trays mobile sump trays
Suppliedpre-assembled, final assembly by customer
Finishpainted
Colouryellow orange RAL 2000
Weight101 kg
