Ref.: 839137 10

Gas cylinder trolley with tension strap for 1 cylinder with Ø 100 – 320 mm

Gas cylinder trolley with tension strap

max. load 150 kg

New
1.940,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Product description
  • Lift, transport and put down gas cylinders safely and ergonomically, without a large amount of physical effort
  • Direct picking up and lifting the bottle from the base with a hoist and a tension belt

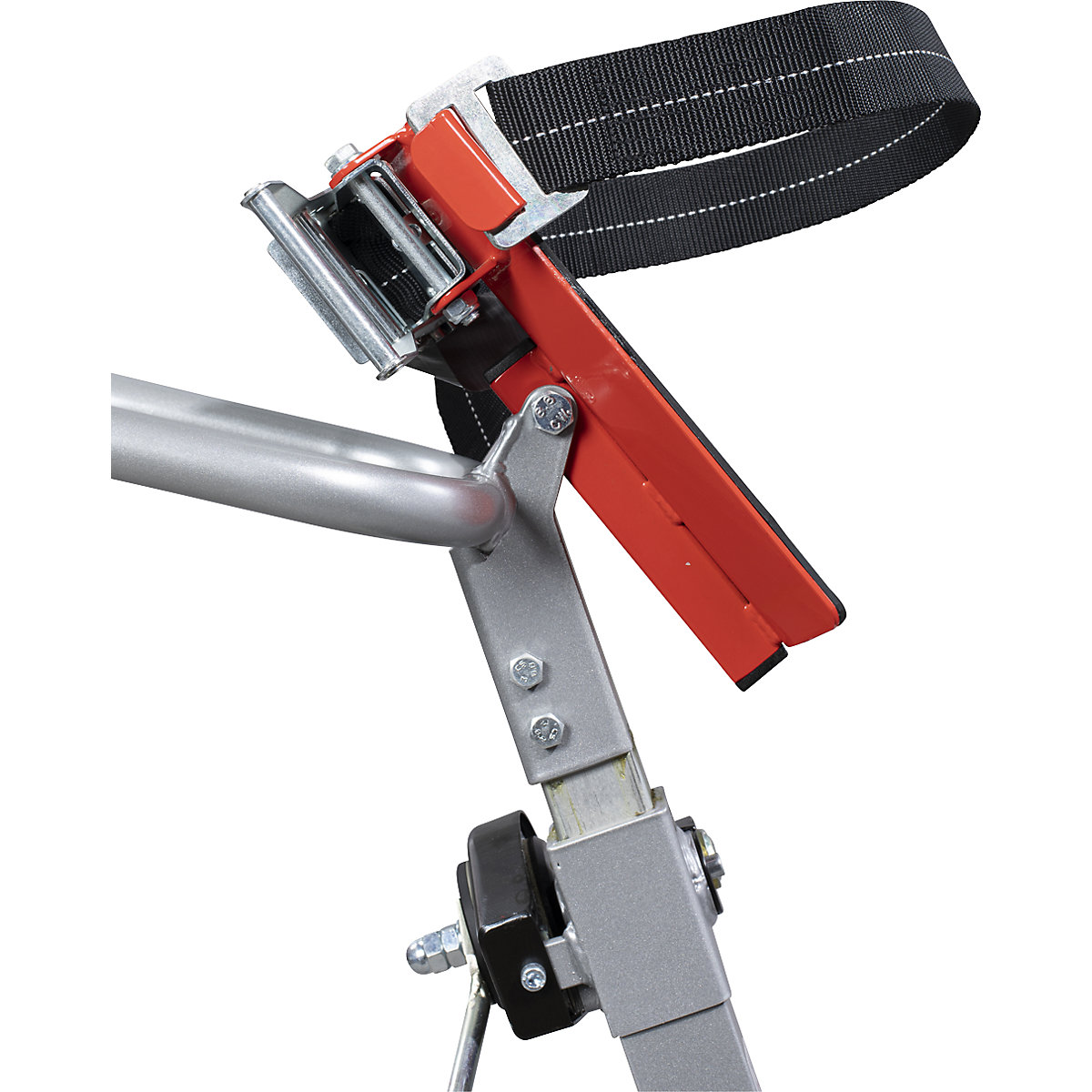

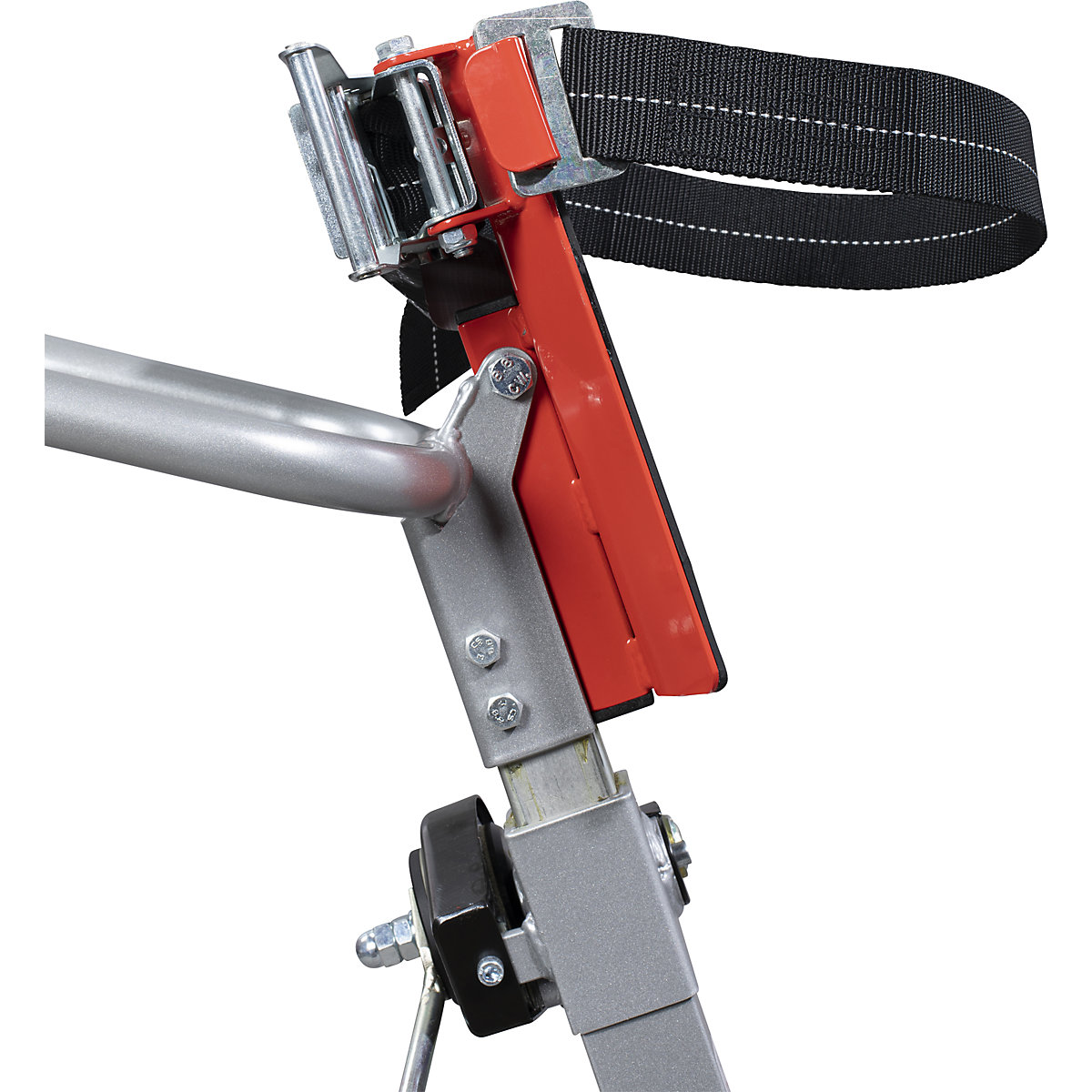

  • Adjustable tension strap to adapt to the bottle size
  • The cylinder can also be picked up and set down on higher shelves
  • Effortless and comfortable travel due to the large wheels
  • Ideal for the user when there are many repetitions/movements

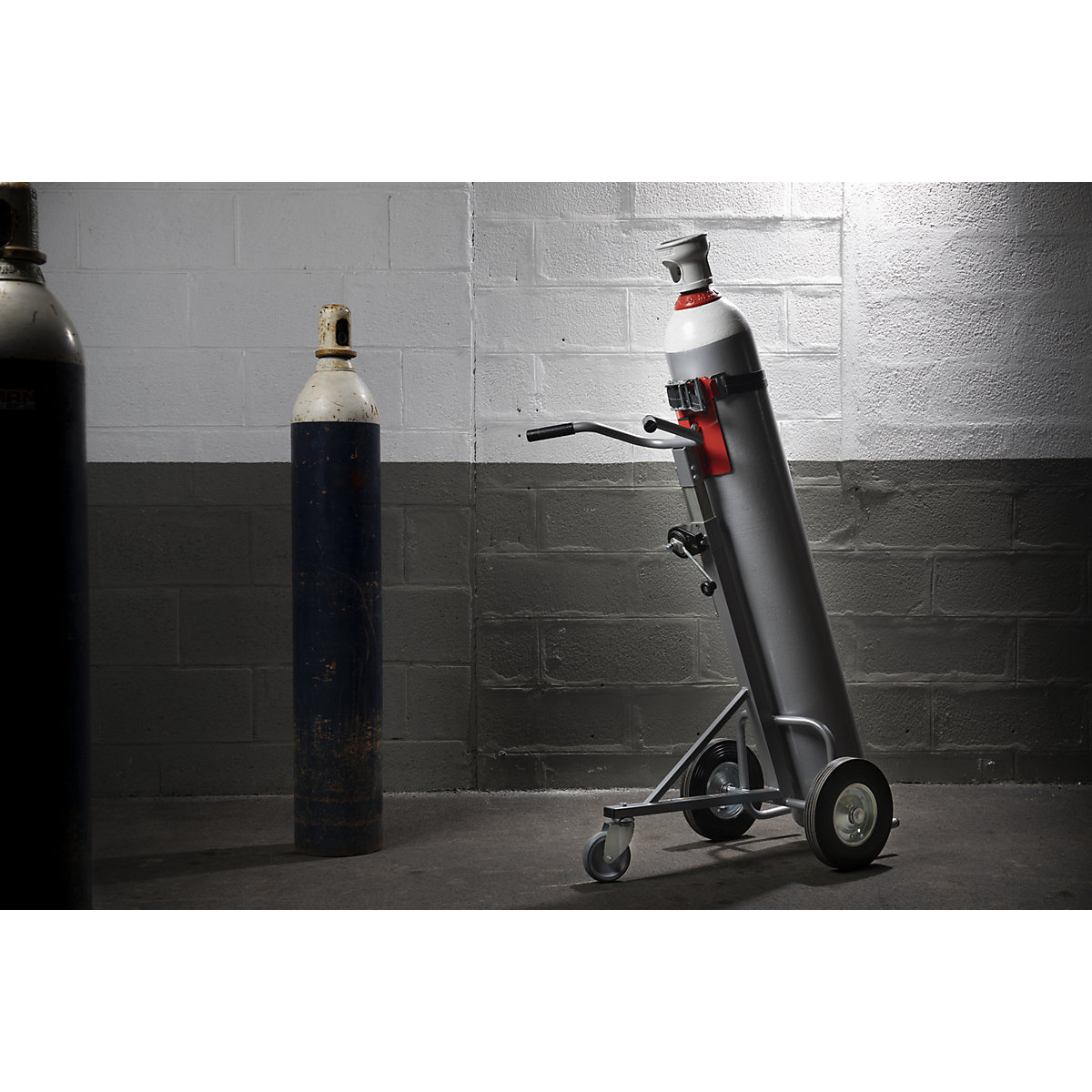

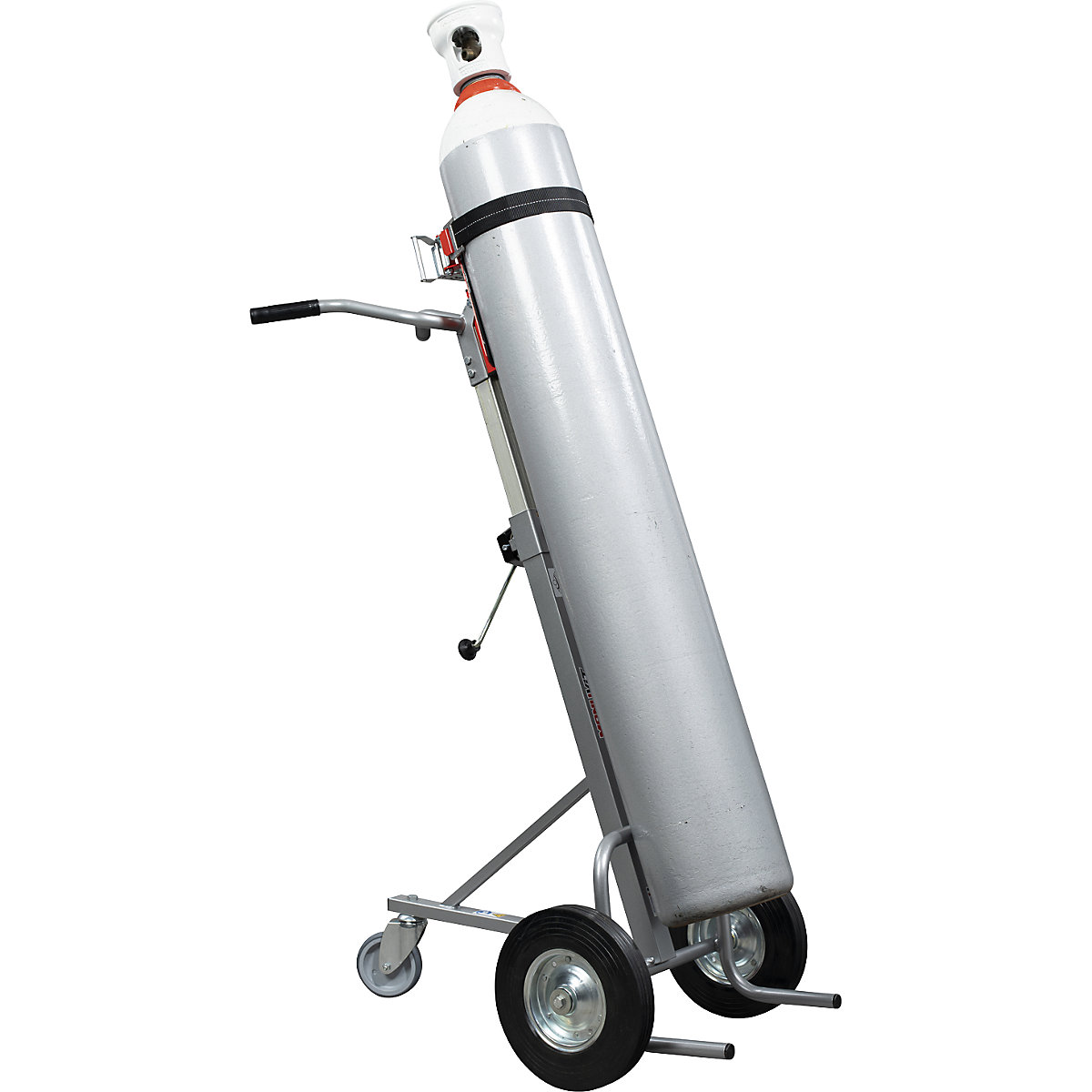

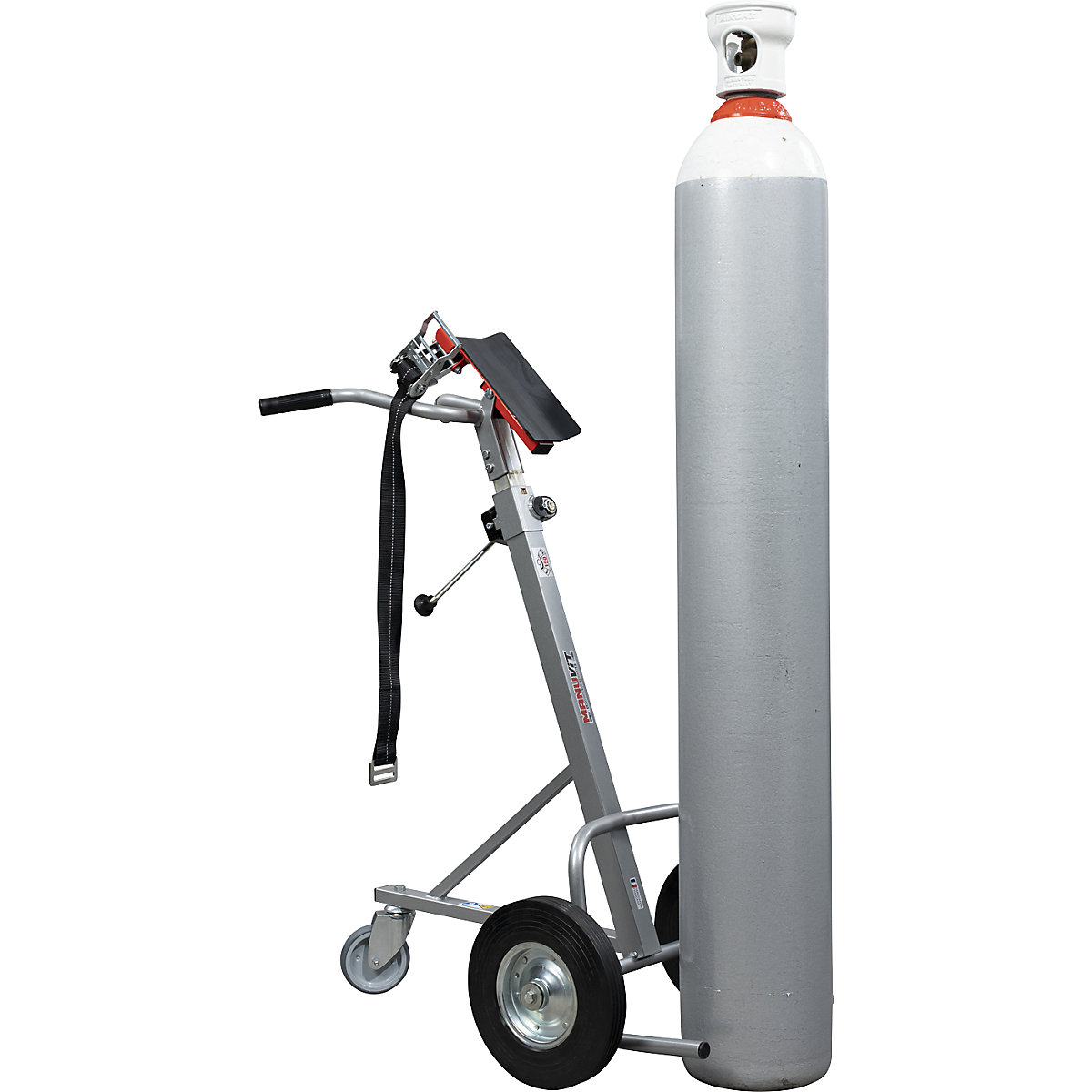

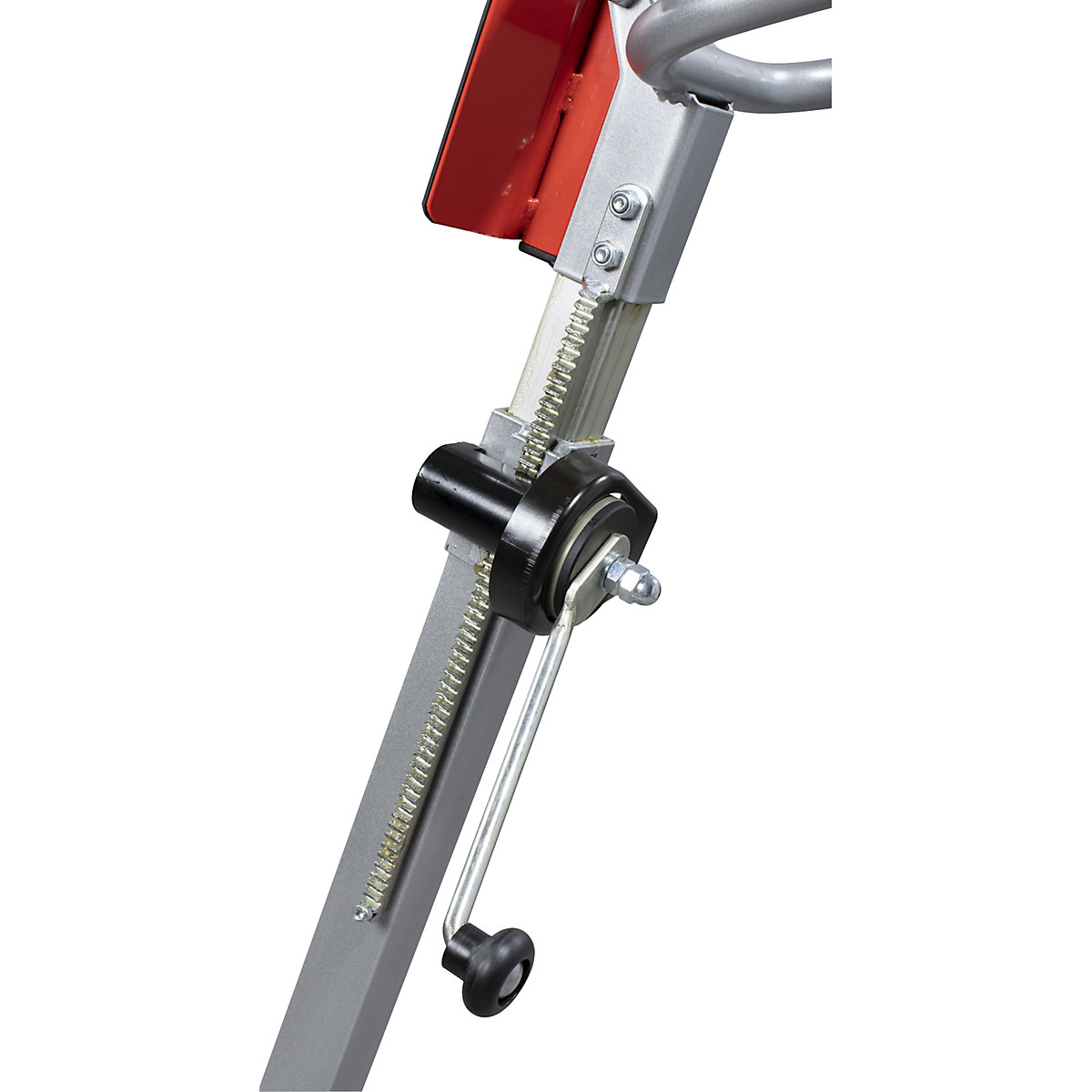

This innovative sack truck offers an ergonomic and safe solution for handling gas cylinders with a maximum weight of 150 kg. Equipped with a patented lifting system, it significantly minimizes the effort. thanks to the height-adjustable lifting mast with a winch, it is suitable for various cylinder diameters from 100 – 320 mm. The lifting height allows for easy placement or removal of cylinders without them having to be lifted. The cylinders can be picked up directly from the base. Directly placing and setting down gas cylinders is also easily possible on raised surfaces, such as pallets. The support leg with a swivel castor and two large rubber wheels (300 mm) ensures effortless and easy transport of the gas cylinders.
Technical data
Number of cylinders1 pcs.
For cylinder diameter100 – 320 mm
Height1247 mm
Width554 mm
Max. load150 kg
Materialsheet steel
Finishpainted
Colourlight grey
Wheel typesolid rubber
Wheel diameter300 mm
Fittingswith tension strap and lifting winch
Support wheel diameter125 mm
Product typesteel cylinder trucks
Suppliedassembled
Weight26 kg
