Ref.: 742886 10

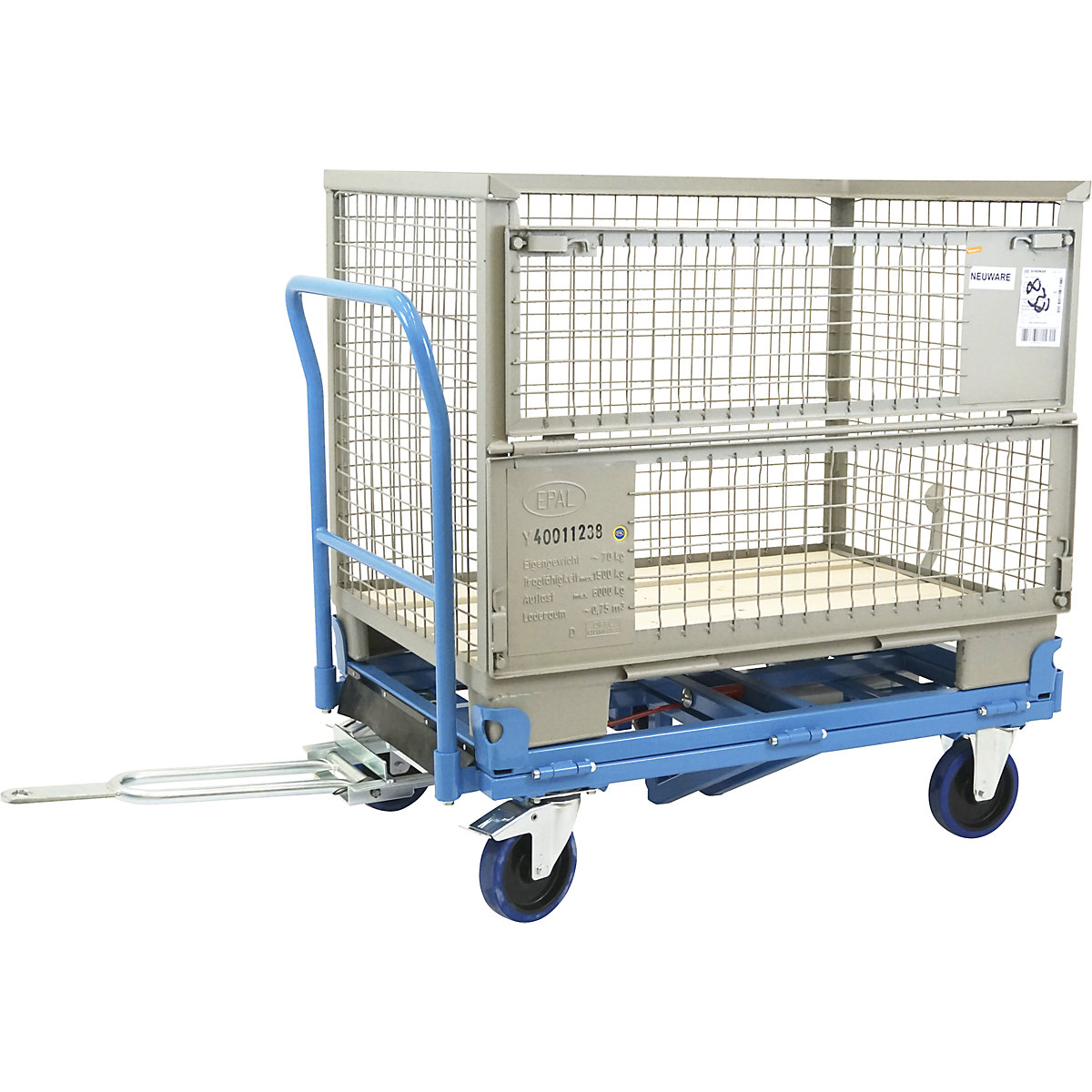

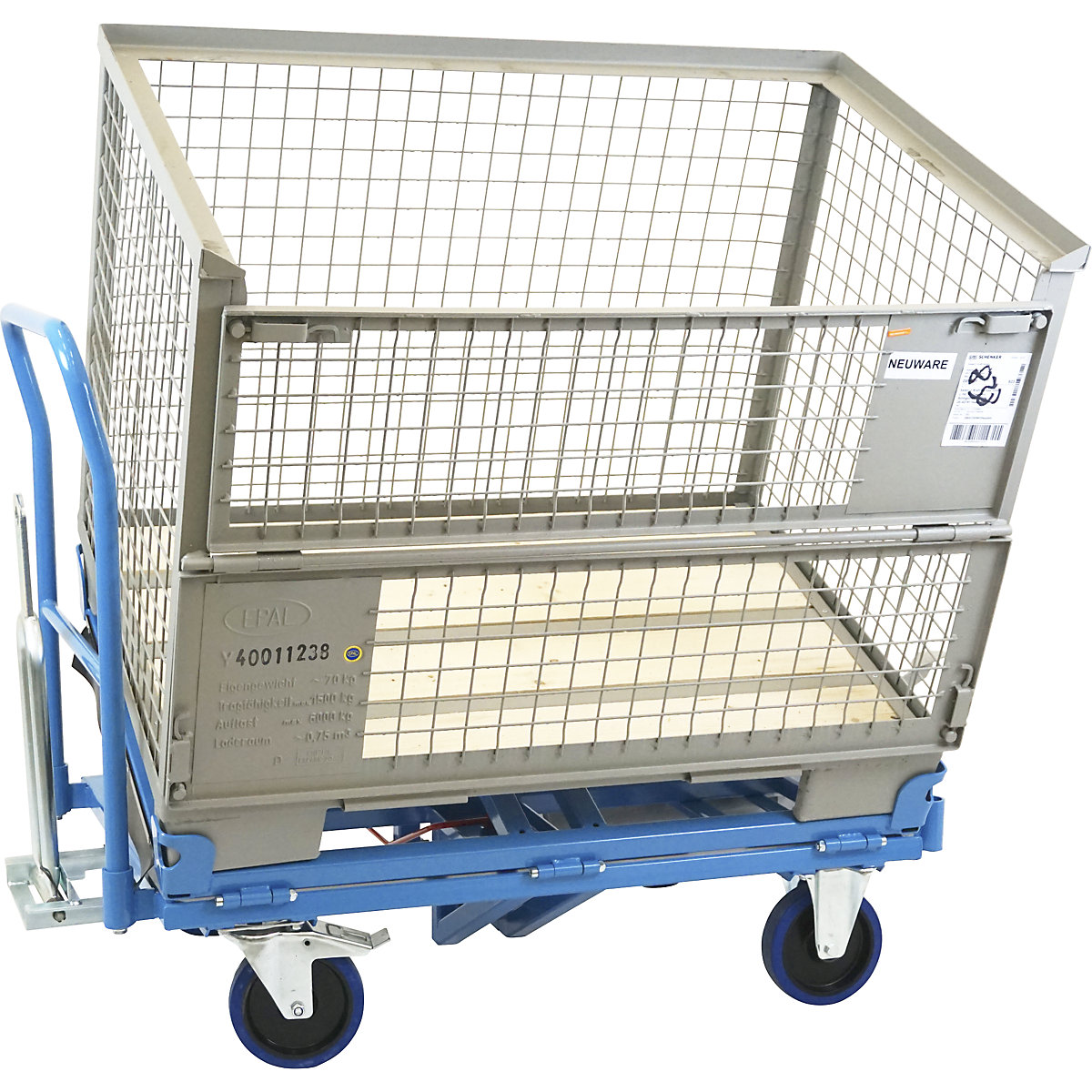

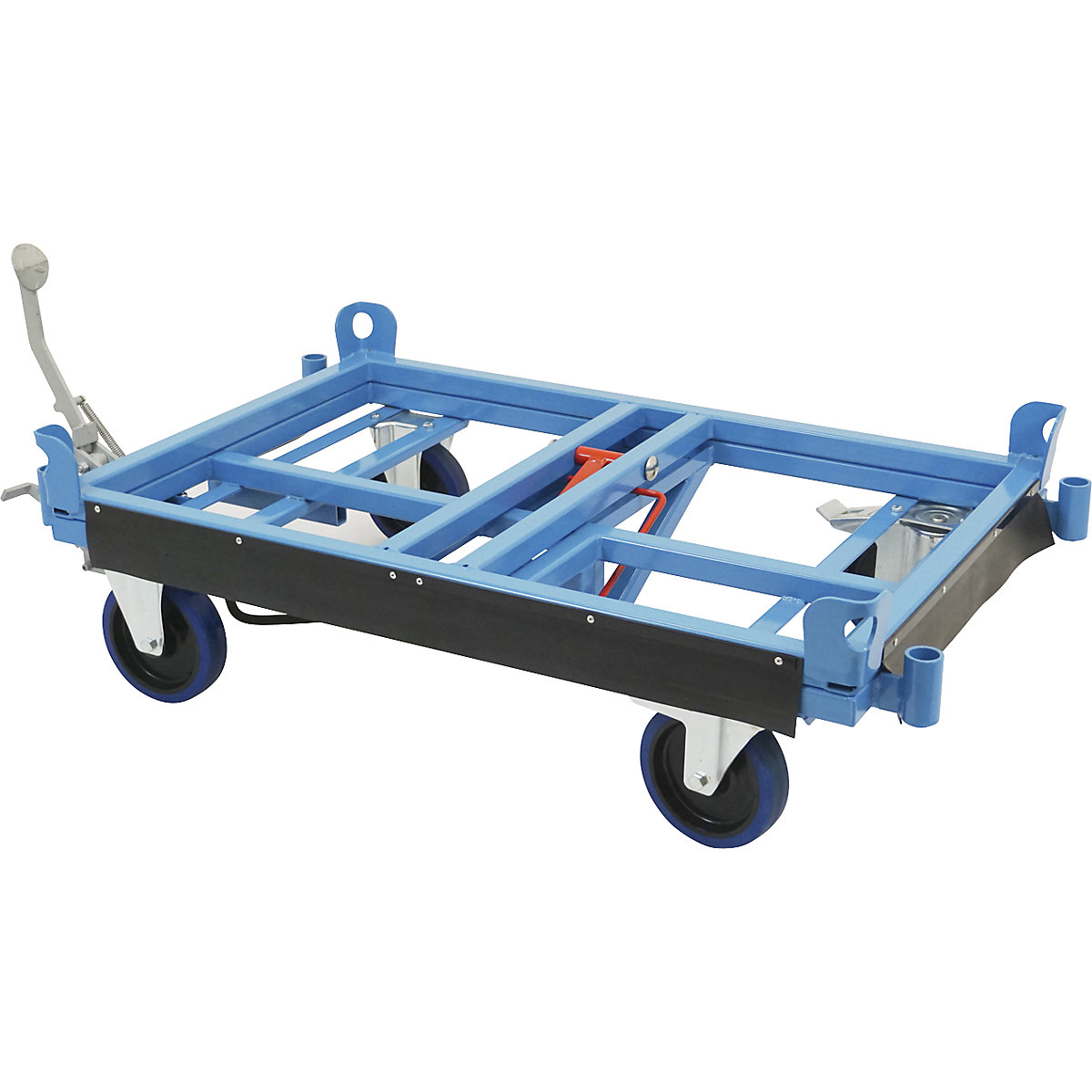

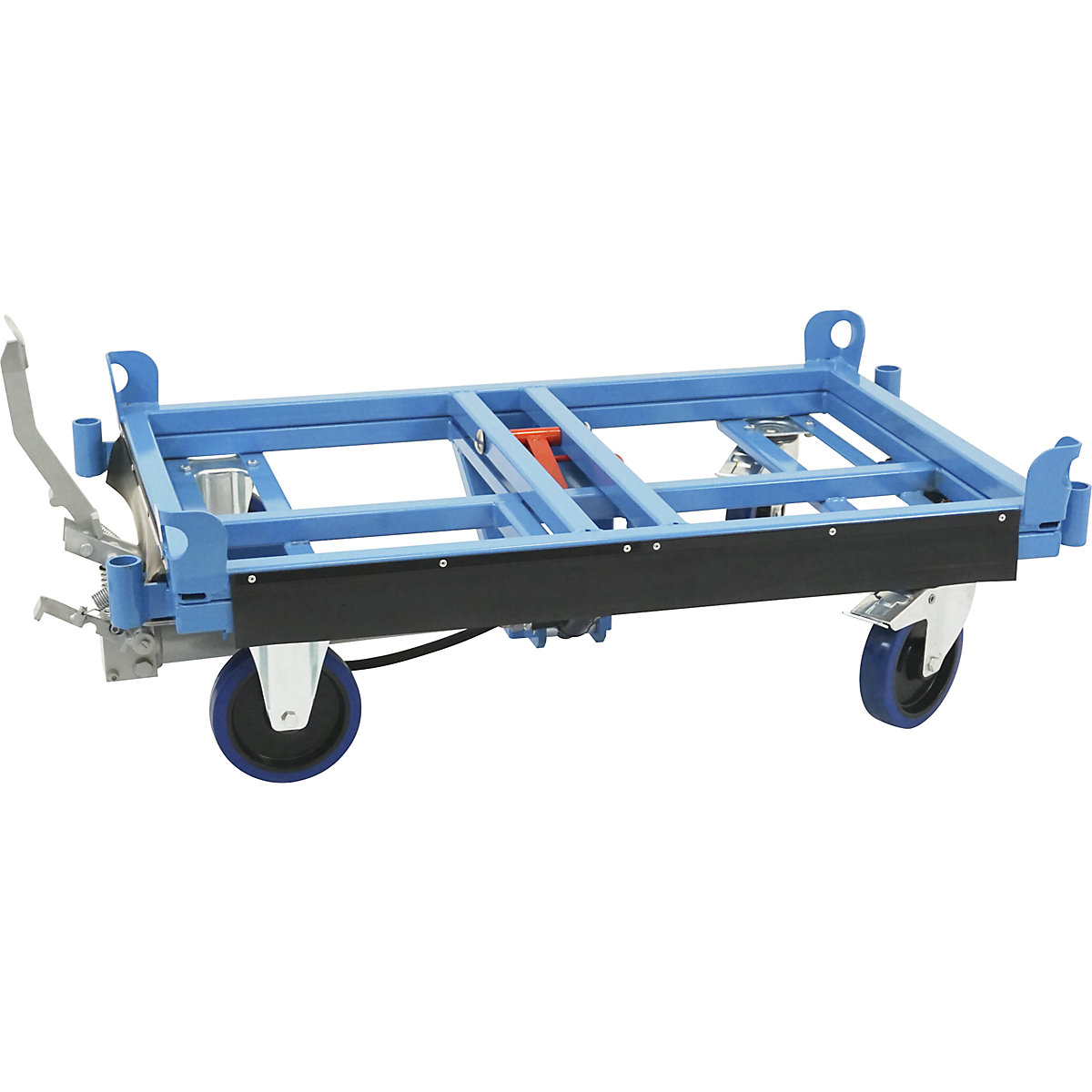

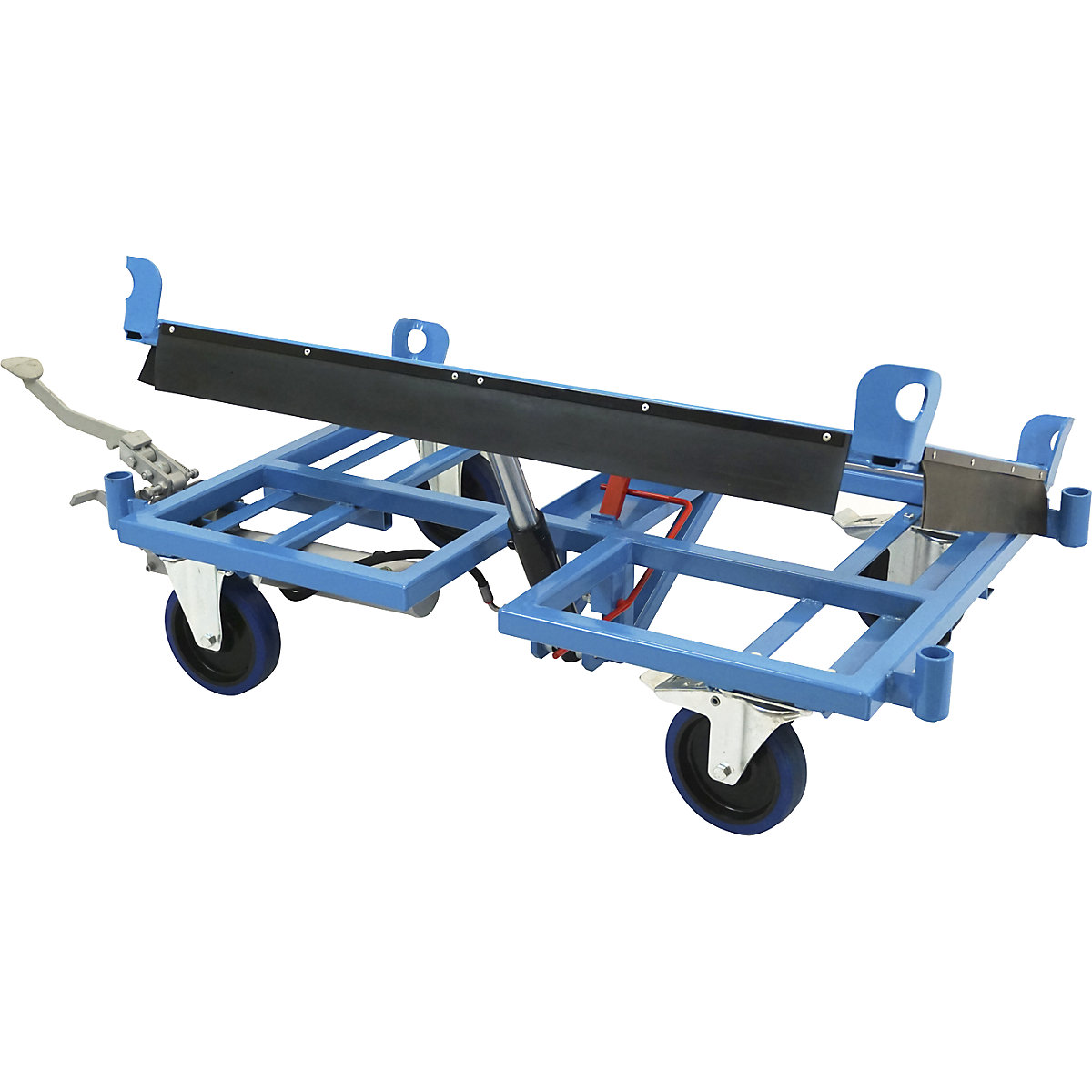

Tilting dolly, max. load 1000 kg – eurokraft pro for Euro pallets / mesh pallets / stacking containers
LxWxH 1683 x 840 x 405 mm
Preferred RAL colour*
*Colours shown in the product image may vary.
Ref.: 742886 10
Tilting dolly, max. load 1000 kg – eurokraft pro for Euro pallets / mesh pallets / stacking containers
LxWxH 1683 x 840 x 405 mm
LxWxH 1683 x 840 x 405 mm
Preferred RAL colour*
*Colours shown in the product image may vary.
1.780,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?1.780,00 €
Price / item (Ex. VAT)
Product description
- Ergonomic material removal using progressive foot-operated hydraulics up to 20°
- Ideal for ensuring pallets, boxes and containers are available
- Robust steel construction, high quality powder coating
- Very high max. load
Ergonomic and less strenuous removal of materials due to the tilt of the dolly.

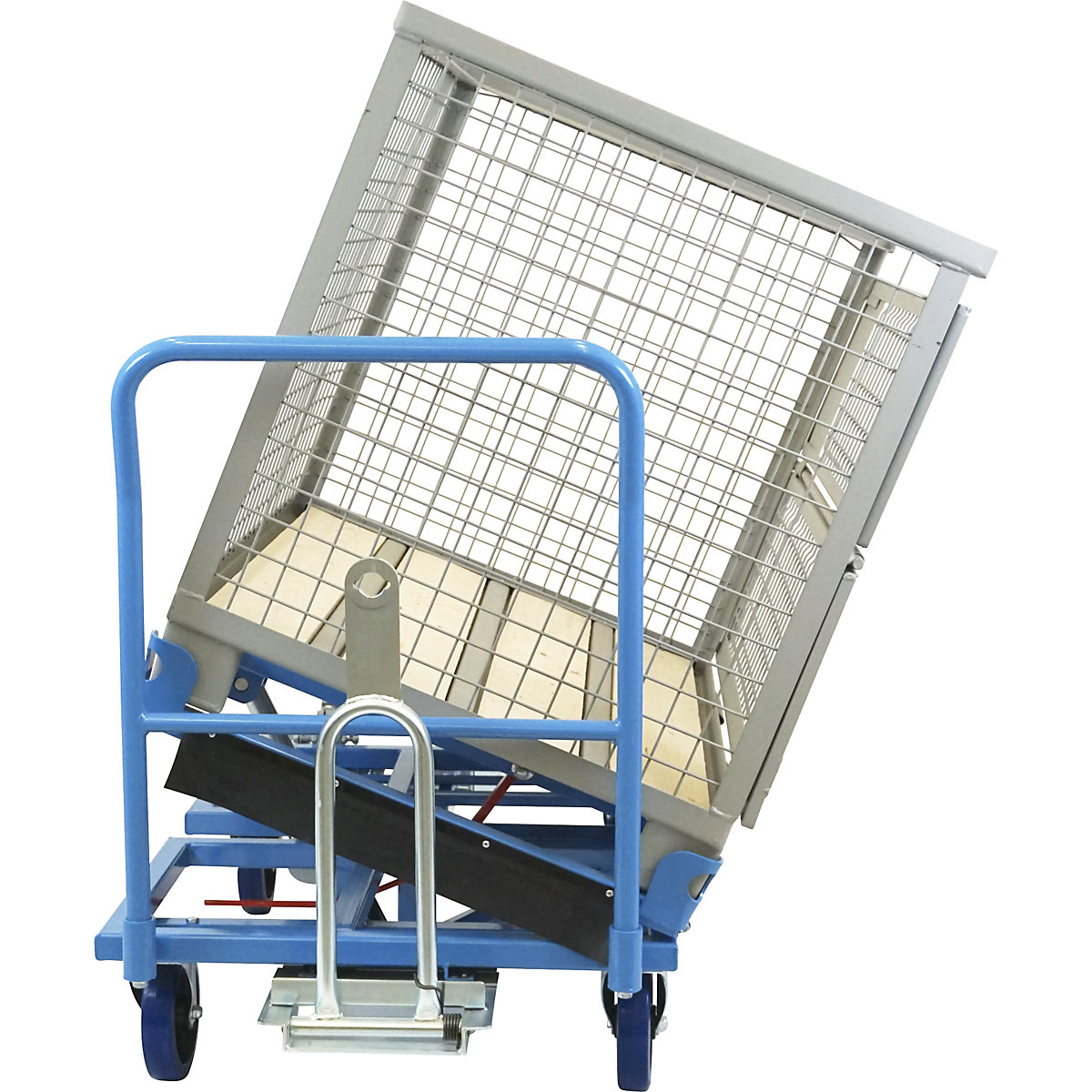

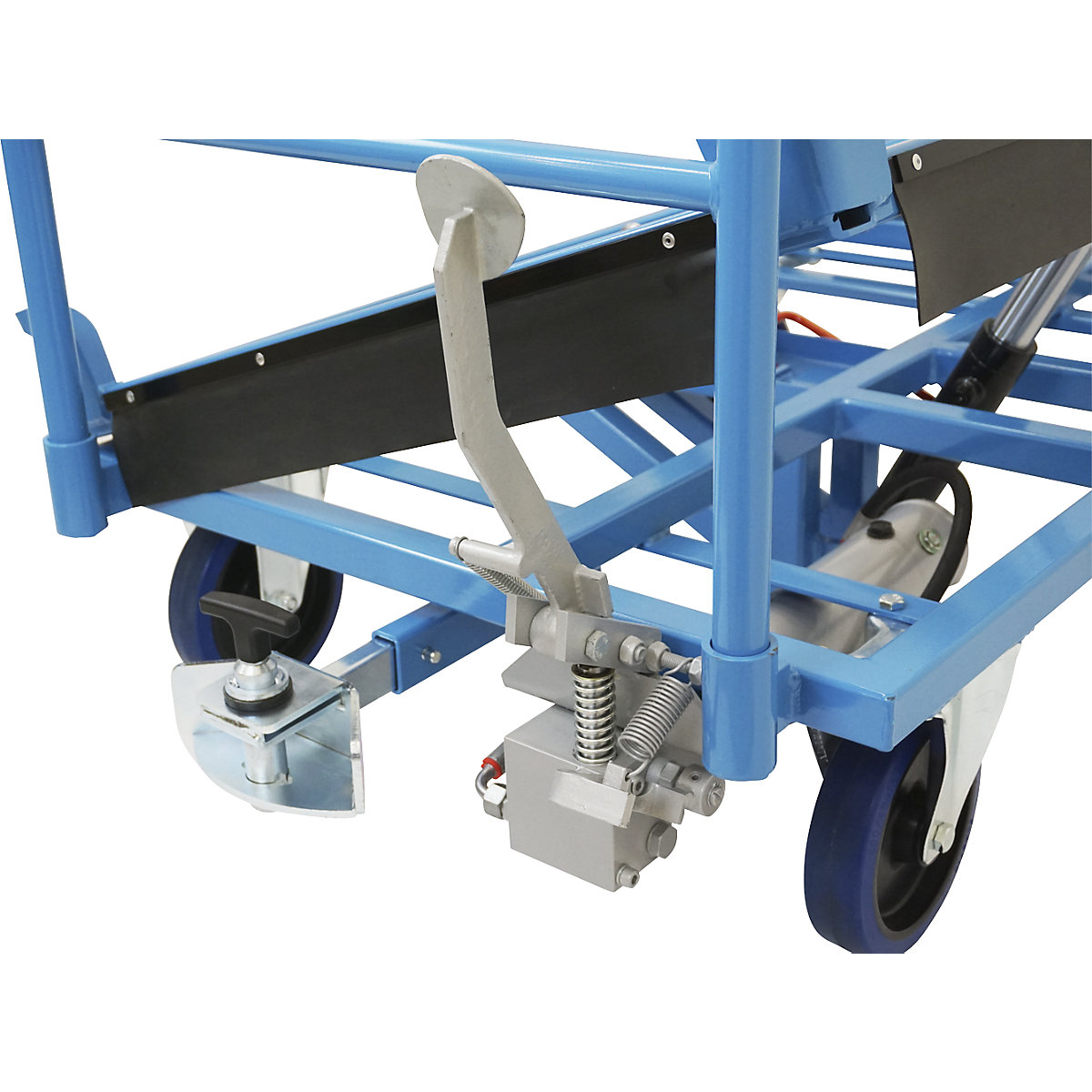

Foot-operated hydraulics are used to progressively tilt the dolly up to 20°.
Climbing capability: 2%.
Optional accessories:

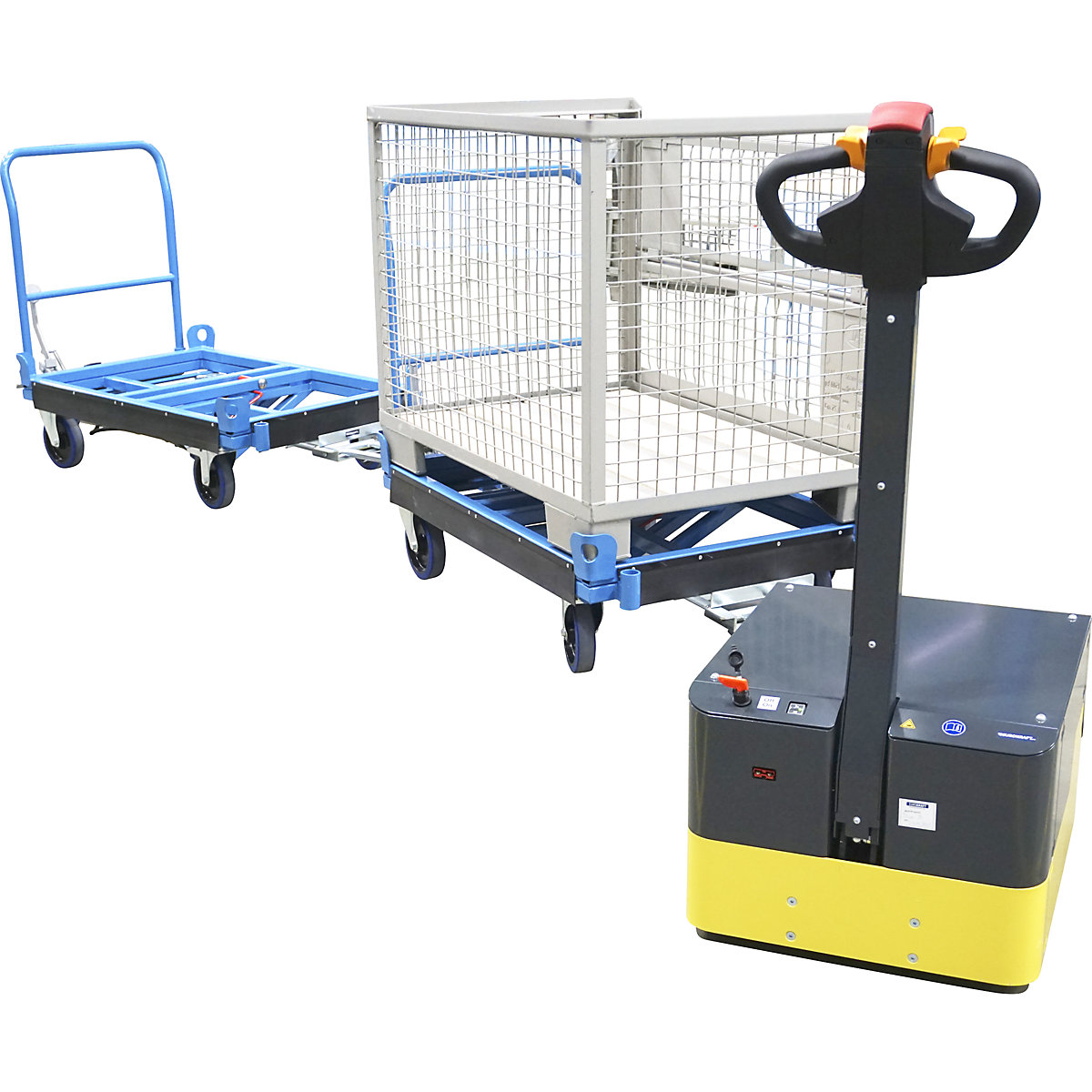

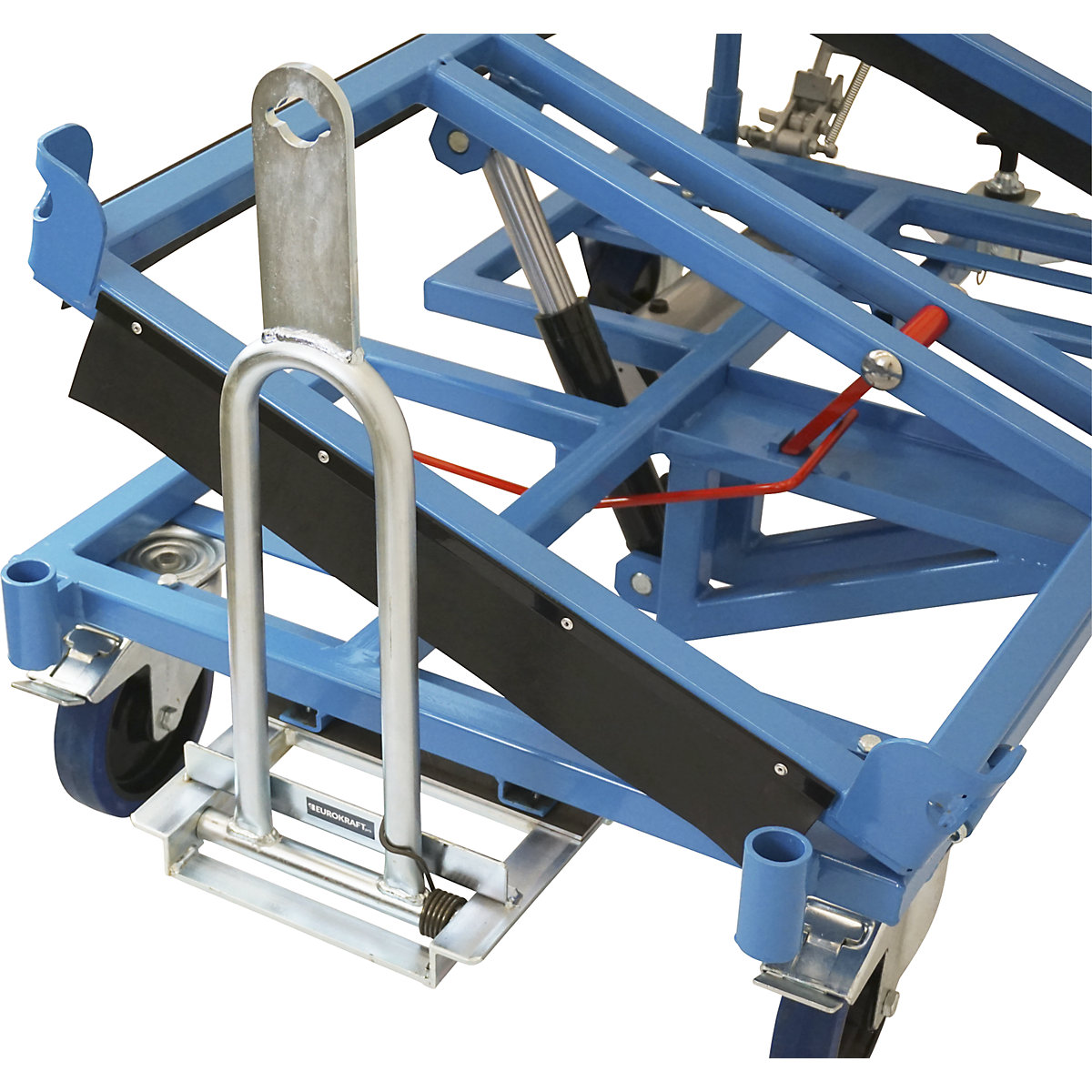

– Drawbar and pin coupling. This allows you to make several dollies suitable for tugger trains.

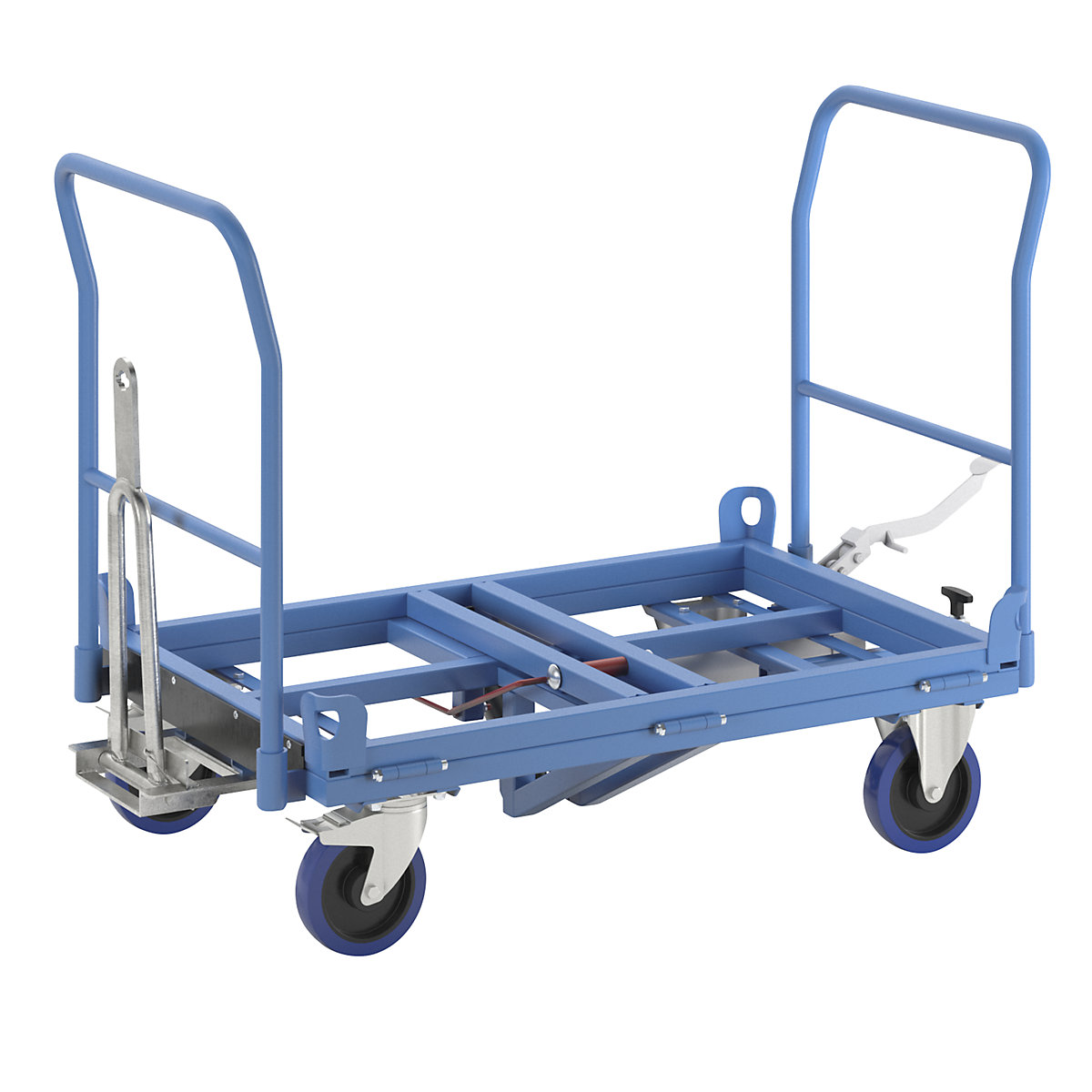

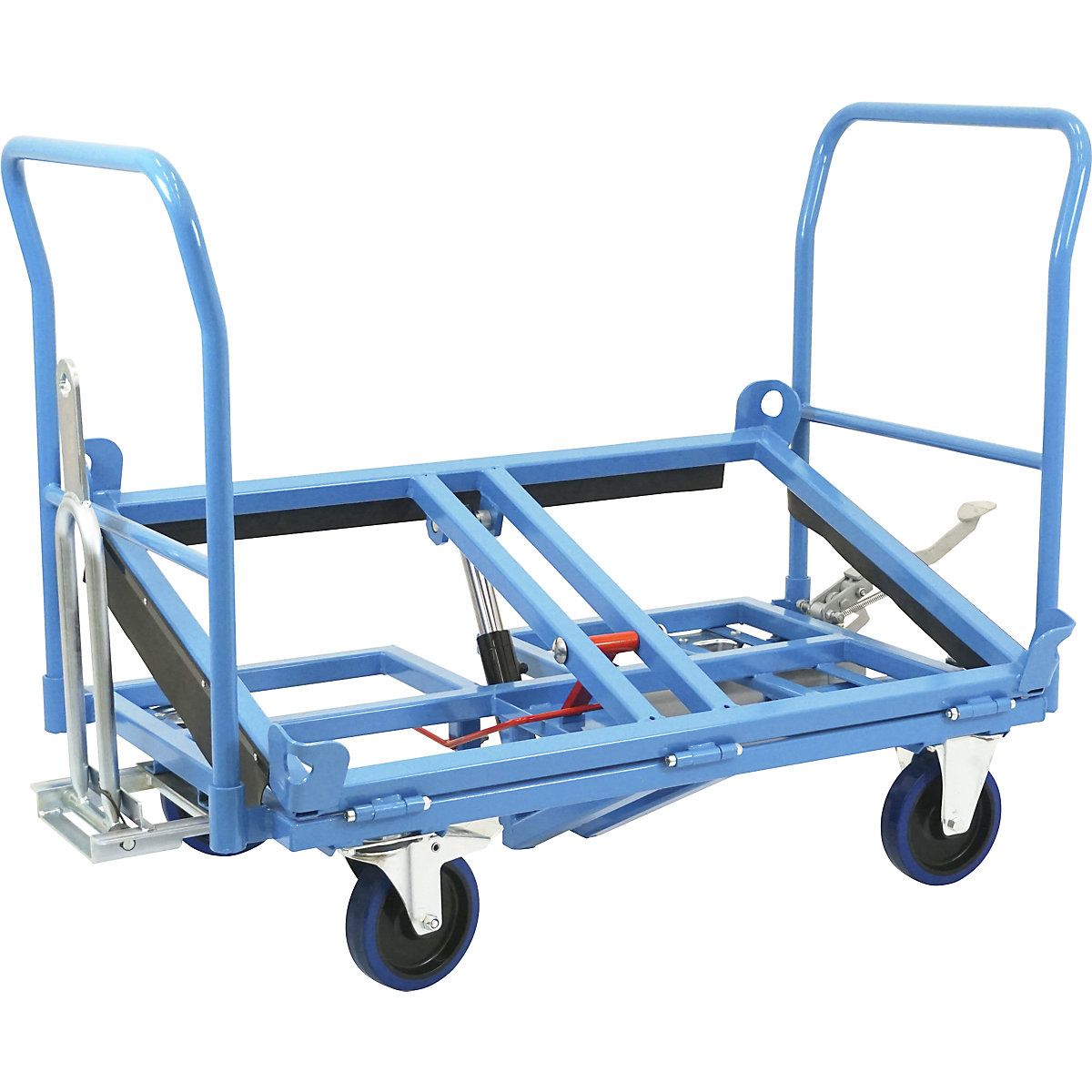

– Push handles can be mounted on both ends to make movement easier.
Foot-operated hydraulics are used to progressively tilt the dolly up to 20°.
Climbing capability: 2%.
Optional accessories:
– Drawbar and pin coupling. This allows you to make several dollies suitable for tugger trains.
– Push handles can be mounted on both ends to make movement easier.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
| Max. load | 1000 kg |
|---|---|
| Platform length | 1210 mm |
| Platform width | 800 mm |
| Loading height | 320 mm |
| Length | 1683 mm |
| Width | 840 mm |
| Frame material | steel |
| Frame colour | light blue RAL 5012 |
| Finish | powder coated |
| Height | 405 mm |
| For container size | 1200 x 800 mm |
| Wheel fittings | 2 swivel castors with double stops, 2 fixed castors |
| Wheel type | fully-elastic |
| Wheel diameter | 200 mm |
| Wheel bearing | roller bearing |
| Fittings | angled frame stacking corners/corner braces height adjustable |
| Application | for pallets for containers |
| Pulling/pushing speed under load | 4 km/h |
| Product type | wheeled bases, tilting |
| Supplied | assembled |
| Weight | 105 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 3.0 | |
| 30% | 3.9 | |
| 25% | 1.0 | |
| 10% | 1.0 | |
| 5% | 3.9 | |
| Overall score | 3.1 | |
