Ref.: 826838 10

Centre stop cross bar – eurokraft pro for width 700 mm

Centre stop cross bar – eurokraft pro

fixed castor, 350 kg

Wheel diameter [mm]
New
165,00 €
Price / item (Ex. VAT)

Only 2 available
Availability: 3-4 Working Days
Product description
  • As a retrofit for eurokraft pro transport equipment with a width of 700 mm and cross bar
  • Central foot pedal for simultaneous application or release of the brakes
  • Rubber lined foot pedal prevents slipping
  • Non-marking, low noise travel with fully elastic castors

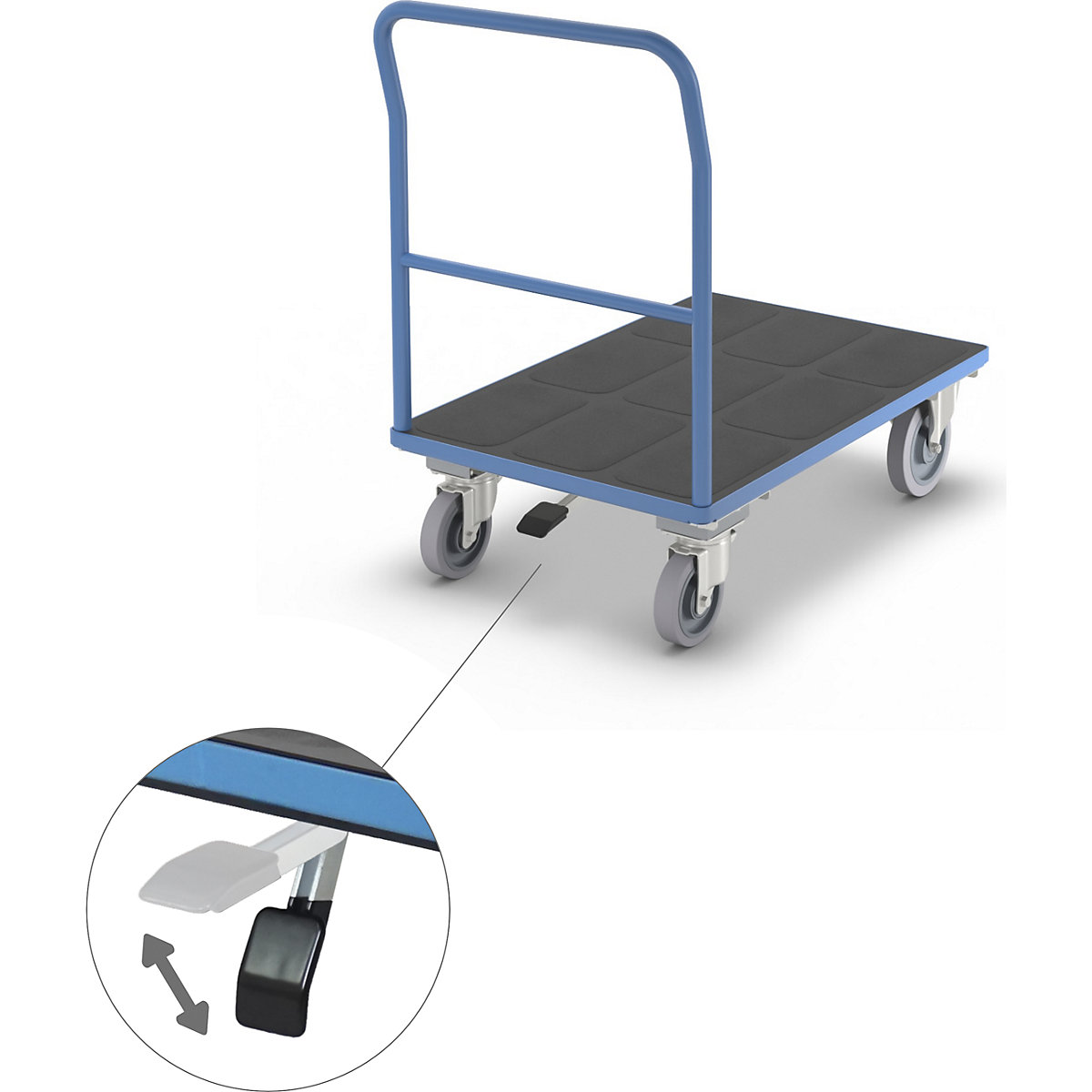

Central brake system as a retrofit: the centre stop allows intuitive and fast operation of the brakes using a central foot pedal. Both castors are locked or released simultaneously with just one movement, which saves time and makes work easier.

The centre stop combines functionality and user friendliness. Instead of operating two brakes individually, one central activation is all that is required. The pedal is easy to press down with a foot to lock the castors, and is released again with a simple upward foot motion. The high quality construction with fully elastic castors ensures a non-marking, quiet ride with minimal rolling resistance. The long lasting precision ball bearings and hardwearing castors ensure reliability and are also suitable for sensitive floors. Consisting of two fixed castors and two swivel castors with a centre stop, the system is also available as an accessory and is easy to retrofit. Ideal for industrial operations where efficiency and ergonomics are required.

For retrofitting to eurokraft pro transport equipment with cross bar and a frame width of 700 mm, e.g. platform trucks, shelf trucks with side panels.
Technical data
Wheel materialrubber – solid rubber – full elastic
Material of rimnylon
Type of mountingwith top plate
Housing materialsteel
Wheel width46 mm
Overall height250 mm
Wheel bearingprecision ball bearing
Temperature resistance–20 °C to +80 °C
Screw hole diameter11 mm
Housing surfacezinc plated
Running surface colourgrey
Product typecastors and accessories
Suppliedflat pack
Wheel diameter200 mm
Structurefixed castor
Max. load at 4 km/h350 kg
Weight7.4 kg
