Ref.: 762712 10

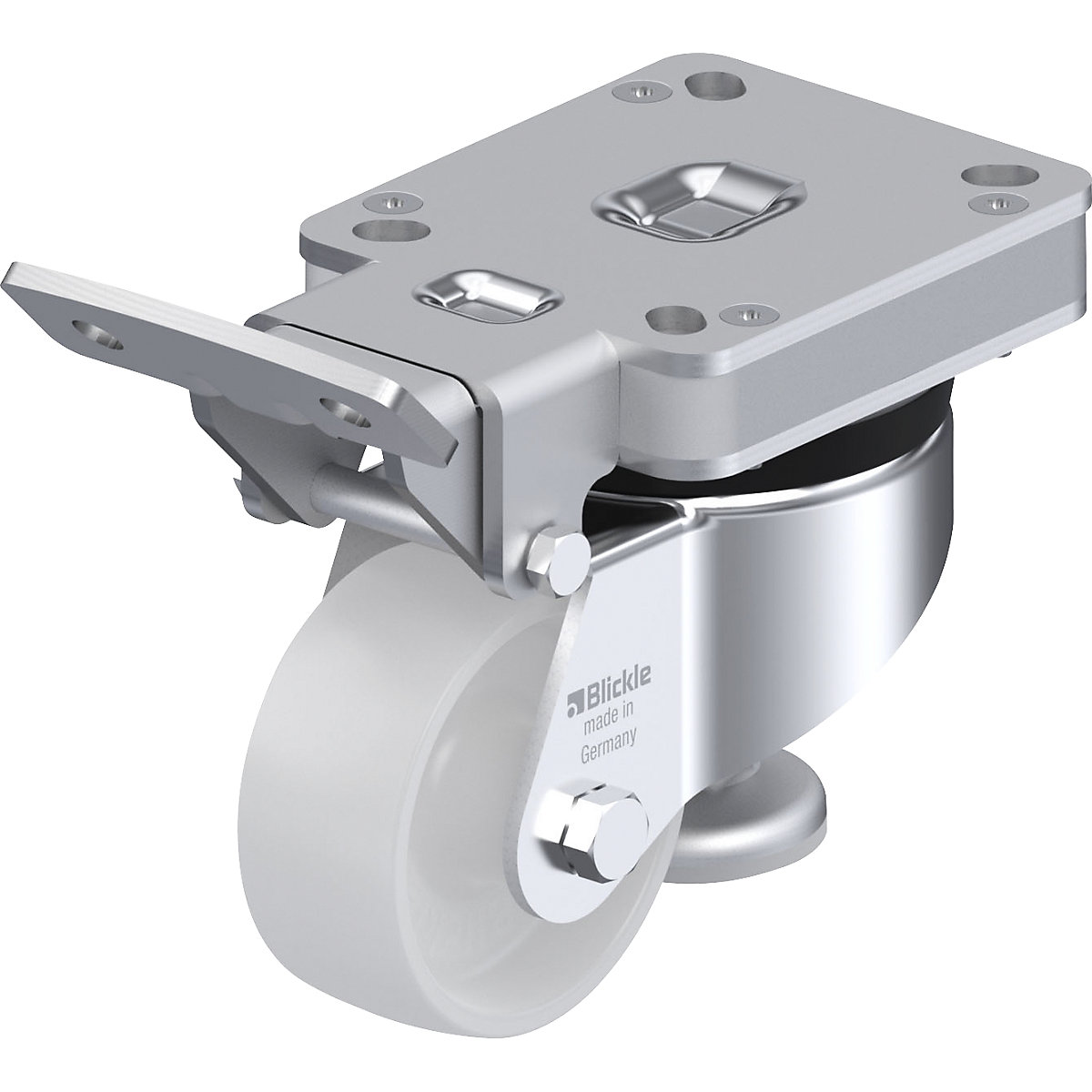

HRLK-PO levelling castor – Blickle plate dimensions 100 x 85 mm

HRLK-PO levelling castor – Blickle

wheel Ø 75 mm, max. load 200 kg

Wheel diameter [mm]
213,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
  • Double ball bearing in the ring bearing
  • Ring bearing seal
  • Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
  • Steel stop foot with rubber lining
  • Height adjustment by means of operating lever
  • High quality nylon 6, does not break, hardness 70 Shore D, natural white
  • High chemical resistance to many aggressive media
  • Temperature resistance: –25 °C to +80 °C, reduced max. load above +35 °C
Technical data
Wheel materialplastic – nylon
Material of rimnylon
Type of mountingwith top plate
Wheel bearingplain bearing
Modellevelling castors
Shore hardness70 Shore D
Product typeswivel castors
Suppliedassembled
Wheel diameter75 mm
Max. load at 4 km/h200 kg
Wheel width32 mm
Overall height118 mm
Weight1.98 kg
