Ref.: 858272 10

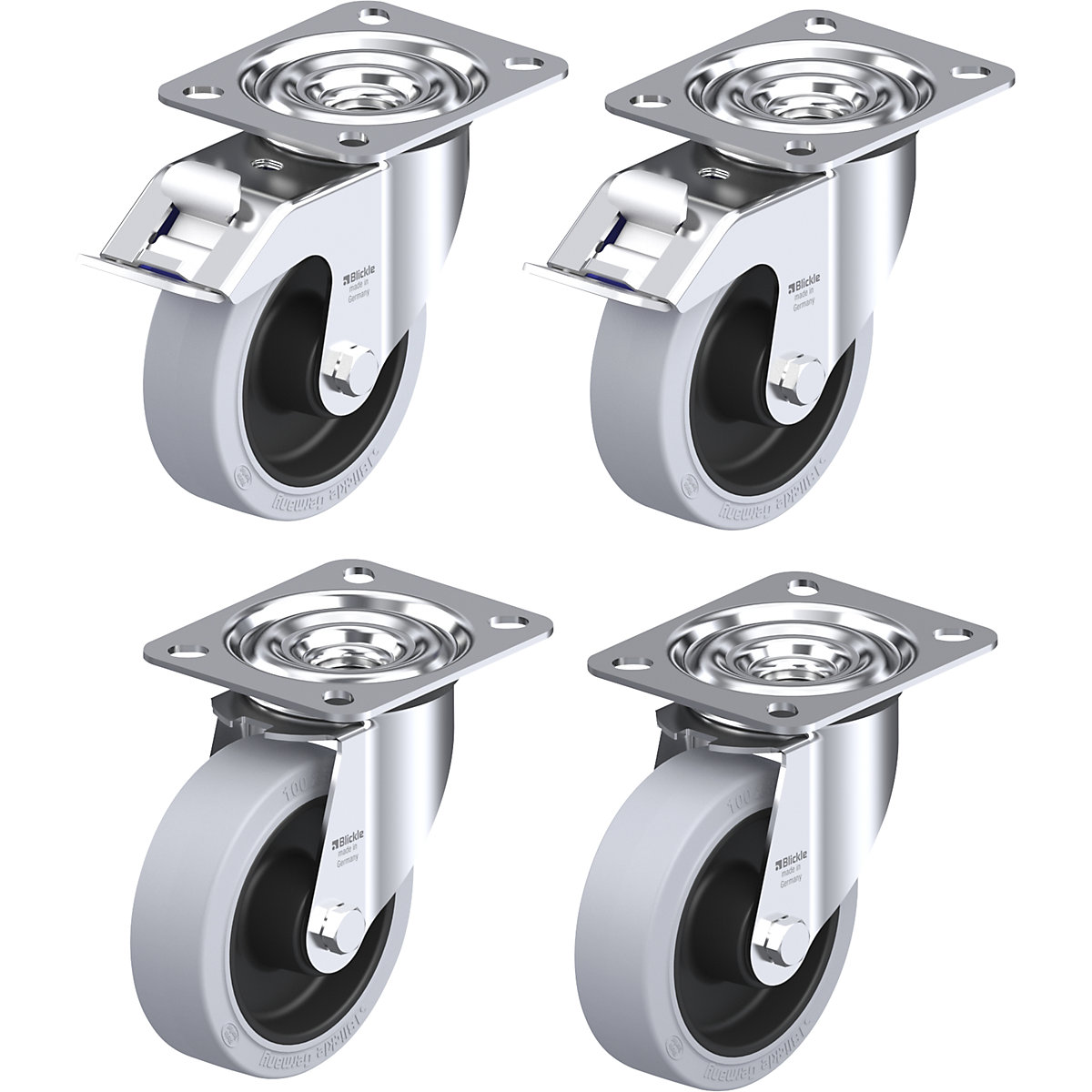

LE-POEV 100R-SG castor set – Blickle max. load 150 kg

LE-POEV 100R-SG castor set – Blickle

wheel Ø 100 mm

New
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Blickle EasyRoll elastic solid rubber tyres
  • Leaves no signs of wear on the base
  • High chemical resistance to many aggressive media
Castor set LE-POEV 100R-SG: The housing consists of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free. The double ball bearing in the swivel head with swivel head seal has minimal swivel head play, a smooth running action and a long service life due to the special dynamic Blickle riveting. The tread consists of grey, high-quality elastic solid rubber Blickle EasyRoll in smooth-running quality with a hardness of 65 Shore A and leaves no abrasion marks on the base. The wheel body is made of black and break-resistant polyamide 6. Furthermore, the swivel castor is characterised by a high chemical resistance against many aggressive media, but not against oils. The temperature resistance ranges from –25 °C to +80 °C, and also up to +100 °C for short periods. There is a reduced load capacity at temperatures above +35 °C.
Technical data
Wheel diameter100 mm
Structureswivel castor with wheel stop fixed castor
Wheel materialelastic solid rubber
Material of rimnylon
Type of mountingwith top plate
Housing materialsheet steel
Max. load at 4 km/h150 kg
Wheel width32 mm
Overall height125 mm
Wheel bearingroller bearing
Temperature resistance–25 °C to +80 °C
Swivel castor offset36 mm
Screw hole diameter9 mm
Modellight duty castors
Fixed castor plate dimensions100 x 85 mm
Swivel castor plate dimensions100 x 85 mm
Screw hole spacing80 x 60 mm
Housing surfacezinc plated
Shore hardness65 Shore A
Running surface colourgrey
Featurechemical resistant non-marking
Product typeswivel castors
Suppliedassembled
Weight2.64 kg
