Ref.: 762304 10

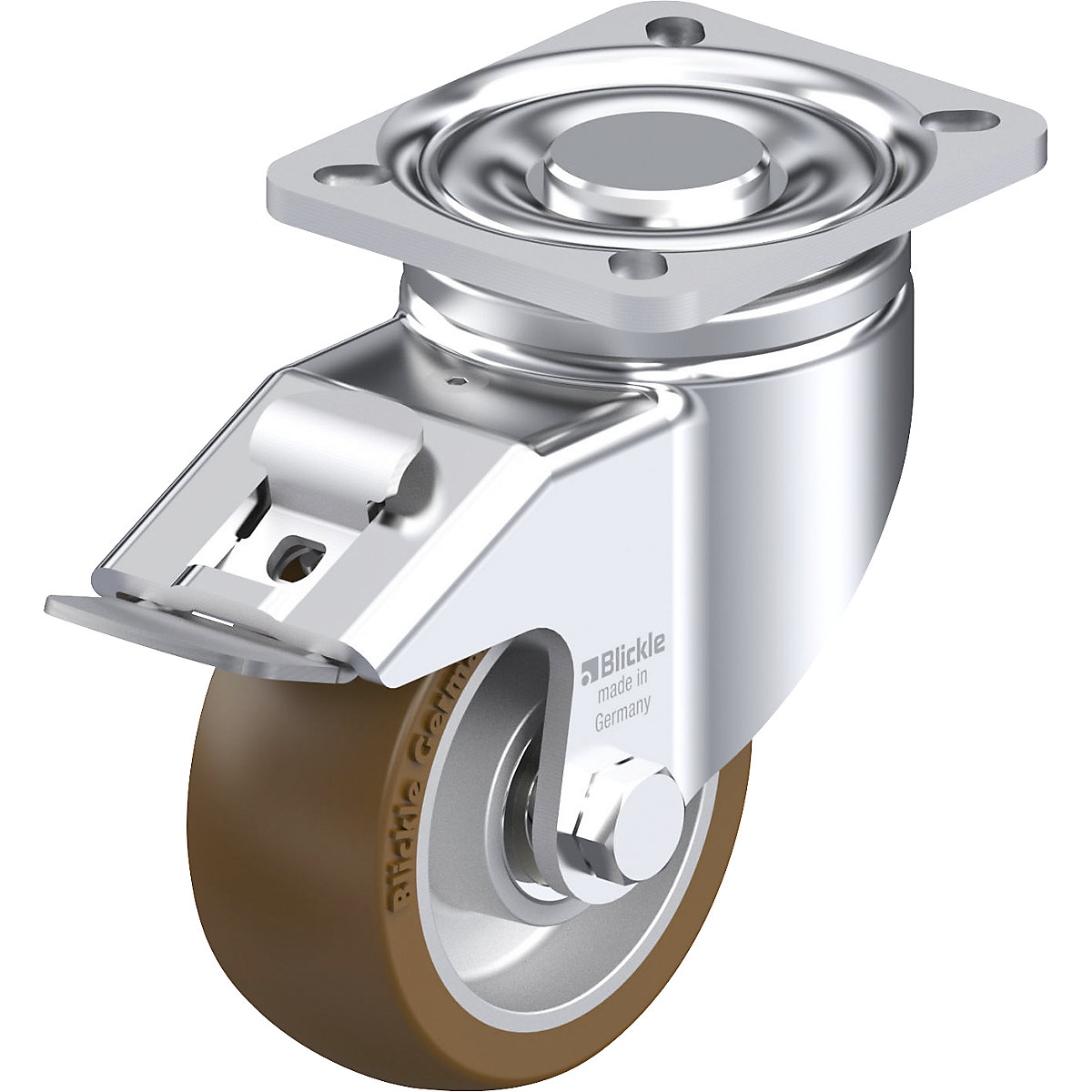

LH-ALB-FI sheet steel swivel castor – Blickle wheel Ø 100 mm, max. load 400 kg

LH-ALB-FI sheet steel swivel castor – Blickle

plate dimensions 100 x 85 mm

Swivel castor plate dimensions [mm]
223,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • With heavy wheel body, model with centre bar
  • Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
  • Heavy fork and base plate
  • Double ball bearing in the ring bearing
  • Very stable centre bolt, screwed and secured
  • Particularly insensitive to shocks and impacts due to specially moulded, hardened bearing cases
  • Tread: high quality Blickle Besthane® polyurethane elastomer, non-marking
  • Wheel body: die cast aluminium, silver grey
  • High chemical resistance to many aggressive media
  • Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Sheet steel swivel castor, heavy duty model, with mounting plate, with stop-fix stop, heavy duty wheel with Blickle Besthane® polyurethane tread, with aluminium wheel body.
Technical data
Wheel diameter100 mm
Structureswivel castor with wheel stop
Wheel materialpolyurethane
Material of rimcast aluminium
Type of mountingwith top plate
Max. load at 4 km/h400 kg
Wheel width40 mm
Overall height140 mm
Wheel bearingball bearing
Modeltransport castors
Shore hardness92 Shore A
Running surface colourbrown
Product typeswivel castors
Suppliedassembled
Swivel castor plate dimensions100 x 85 mm
Weight2.09 kg
