Ref.: 762688 10

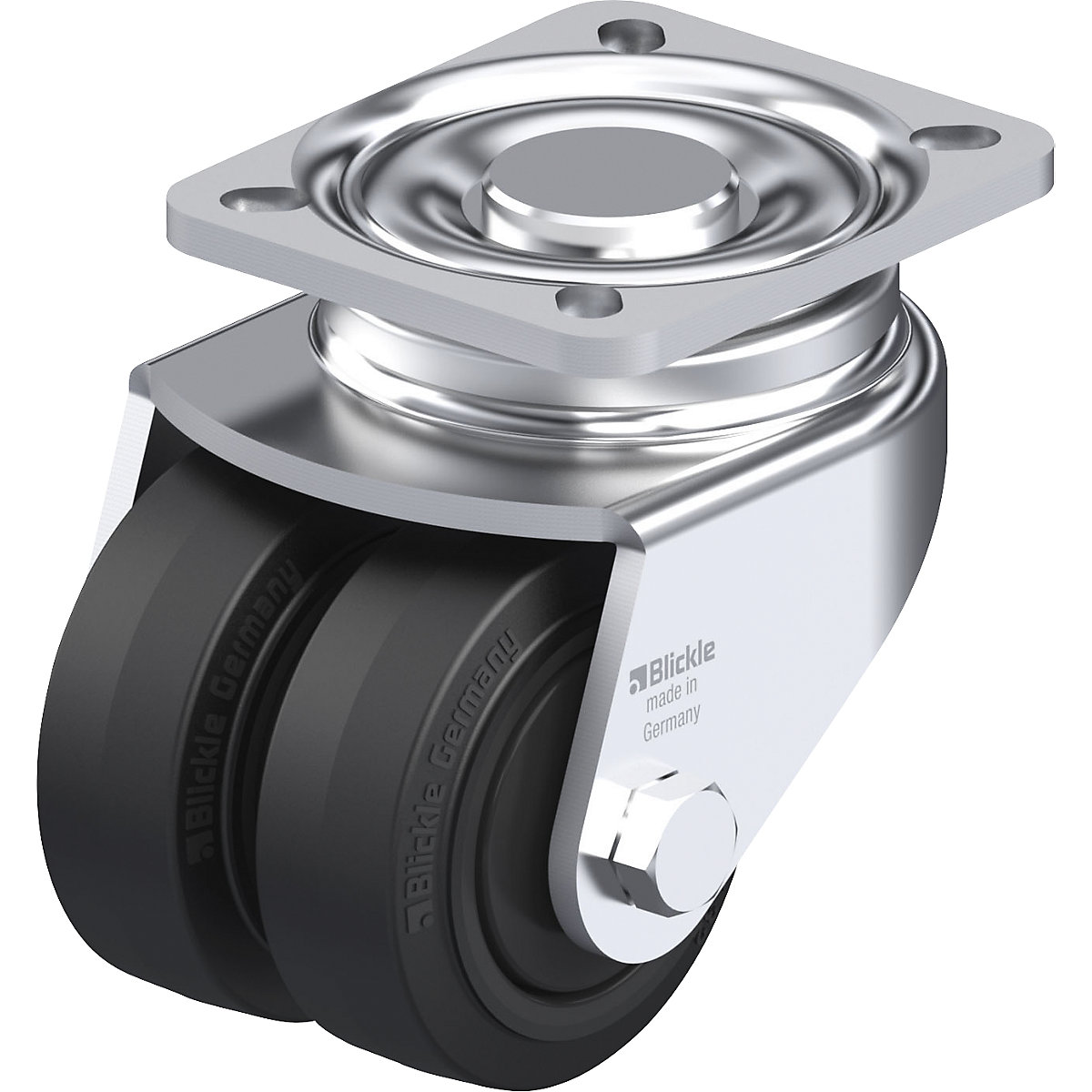

LHD-POEV sheet steel double swivel castor – Blickle wheel Ø x width 80 x 32 mm

LHD-POEV sheet steel double swivel castor – Blickle

max. load 250 kg

159,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
  • Temperature resistance: –20 °C to +80 °C, reduced max. load above +35 °C
  • Heavy fork and base plate
  • Double ball bearing in the ring bearing
  • Very stable centre bolt, screwed and secured
  • Particularly insensitive to shocks and impacts due to specially moulded, hardened bearing cases
  • Tyres: high quality elastic solid rubber, Blickle EasyRoll in smooth running quality
  • Wheel body: high quality nylon 6, does not break, black
  • With plastic thread guard, large
  • High chemical resistance to many aggressive media, but not to oils
Sheet steel double swivel castor, heavy duty model, with mounting plate, heavy duty wheel with Blickle EasyRoll elastic solid rubber tyres, with nylon wheel body, with plastic thread guard, large.
Technical data
Wheel diameter80 mm
Wheel materialrubber
Material of rimnylon
Type of mountingwith top plate
Max. load at 4 km/h250 kg
Wheel width32 mm
Overall height112 mm
Wheel bearingball bearing
Modeltransport castors
Swivel castor plate dimensions100 x 85 mm
Shore hardness65 Shore A
Running surface colourblack
Product typeswivel castors
Suppliedassembled
Weight1.72 kg
