Ref.: 858278 10

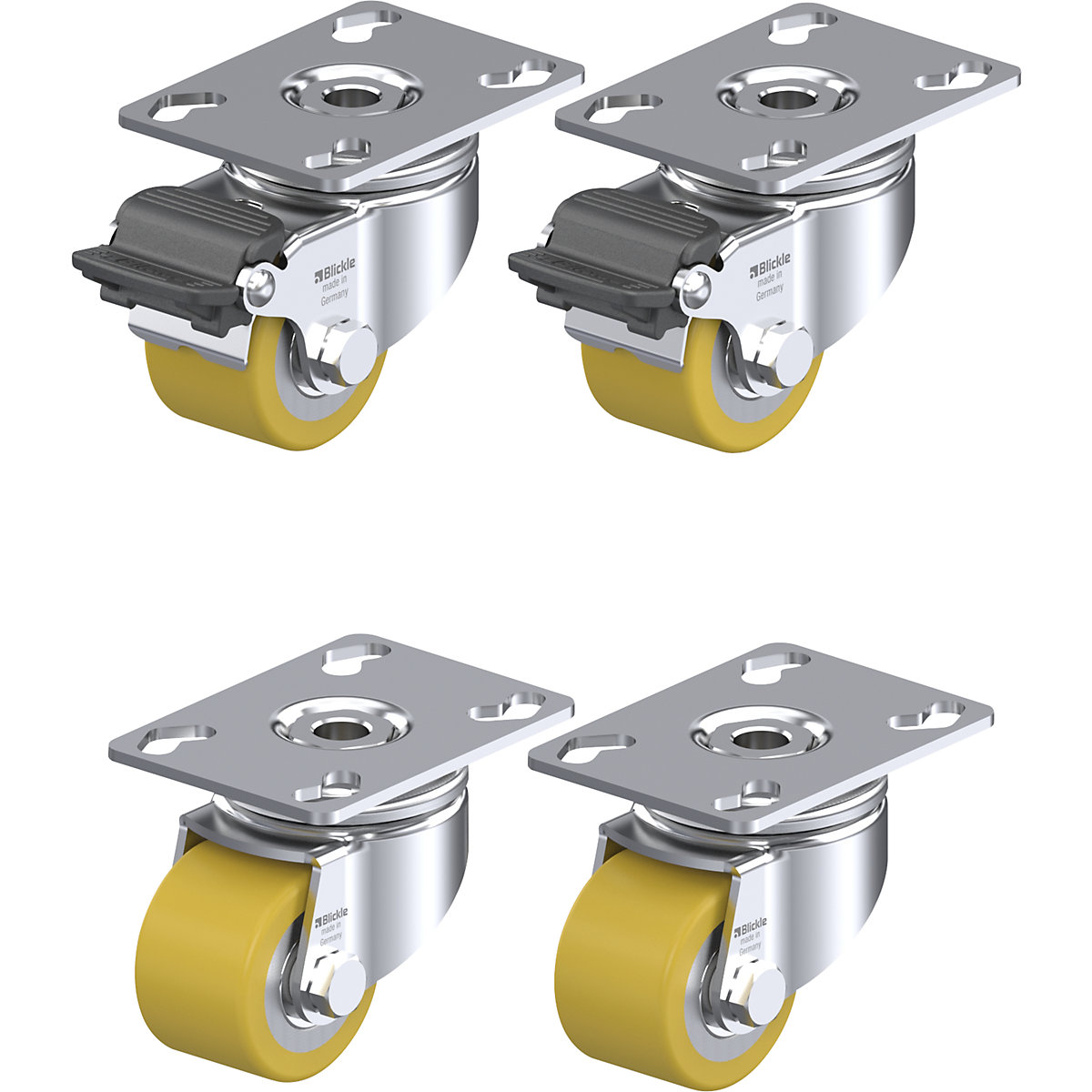

LKPA-VSTH 50K castor set – Blickle max. load 150 kg

LKPA-VSTH 50K castor set – Blickle

wheel Ø 50 mm

New
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Blickle Extrathane® polyurethane tread
  • Leaves no signs of wear on the base
  • High chemical resistance to many aggressive media
Castor set LKPA-VSTH 50K: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free. The double ball bearing in the swivel head with swivel head seal features minimal swivel head play, smooth running and a long service life due to the special dynamic Blickle riveting. The yellow tread is made of high-quality polyurethane elastomer Blickle Extrathane®, is non-marking, non-staining and has a hardness of 92 Shore A. The wheel centre is made of steel. Moreover, the swivel castor features very high chemical resistance against many aggressive media. The temperature resistance ranges from –20 °C to +70 °C, and temporarily up to +90 °C. There is a reduced load capacity at temperatures above +40 °C.
Technical data
Wheel diameter50 mm
Structureswivel castor with wheel stop fixed castor
Wheel materialpolyurethane (PU) – elastic
Material of rimsteel
Type of mountingwith top plate
Housing materialsheet steel
Max. load at 4 km/h150 kg
Wheel width33 mm
Overall height73 mm
Wheel bearingball bearing
Temperature resistance–20 °C to +70 °C
Swivel castor offset29 mm
Screw hole diameter8.5 mm
Modellight duty castors
Fixed castor plate dimensions90 x 66 mm
Swivel castor plate dimensions90 x 66 mm
Screw hole spacing75 x 45 / 61 x 51 mm
Housing surfacezinc plated
Shore hardness92 Shore A
Running surface colouryellow
Featurechemical resistant non-marking
Product typeswivel castors
Suppliedassembled
Weight2.56 kg
