Ref.: 858282 10

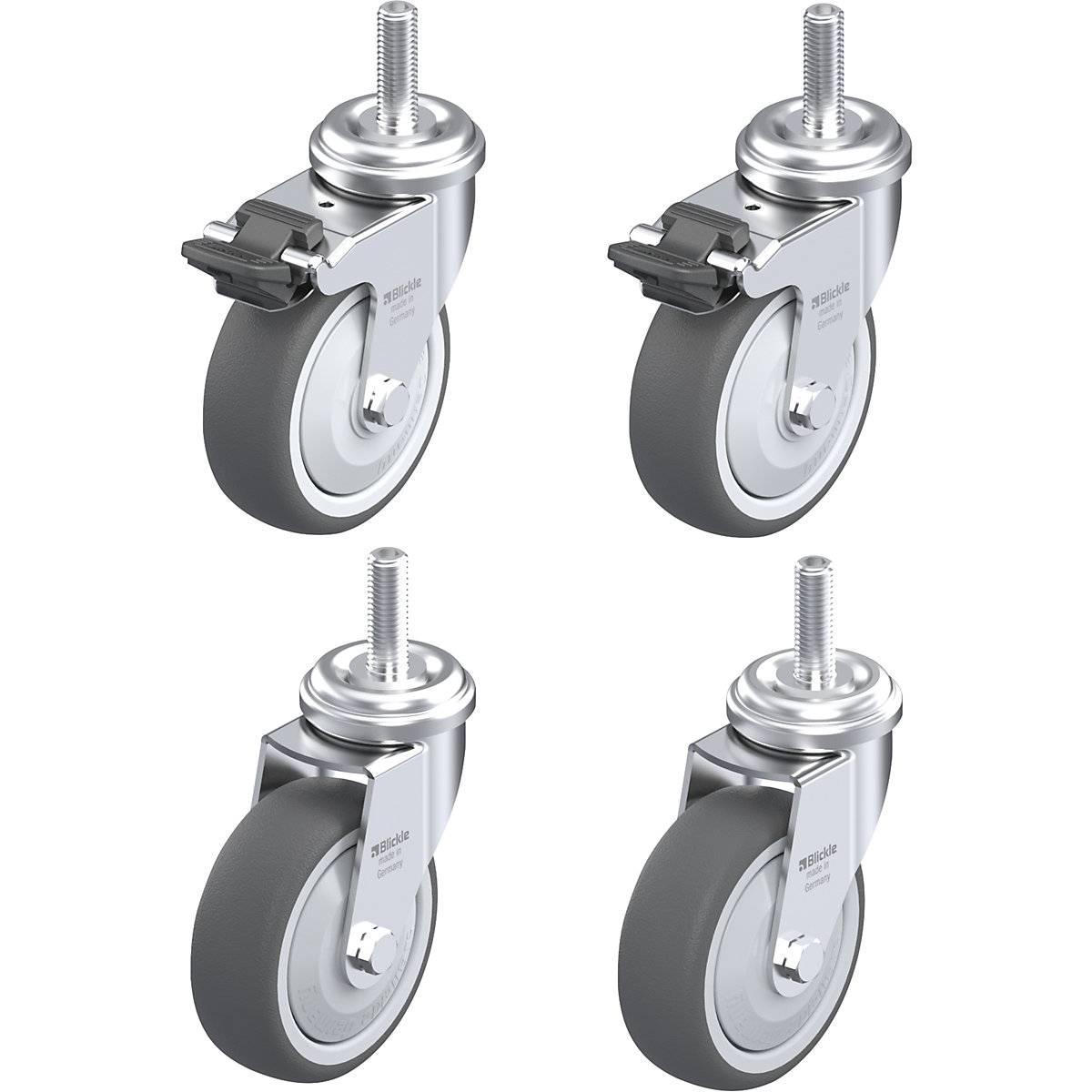

LRA-PATH 75KF-GS10 castor set – Blickle max. load 75 kg

LRA-PATH 75KF-GS10 castor set – Blickle

wheel Ø 75 mm

New
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Tread made of high-quality thermoplastic polyurethane (TPU)
  • Leaves no signs of wear on the base
  • High chemical resistance to many aggressive media
Castor set LRA-PATH 75KF-GS10: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free. The double ball bearing in the swivel head with swivel head seal features minimal swivel head play, smooth running and a long service life due to the special dynamic Blickle riveting. The dark grey tread is made of high-quality thermoplastic polyurethane (TPU), is non-marking, non-staining and has a hardness of 94 Shore A. The wheel centre is made of break-resistant, high-quality polyamide 6 in silver grey. Furthermore, the swivel castor is characterised by a plastic thread guard and very high chemical resistance against many aggressive media. The temperature resistance ranges from –20 °C to +70 °C, and temporarily up to +90 °C. There is a reduced load capacity at temperatures above +35 °C.
Technical data
Wheel diameter75 mm
Structureswivel castor with wheel stop fixed castor
Wheel materialthermoplastic polyurethane (TPU)
Material of rimnylon
Type of mountingwith threaded pin
Housing materialsheet steel
Max. load at 4 km/h75 kg
Wheel width25 mm
Overall height98 mm
Wheel bearingball bearing
Temperature resistance–20 °C to +70 °C
Swivel castor offset29 mm
Modellight duty castors
Threaded pin dimensionsM10 x 30 mm
Housing surfacezinc plated
Shore hardness94 Shore A
Running surface colourgrey
Featurechemical resistant non-marking
Product typeswivel castors
Suppliedassembled
Weight1.18 kg
