Ref.: 858274 10

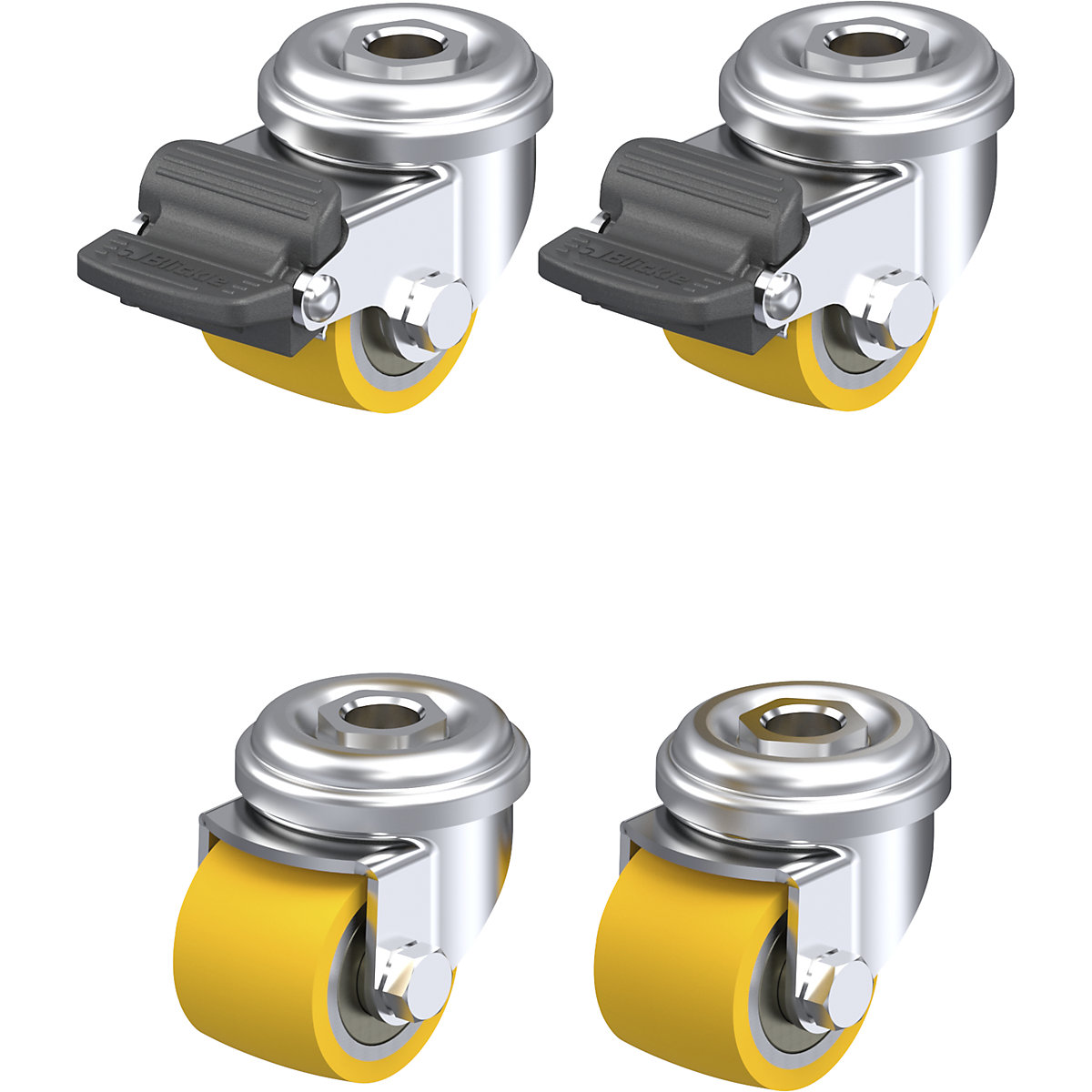

LRA-VSTH 35K castor set – Blickle max. load 100 kg

LRA-VSTH 35K castor set – Blickle

wheel Ø 35 mm

New
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Blickle Extrathane® polyurethane tread
  • Leaves no signs of wear on the base
  • High chemical resistance to many aggressive media
Castor set LRA-VSTH 35K: The housing is made of galvanised sheet steel, is blue passivated and Cr6-free. The dual ball bearing in the swivel head with a swivel head seal has minimal swivel head play, smooth operation and a long service life due to the special dynamic Blickle® riveting. The yellow tread is made from high-quality polyurethane elastomer Blickle Extrathane®, is non-marking, non-staining and has a hardness of 92 Shore A. The wheel body is made of steel. In addition, the swivel castor features very high chemical resistance against many aggressive media. The temperature resistance ranges from –20 °C to +70 °C, and temporarily up to +90 °C. There is a reduced load capacity at temperatures above +40 °C.
Technical data
Wheel diameter35 mm
Structureswivel castor with wheel stop fixed castor
Wheel materialpolyurethane (PU) – elastic
Material of rimsteel
Type of mountingwith bolt hole
Housing materialsheet steel
Max. load at 4 km/h100 kg
Wheel width27 mm
Overall height50 mm
Wheel bearingball bearing
Temperature resistance–20 °C to +70 °C
Swivel castor offset15 mm
Modellight duty castors
Bolt hole diameter11 mm
Plate diameter43 mm
Housing surfacezinc plated
Shore hardness92 Shore A
Running surface colouryellow
Featurechemical resistant non-marking
Product typeswivel castors
Suppliedassembled
Weight0.83 kg
