Ref.: 851320 10

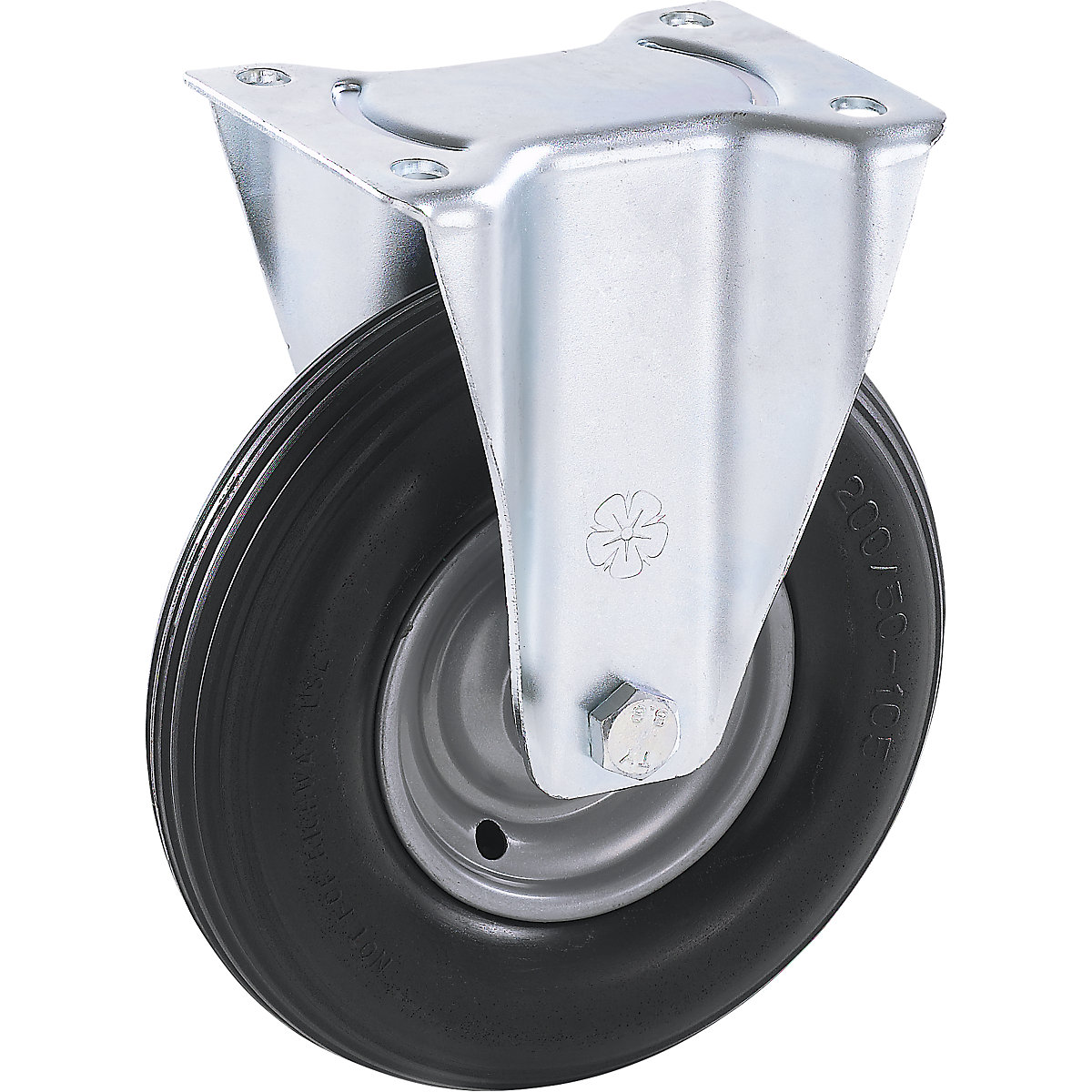

PU tyres, puncture proof fixed castor

PU tyres, puncture proof

wheel-ØxW 200 x 50 mm, roller bearing

Wheel diameter [mm]
Max. load at 4 km/h [kg]
Wheel width [mm]
Overall height [mm]
Wheel bearing
New
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Puncture proof
  • The secure additional models to the pneumatic tyre
  • Non-marking
With 1-part, powder-coated sheet steel rim.
Technical data
Structurefixed castor
Wheel materialpolyurethane (PU)
Material of rimsheet steel, galvanised and powder coated
Type of mountingwith top plate
Housing materialsteel
Temperature resistance–40 °C to +120 °C
Hub bore20 mm
Housing surfacezinc plated
Running surface colourblack
Featuredoes not damage floors low rolling resistance puncture proof non-marking
Product typefixed castors
Wheel diameter200 mm
Max. load at 4 km/h100 kg
Wheel width50 mm
Overall height235 mm
Wheel bearingroller bearing
Screw hole diameter11 mm
Hub length60 mm
Fixed castor plate dimensions135 x 110 mm
Screw hole spacing105 x 80 mm
Weight2.2 kg
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
‌
‌
‌
