Ref.: 858272 10

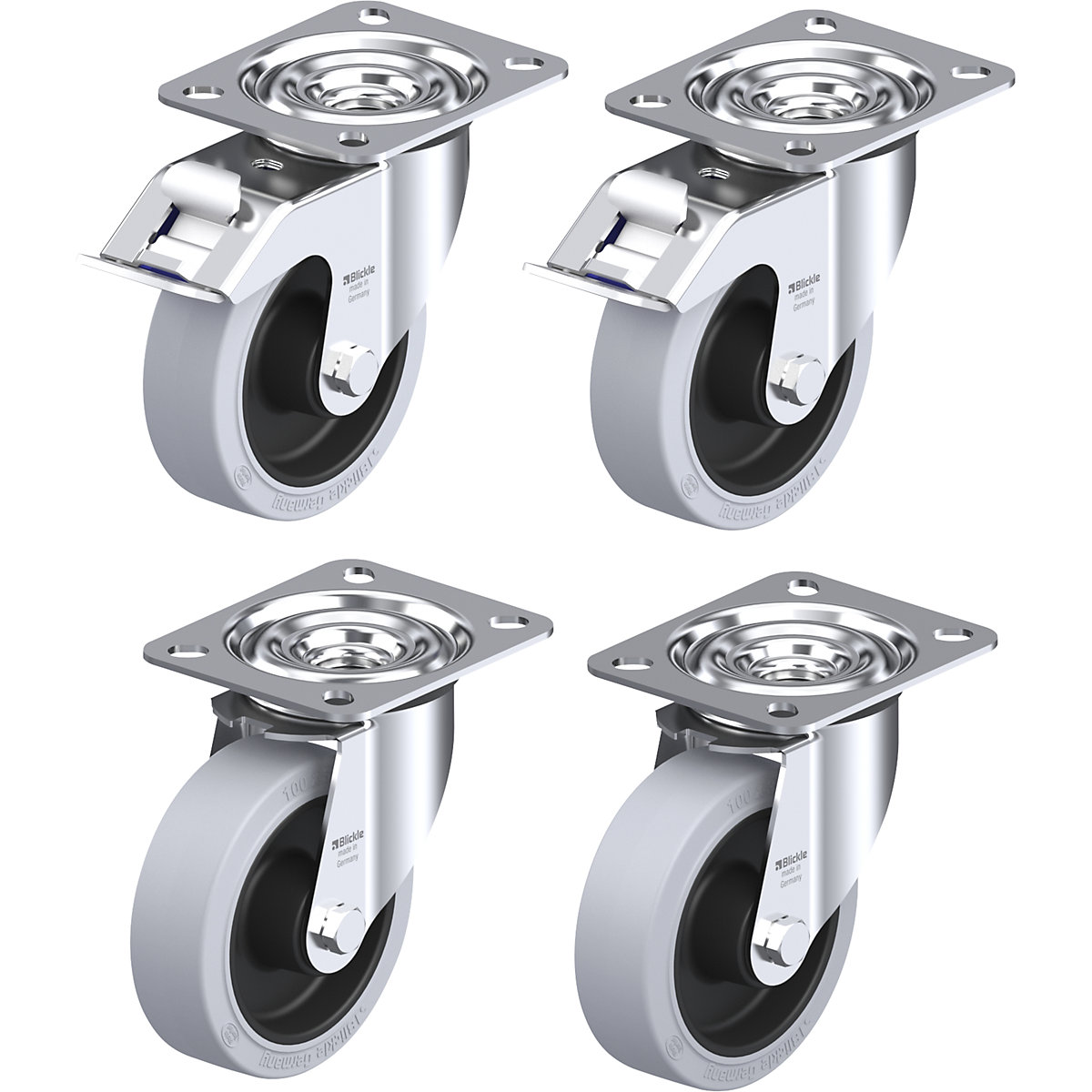

LE-poev 100R-SG light duty castor set max. load 150 kg
wheel Ø 100 mm
Ref.: 858272 10
LE-poev 100R-SG light duty castor set max. load 150 kg
wheel Ø 100 mm

wheel Ø 100 mm
New
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Blickle EasyRoll elastic solid rubber tyres
- Leaves no signs of wear on the base
- High chemical resistance to many aggressive media
Appliance castor set LE-POEV 100R-SG: The housing consists of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free. The double ball bearing in the swivel head with swivel head seal has minimal swivel head play, a smooth running action and a long service life due to the special dynamic Blickle riveting. The tread consists of grey, high-quality elastic solid rubber Blickle EasyRoll in smooth-running quality with a hardness of 65 Shore A and leaves no abrasion marks on the base. The wheel body is made of black and break-resistant polyamide 6. Furthermore, the swivel castor is characterised by a high chemical resistance against many aggressive media, but not against oils. The temperature resistance ranges from –25 °C to +80 °C, and also up to +100 °C for short periods. There is a reduced load capacity at temperatures above +35 °C.
Technical data
| Wheel diameter | 100 mm |
|---|---|
| Structure | swivel castor with wheel stop fixed castor |
| Wheel material | elastic solid rubber |
| Material of rim | nylon |
| Type of mounting | with top plate |
| Housing material | sheet steel |
| Max. load at 4 km/h | 150 kg |
| Wheel width | 32 mm |
| Overall height | 125 mm |
| Wheel bearing | roller bearing |
| Temperature resistance | –25 °C to +80 °C |
| Swivel castor offset | 36 mm |
| Screw hole diameter | 9 mm |
| Model | light duty castors |
| Fixed castor plate dimensions | 100 x 85 mm |
| Swivel castor plate dimensions | 100 x 85 mm |
| Screw hole spacing | 80 x 60 mm |
| Housing surface | zinc plated |
| Shore hardness | 65 Shore A |
| Running surface colour | grey |
| Feature | chemical resistant non-marking |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 2.64 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 5.9 | |
| 30% | 2.0 | |
| 25% | 2.0 | |
| 10% | 0.0 | |
| 5% | 3.9 | |
| Overall score | 3.6 | |
