Ref.: 858276 10

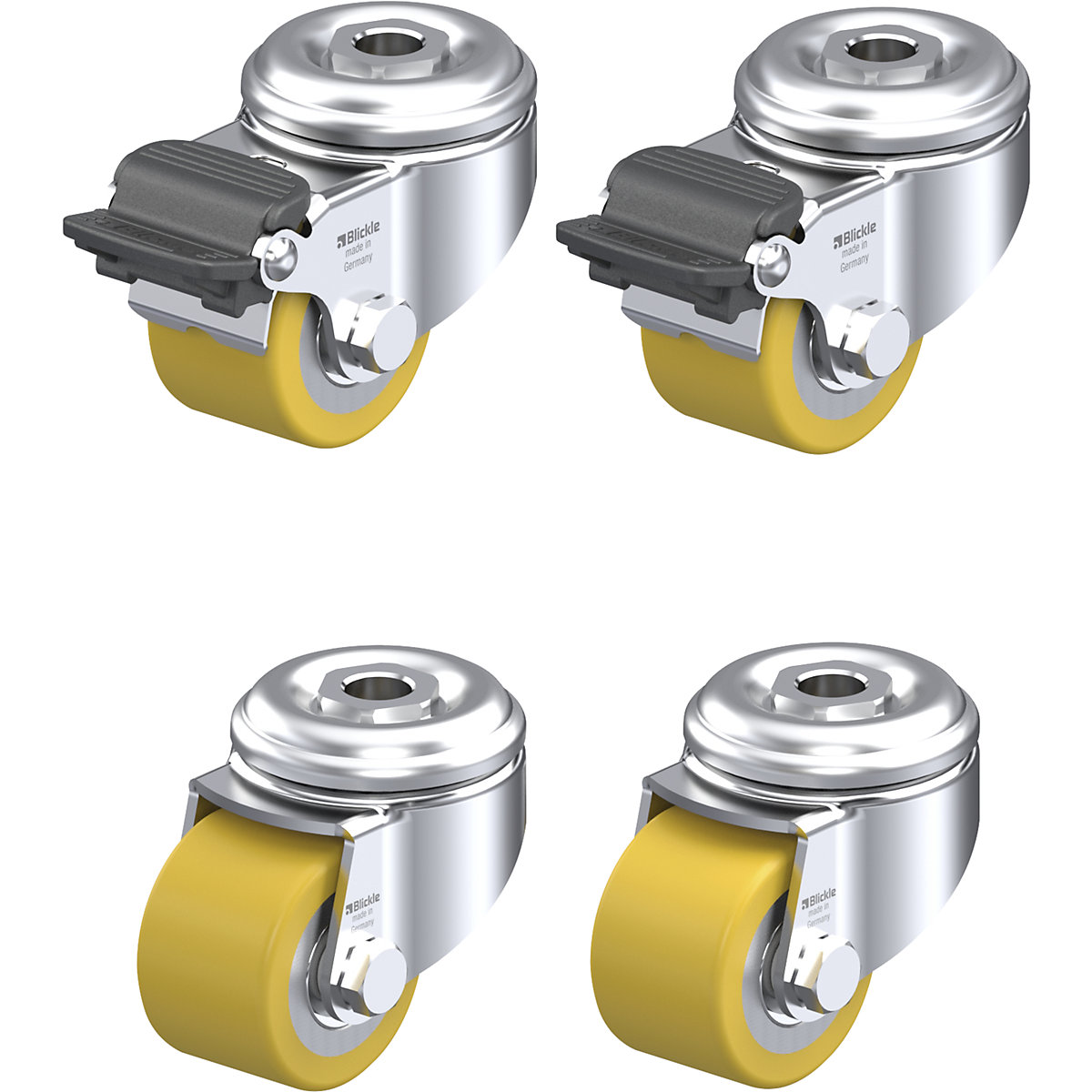

Light duty castor set LKRA-VSTH 50K max. load 150 kg

Light duty castor set LKRA-VSTH 50K

wheel Ø 50 mm

New
on request
Price / item (Ex. VAT)

Availability: 5-8 Working Days
Product description
  • Blickle Extrathane® polyurethane tread
  • Leaves no signs of wear on the base
  • High chemical resistance to many aggressive media
Appliance castor set LKRA-VSTH 50K: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free. The double ball bearing in the swivel head with swivel head seal features minimal swivel head play, smooth running, and a long service life due to the special dynamic Blickle riveting. The yellow tread is made of high-quality polyurethane elastomer Blickle Extrathane®, is non-marking, non-staining, and has a hardness of 92 Shore A. The wheel body is made of steel. Furthermore, the swivel castor is characterised by a very high chemical resistance against many aggressive media. The temperature resistance ranges from –20 °C to +70 °C, and temporarily up to +90 °C. There is a reduced load capacity at temperatures above +40 °C.
Technical data
Wheel diameter50 mm
Structureswivel castor with wheel stop fixed castor
Wheel materialpolyurethane (PU) – elastic
Material of rimsteel
Type of mountingwith bolt hole
Housing materialsheet steel
Max. load at 4 km/h150 kg
Wheel width33 mm
Overall height70 mm
Wheel bearingball bearing
Temperature resistance–20 °C to +70 °C
Swivel castor offset29 mm
Modellight duty castors
Bolt hole diameter13 mm
Plate diameter57 mm
Housing surfacezinc plated
Shore hardness92 Shore A
Running surface colouryellow
Featurechemical resistant non-marking
Product typeswivel castors
Suppliedassembled
Weight2.1 kg
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .
CriteriaWeightingScore
Icon Climate protectionClimate protection30%5.9
Icon Circulatory economyCirculatory economy30%2.0
Icon BiodiversityBiodiversity25%2.0
Icon Economic efficiencyEconomic efficiency10%0.0
Icon InnovationInnovation5%3.9
Overall score3.6
