Ref.: 858275 10

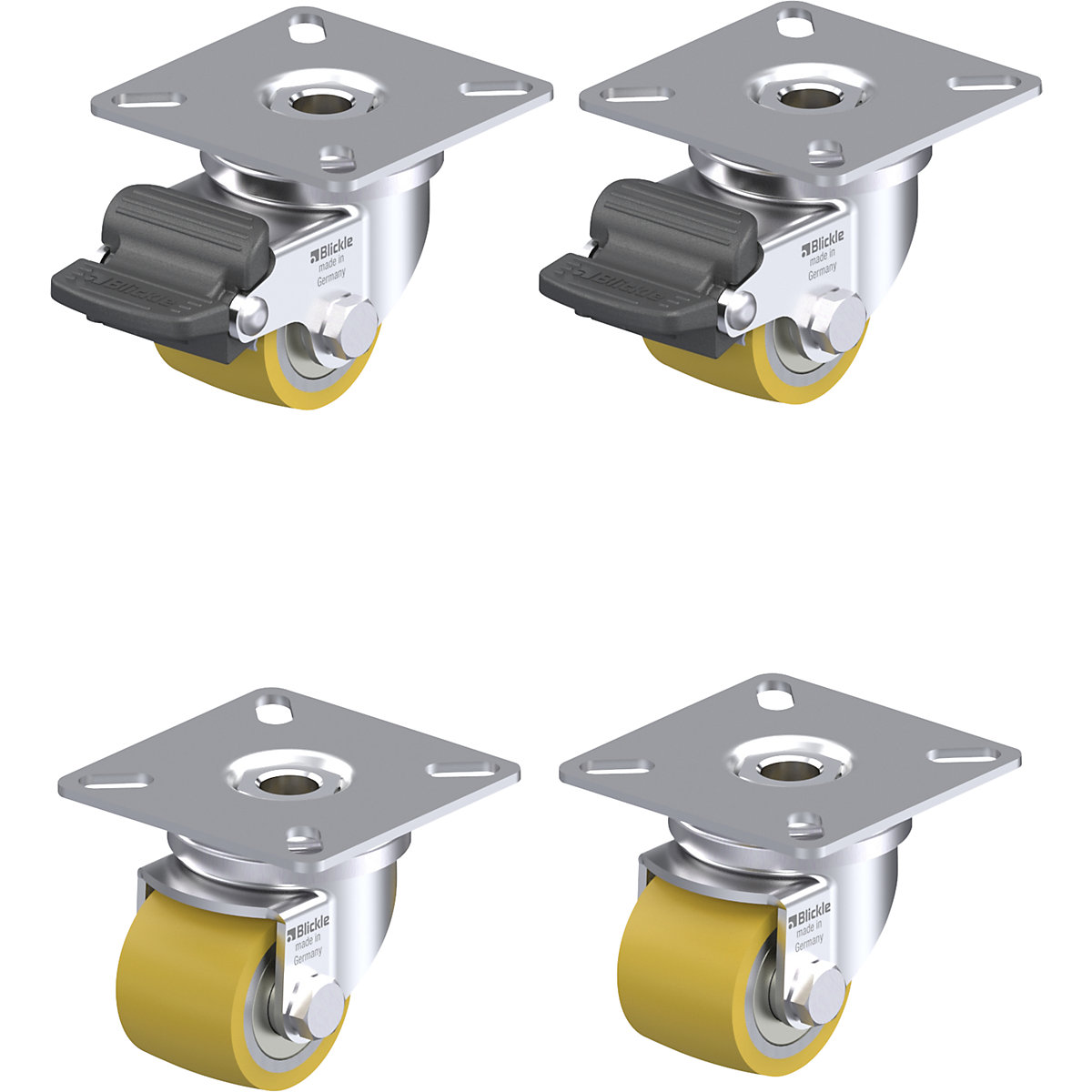

LPA-vsth 35K light duty castor set max. load 100 kg
wheel Ø 35 mm
Ref.: 858275 10
LPA-vsth 35K light duty castor set max. load 100 kg
wheel Ø 35 mm

wheel Ø 35 mm
New
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Blickle Extrathane® polyurethane tread
- Leaves no signs of wear on the base
- High chemical resistance to many aggressive media
Light duty castor set LPA-VSTH 35K: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free. The double ball bearing in the live ring with a live ring seal has minimal live ring play, smooth operation and a long service life due to the special dynamic Blickle riveting. The yellow tread is made of high-quality polyurethane elastomer Blickle Extrathane®, is non-marking, non-staining and exhibits a hardness of 92 Shore A. The wheel body is made of steel. Furthermore, the swivel castor features very high chemical resistance against many aggressive media. The temperature resistance ranges from –20 °C to +70 °C, and also briefly up to +90 °C. There is a reduced load capacity at temperatures above +40 °C.
Technical data
| Wheel diameter | 35 mm |
|---|---|
| Structure | swivel castor with wheel stop fixed castor |
| Wheel material | polyurethane (PU) – elastic |
| Material of rim | steel |
| Type of mounting | with top plate |
| Housing material | sheet steel |
| Max. load at 4 km/h | 100 kg |
| Wheel width | 27 mm |
| Overall height | 52 mm |
| Wheel bearing | ball bearing |
| Temperature resistance | –20 °C to +70 °C |
| Swivel castor offset | 15 mm |
| Screw hole diameter | 6.2 mm |
| Model | light duty castors |
| Fixed castor plate dimensions | 60 x 60 mm |
| Swivel castor plate dimensions | 60 x 60 mm |
| Screw hole spacing | 38 x 38 / 48 x 48 mm |
| Housing surface | zinc plated |
| Shore hardness | 92 Shore A |
| Running surface colour | yellow |
| Feature | chemical resistant non-marking |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 1.02 kg |
