Access barrier with gas pressure spring pendulum support

  • Compact design – no protruding counterbalance weight
  • Comfortable opening and closing due to double cylinder gas pressure spring
  • Locks in open and closed position for safety

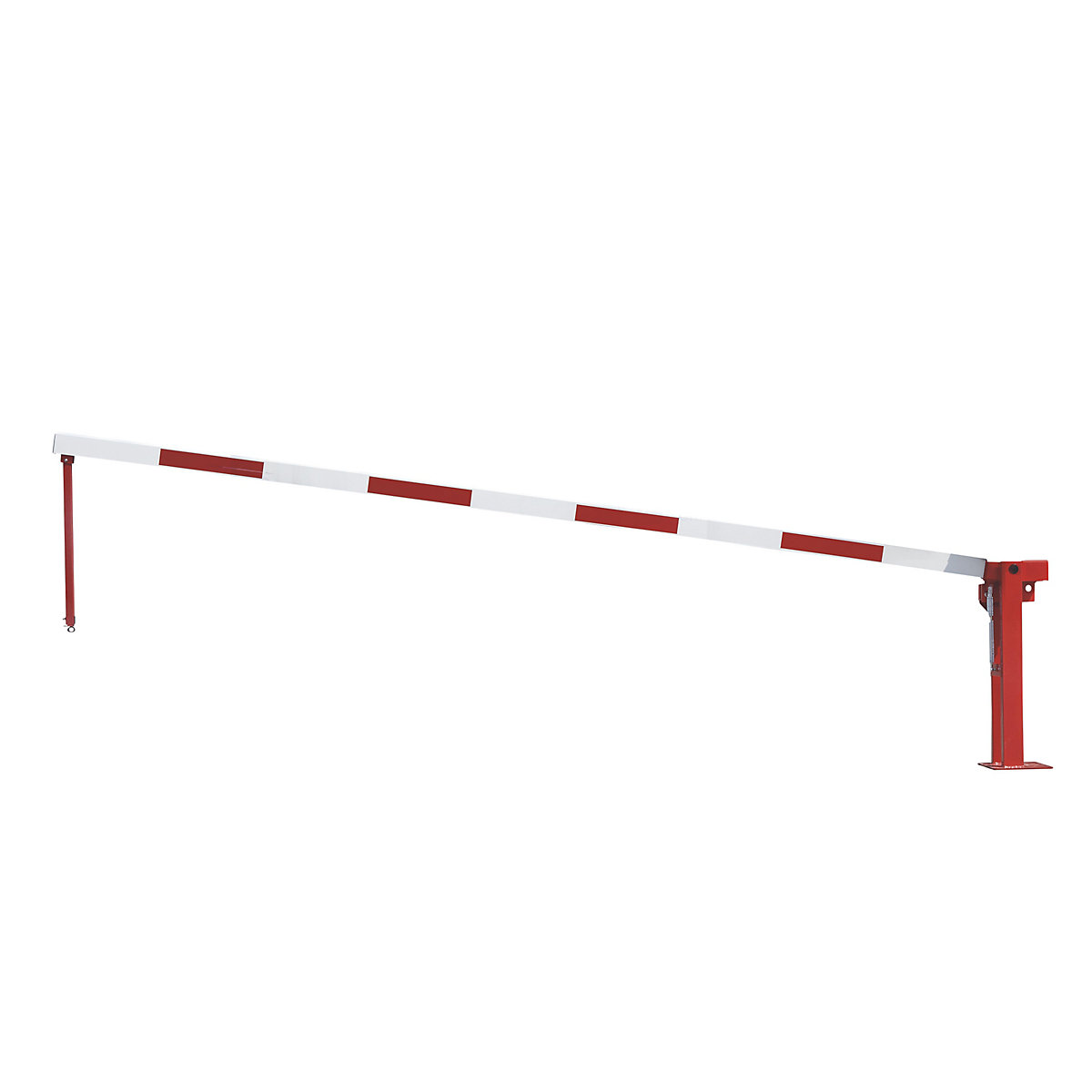

Access barrier with gas pressure spring, pendulum support, barrier beam length 3 m
Price / items (Ex. VAT)
from
1.175,00 €

Product description
+
Barrier beam
Rectangular aluminium tubing, one-piece, 90 x 60 mm. Non-seizing. Powder coated in pure white RAL 9010.
Reflective film on both sides.

Main post to bolt in place
All steel parts zinc plated. Powder coated in flame red RAL 3000.

Securing
With a round cylinder lock as standard, 2 keys incl. Triangular lock available (extra cost). Please ensure that you specify the preferred type of lock when ordering your barriers.


Foundation work to be performed by customer.

Aluminium pendulum support
Spring loaded, silver anodised.
  • Compact design – no protruding counterbalance weight
  • Comfortable opening and closing due to double cylinder gas pressure spring
  • Locks in open and closed position for safety
Technical data
+
Post materialsteel
Colourred
white
Type of mountingfor bolting in place
Modelwith pendulum support
Lock typebarrier with round cylinder lock
Finishzinc plated and powder coated
Barrier boom profilerectangular, 90 x 60 mm
Barrier boom materialpowder coated aluminium
Method of operationmanual
Suppliedflat pack
