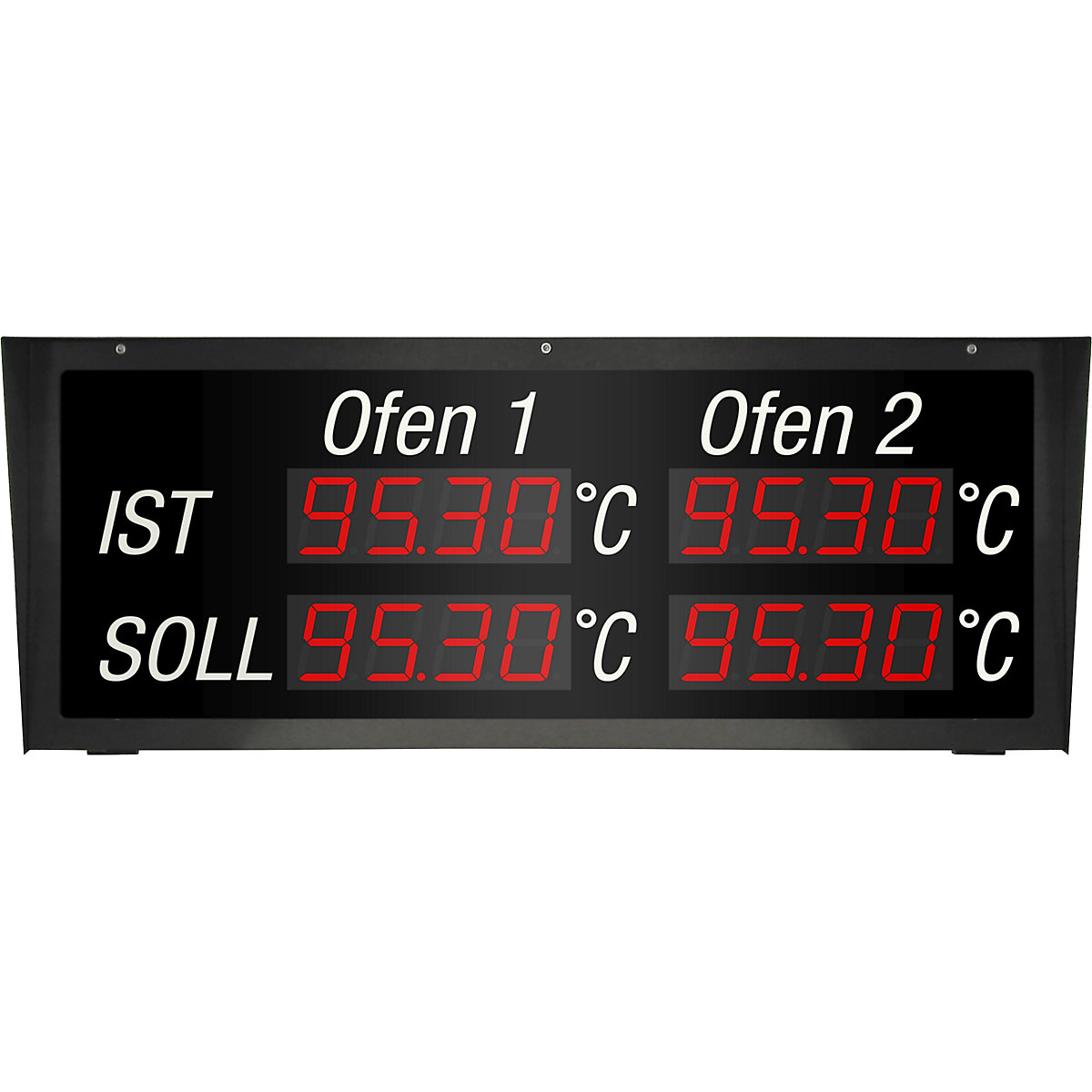

LED industrial display, SET-ACTUAL

HxWxD 1350 x 550 x 286 mm
  • Ultra bright LED display
  • Glare free PMMA filter glass
Ref.: 485532 49
LED industrial display, SET-ACTUAL, HxWxD 1350 x 550 x 286 mm, black
Price / items (Ex. VAT)
5.700,00 €

Product description
+
Technical details:

– Single sided display
– Number of positions 4 x 4
– Number of lines 2 + fixed lettering
– Digit height 100 mm
– Format 4 x 8888
– Reading distance approx. 40 m
– Fixed lettering in acc. with specifications
– Type of display: ultra bright 7-segment module, suitable for indoors
– LED colour red
– Viewing angle 120°
– Housing protection class IP65
– Zinc plated steel housing, powder coated in black
– Front cover glare free PMMA filter glass, 5 mm
– Communication interface Profibus DP
– Connection voltage 230 VAC
– Industrial connections 1 x 230 VAC, 1 x Profibus DP input, 1 x Profibus DP output, 1 Profibus DP load resistor
– Fastenings for wall mounting (including tilting bracket)
  • Ultra bright LED display
  • Glare free PMMA filter glass
Technical data
+
Width550 mm
Height1350 mm
Depth286 mm
Colourblack
Housing materialsheet steel, galvanised
Suppliedassembled
Weight50 kg
