Ref.: 969270 10

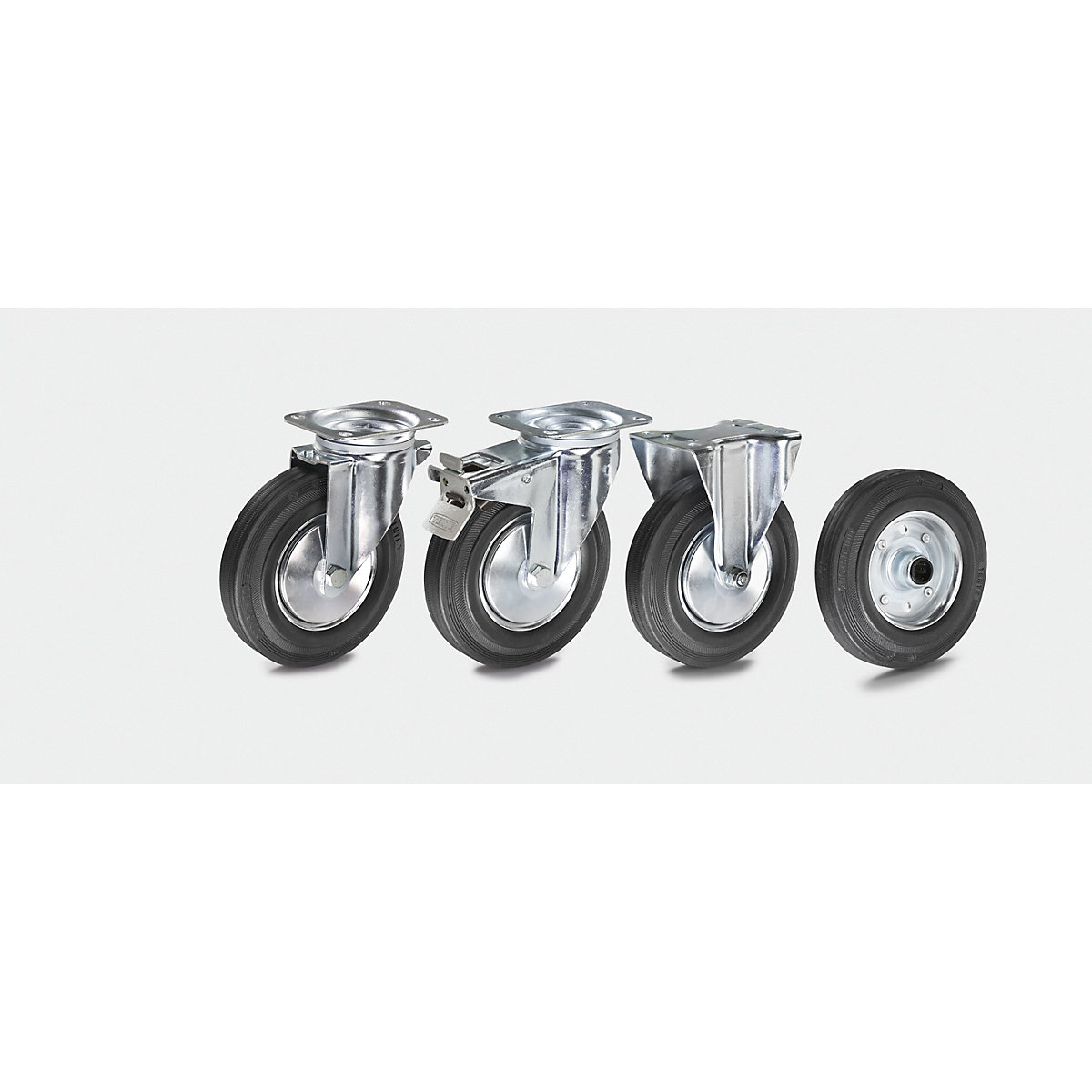

Solid rubber tyre – TENTE wheel Ø x width 160 x 40 mm
fixed castor
Structure
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 969270 10
Solid rubber tyre – TENTE wheel Ø x width 160 x 40 mm
fixed castor
fixed castor
26,90 €
Price / item (Ex. VAT)
Only 17 available
Availability: within 3 days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Product description
- On sheet steel rims
- For light to medium duty requirements
- Very quiet on hard floors
- Hardness 85 Shore A
- Temperature resistant from –5 °C to +60 °C
Also available as electrically conductive models on request.
Swivel bearing with double ball race, swivel bearing protection.
Technical data
Wheel diameter | 160 mm |
---|---|
Wheel material | rubber – solid rubber |
Material of rim | sheet steel, bright zinc plated |
Housing material | steel |
Max. load at 4 km/h | 135 kg |
Type of mounting | with top plate |
Wheel width | 40 mm |
Overall height | 200 mm |
Wheel bearing | roller bearing |
Temperature resistance | –5 °C to +60 °C |
Screw hole diameter | 11 mm |
Hub length | 58 mm |
Hub bore | 20 mm |
Fixed castor plate dimensions | 137 x 115 mm |
Swivel castor plate dimensions | 137 x 105 mm |
Screw hole spacing | 105 x 75 – 80 mm |
Housing surface | zinc plated blue passivated |
Shore hardness | 85 A |
Feature | does not damage floors |
Product type | transport castors |
Supplied | assembled |
Structure | fixed castor |
Weight | 1.98 kg |
