Ref.: 736180 10

ECO PLANO II ceiling fan rotor blade Ø 1320 mm, extra flat design

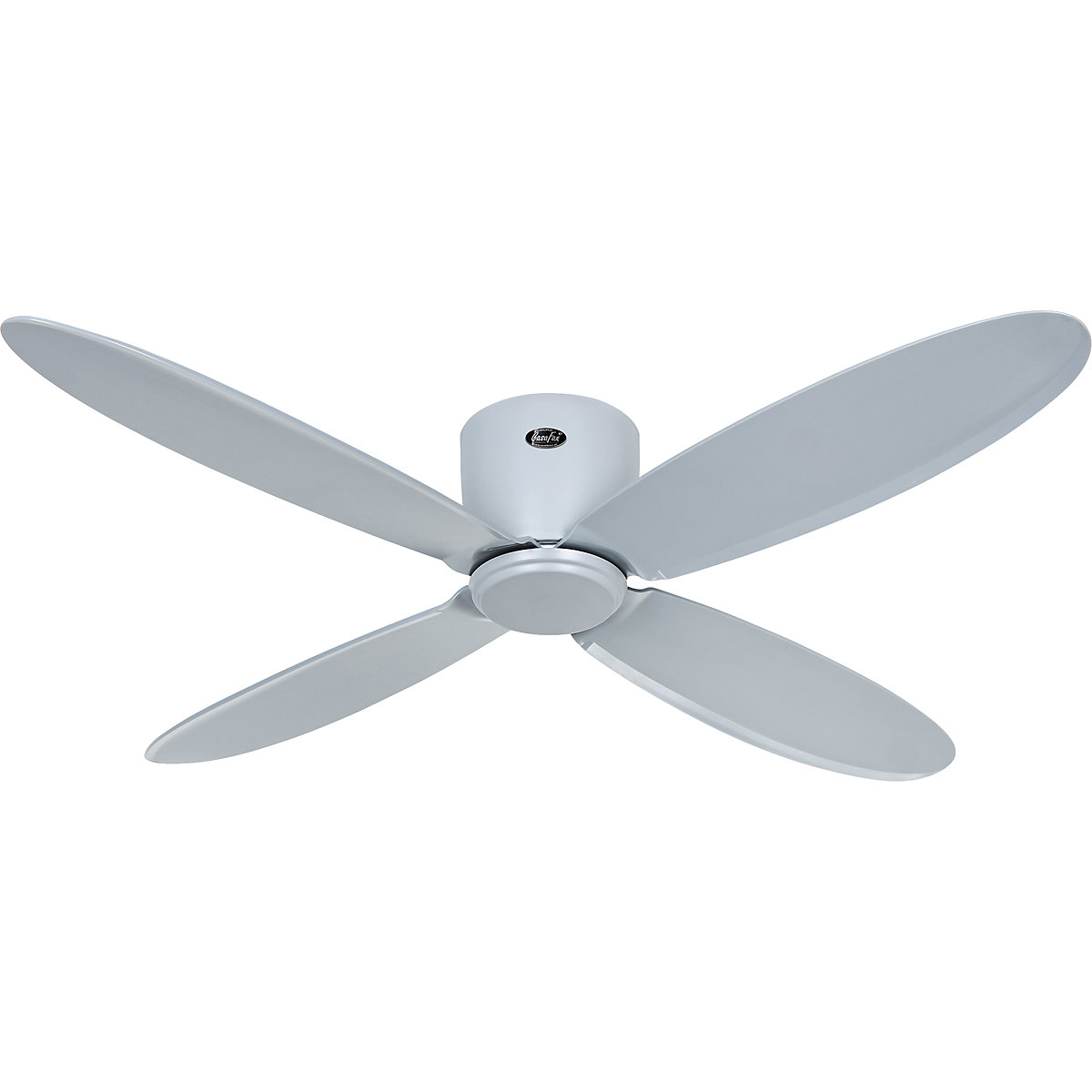

ECO PLANO II ceiling fan
ECO PLANO II ceiling fan, rotor blade Ø 1320 mm, extra flat design, light grey-0

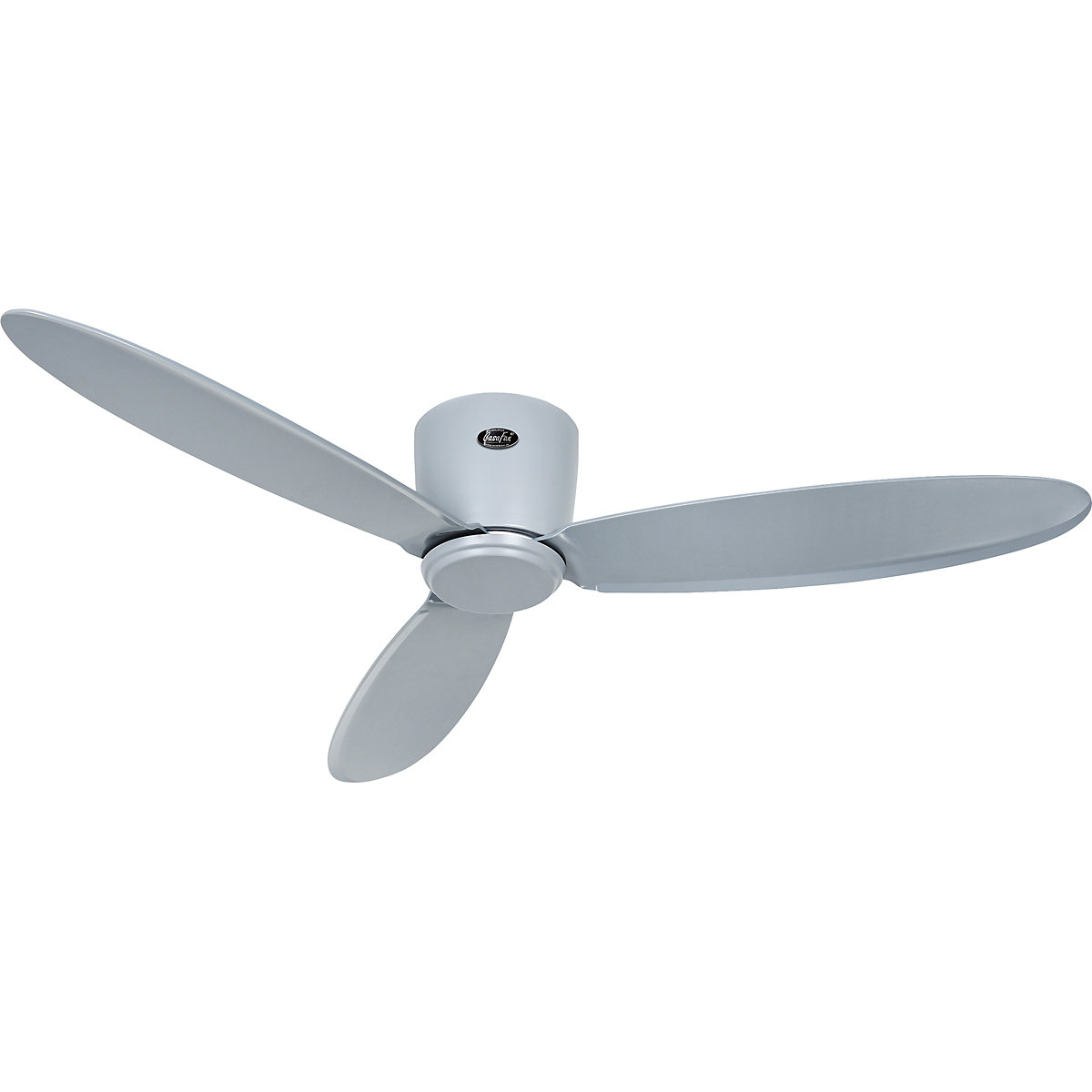

ECO PLANO II ceiling fan (Product illustration 2)-1

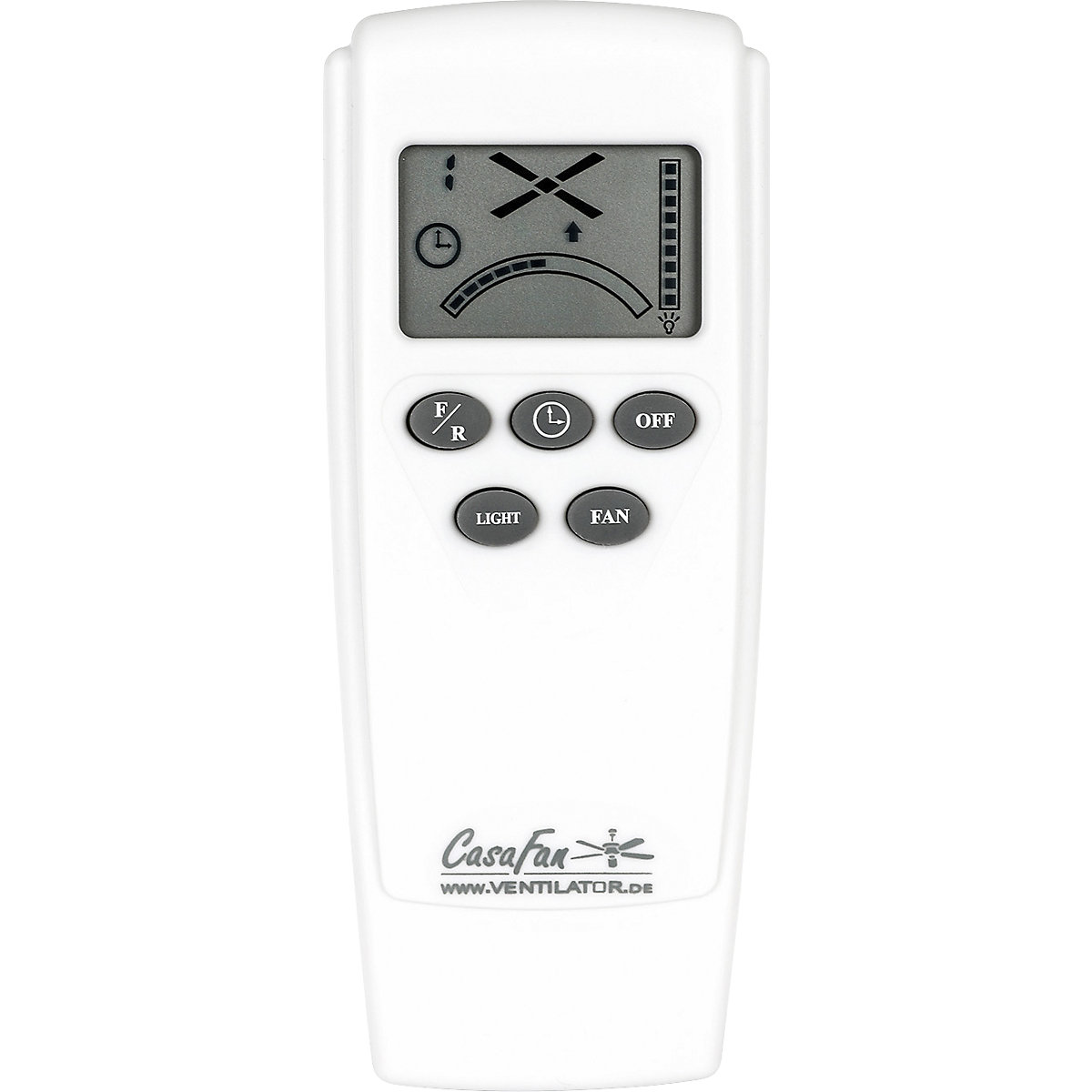

ECO PLANO II ceiling fan (Product illustration 3)-2

light grey

525,00 €
Price / item (Ex. VAT)


Product description
State-of-the-art, energy saving DC/EC motor. For low rooms, the distance between ceiling and fan blade is 200 mm.

Performance data:
Speed setting 1 = 30 rpm / power consumption setting 1 = 1.1 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 2 = 63 rpm / power consumption setting 2 = 2.3 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 3 = 98 rpm / power consumption setting 3 = 5.0 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 4 = 131 rpm / power consumption setting 4 = 9.5 watts / sound power level LW = 37.7 dB(A) ² ³ / sound pressure level LP –3 m = 17.2 dB(A)² ³
Speed setting 5 = 165 rpm / power consumption setting 5 = 16.6 watts / sound power level LW = 44.8 dB(A) ² ³ / sound pressure level LP –3 m = 24.3 dB(A)² ³
Speed setting 6 = 207 rpm / power consumption setting 6 = 28 watts / sound power level LW = 51.1 dB(A) ² ³ / sound pressure level LP –3 m = 30.6 dB(A)² ³

Air speed 1.5 m above floor = 2.44 m/s. The maximum air speed is specified at the highest setting at a height of 1.5 m above the floor in a room 3 m high. This will help you estimate draughts that will occur at head height when sitting under the ceiling fan. This specification refers to the highest speed. Precise speed levels with as many settings as possible allows pleasant, draught-free operation even in winter by recirculating the warm air that is under the ceiling.

²Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach. The lower threshold for the measurement by the laboratory is 32 dB(A) for sound power LW and 15 dB(A) for the sound pressure LP –3 m.
³Because many ceiling fans on the market feature one or the other value in the specifications, we are providing the measured noise values as both sound power LW and sound pressure LP –3 m.
  • Extra flat design, also approved for use in the office for room heights of 2.5 m
  • For rooms from 15 to 22 m², high output of 7594 m³/h
  • 6 speed settings, forwards/reverse rotation (summer and winter mode) selected using remote control
  • Very energy efficient, service ratio 4.5 m³/min/W in accordance with EU Directive 206/2012
  • Lowest setting guarantee to not cause draughts, also ideal for recirculating heat in winter
  • 25-year manufacturer guarantee on the motor
  • Can only be installed on level ceilings
  • A fresh breeze, whether in the office or at home
Technical data
Product typeceiling fans
Rotor blade diameter1320 mm
Number of speed settings6
Max. speed207 rpm
Max. air volume7594 m³/h
Power0.028 kW
Sound pressure LPA (–3 m)30.6 dB(A)
Sound power LWA51.1 dB(A)
Fittingsremote control
Protection typeIP20
Height200 mm
Width1320 mm
Depth1320 mm
Mains voltage220 – 240 V / ~50 Hz
Ceiling-blade spacing200 mm
Number of blades2, 3, 4 pcs.
Number of blades included with delivery4 pcs.
Suppliedflat pack
Weight6.5 kg
Housing colourlight grey
Blade colourlight grey
