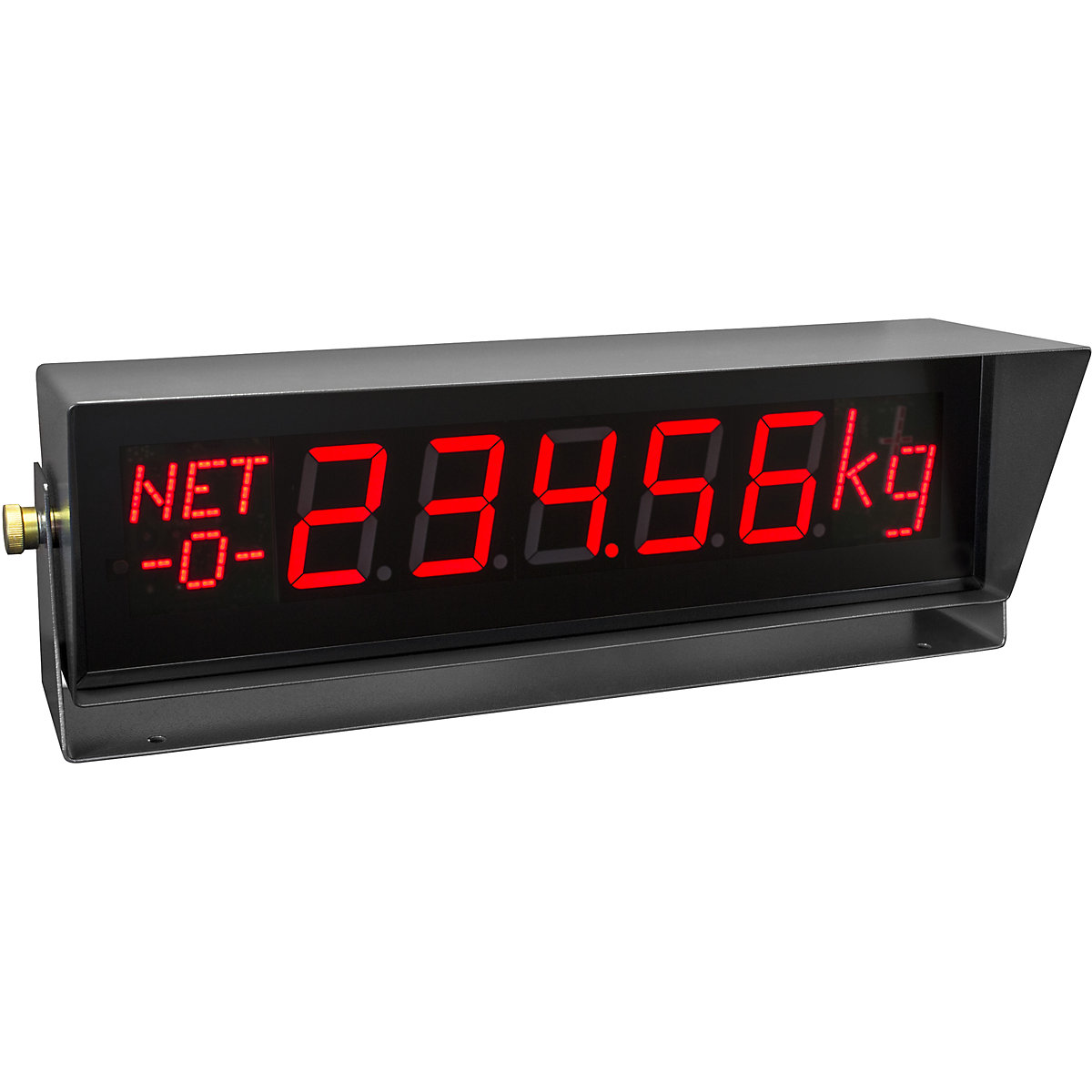

LED industrial display for scales

HxWxD 220 x 823 x 210 mm
  • Special symbols
  • Reading distance approx. 40 m
  • Special anti reflective front panel for high temperatures
Ref.: 485531 49
LED industrial display for scales, HxWxD 220 x 823 x 210 mm, black
Price / items (Ex. VAT)
3.590,00 €

Product description
+
NDI 100/5 W-HT R L65 230VAC Profibus DP, red LED display in 7-segment technology, as a version for standard light conditions, digit height 100 mm, single line, number of digits 5 with additional special symbols in LED version (net, -0-, g, kg, t), with Profibus DP interface including input connector for the cable, reading distance approx. 40 m, housings made of zinc plated, double walled sheet steel and a powder coated surface, protection class IP65, operating temperature range: –30 °C to +50 °C.

Mains voltage 230 VAC / 50/60 Hz.
  • Special symbols
  • Reading distance approx. 40 m
  • Special anti reflective front panel for high temperatures
Technical data
+
Width823 mm
Height220 mm
Depth210 mm
Colourblack
Housing materialsheet steel, galvanised
Suppliedassembled
Weight18 kg
