Ref.: 124033 10

Anti-Stat POP™ ESD table matting – NOTRAX blue, per metre

Anti-Stat POP™ ESD table matting – NOTRAX

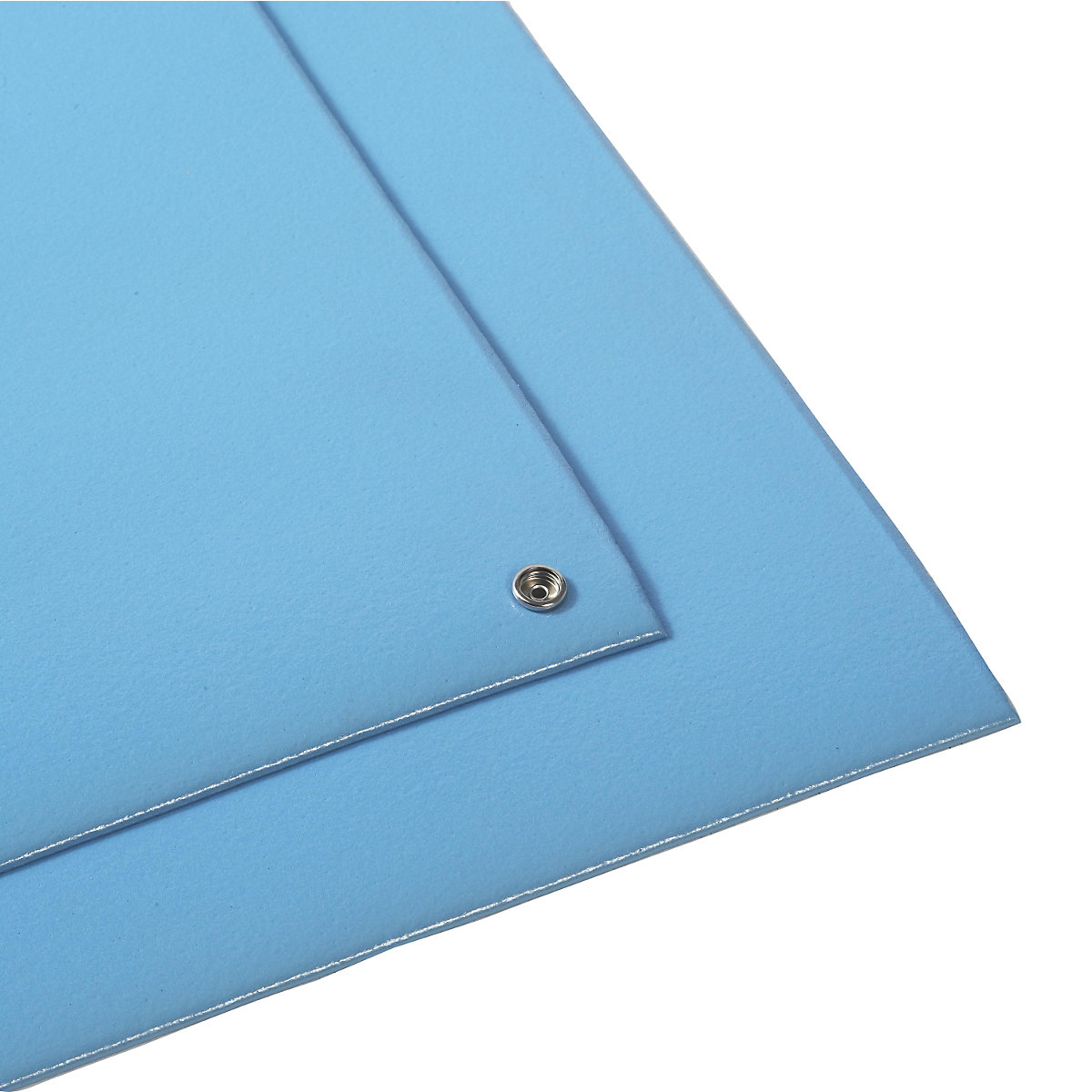

Anti-Stat POP™ ESD table matting – NOTRAX, blue, per metre, width 600 mm-0

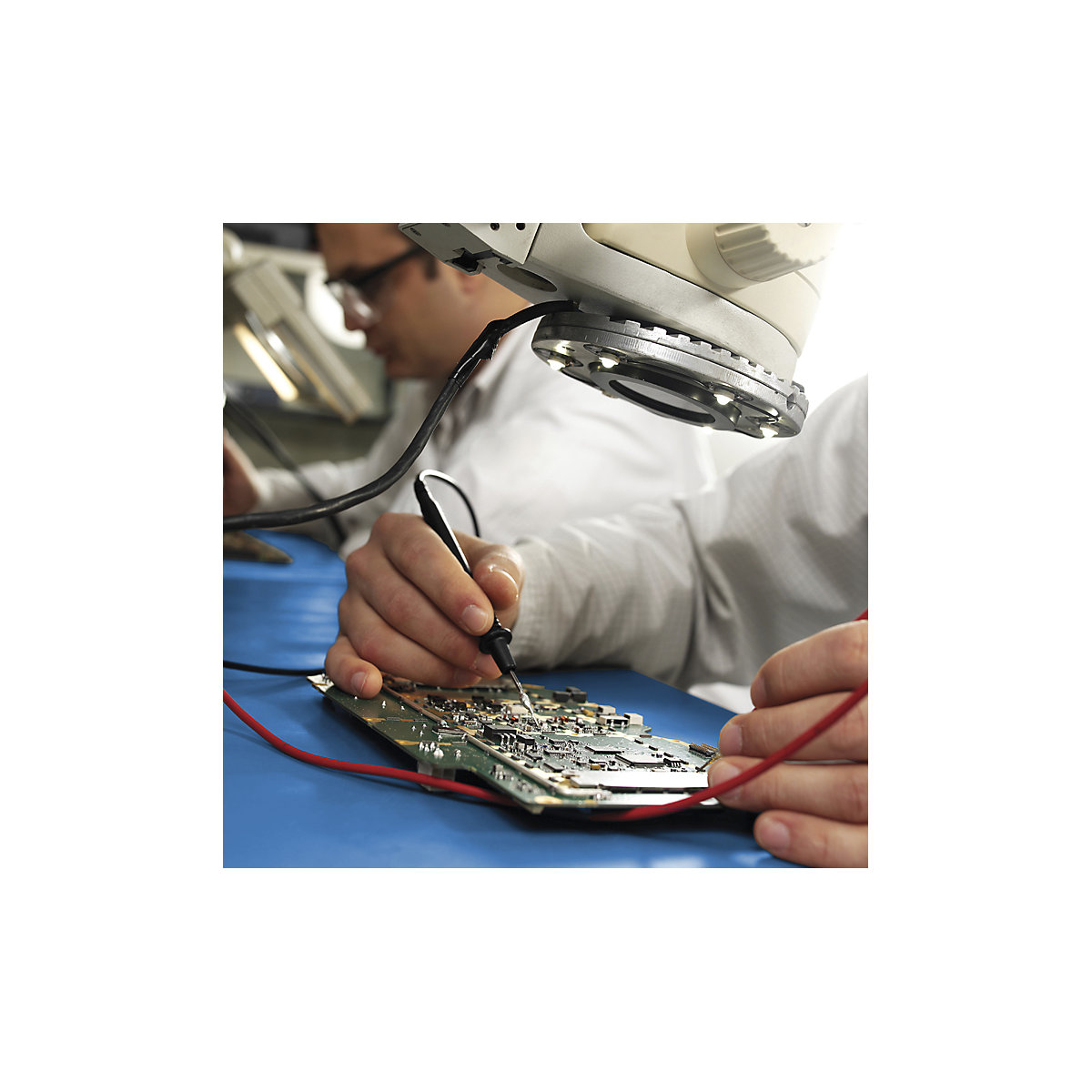

Anti-Stat POP™ ESD table matting – NOTRAX (Product illustration 2)-1

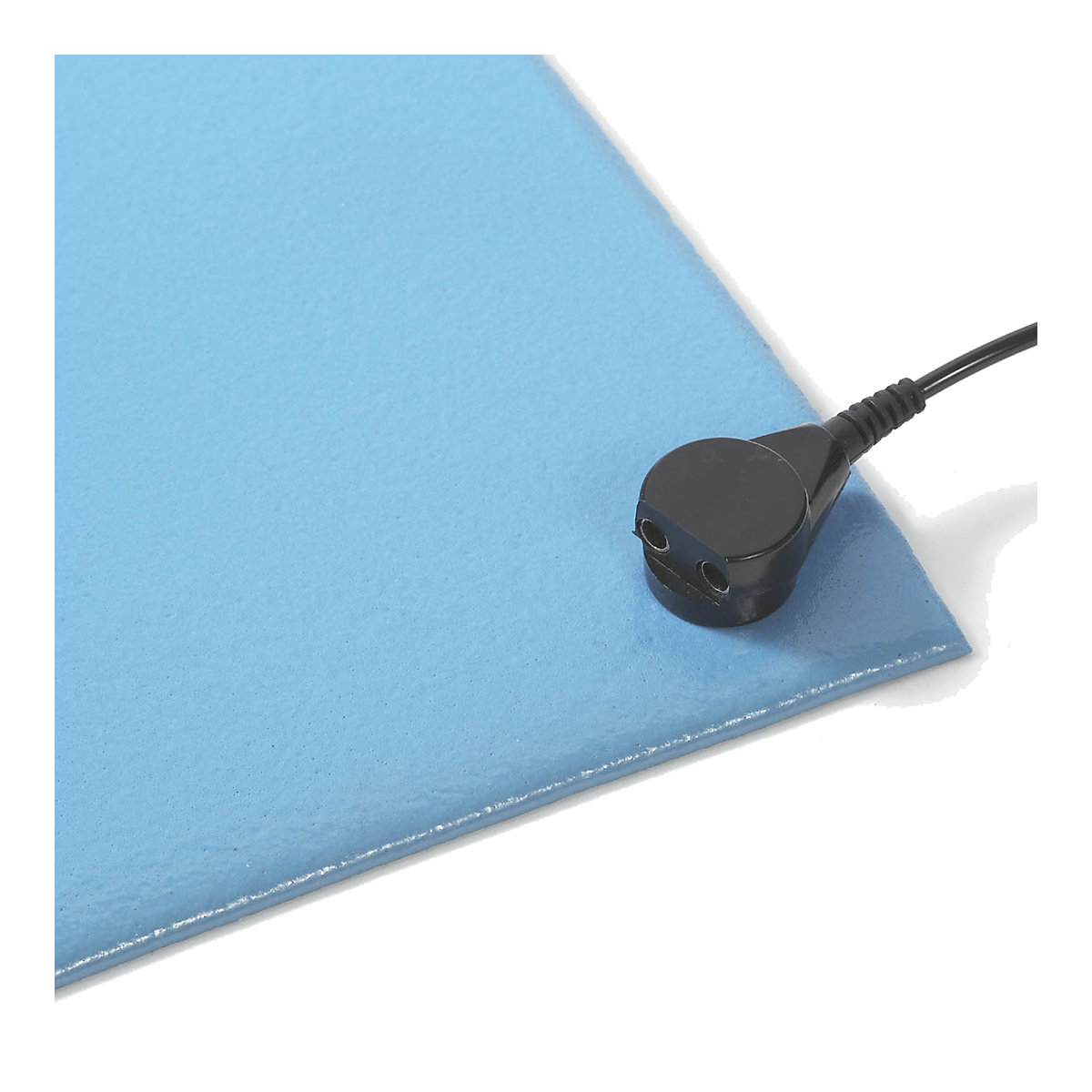

Anti-Stat POP™ ESD table matting – NOTRAX (Product illustration 3)-2

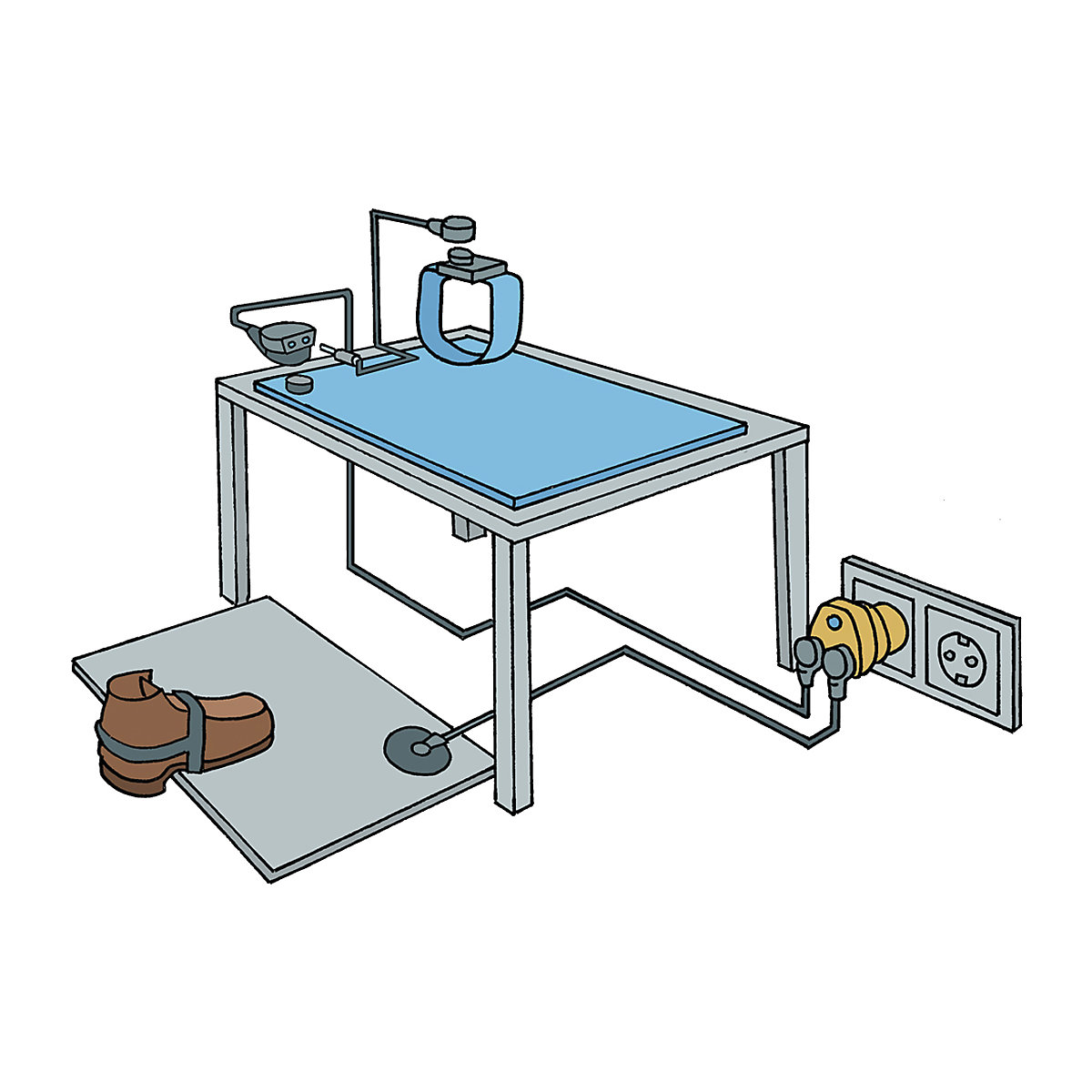

Anti-Stat POP™ ESD table matting – NOTRAX (Product illustration 4)-3

width 600 mm

Cut to size

m
63,90 €
Price / m (Ex. VAT)
63,90 €
/ m

Availability: 7-10 Working days
Product description
  • Protection for sensitive components from damage due to electrostatic discharge
  • Satisfies IEC 61340-4-1 (category DIF)
  • Resistant to many chemicals
  • Smooth, easy to clean surface
The table matting series for workplaces at which electrostatic discharges need to be effectively prevented. Use these mats to connect the tabletop, staff and conductive material to a shared earth point. This equalises the charge between all items and staff to ensure that static electricity flows to earth in a controlled manner. Protects the table and keeps sensitive components safe from damage caused by electrostatic discharge. The smooth surface is hardwearing and can be treated with the mat cleaner, which is available as an accessory. Microcellular vinyl foam. Compliant with EOS/ESD-S4, measured resistance Rg 10⁷ Ω and Rp 10⁸ Ω. Electrostatic charge (walk test) in accordance with ISO 6356 and EN 1815. Height 6.4 mm.
Please include wrist earthing cable (see accessories) with your order.
ATTENTION: if the mat is ordered without a wrist cable as an accessory, the product delivered will not feature an option for attaching the earthing cable (snap fastener). Subsequent use of an earthing cable will then not be possible.
Products cut to order may exhibit dimensional tolerances of up to ±5% depending on the material.
Products cut to order are produced specifically for you, and can therefore not be returned.
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Anti-static. This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Technical data
Height6.4 mm
Colourblue
MaterialPVC
Temperature resistance–10 °C to +70 °C
Max. roll length12.2 m
Surface weight3.63 kg/m²
Place of useindoor use
FeatureESD version
Surfaceclosed
Work areadry
Custom dimensions possibleno
Form of deliverycuts per metre
Product typemats, conductive
Suppliedassembled
Width600 mm
Weight2 kg
