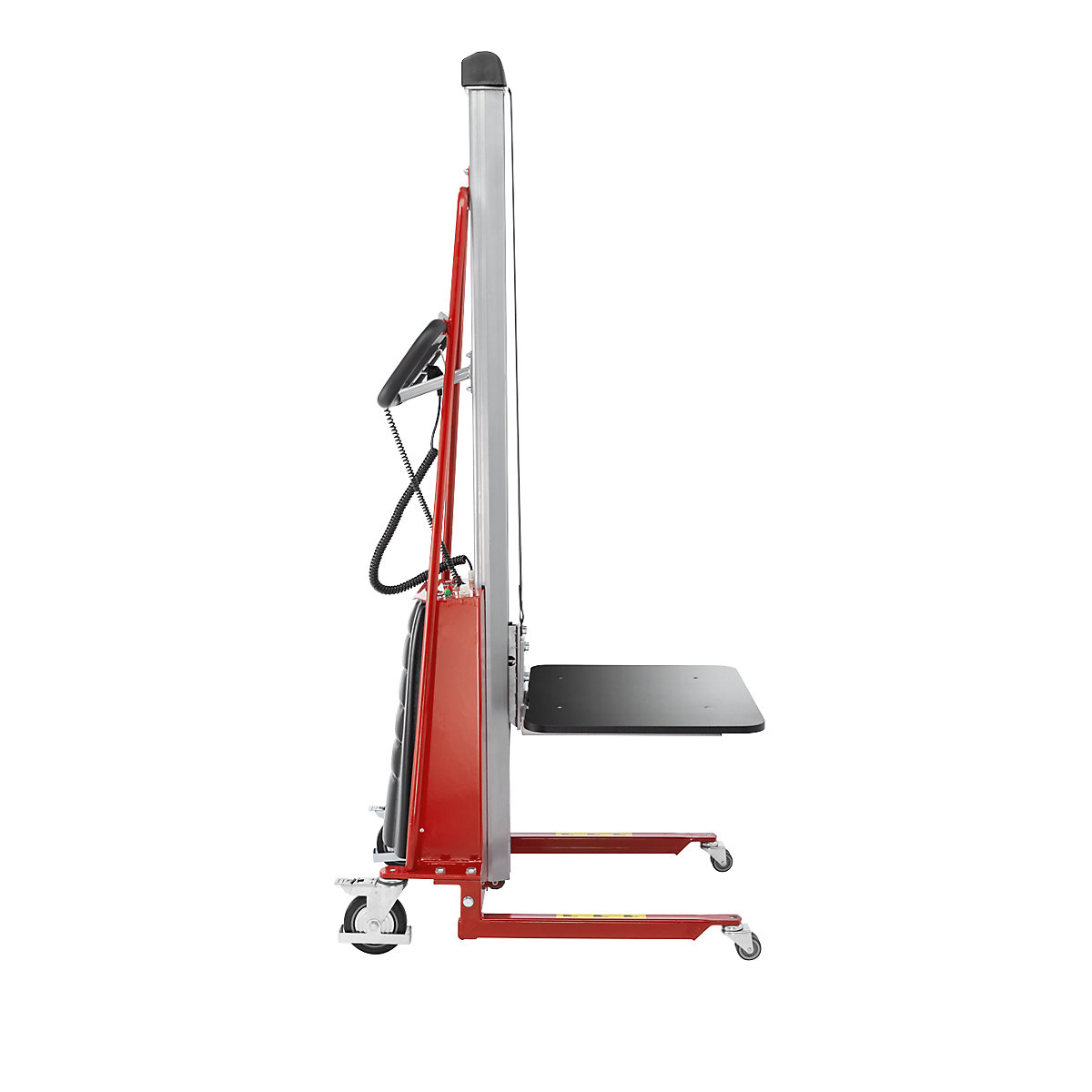

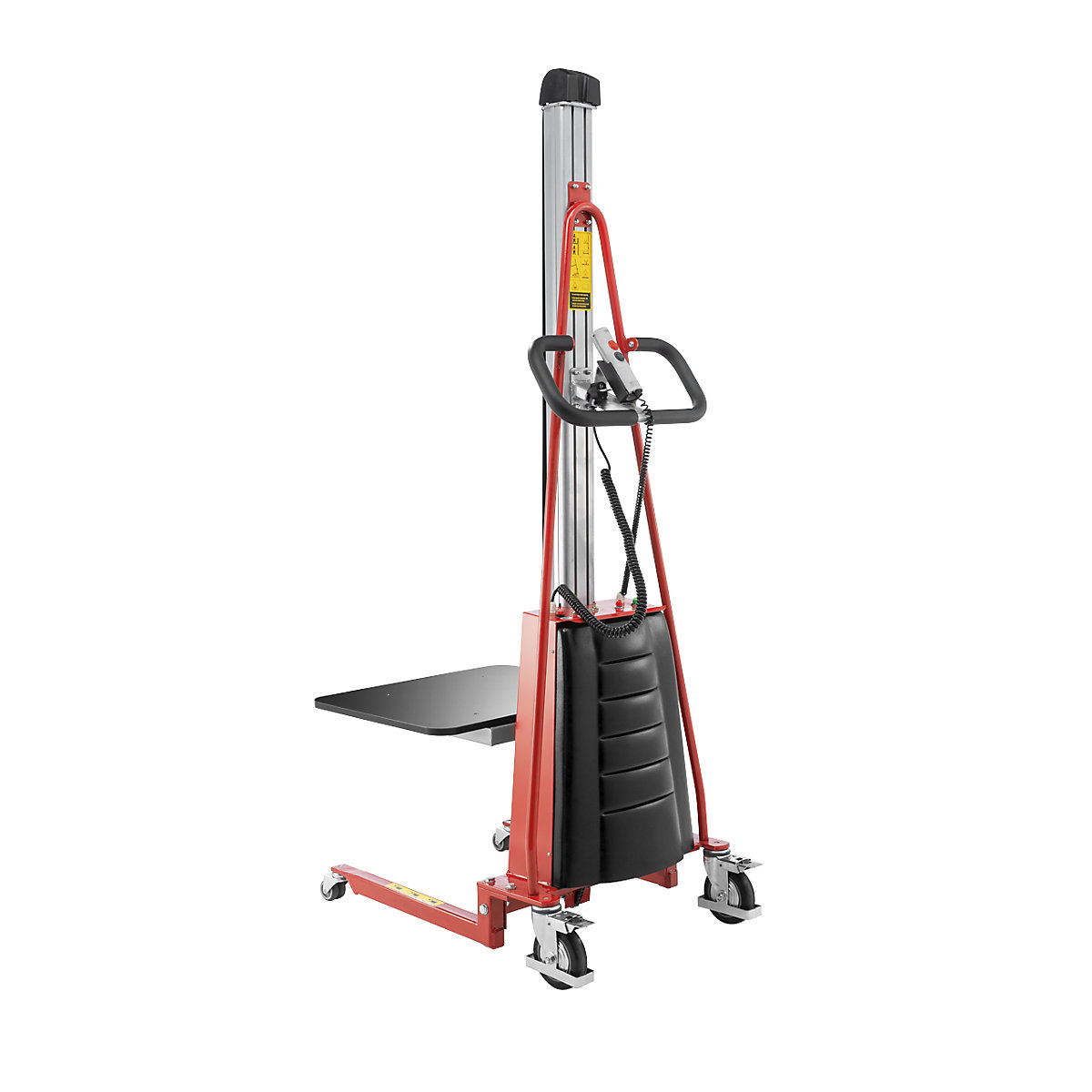

ECO mini lifter max. load 150 kg

  • Proven, durable technology
  • Supplied complete with nylon platform
  • Good manoeuvrability with 4 swivel castors
Ref.: 522827 49
ECO mini lifter, max. load 150 kg, lifting range 130 – 1500 mm
Price / items (Ex. VAT)
1.695,00 €

Product description
Mini lifters for electric lifting are used where heavy lifting jobs arise frequently. Maintenance free battery. Integrated charging device. Good manoeuvrability with 4 non-marking swivel castors with wheel stops and a well placed handle bar. This ensures it is extremely manoeuvrable even in narrow corridors. Can be positioned under Euro pallets.
Other accessories available.
  • Proven, durable technology
  • Supplied complete with nylon platform
  • Good manoeuvrability with 4 swivel castors
Technical data
Max. load150 kg
Load centre235 mm
Lifting range130 – 1500 mm
Overall length890 mm
Overall width600 mm
Overall height1780 mm
Min. lifting speed60 mm/s
Max. lifting speed70 mm/s
Clearance height85 mm
Featureelectric
Coloursignal red RAL 3001
Fittingsbattery
Battery24 V / 12 Ah
Battery charger110 – 240 V / 1.7 A

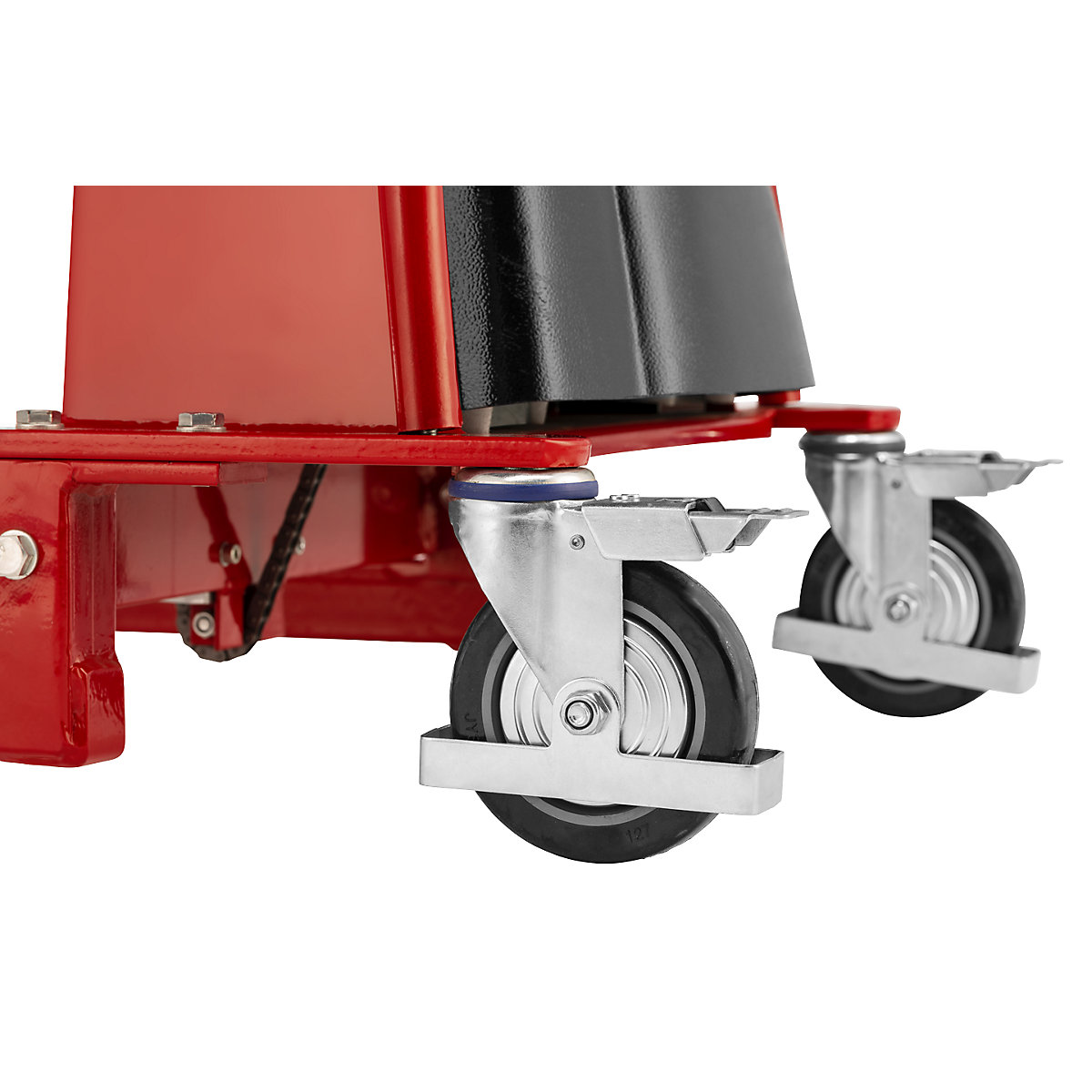

Wheel fittings4 swivel castors 2 with wheel stops
Castor diameter front / rear50 mm
Steering wheel diameter125 mm
Fork roller diameter50 mm
Weight63 kg
Wheel materialpolyurethane
Platform colourblack
Platform width600 mm
Platform length470 mm
Suppliedassembled
